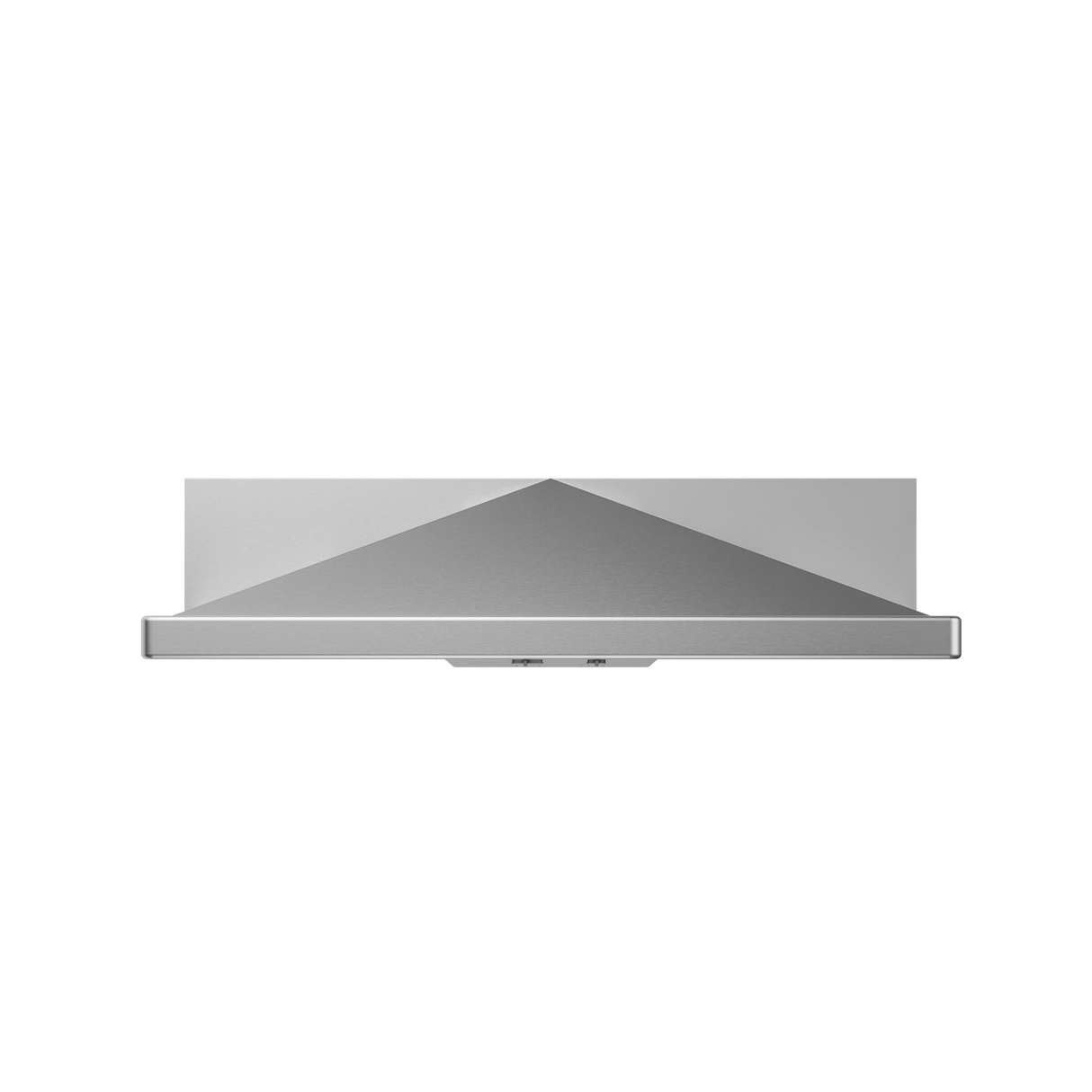

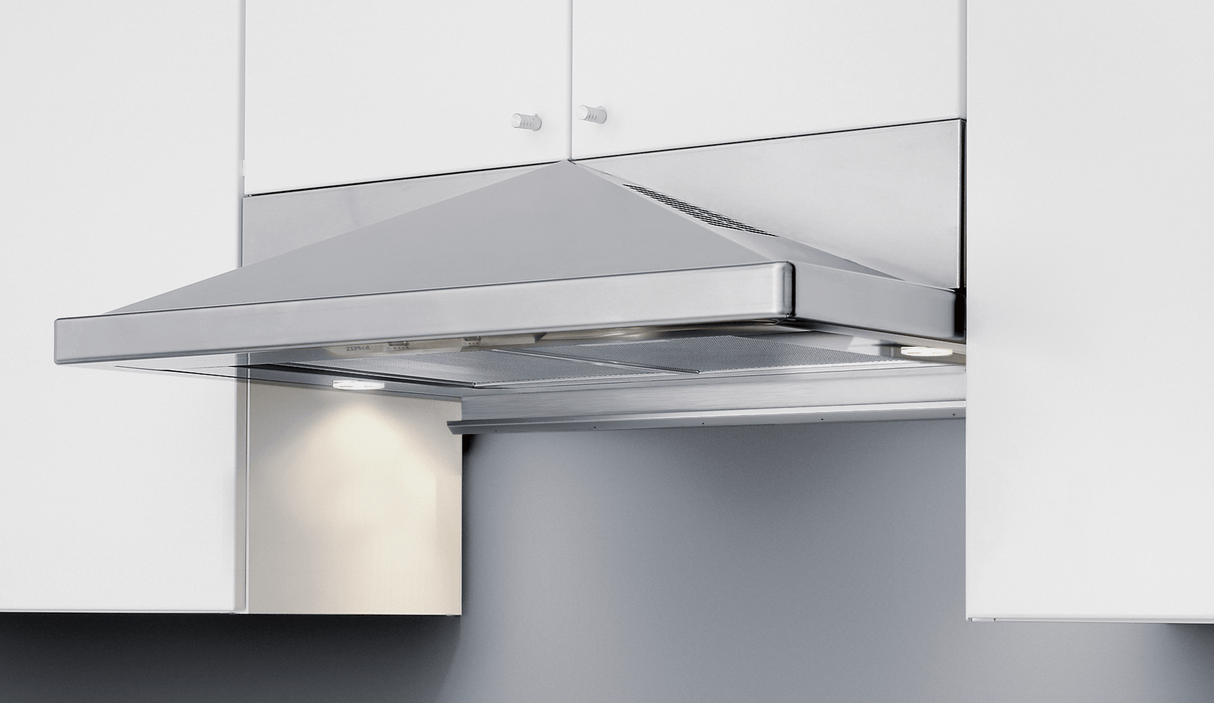

Pyramid, UC, 30", SS, 290
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : CONVERTIBLE HOOD
- Height : 10.25
- Depth : 21
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

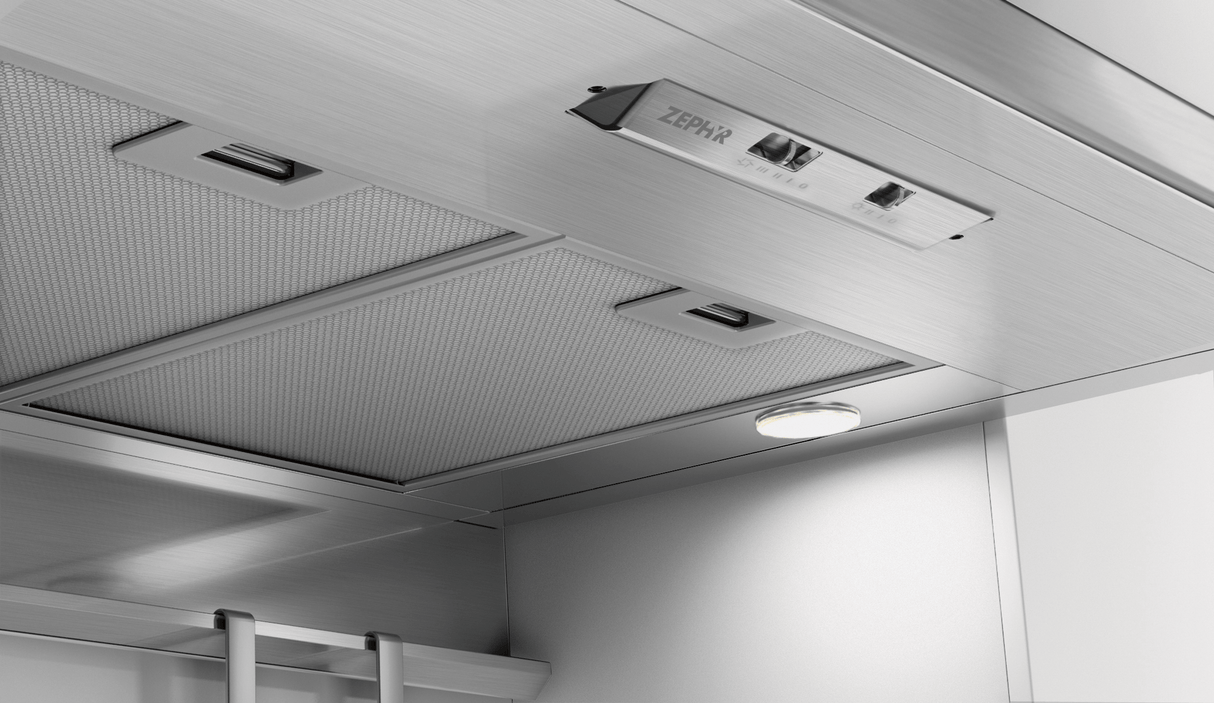

- Mechanical Slide Controls
- 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Adjustable Utensil Bar
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Dishwasher Safe Aluminum Mesh Filter
- Dual Level Halogen Lighting
- 3 Year Parts, 1 Year Labor Warranty
- With service at the forefront, we back our products with a generous 1-year labor and 3-year parts warranty.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Mechanical Slide Controls
- Adjustable Utensil Bar
- Vertical or horizontal ducting
- Dishwasher Safe Aluminum Mesh Filter
- Dual Level Halogen Lighting
- 3 Year Parts, 1 Year Labor Warranty
- Optional Ductless Recirculating Kit
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328000683 |
| GTIN | 00646328000683 |
| Country of Origin | Taiwan |
| Model Group | ZPY-A |
| Model Name | Pyramid Under-Cabinet |
| Collection | Core Collection |
| Replacement Model | ZPY-E30BS290 |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.1 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 210 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200030 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-0200, MUA006A, Z0B0040, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9375 |
| Net Depth; IN | 21 |
| Net Height; IN | 7.375 |
| Weight; LBS | 27.8 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 12.6 |
| Shipping Width; IN | 34.13 |
| Shipping Height; IN | 26.14 |
| Shipping Weight; LBS | 35.5 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
