Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Height : 9.5"
- Depth : 2"
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Value Driven
- Variable Speed Control Knob
- For the most convenient operation, set the blower to your favorite speed. Each time the vent rises, the blower will come on at your previously selected speed, remembering your last setting for ease of use.
- Decorative Mesh Filters
- High-quality mesh filters for an improved aesthetic.
- Auto On/Off Feature
- Automatically turns on or off when raising or lowering the air vent if control knob is turned on.
- Automatic Heat Sensor
- When chimney is up and blower is on or off: if the exhaust temperature becomes higher than expected, the Heat Sentry model will activate and increase the blower speed to high. Lowering the chimney will turn blower off - even if Heat Sentry is active.
- Powerful 500-CFM Blower
- The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Optional Remote Up/Down Control
- Optional up/down remote for use with select Zephyr range hoods. The convenient, accessible up/down remote control should be used when your cooktop has a burner that is within 4 inches of the up/down button on the downdraft chimney or can be used for general operation of the downdraft.
- Value Driven
- Variable Speed Control Knob
- Decorative Mesh Filters
- Auto On/Off Feature
- Automatic Heat Sensor
- Powerful 500-CFM Blower
- Optional Remote Up/Down Control
Brand | Zephyr |
Manufacturer | Zephyr |
Category | Range Hood |
Sub-Category | Downdraft |
Vent Type | Ducted |
UPC | 646328683039 |
GTIN | 00646328683039 |
Country of Origin | Mexico |
Model Group | DD1 |

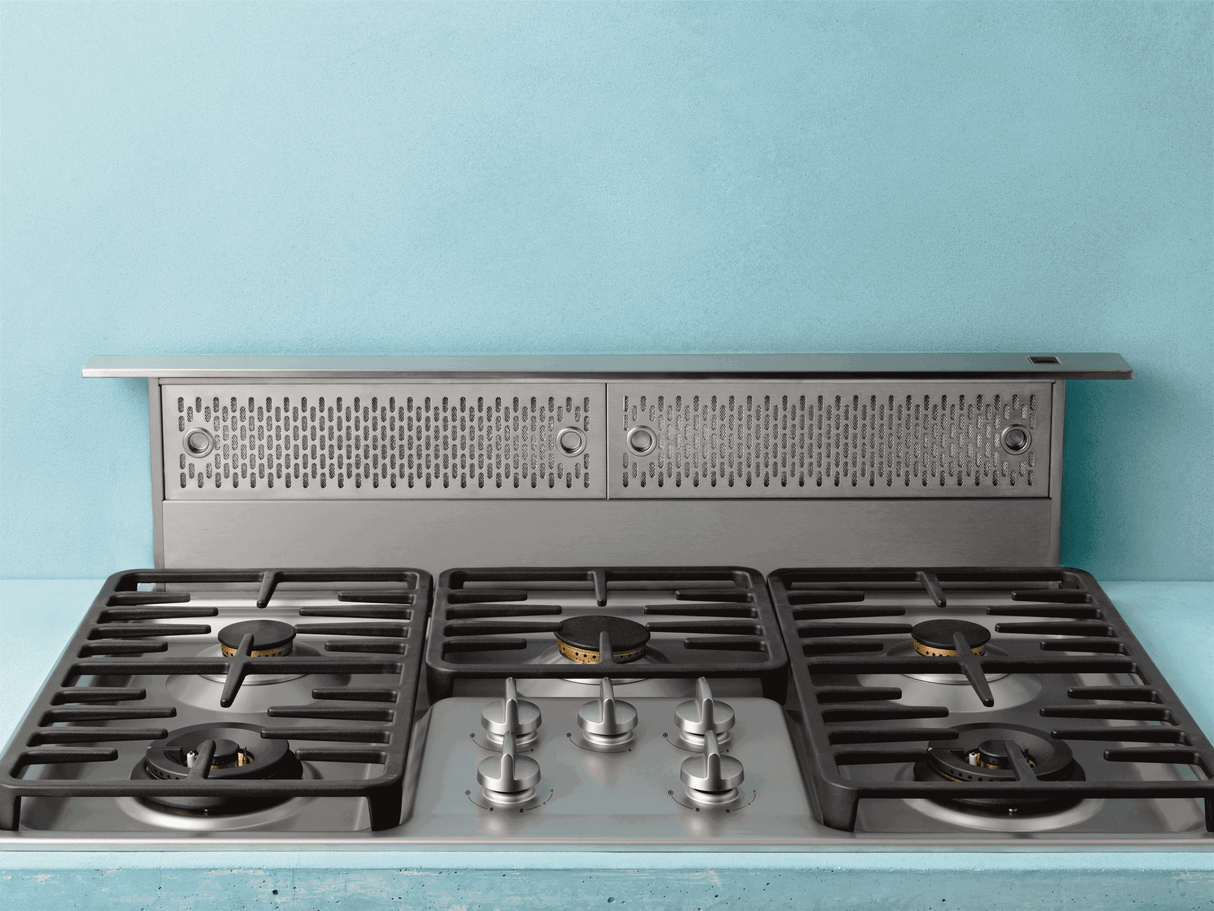

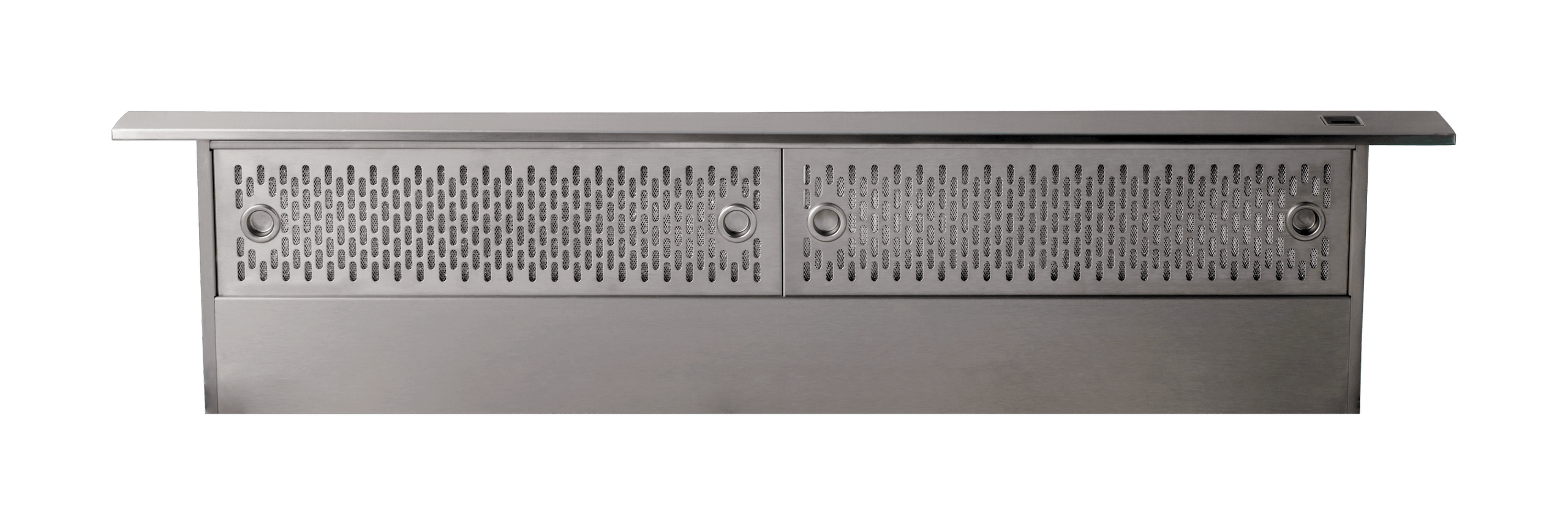

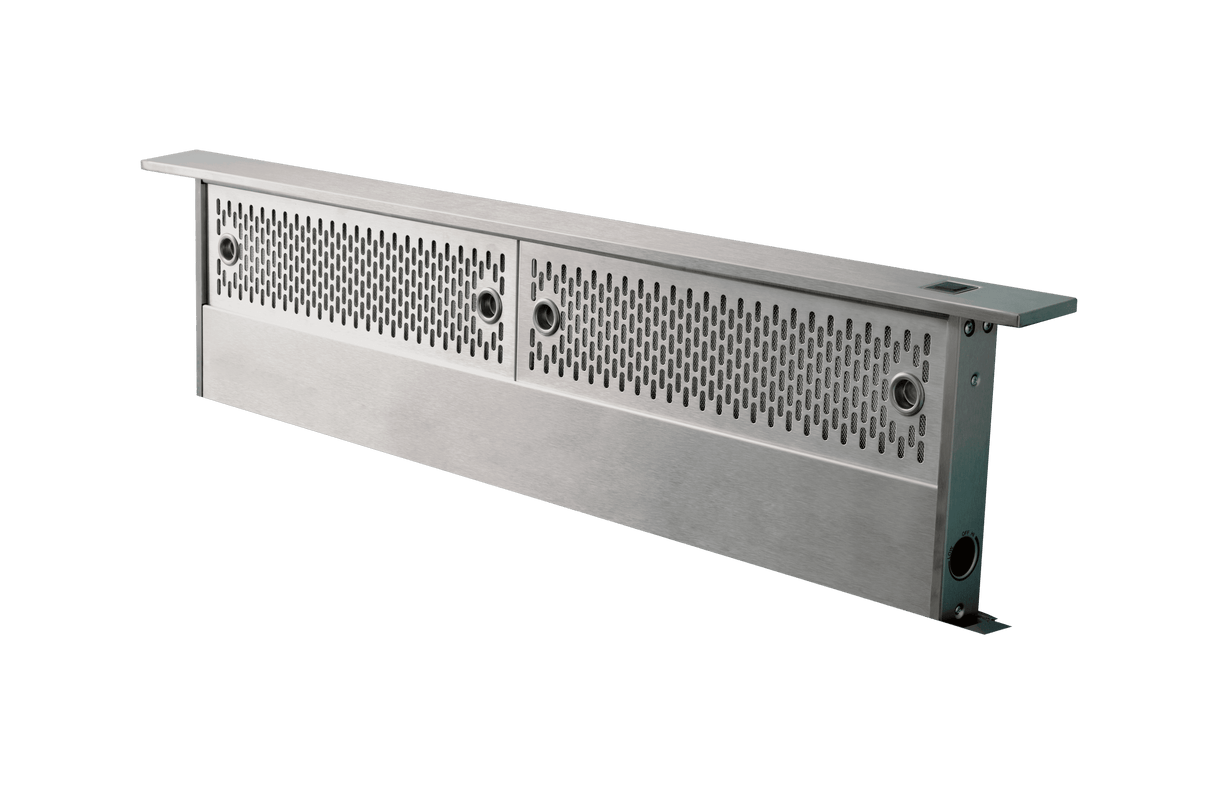

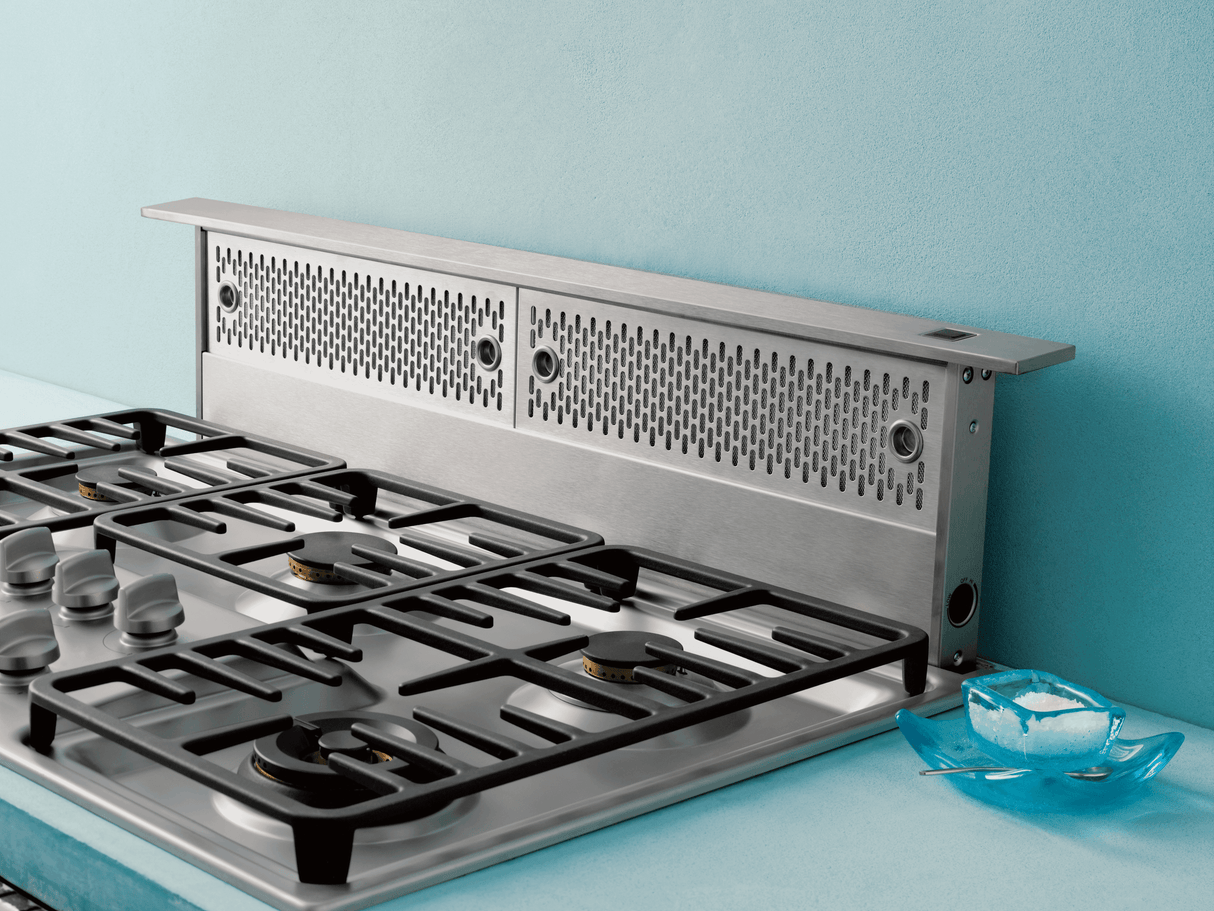

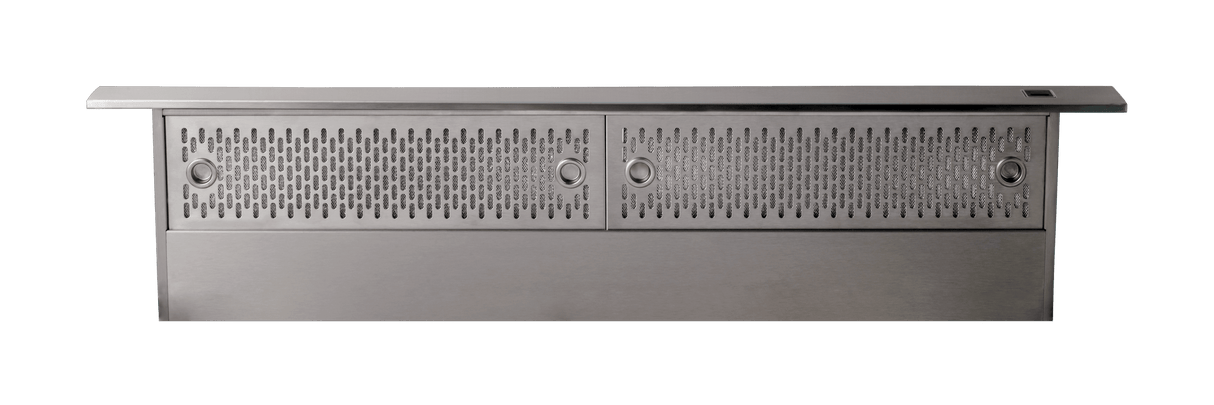

Model Name | Sorrento Downdraft |
Collection | Core Collection |
Blower Included | Yes |
Internal Blower 1 CFM | 500 |
Internal Blower 1 Min. Sones | 1 |
Internal Blower 1 Max Sones | 6 |
Minimum CFM | 100 |
Installation Type | Downdraft |
Installation Type | Downdraft |
For Outdoor Use | No |
Color | Stainless Steel |
Controls Type | Control Knob |
Blower Speeds | Infinite |
Automatic Delay-Off | No |
Clean Air Function | No |
Lighting Type | None |
Lights Levels | 0 |
Grease Filter Type | Decorative Mesh |
Compatible Mesh or Baffle Filter Part Number | 50200028 |
Duct Discharge | Horizontal |
Duct Size; Horizontal; IN | 3.25 x 10 |
Duct Size; Vertical; IN | N/A |
Voltage | 120 |
Maximum Amperage | 4 |
ADA Compliant | Yes, with optional remote |
Warranty Parts / Labor | 2 / 1 |
Compatible Appliances | DDA-0001, MUA006A |
Bluetooth Connected | No |
Wi-Fi Connected | No |
Remote Included | No |
Remote Optional | Yes |
Energy Star Certified | No |
Alexa & Google Home Compatible | No |
CEC Title 20 Compliant | Yes |
CEC Title 24 Compliant | Yes |
Primary Material | Stainless Steel |
Wattage | 480 |
Certification | UL |
Nominal Width; IN | 30 |
Net Width; IN | 30 |
Net Depth; IN | 2 |
Net Height; IN | 9.5 |
Weight; LBS | 72.75 |
Ceiling Height Minimum | 8 ft. |
Ceiling Height Maximum | 12 ft. |
Shipping Length; IN | 34.65 |
Shipping Width; IN | 33.58 |
Shipping Height; IN | 11.02 |
Shipping Weight; LBS | 77.16 |
Shipping Method | LTL |
Freight Class | 300 |
Certification # | E109171 |
Clean Filter Alert | No |
Duct Type | Horizontal |
Duct Type | Horizontal |
