Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Height : 19.75"
- Depth : 19.81"
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

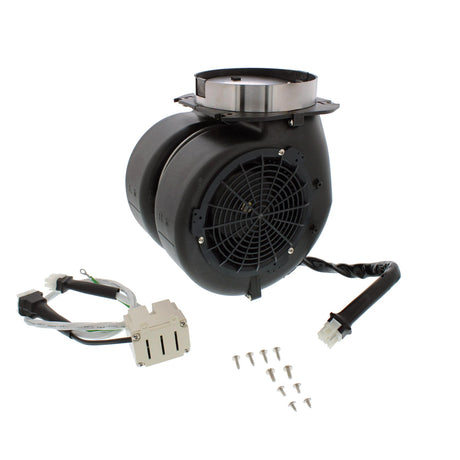

- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Capacitive Touch Controls
- Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.

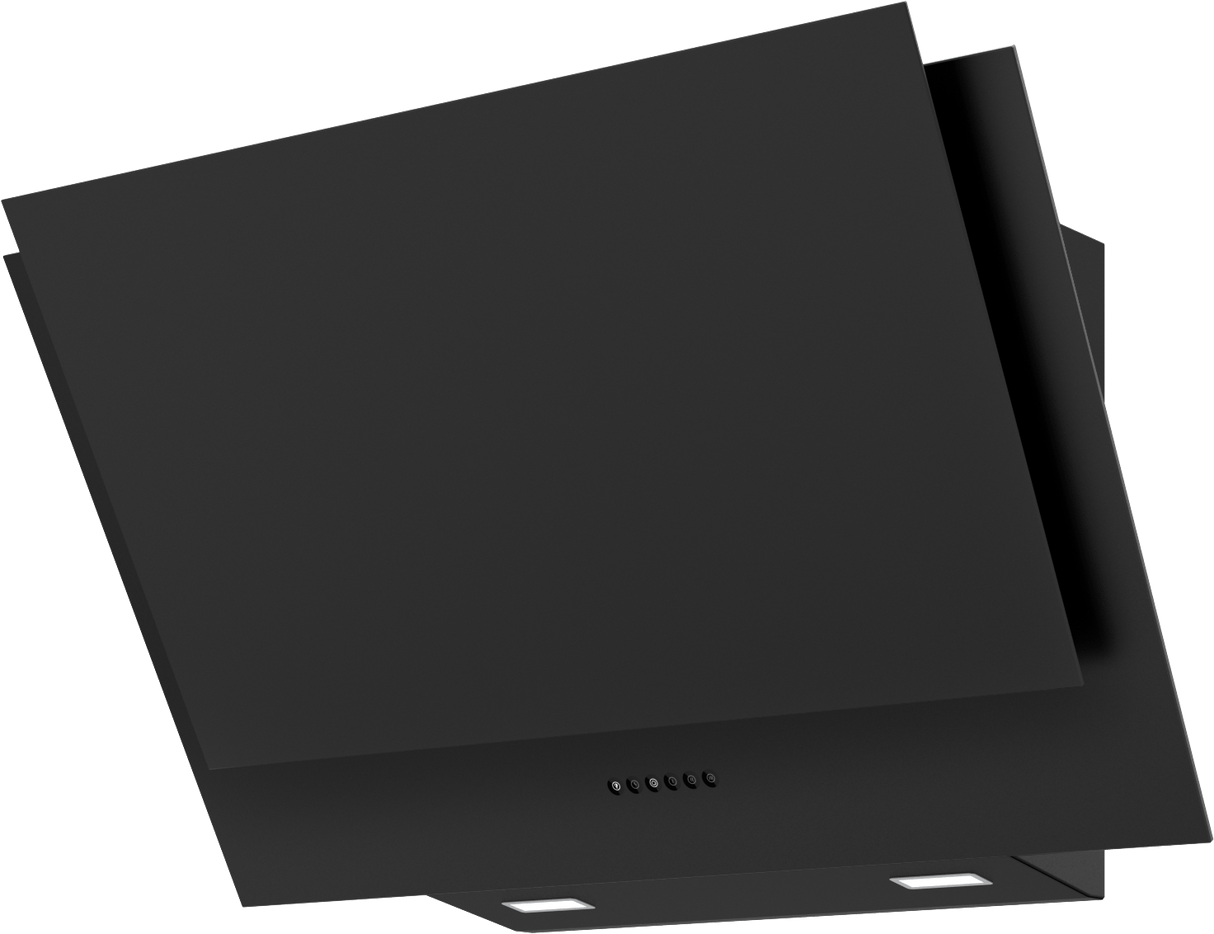

- Tri-Level Lighting
- The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Perimeter Aspiration System
- This form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
- Optional Wireless Remote Control (RC-0003)
- ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.

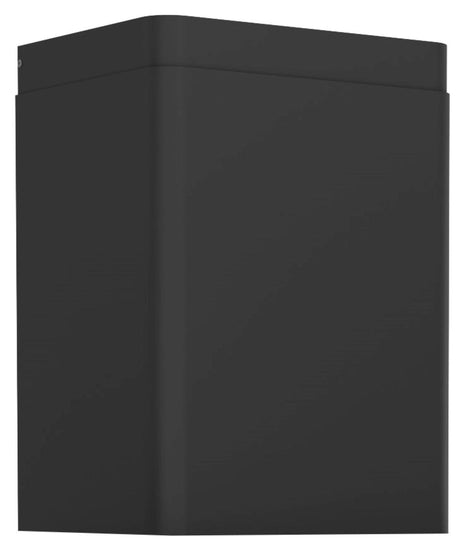

- Optional Duct Cover Kit
- This duct cover extends the range hood height and encloses the space from the top of your hood to the ceiling or soffit, and also provides a clean, finished look. Please check your Zephyr range hood specification sheet to ensure compatibility.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Multiple Blower Options
- Capacitive Touch Controls
- Tri-Level Lighting
- Perimeter Aspiration System
- Optional Wireless Remote Control (RC-0003)
- Optional Duct Cover Kit
- Optional Ductless Recirculating Kit
Brand | Zephyr |
Manufacturer | Zephyr |
Category | Range Hood |
Sub-Category | Wall |
Vent Type | Convertible |
UPC | 646328008900 |
GTIN | 00646328008900 |
Country of Origin | Italy |
Model Group | DAP-A |

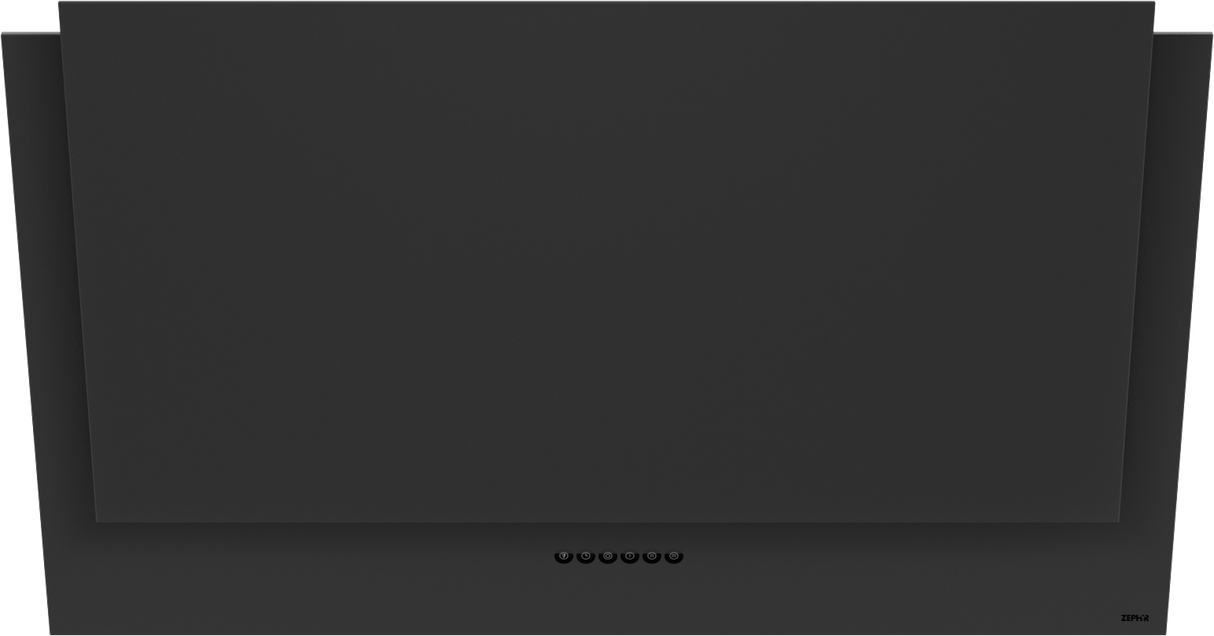

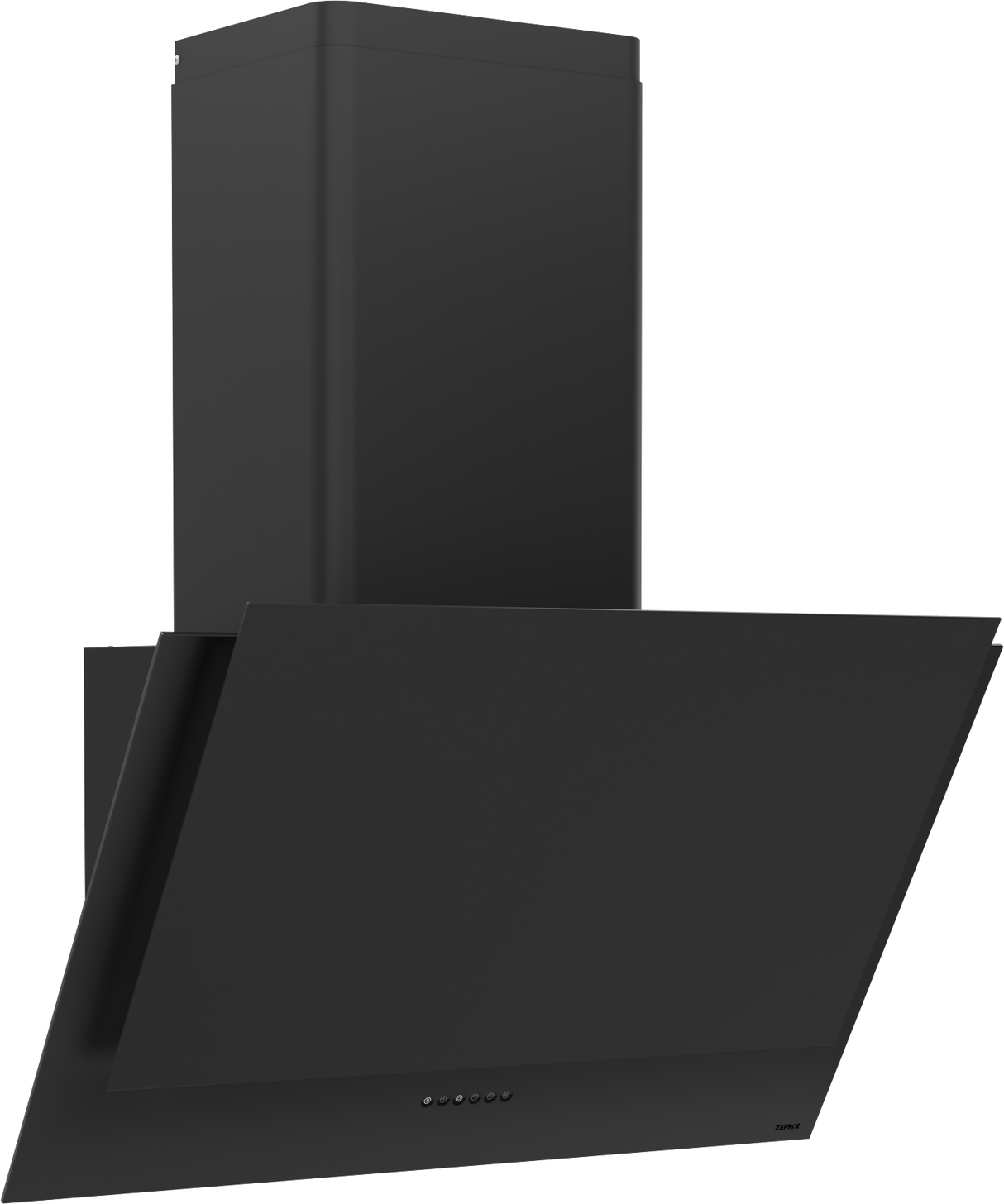

Model Name | Apex Wall |
Collection | Designer Collection |
Blower Included | No |
Internal Blower 1 CFM | 600 |
Internal Blower 1 Min. Sones | 1.4 |
Internal Blower 1 Max Sones | 6 |
Internal Blower 2 CFM | 290 |
Internal Blower 2 Max Sones | 3 |
In-Line Blower CFM | 1000 |
External Blower CFM | 1000 |
Minimum CFM | 200 |
Installation Type | Wall |
Installation Type | Wall |
For Outdoor Use | No |
Color | Matte Black |
Controls Type | Capacitive Touch |
Blower Speeds | 3 |
Automatic Delay-Off | Yes |
Clean Air Function | Yes |
Lighting Type | LED |
Lights Quantity | 2 |
Watts Per Bulb | 5 |
Lights Levels | 3 |
Grease Filter Type | Mesh |
Compatible Mesh or Baffle Filter Part Number | 50200064 |
Duct Discharge | Vertical or Horizontal |
Duct Size; Horizontal; IN | 8 |
Duct Size; Vertical; IN | 6, 8 |
Mounting Height Above Cooktop; IN | 24 - 36 |
Voltage | 120 |
Maximum Amperage | 6.42 |
ADA Compliant | Yes, with optional remote |
Warranty Parts / Labor | 2 / 1 |
Compatible Appliances | CBI-390A, CBI-290C, CBE-1000, CBI-290A, CBI-600A, PBN-1000A, Z0F-C010, Z1C-00MEMB, ZRC-00AP, MUA006A, MUA008A, RC-0003 |
Bluetooth Connected | No |
Wi-Fi Connected | No |
Remote Included | No |
Remote Optional | Yes |
Energy Star Certified | No |
Alexa & Google Home Compatible | No |
CEC Title 20 Compliant | Yes |
Primary Material | Steel |
Wattage | 770 |
Certification | UL |
Nominal Width; IN | 36 |
Net Width; IN | 35.375 |
Net Depth; IN | 19.8125 |
Net Height; IN | 19.75 |
Weight; LBS | 55 |
Ceiling Height Minimum | 8 ft. |
Ceiling Height Maximum | 11 ft. |
Shipping Length; IN | 37.8 |
Shipping Width; IN | 22.4 |
Shipping Height; IN | 25.6 |
Shipping Weight; LBS | 39.7 |
Shipping Method | LTL |
Freight Class | 300 |
Certification # | E503546 |
Clean Filter Alert | Yes |
Duct Type | Vertical |
Duct Type | Vertical |
