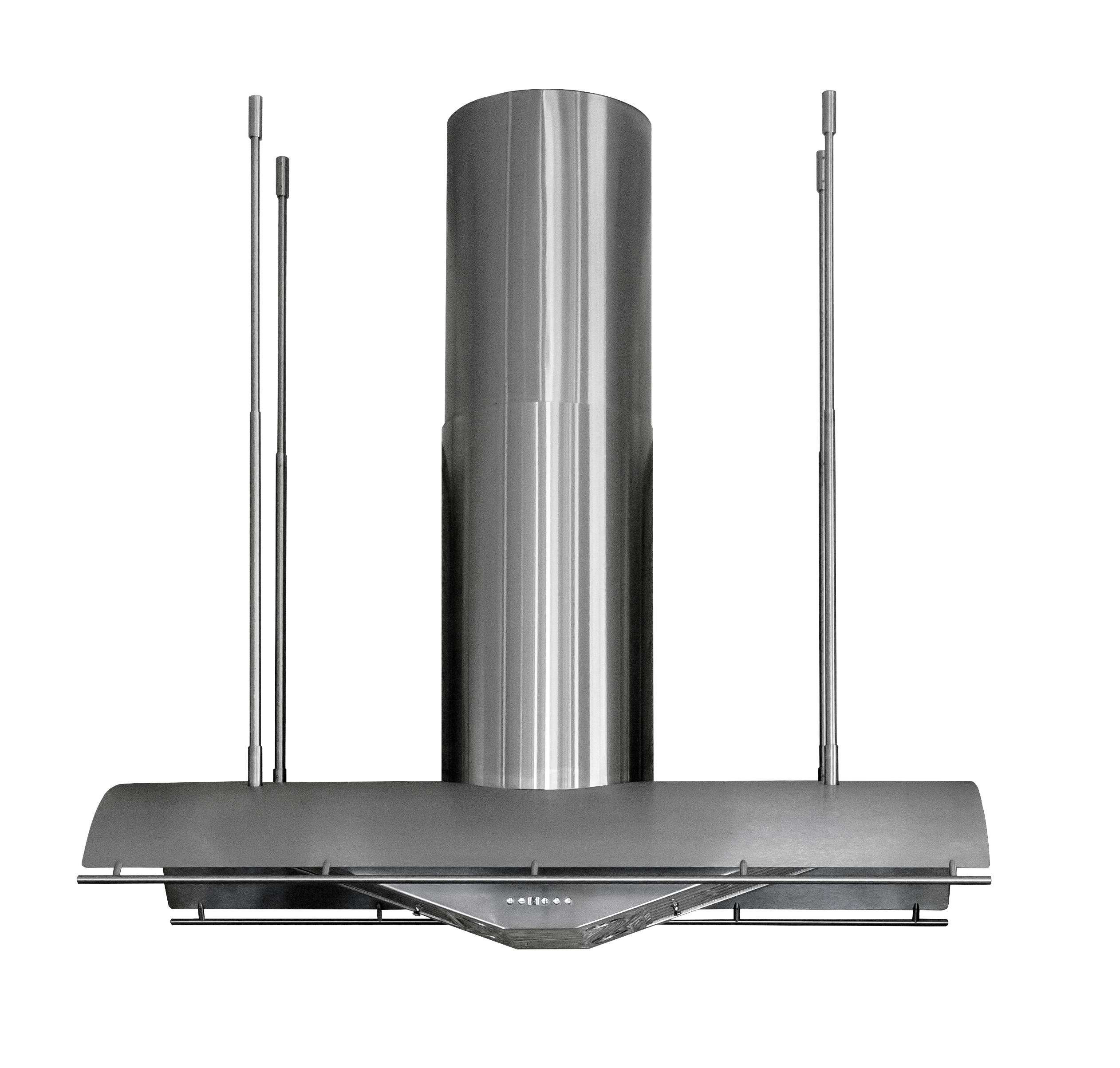

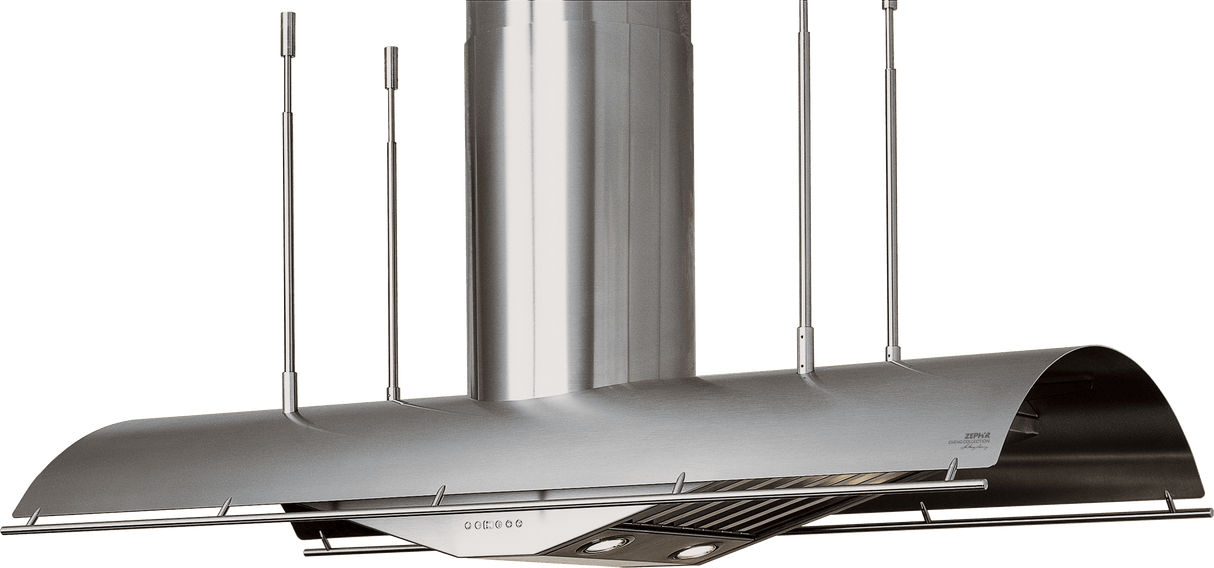

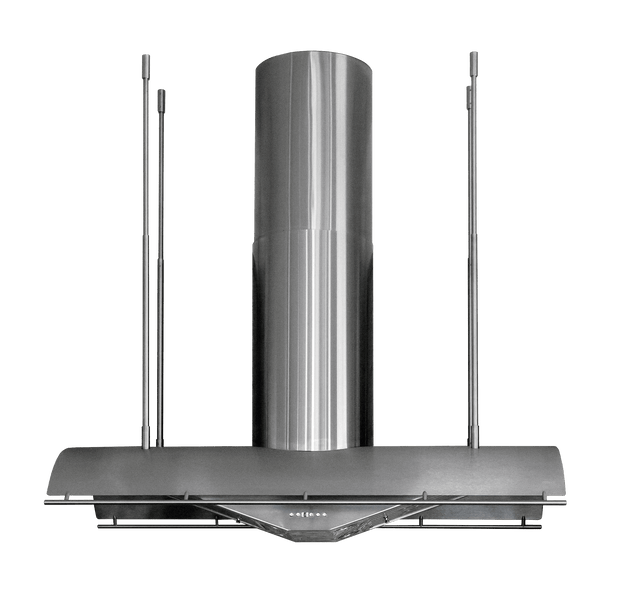

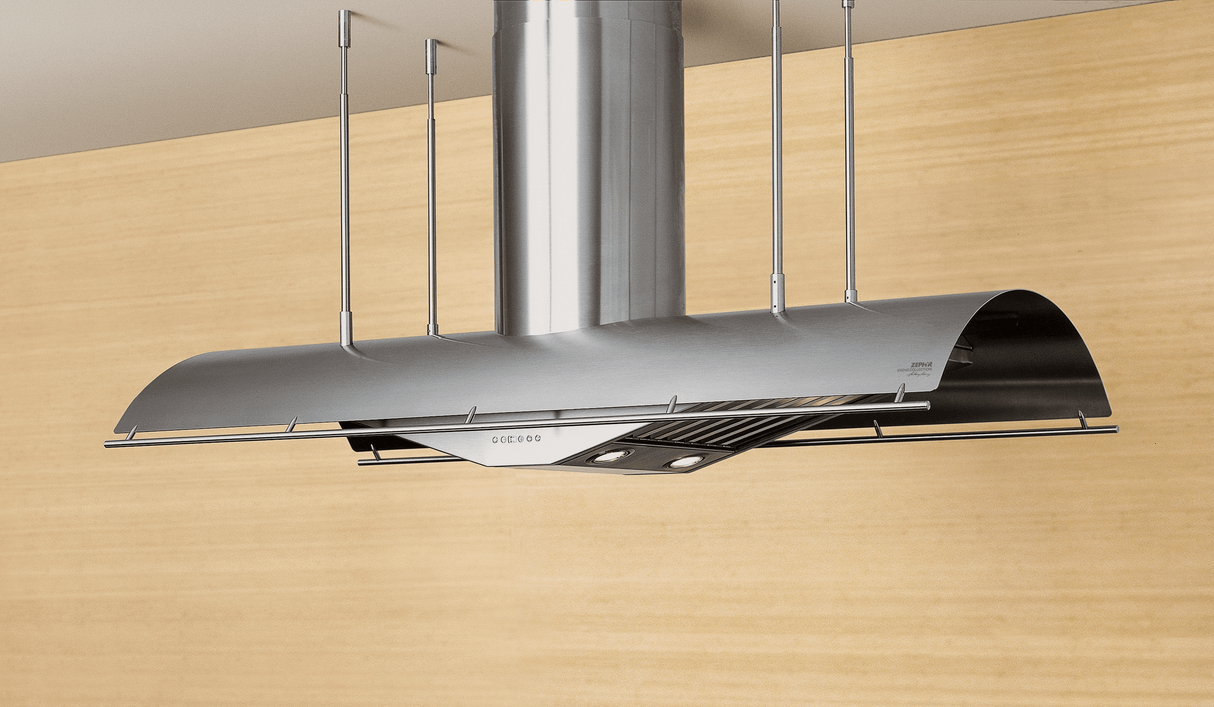

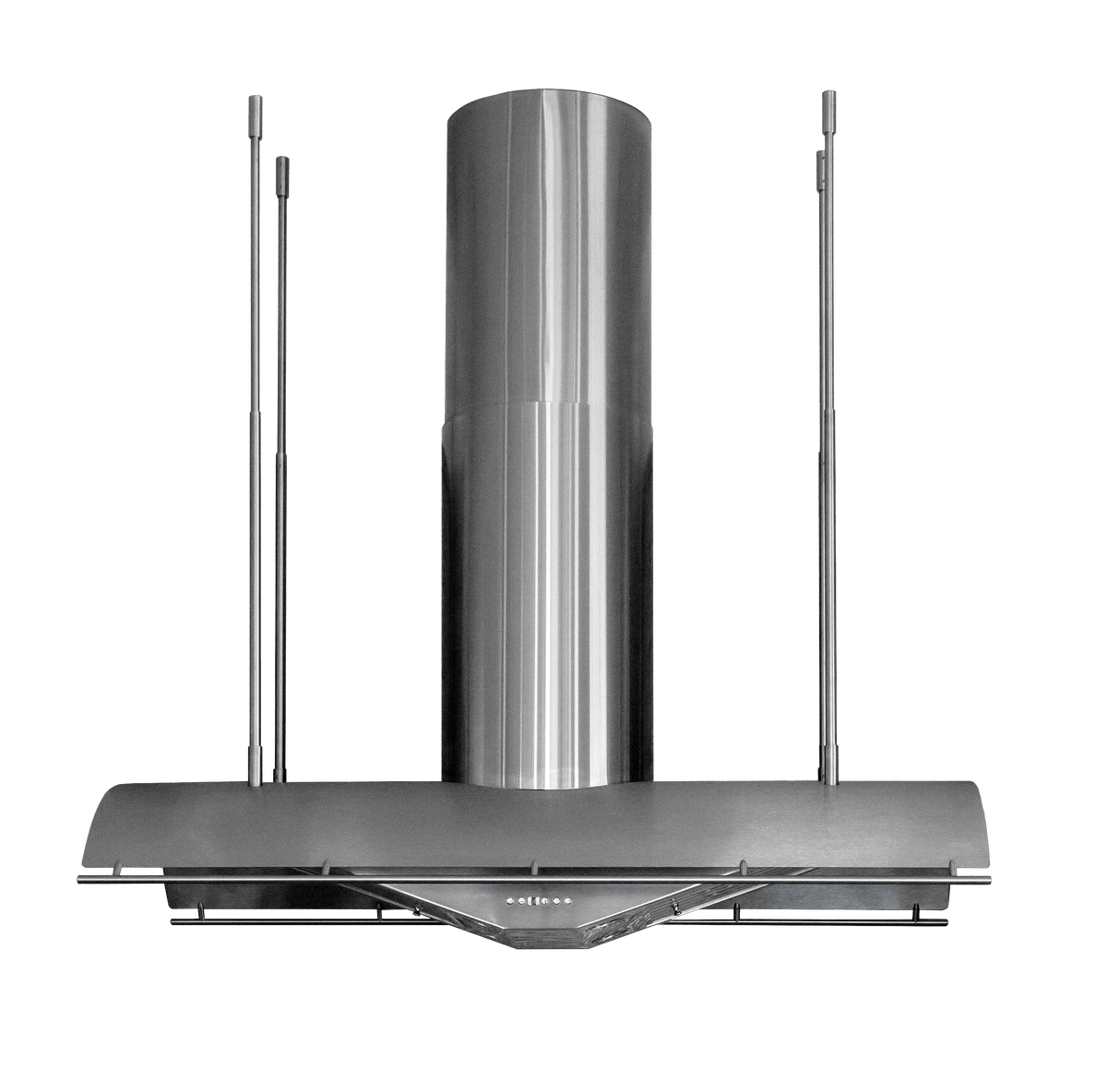

Trapeze, Island, 48", SS, BODY ONLY
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Height : 34"
- Depth : 26.62"
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Bloom™ HD LED Light Bulbs
- Directional Lighting
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Optional wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Multiple Blower Options
- Bloom(TM) HD LED Light Bulbs
- Directional Lighting
- Professional Baffle Filters
- Electronic Touch Controls
- Optional wireless remote control
- Optional Extension Duct Cover Kit
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Ducted |
| UPC | 646328003523 |
| GTIN | 00646328003523 |
| Country of Origin | Taiwan |
| Model Group | CTP-B |
| Model Name | Trapeze Island |
| Collection | Designer Collection |
| Replacement Model | CTP-E48CSX |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 240 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210022 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | Z1C-00TP, 14000005, MUA008A, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 426 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 48 |
| Net Depth; IN | 26.625 |
| Net Height; IN | 34 - 52 |
| Weight; LBS | 84 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 25 |
| Chimney Width in. | 12.62 |
| Chimney Depth in. | 12.62 |
| Shipping Length; IN | 29.53 |
| Shipping Width; IN | 51.97 |
| Shipping Height; IN | 26.38 |
| Shipping Weight; LBS | 116 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
