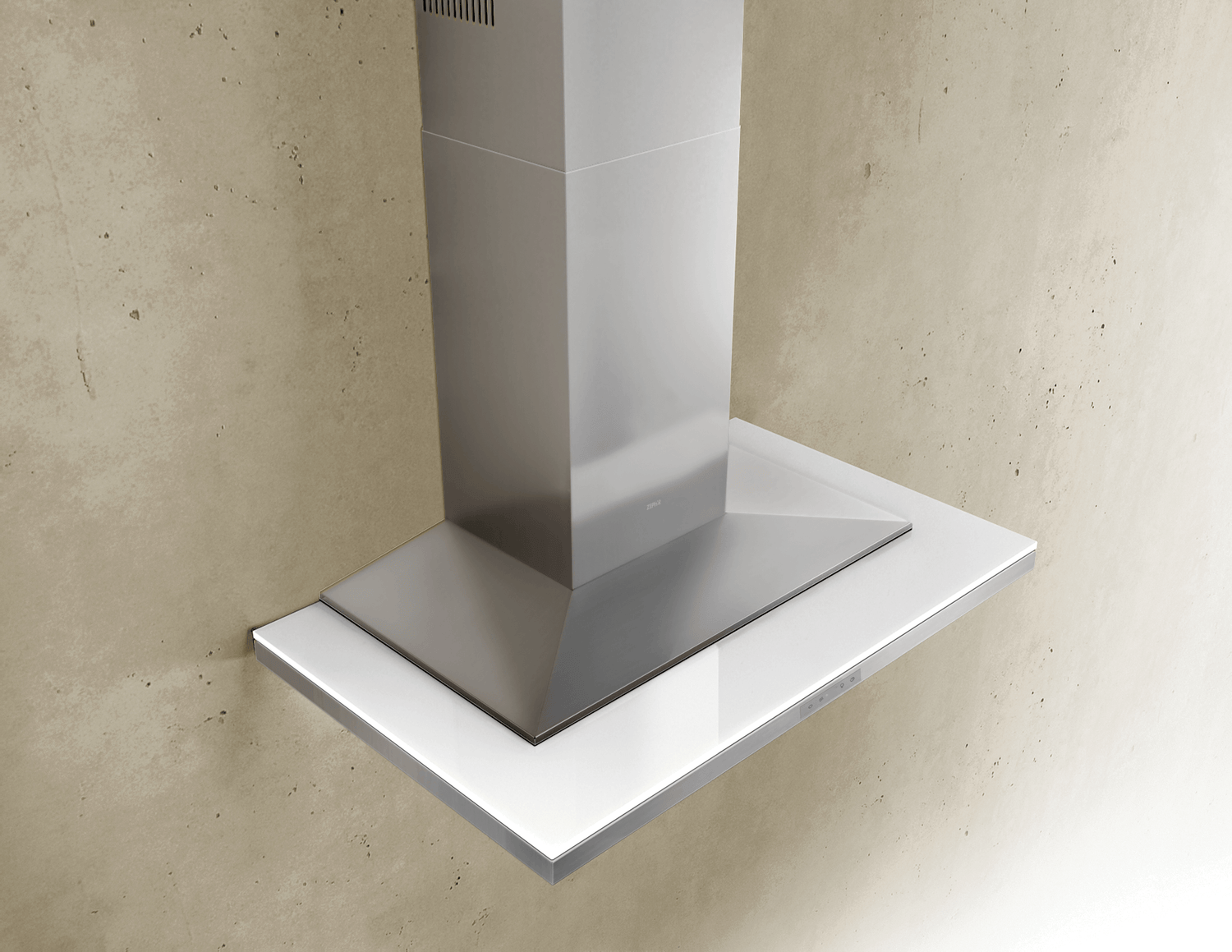

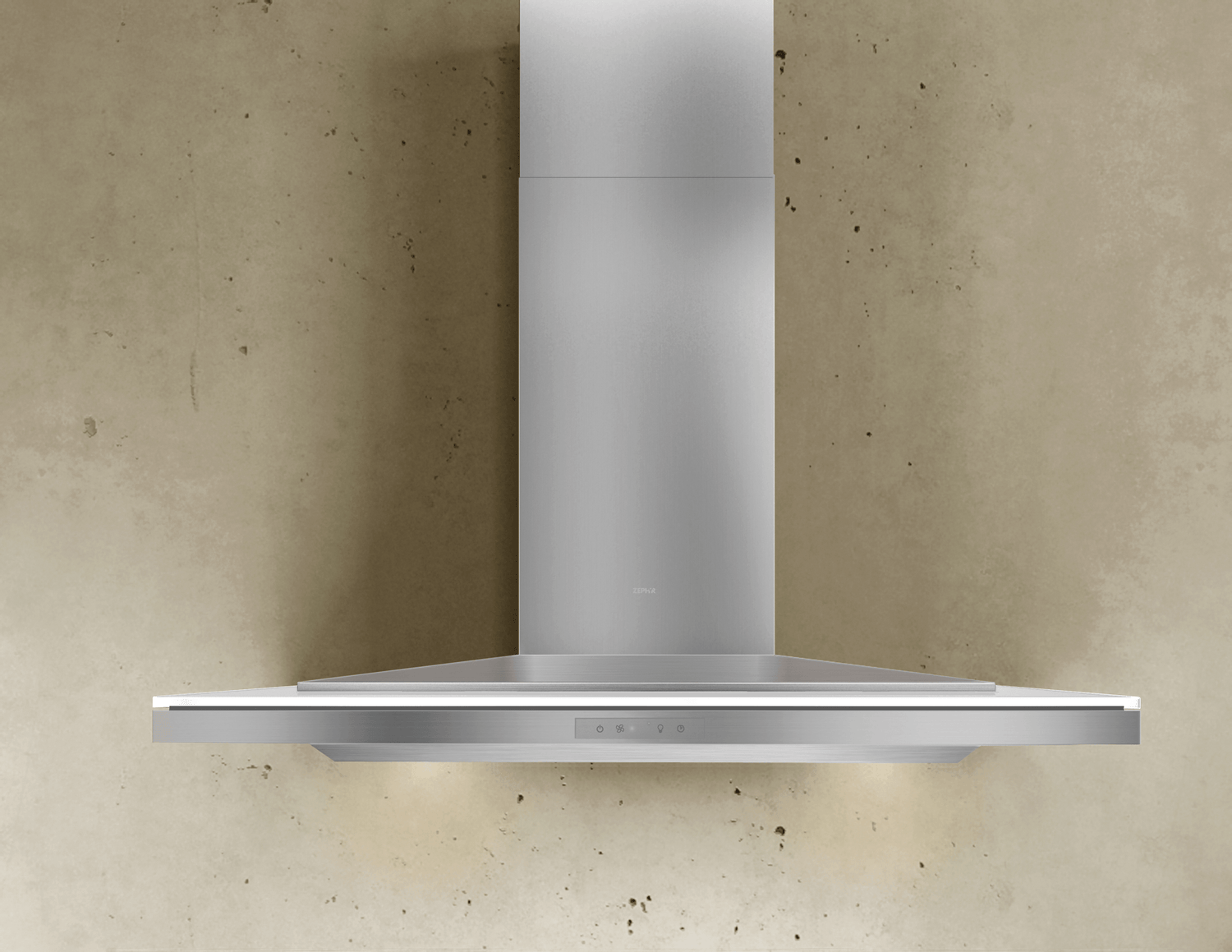

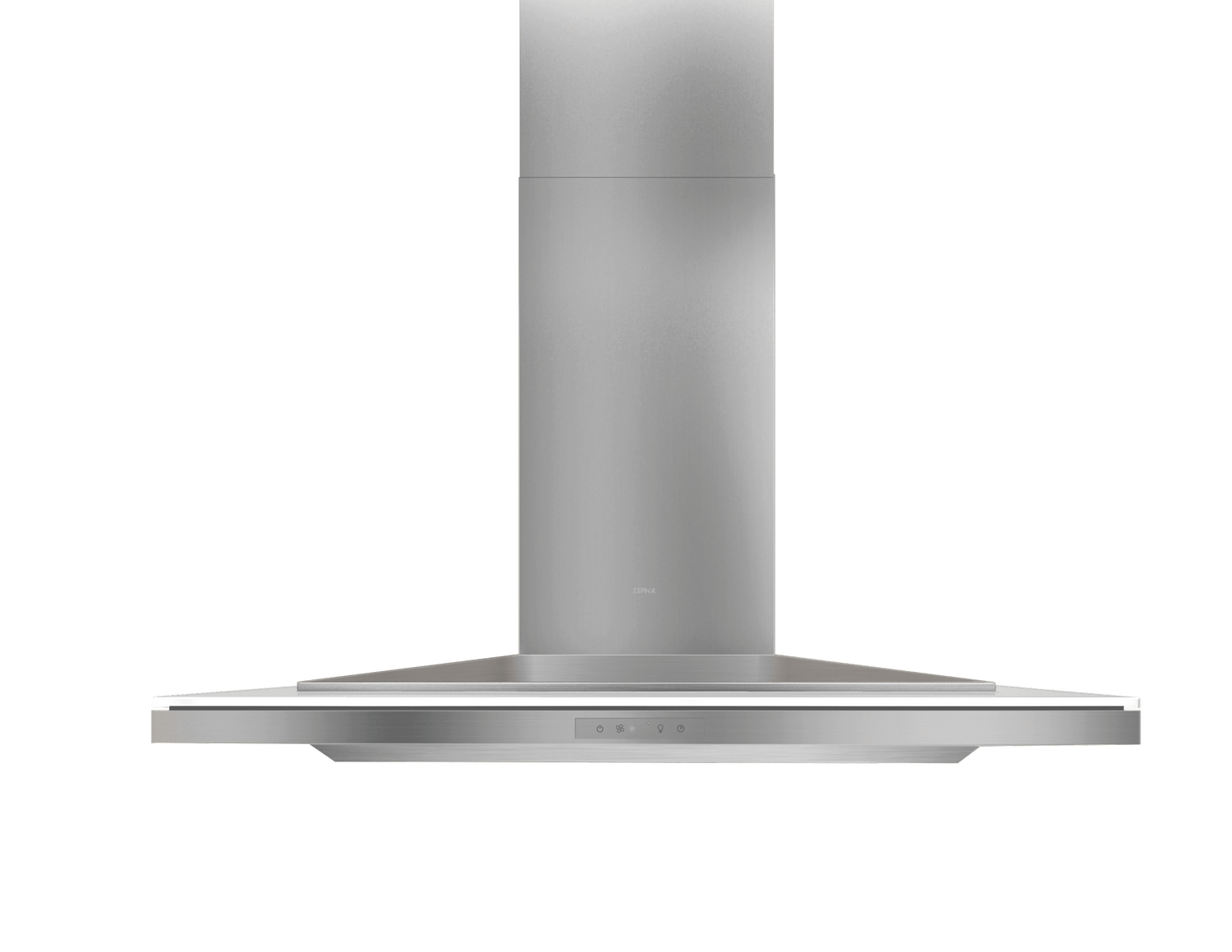

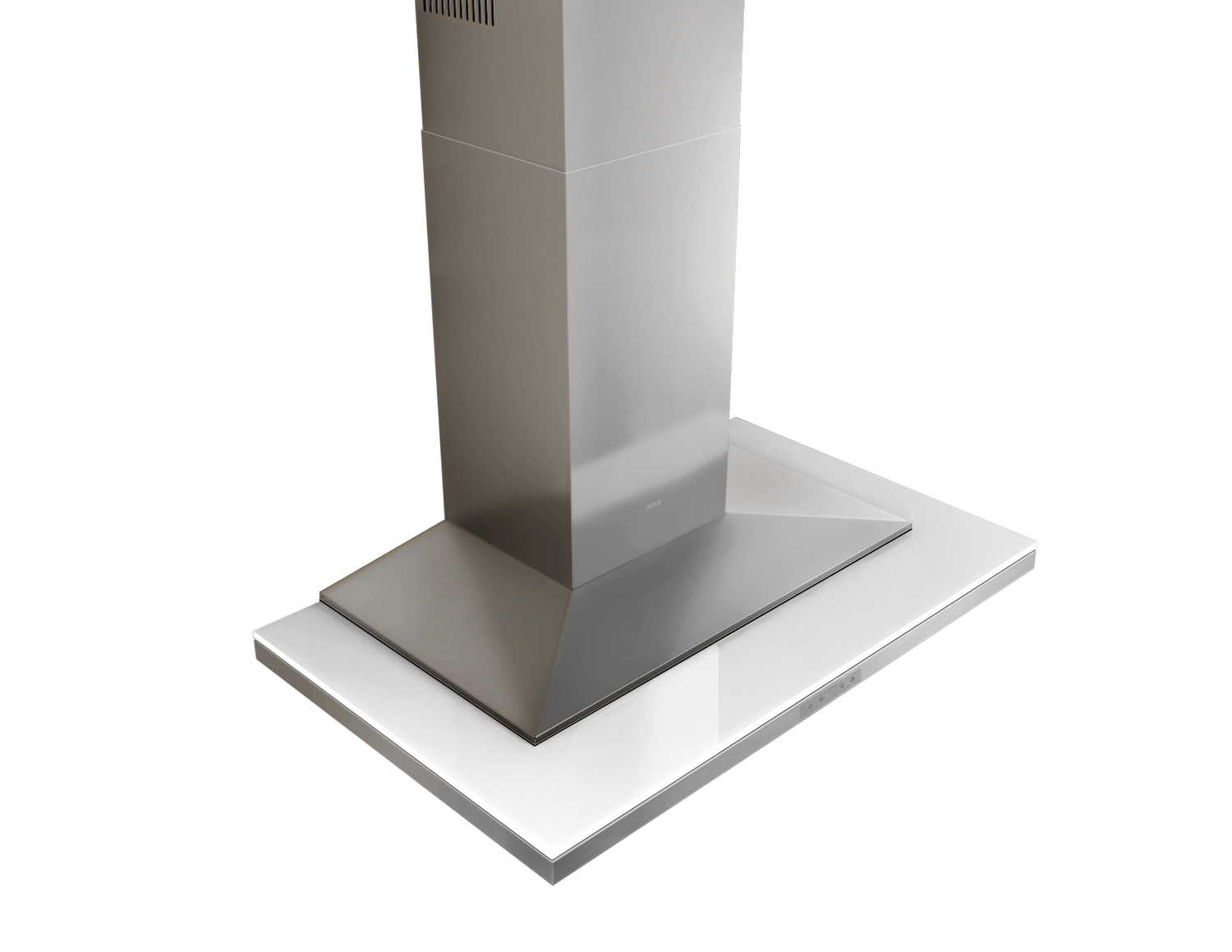

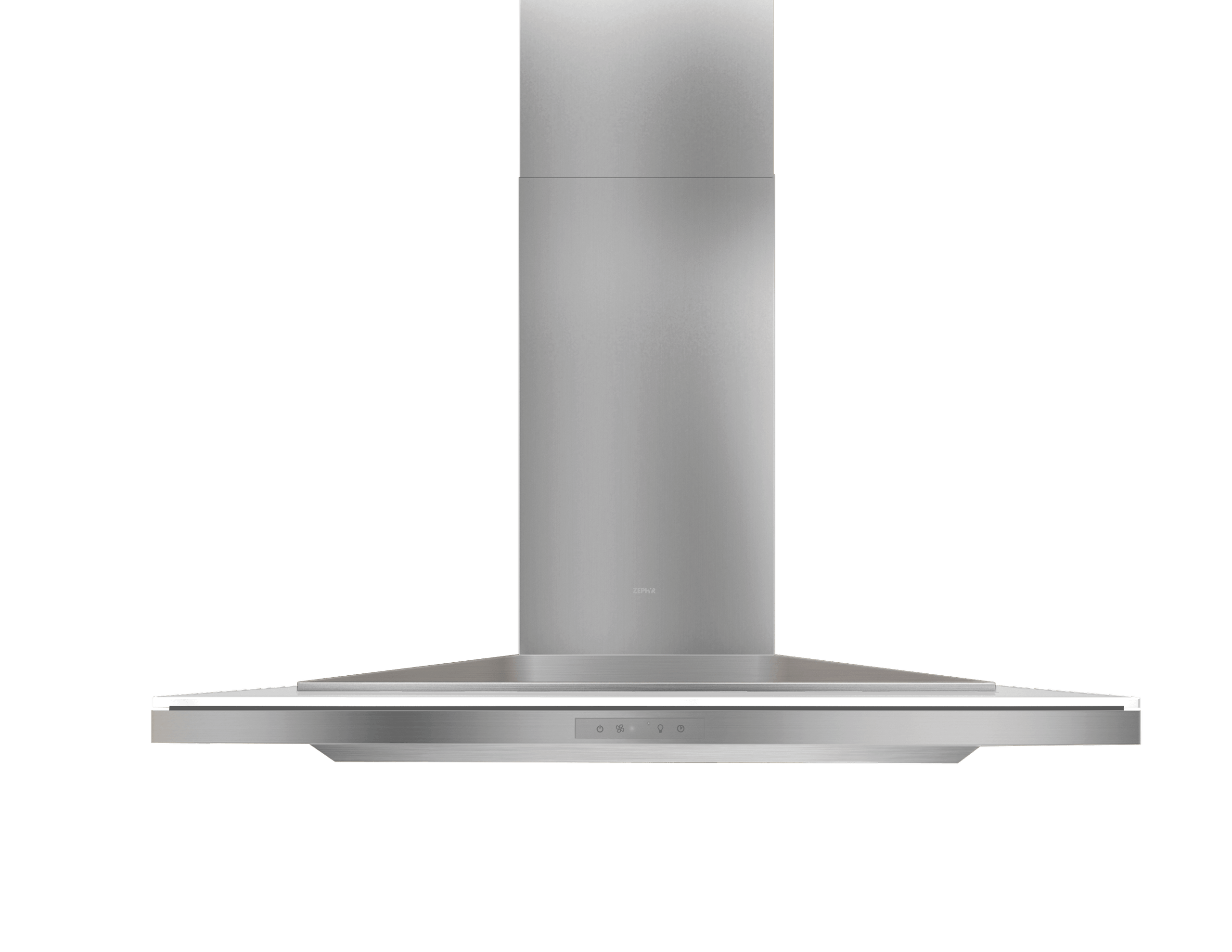

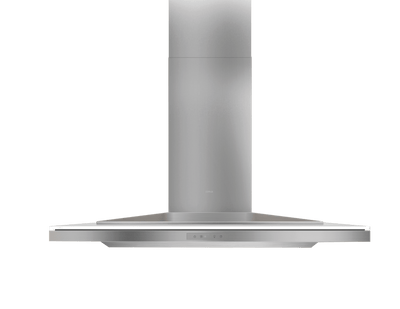

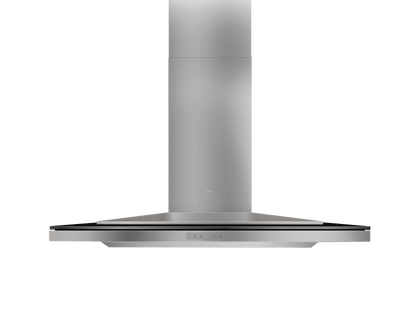

Layers, Wall, 42", SS/Wht Glass, LED, BODY ONLY
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Invisible Touch Controls
- Invisible touch controls appear when activated and stay hidden when the range hood is not in use.
- Low-profile body
- Low-profile body for a minimalist appearance.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Tri-Level Lighting
- The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Optional extension duct cover kit
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Includes wireless remote control
- Invisible Touch Controls
- Low-profile body
- CleanAir Function
- Tri-Level Lighting
- Optional extension duct cover kit
- Optional Ductless Recirculating Kit
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328004254 |
| GTIN | 00646328004254 |
| Country of Origin | Italy |
| Model Group | ALA-B |
| Model Name | Layers |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 180 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + White |
| Controls Type | Invisible Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Decorative Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200033 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.45 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-01LA, Z1C-00LA, MUA006A, MUA008A, Z0F-01AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 138 |
| Certification | UL |
| Nominal Width; IN | 42 |
| Net Width; IN | 41.9375 |
| Net Depth; IN | 22 |
| Net Height; IN | 28 - 50 |
| Weight; LBS | 116 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 25.59 |
| Shipping Width; IN | 46.5 |
| Shipping Height; IN | 24.4 |
| Shipping Weight; LBS | 121.25 |
| Shipping Method | LTL |
| Freight Class | 200 |
| Duct Type | Vertical |
| Duct Type | Vertical |
