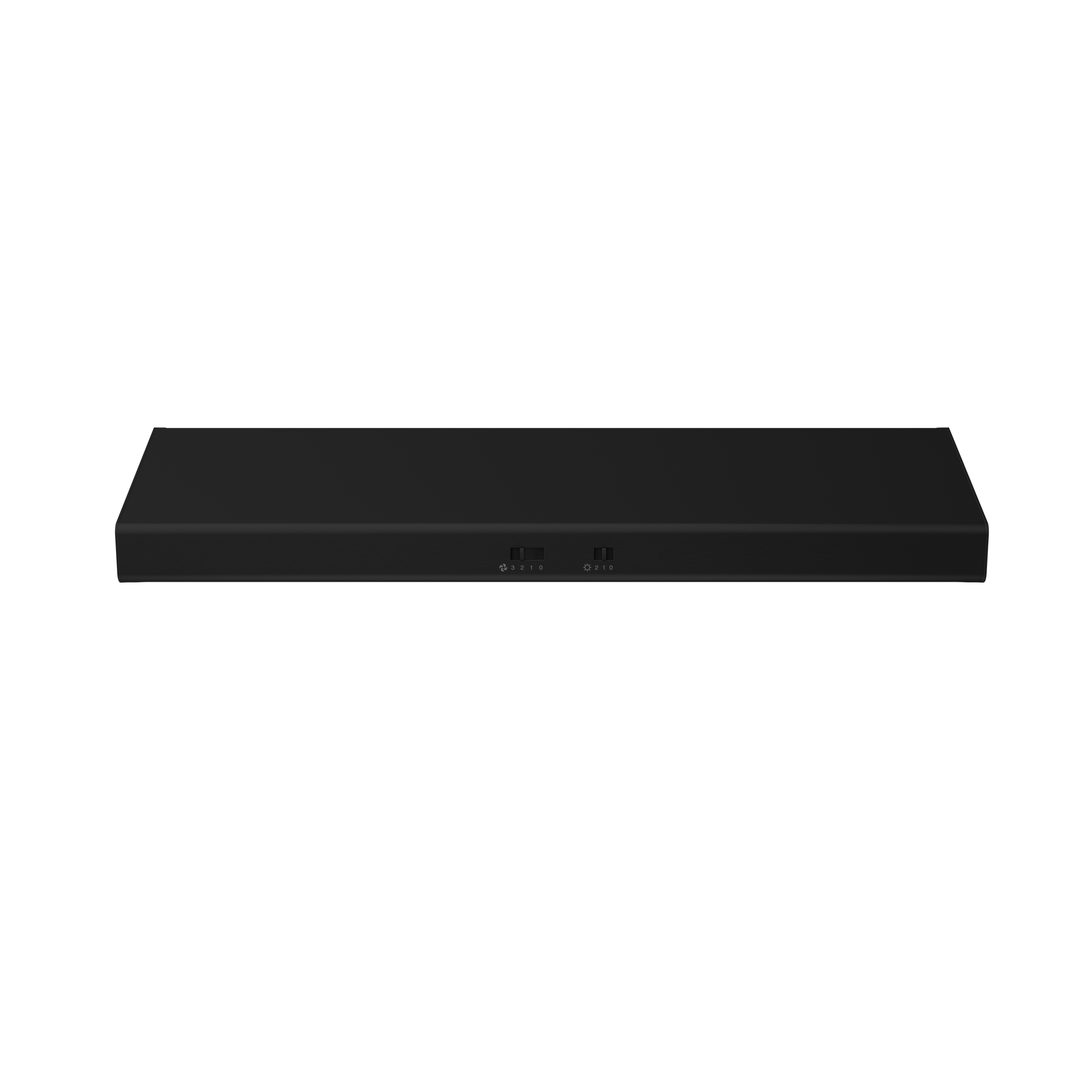

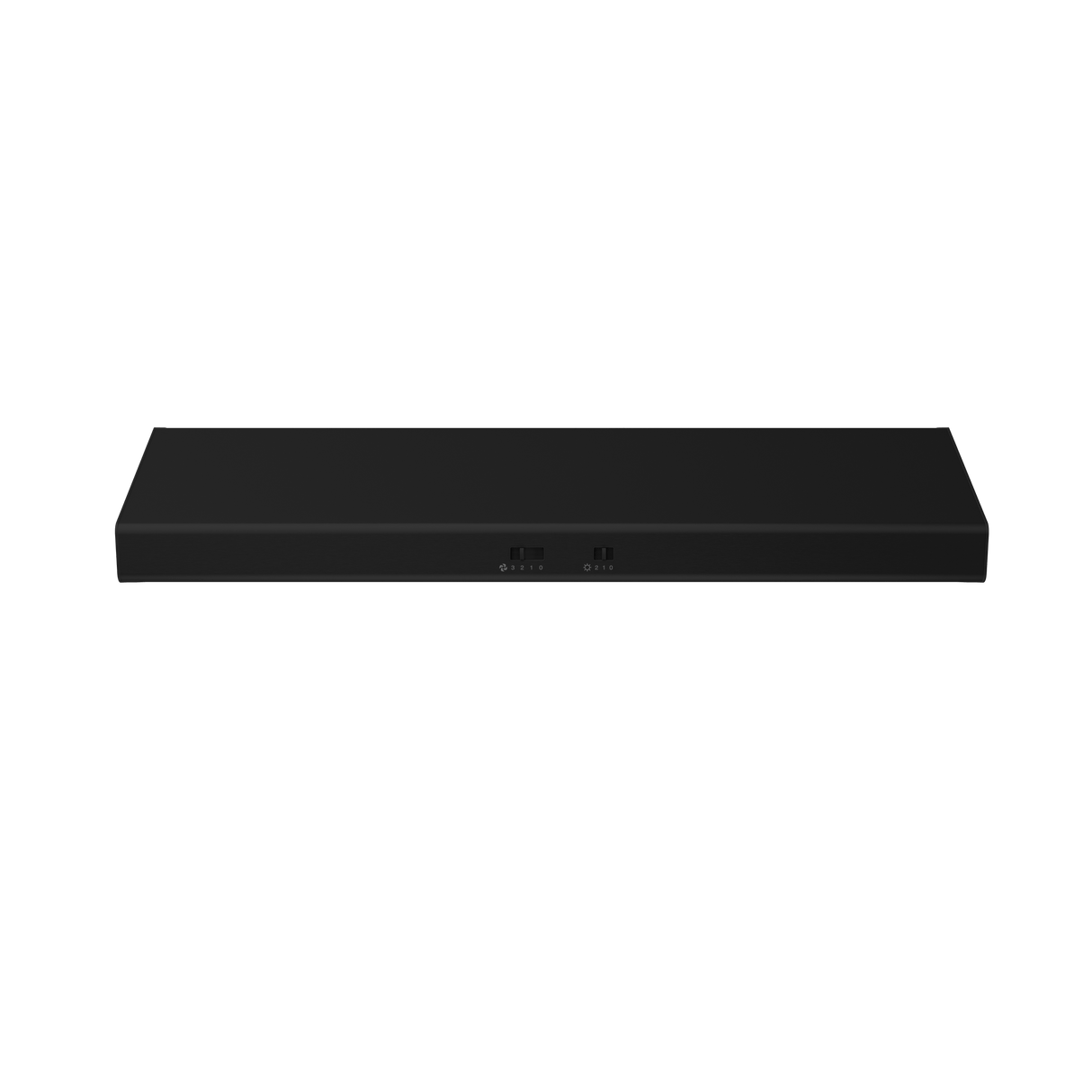

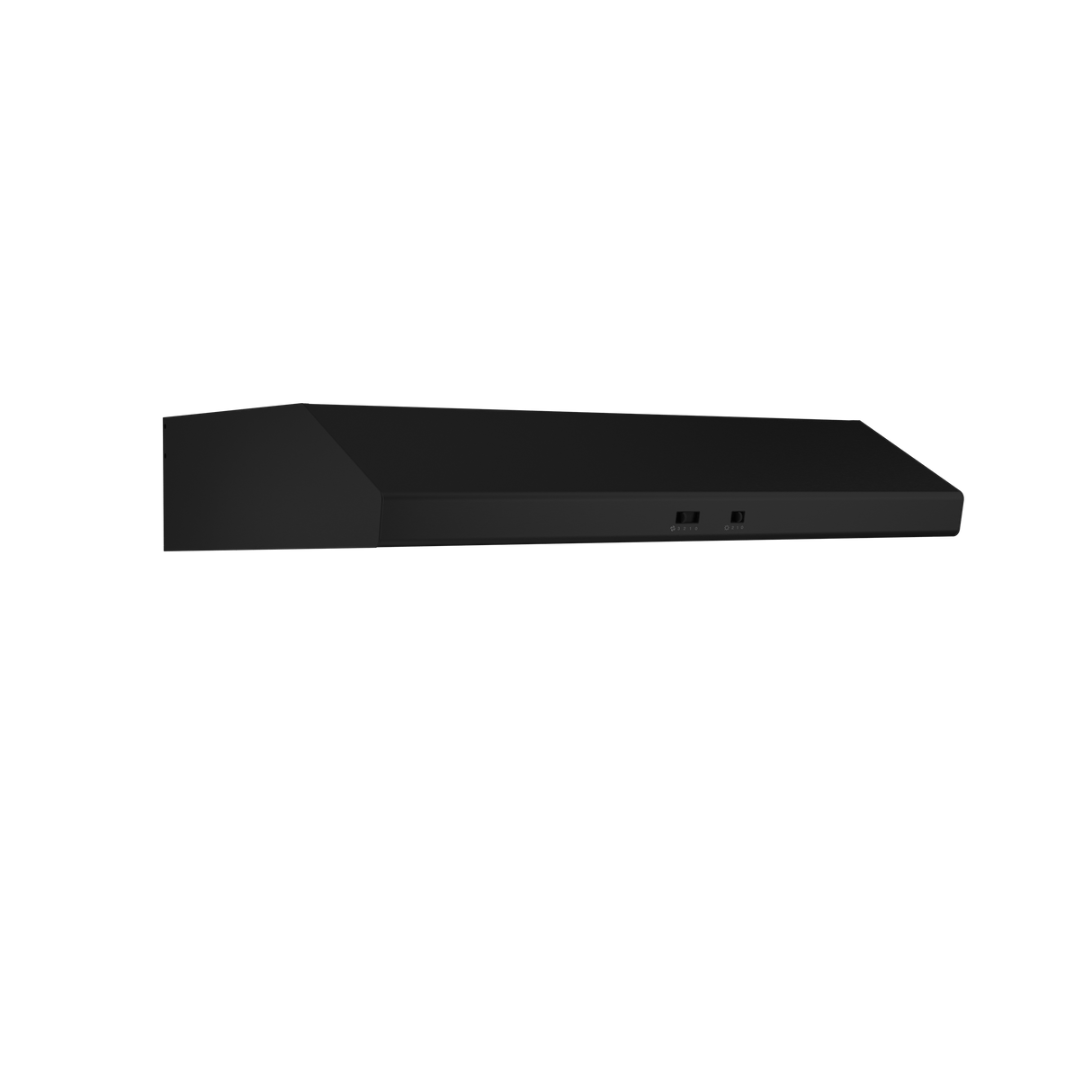

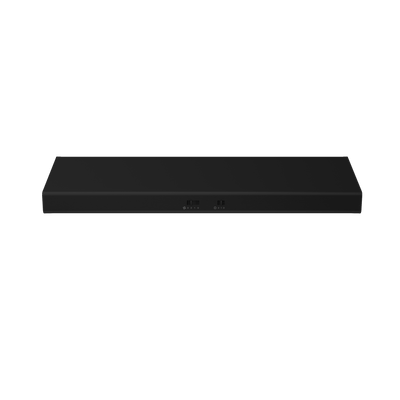

Cyclone, Under Cabinet, 30", Black, 600 CFM
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Height : 6.37"
- Depth : 22.25"
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Mechanical Slide Controls
- 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- 3 Speed Levels
- Quiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- Dual-Level Lighting
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- 2 Removable Safety Grilles
- High-quality safety grilles designed to enhanced protection during use and improve the overall aesthetic.
- Filter-less self-cleaning system

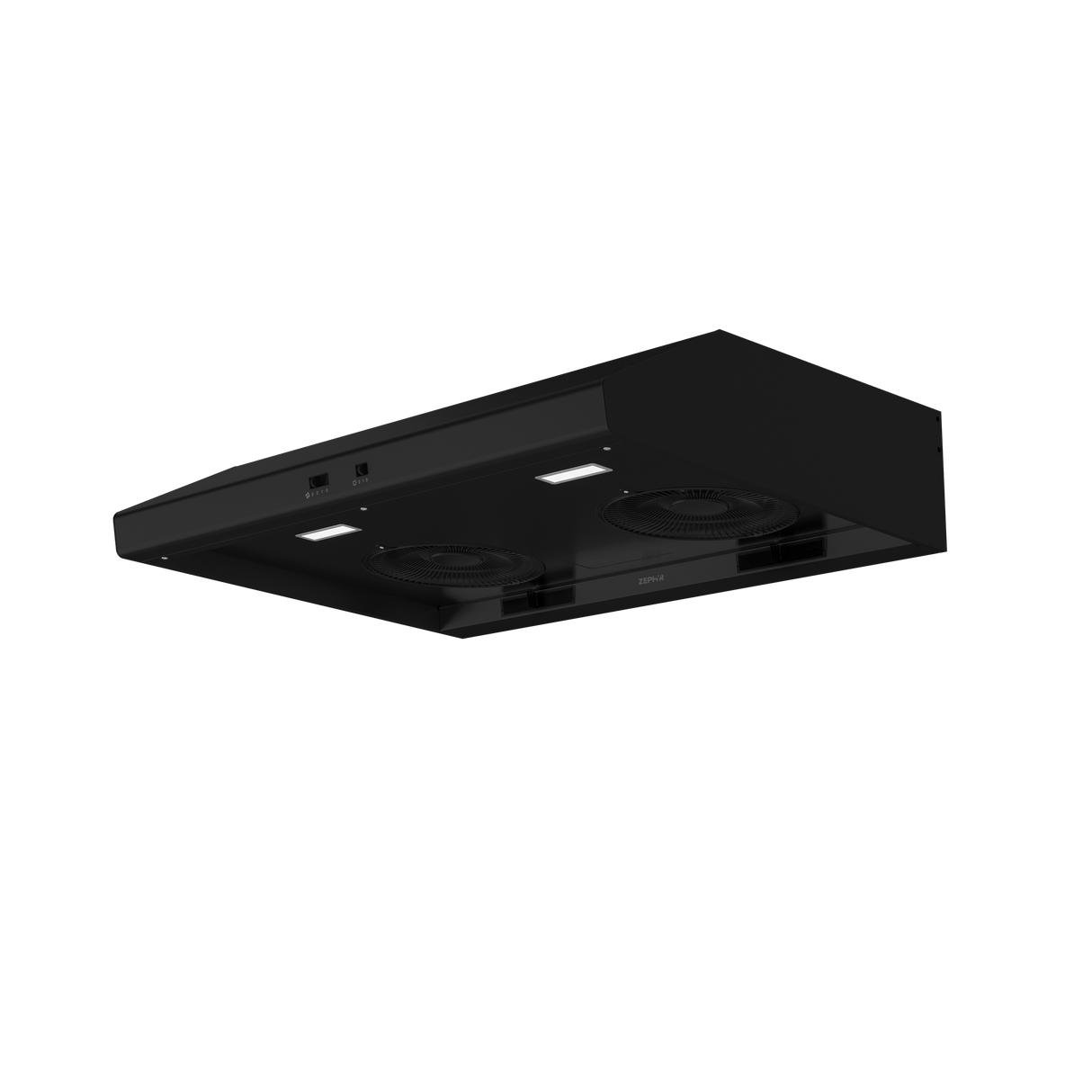

- Designed to work without filters, the centrifugal blower wheel pushes air downwards and away from the center, separating cooking vapors and grease from the air. Remaining cooking contaminates are then trapped in a residue tray which drains into residue cups when cleaned. This blower system ensures that the hood is effective, quiet and easy to use.

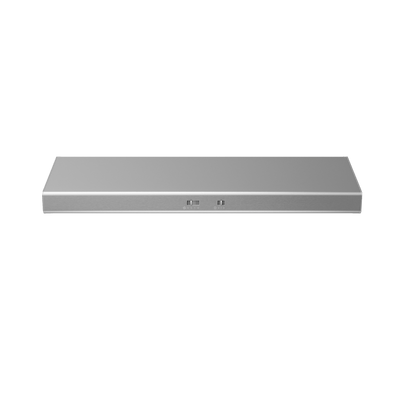

- Multiple color options
- Multiple colors available to match your kitchen decor.
- Mechanical Slide Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- 2 Removable Safety Grilles
- Filter-less self-cleaning system
- Multiple color options
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Ducted |
| UPC | 646328009457 |
| GTIN | 00646328009457 |
| Country of Origin | Taiwan |
| Model Group | AK65-C |
| Model Name | Cyclone Under-Cabinet |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.5 |
| Internal Blower 1 Max Sones | 5 |
| Minimum CFM | 290 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Black |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Filter-less |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 6, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 10 / 1 |
| Compatible Appliances | MUA006A, AK00066, AK1710 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.75 |
| Net Depth; IN | 22.25 |
| Net Height; IN | 6.375 |
| Weight; LBS | 30 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 32.1 |
| Shipping Width; IN | 9.8 |
| Shipping Height; IN | 27.1 |
| Shipping Weight; LBS | 35.5 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
