Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)
- Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

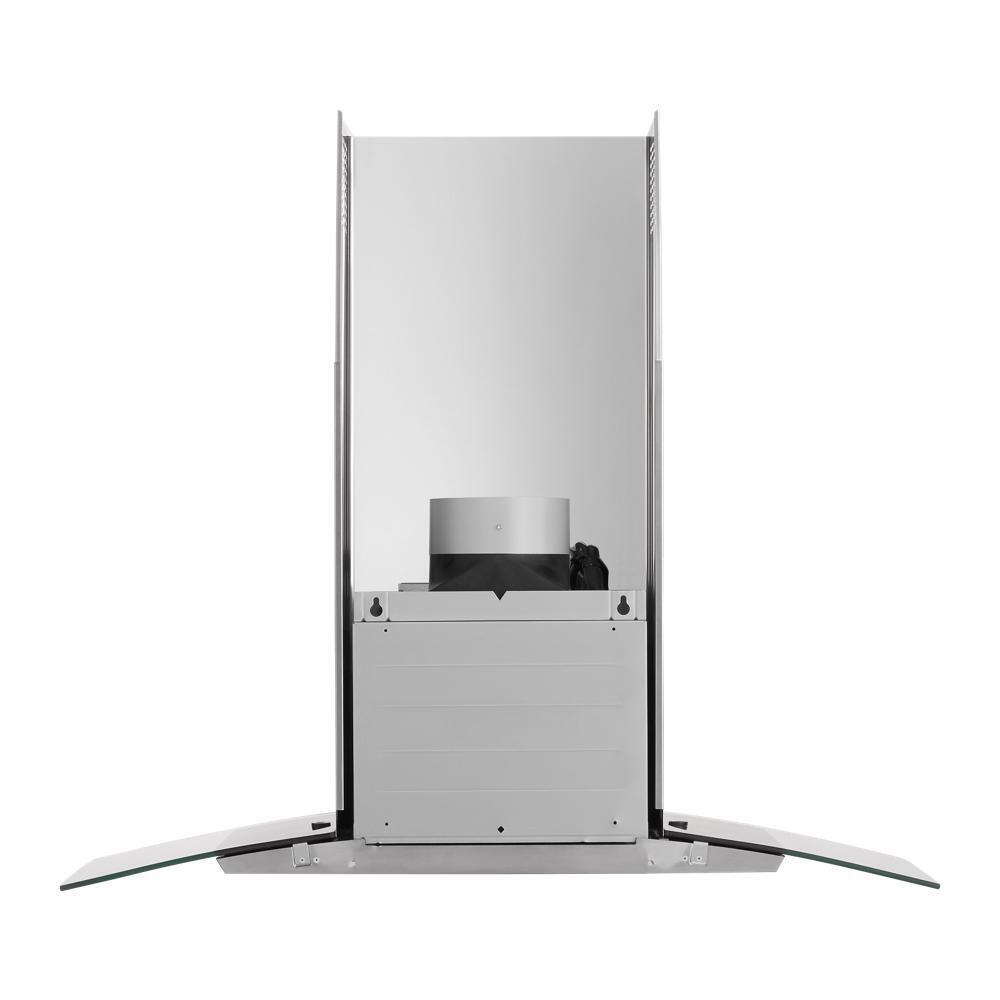

- 6" Round Damper Included
- Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).

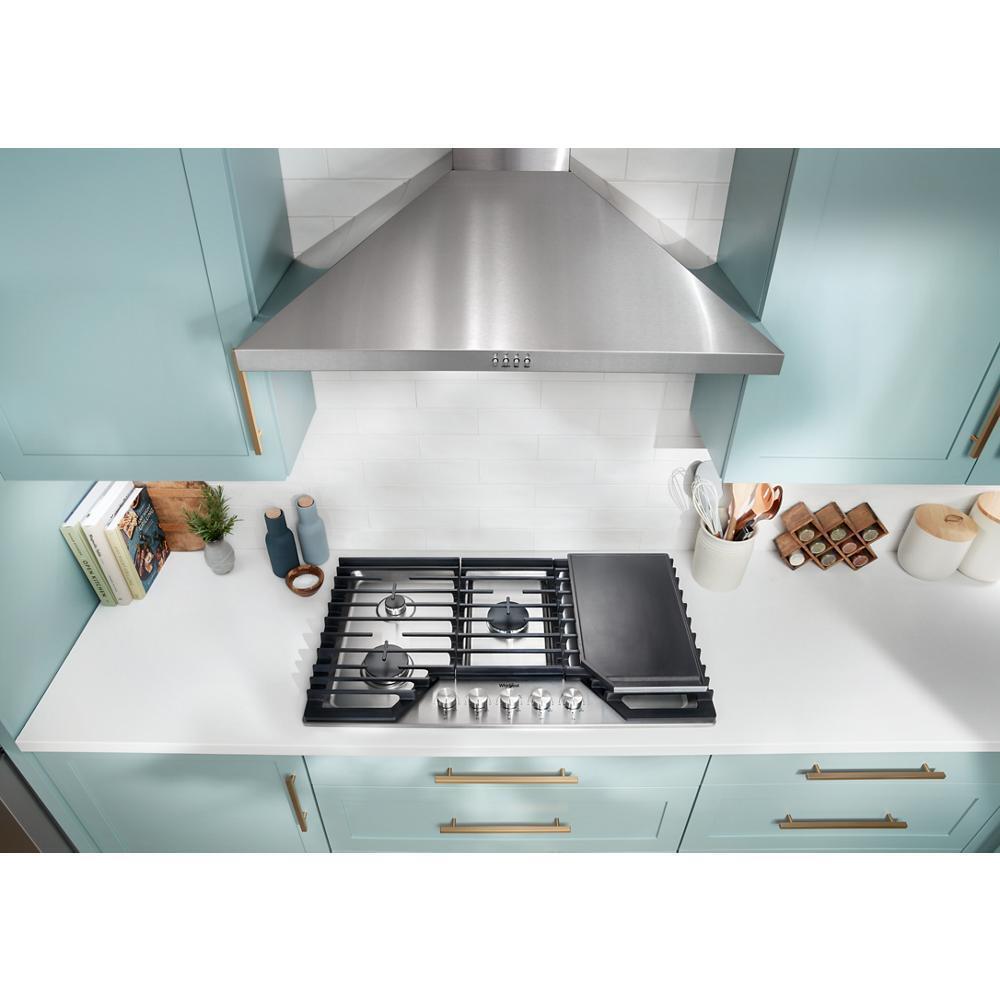

- 65K BTU Cooktop Threshold
- Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
- Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
- ADA Compliant
- When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
- Convertible Ventilation (Recirculating or Vented)
- A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.

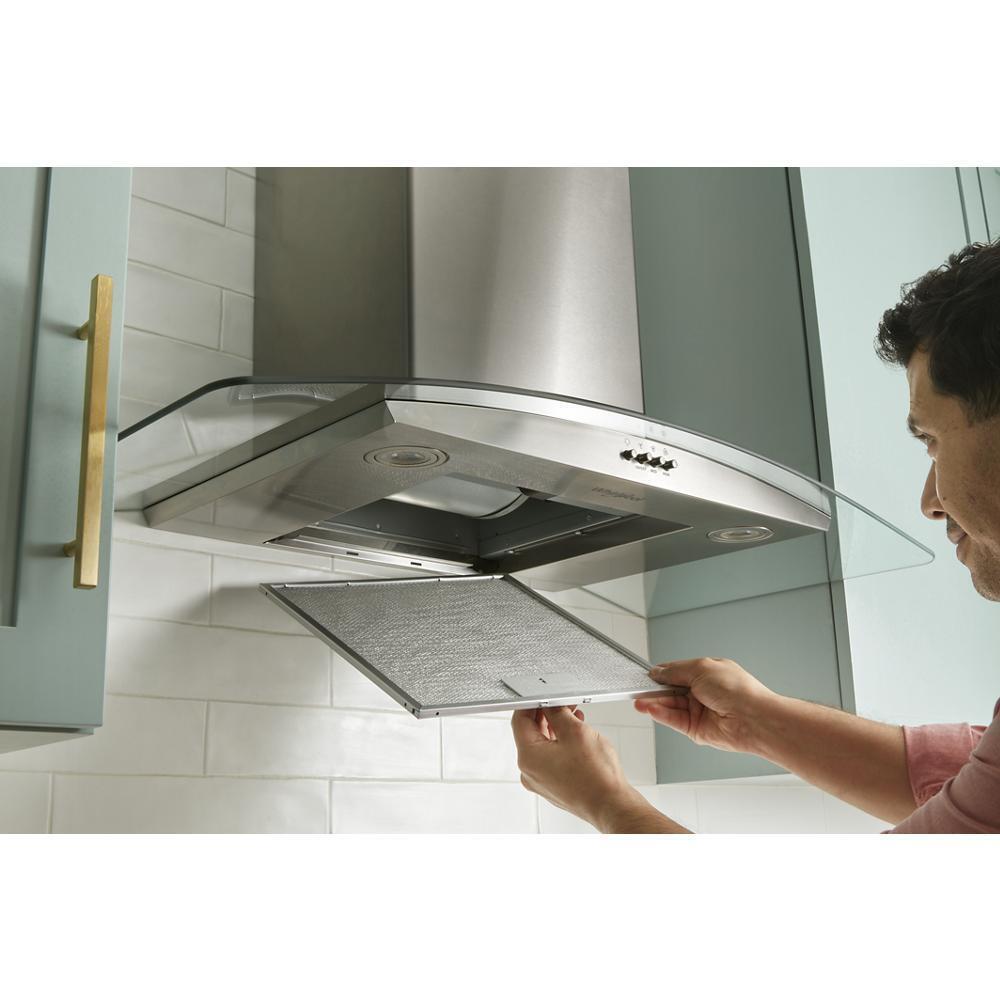

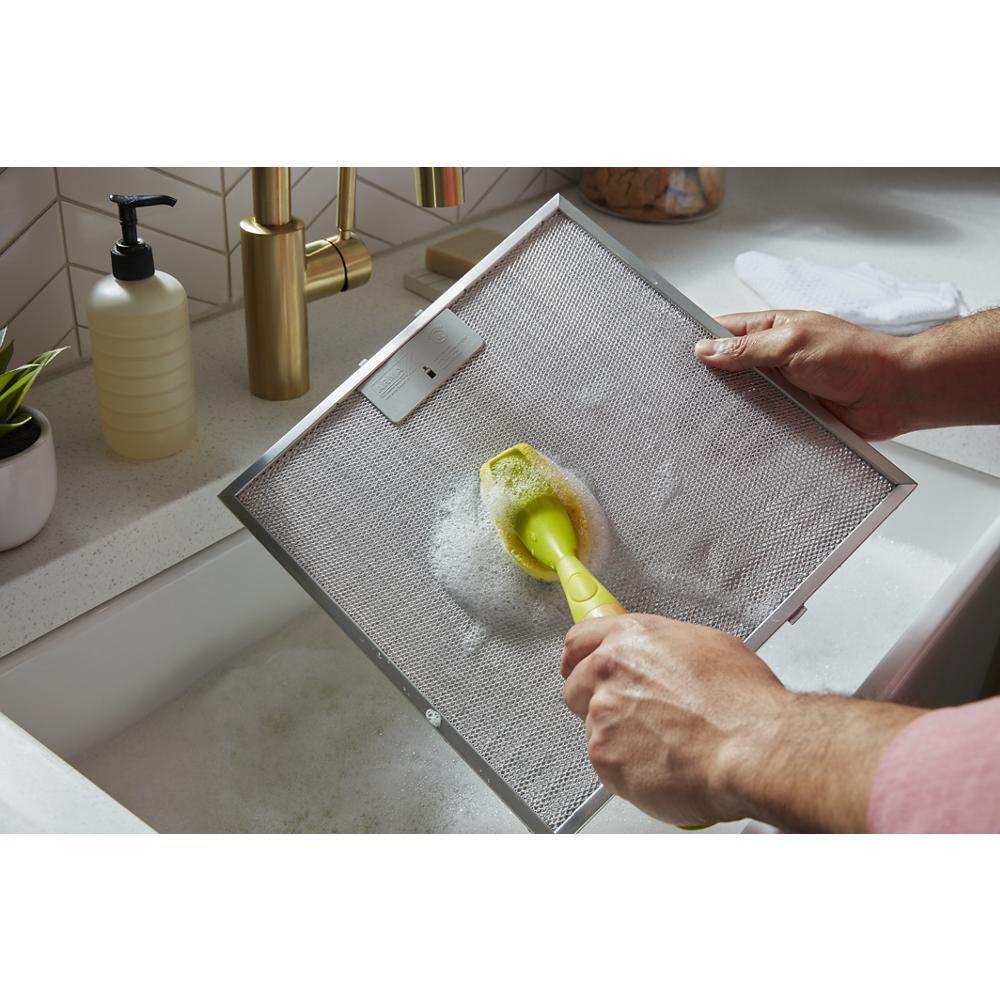

- Grease Filter
- Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.

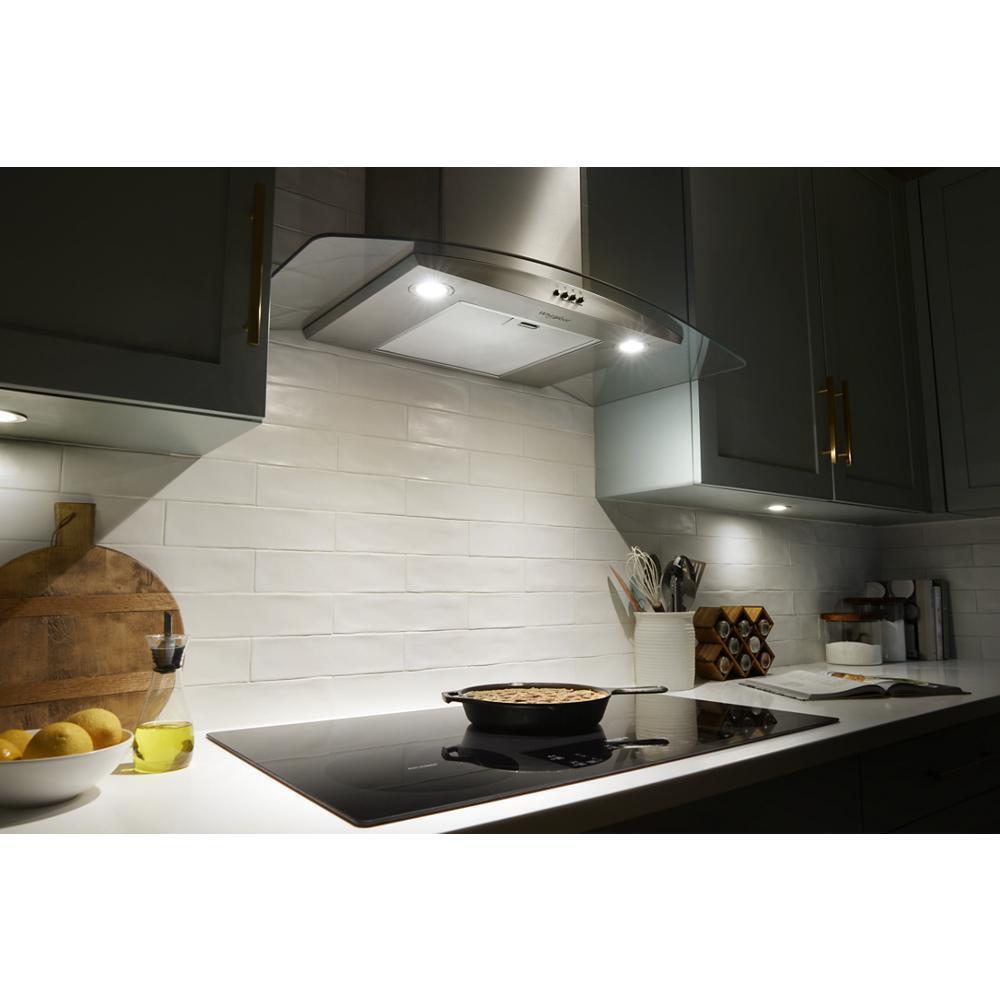

- LED Task Lighting
- Bright, long-lasting LED Task Lighting makes it easy to see what you re cooking.
- Optional Chimney Extension Kit
- Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
- Optional Recirculation Kit (non-vented/duct-free)
- This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.

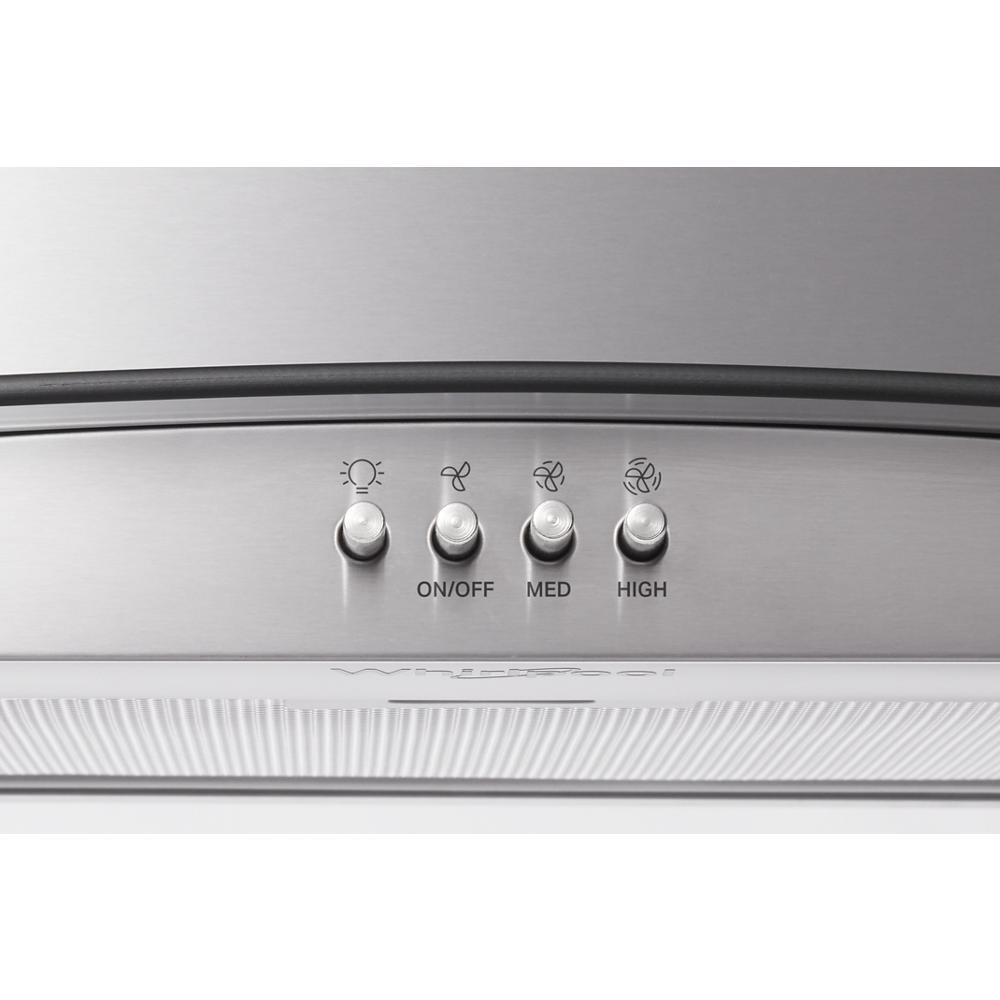

- Push Button Controls
- Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
- Three fan speeds let you choose the right amount of ventilation
- Regulate air in your chimney with the included 6" round damper
- Control fan speed and cooktop lighting at the push of a button
- Equipped for gas cooktops up to 65K BTUs and any electric cooktop
- Enjoy cooking and company, even when venting at the highest speed
- Meets ADA Standards for Accessible Design
- Convertible Ventilation provides more installation options
- Help trap unwanted grease and remove odors
- Easily see what you re cooking with LED Task Lighting
- Extends chimney height for ceilings from 8'4" to 12'4"
- Install your hood without needing to vent outside
Certifications | |
Energy Star Qualified | No |
Prop65 | Standard |
Controls | |
Control Location | Front |
Control Type | Push Button |
Details | |
Damper Included | Yes |

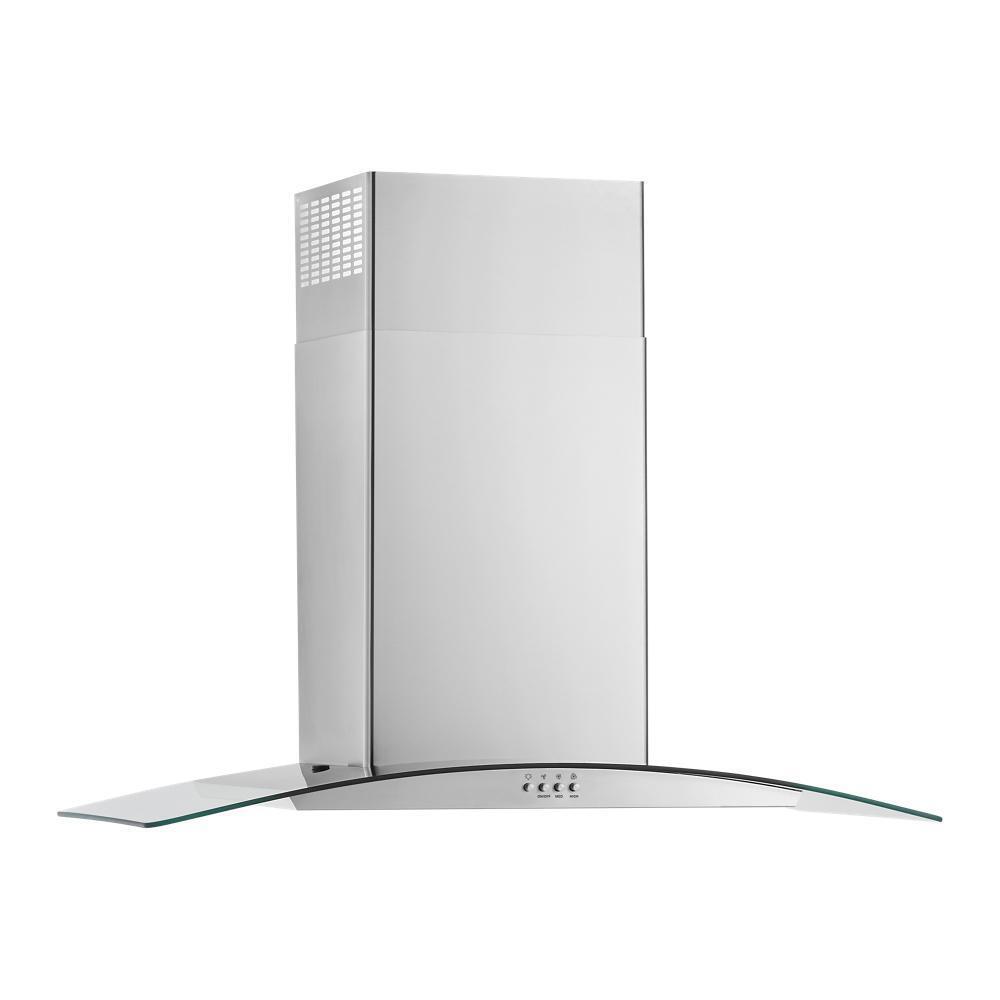

Hood Type | Wall-Mount Canopy |
Hood and Vent Selections | Fan High; Fan Med; Fan On/Off; Lamp |
Lighting Control Type | Push Button |
Number of Task Light Settings | 1 |
Number of Vent Speeds | 3 |
Task Lighting | Yes |
Dimensions | |

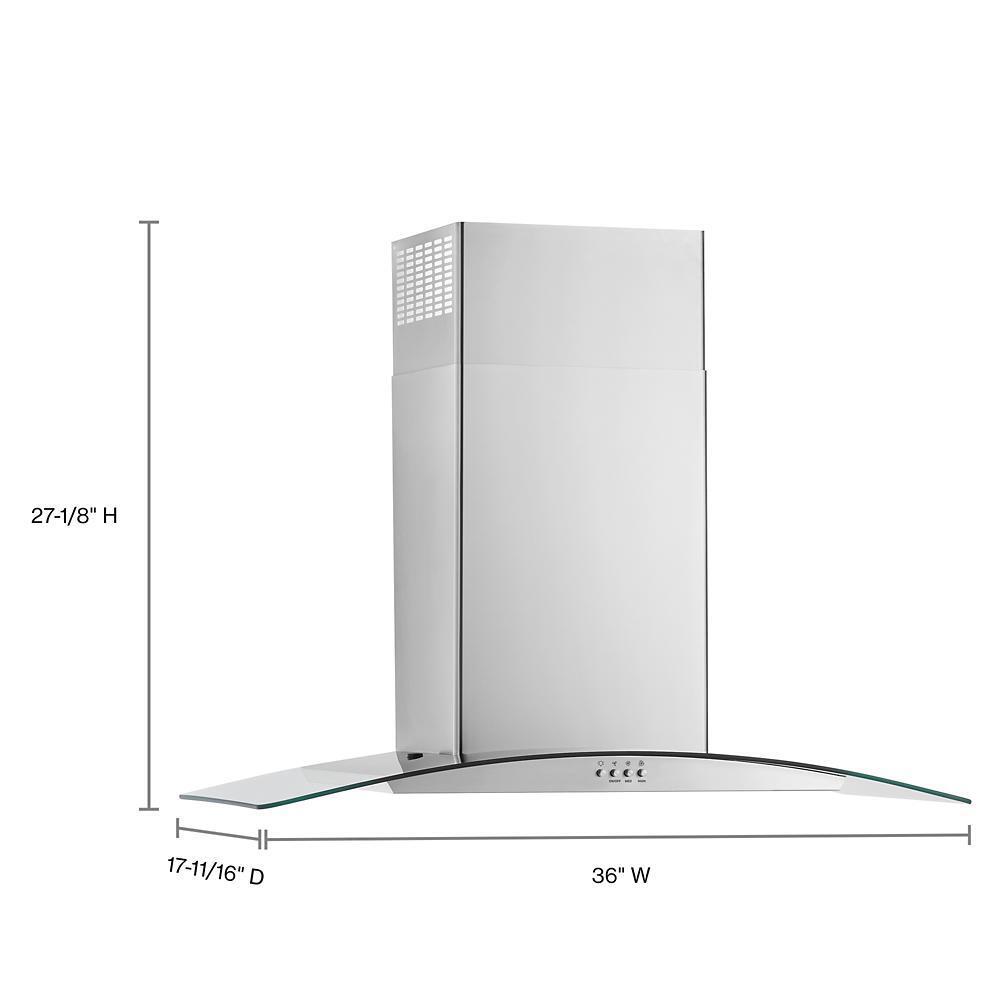

Canopy Height | 10.813 |
Carton Depth | 17.5 |
Carton Height | 25.5 |
Carton Width | 34 |
Gross Weight | 51 |
Net Weight | 40 |
Electrical | |
Power Cord Included | No |
Ventilation Details | |
Auto Function | No |
BTU Threshold | 65 K |
Blower Motor | N/A |
Blower Type | Centrifugal |
Cfm Motor Class | 400 |
Duct Direction | Vertical |
Duct Length | 45.5 |
Duct Outlet Size | 6 |
Duct Type | Round |
Exhaust Vent Location | Top |
Filters | Aluminum Mesh Filter |
Hvi (cfm Hs Vertical) | 340 |
Maximum Motor Cfm | 340 |
Minimum Motor Cfm | 80 |
Night Light | No |
Night Light Type | N/A |
Sones High Speed Vertical | 7 |
Sound Max Speed | 66 |
Sound Max Speed (sones) | 7 |
Sound Min Speed | 0.6 |
Sound Min Speed (sones) | 0.6 |
Task Light Type | LED |
Vent Material | Metal |
Venting | Exterior or Recirculating |
