30" Liner Inserts Range Hood
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 30"
- Height : 24.25"
- Depth : 19.5"
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

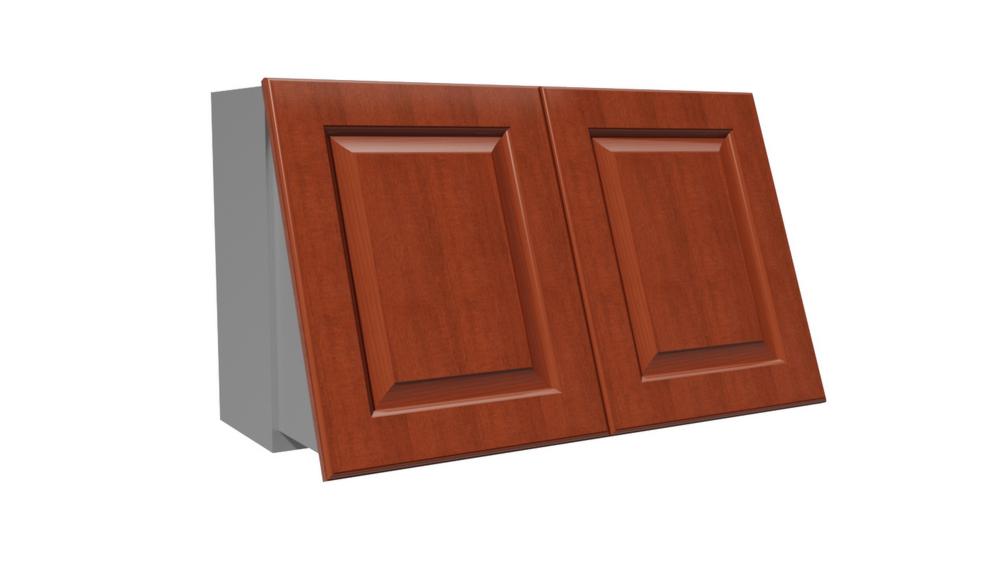

This hidden canopy, fronted with your own cabinet material provides visual continuity of cabinetry. Easy to pull out and close, this model successfully blends into cabinets. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. Recommended mounting height is 23 3/4" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 30" |
| DEPTH : | 19 1/2" |
| HEIGHT : | 24 1/4" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM SP@0.0" | 300 |
| Equiv. CFM$ | 450 |
| CFM SP@0.1" | 273 |
| CFM SP@0.2" | 245 |
| CFM SP@0.3" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |
