Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 60"
- Height : 30"
- Depth : 24"
- Energy Star Rated : NO
Documents
Documents
- Installation Instructions
- Technical Specifications
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(JCH/C2 - Premier Magic Lung(R) Designer Series Wall Mounted)
- VP563 transition centers outlet over top of hood.
- Dimension Diagram(JCH460/C2)
- 1200 CFM Double B200 Dual Blowers (Top View)
- (Front View)
- Back Venting Guide
- VP563 Transition (Optional) For B400 (Double B200 Dual Blowers)
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

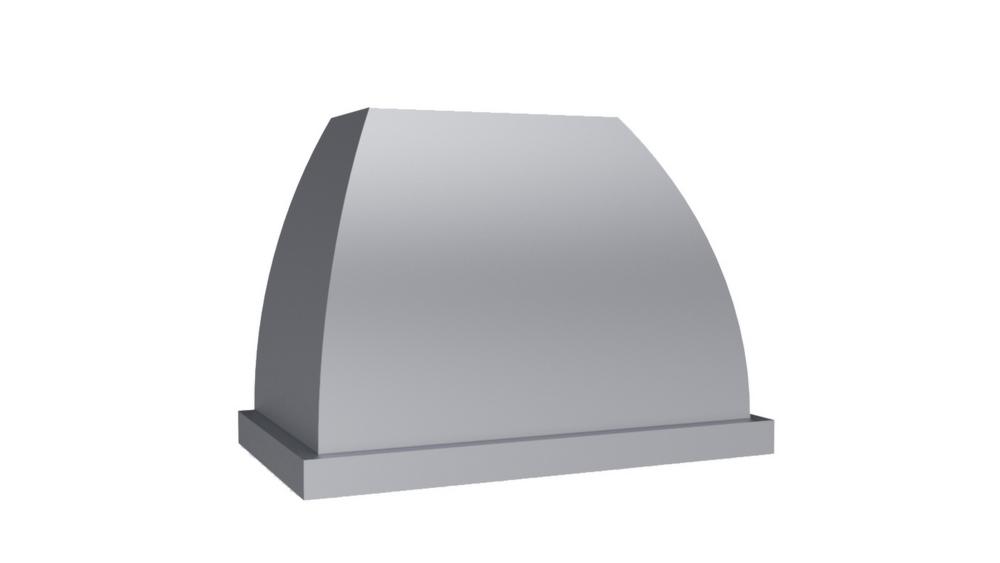

Convex curve with lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.(BR)
WIDTH : | 60" |
DEPTH : | 24" |
HEIGHT : | 30" |
CFM : | 1200 |
SONES : | 6.6 |
Amps : | 7.5 |
Num. Lights : | 4 |
ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
Model | Two B200 Duals |
Volts | 115 |
Amps+ | 7.5 |
Hz | 60 |
RPM | 1550 |
CFM SP@0.0" | 1200 |
Equiv. CFM$ | 1800 |
CFM SP@0.1" | 1062 |
CFM SP@0.2" | 960 |
CFM SP@0.3" | 860 |
Min. Round Duct Size | 12" (113 sq. in.) |
Sones# | 6.6 |
