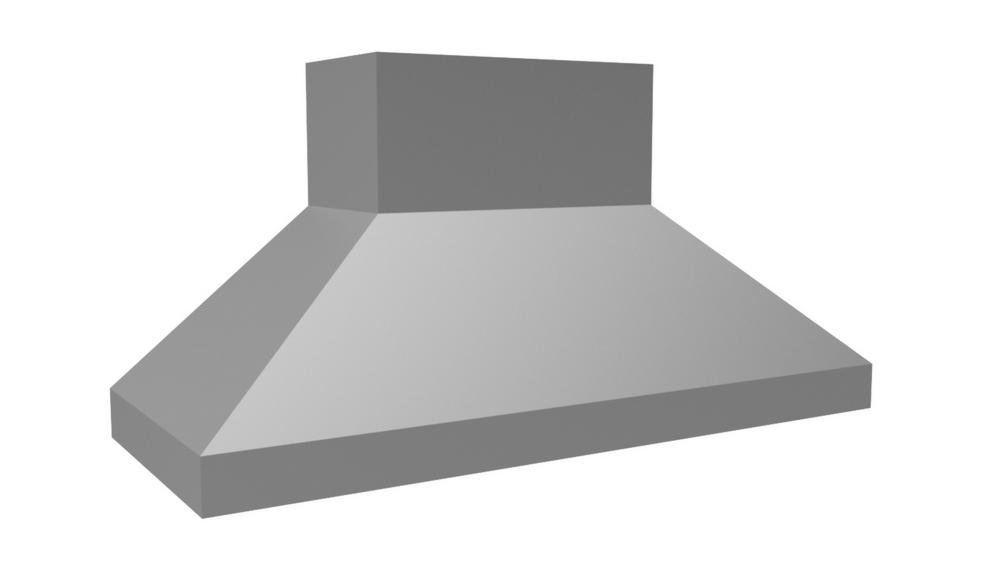

66" Wall Mounted Euro Style Range Hood
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 66"
- Height : 18"
- Depth : 24"
- Energy Star Rated : NO
Documents
Documents
- Ducting and Parts
- Back Venting Guide
- Technical Specifications
- Back Venting Guide
- Dimension Diagram(EPTH18 - Premier Magic Lung(R) Euro Style Wall Mounted)
- Dimension Diagram(EPTH18-466)
- 1200 CFM Double B200 Dual Blowers (Top View) VP563 Standard Transition Installed (Front View) The transition shown (VP563) is installed in the hood at the factory as a standard item. It will be located in the exact center of the duct cover (left to right & front to rear).
- Installation Instructions
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
This Euroline Pro with squared lip is boldly designed to cover light residential, "commercial type" cooking equipment. To order a 27" depth, add an 'X' after 'EP' in the model number. The Euroline Pro Series with Emerald Lip is also available with a 26" wide x 14" deep top to allow for higher CFM requirements . Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 30" from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 8', 9', and 10' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 66" |
| DEPTH : | 24" |
| HEIGHT : | 18" |
| CFM : | 1200 |
| SONES : | 6.6 |
| Amps : | 7.5 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | Two B200 Duals |
| Volts | 115 |
| Amps+ | 7.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM SP@0.0" | 1200 |
| Equiv. CFM$ | 1800 |
| CFM SP@0.1" | 1062 |
| CFM SP@0.2" | 960 |
| CFM SP@0.3" | 860 |
| Min. Round Duct Size | 12" (113 sq. in.) |
| Sones# | 6.6 |
