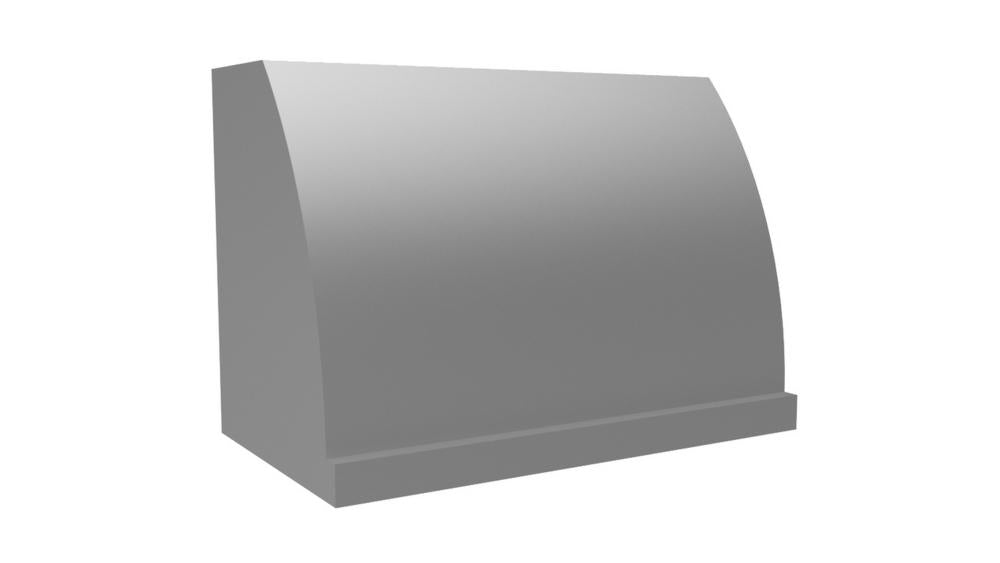

60" Wall Mounted Range Hood
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 60"
- Height : 30"
- Depth : 24"
- Energy Star Rated : NO
Documents
Documents
- (Front View)
- Ducting and Parts
- Back Venting Guide
- VP562 Transition (Optional) For B300 (B200 Dual Blower & B100 Single Blower)
- VP562 transition centers outlet over top of hood.
- Technical Specifications
- Back Venting Guide
- Dimension Diagram(CXH30 - Premier Magic Lung(R) Professional/Standard Wall Mounted)
- Dimension Diagram(CXH30-360)
- 900 CFM B200 Dual & B100 Single Blower (Top View)
- Installation Instructions
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
European design of this rounded wall-mount hood works well in any kitchen. Heat lamps may also be added to selected models. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 60" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM SP@0.0" | 900 |
| Equiv. CFM$ | 1350 |
| CFM SP@0.1" | 804 |
| CFM SP@0.2" | 725 |
| CFM SP@0.3" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
