66" Wall Mounted Contemporary Range Hood
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 66"
- Height : 9"
- Depth : 21"
- Energy Star Rated : NO
Documents
Documents
- Ducting and Parts
- Back Venting Guide
- Technical Specifications
- Back Venting Guide
- Dimension Diagram(CWLH9 - Premier Magic Lung(R) Contemporary Wall Mounted)
- Dimension Diagram(CWLH9-466)
- 1200 CFM Double B200 Dual Blowers (Top View) VP563 Transition (Optional) For B400 (Double B200 Dual Blowers) VP563 transition centers outlet over top of hood.
- Installation Instructions
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

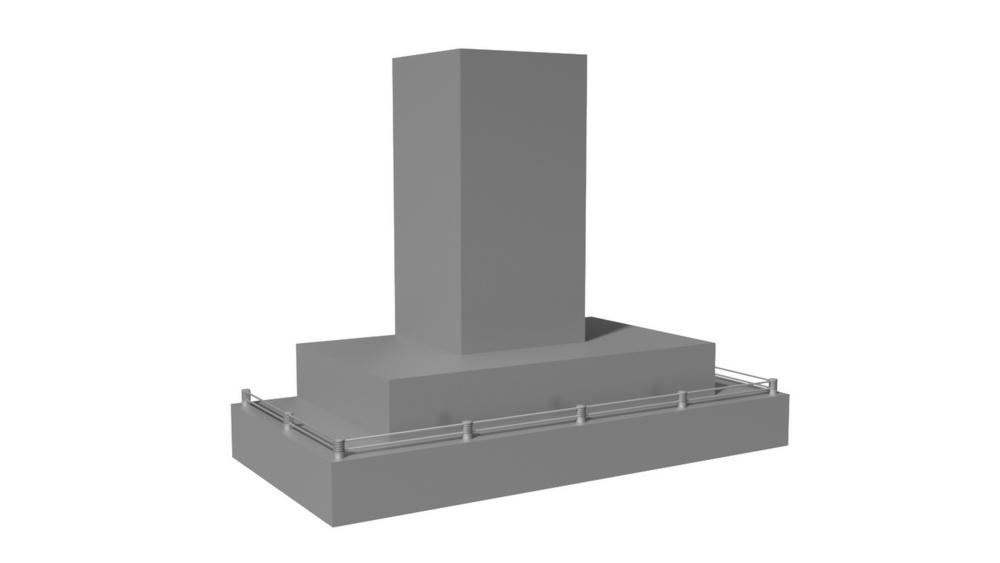

Double rectangle with galley rail styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. Not available in real brass, real copper, or hammered copper. Recommended mounting height 27" above the cooking surface. Shown with matching wall mount duct covers [sold separately], available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 66" |
| DEPTH : | 21" |
| HEIGHT : | 9" |
| CFM : | 1200 |
| SONES : | 6.6 |
| Amps : | 7.5 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | Two B200 Duals |
| Volts | 115 |
| Amps+ | 7.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM SP@0.0" | 1200 |
| Equiv. CFM$ | 1800 |
| CFM SP@0.1" | 1062 |
| CFM SP@0.2" | 960 |
| CFM SP@0.3" | 860 |
| Min. Round Duct Size | 12" (113 sq. in.) |
| Sones# | 6.6 |
