Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : COOKTOPS (ELECTRIC)
- Width : 23.25"
- Height : 2"
- Depth : 20.5"
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Sabbath Mode : NO
- Induction : NO
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

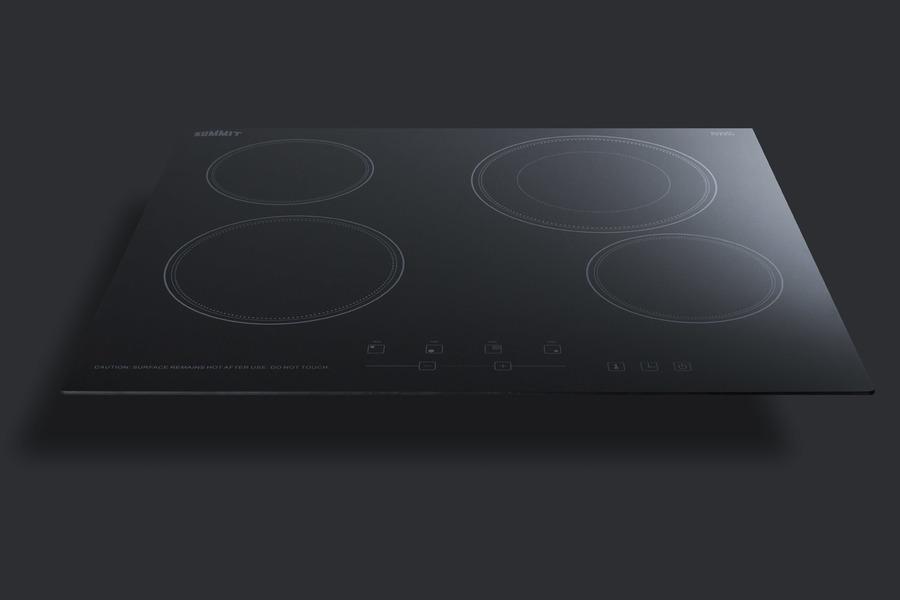

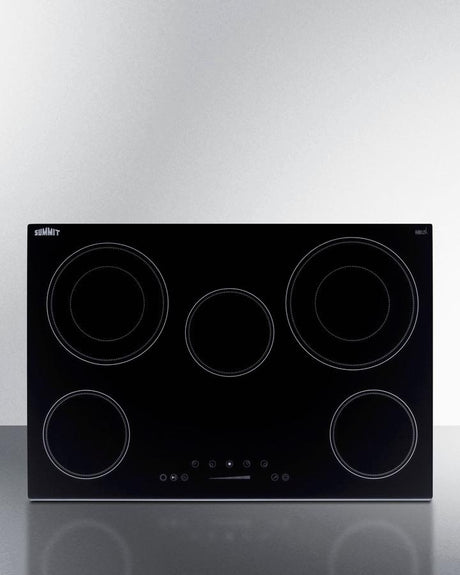

- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

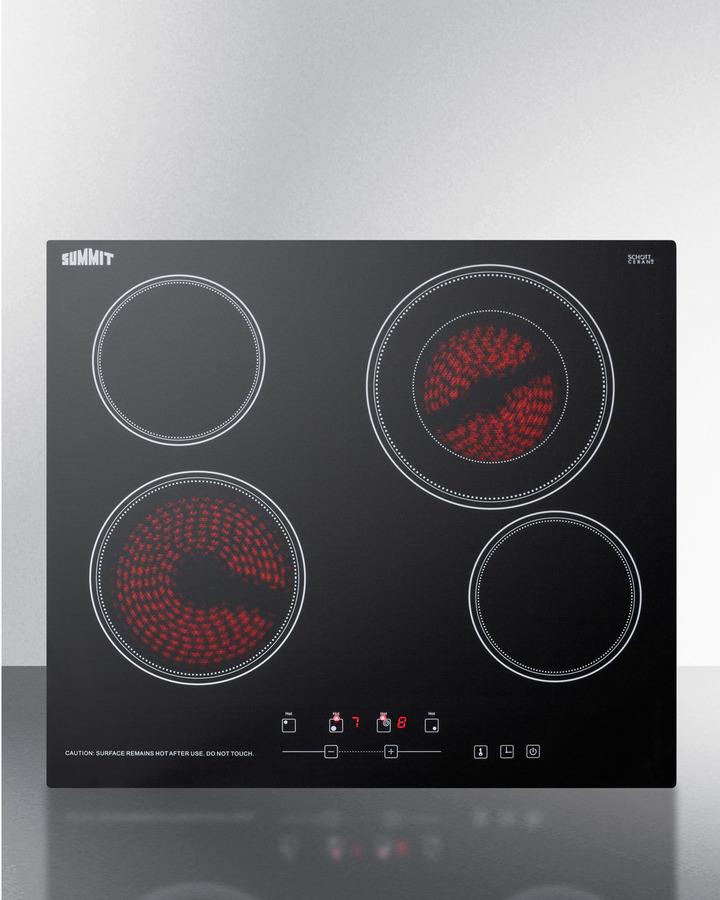

- Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
- Upfront controls meet ADA guidelines for easier accessibilty
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation to 230V power supply

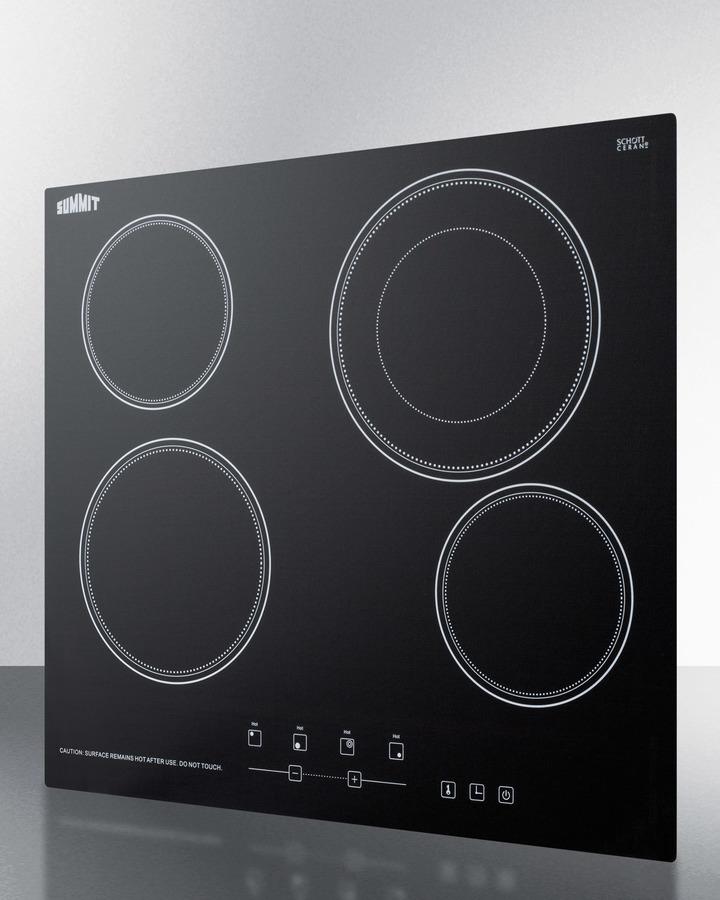

- Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
- Front right and rear left burners are 5.5" in diameter to meet most cooking needs
- Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

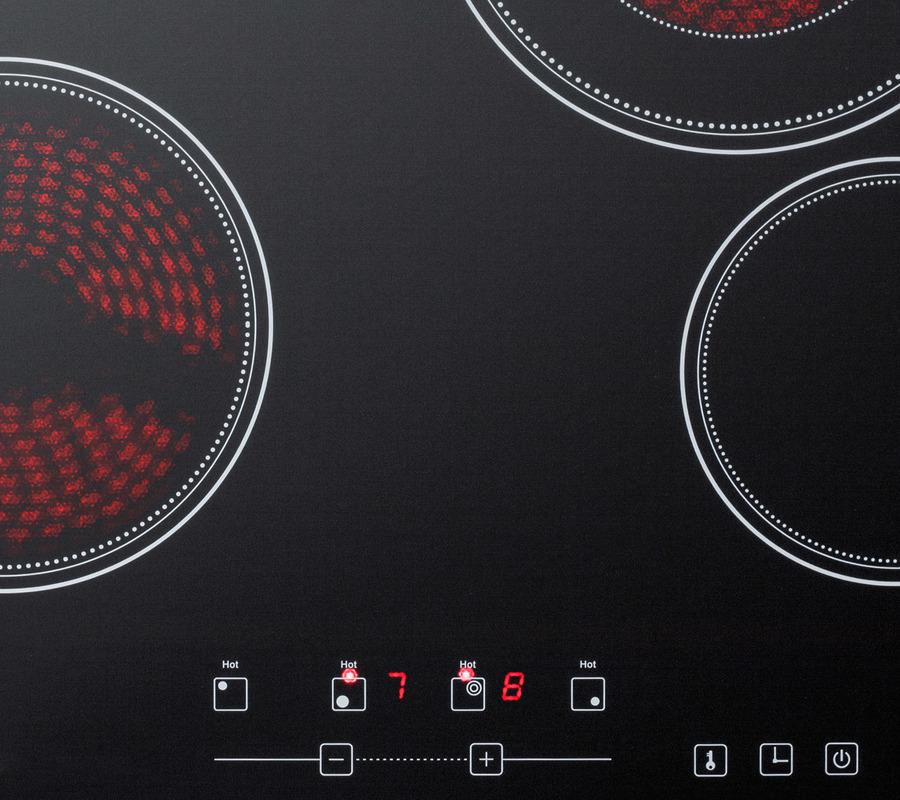

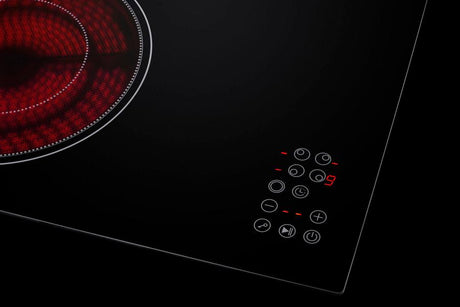

- Easy operation with a digital control panel and digital display
- Select and adjust your heating levels at the touch of a button
- Allows you to program either burner to heat at a specified level for up to 99 minutes
- Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Fits counter cutout sizes that are 22" wide by 19.5" deep
Overview | |
Nominal Height | 2.0" (5 cm) |
Height of Cabinet | 2.0" (5 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.25" (59 cm) |
Nominal Depth | 21.0" (53 cm) |
Depth | 20.5" (52 cm) |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 30.0 |
Voltage/Frequency | 230 V AC/60 Hz |
Weight | 20.0 lbs. (9 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101053257 |
Electric Cooktop | |
Heating Type | Radiant |
Surface | Glass |
Element Type | Glasstop |
Number of Elements | 4 |
Controls | Digital |
Countertop Cutout Height | 3.2" (8 cm) |
Countertop Cutout Width | 22.0" (56 cm) |
Countertop Cutout Depth | 19.5" (50 cm) |
Element #1 Size | 5.5" (14 cm) |
Element #1 Wattage | 1200.0 |
Element #2 Size | 8.1" (21 cm) |
Element #2 Wattage | 2200.0 |
Element #3 Size | 5.5" (14 cm) |
Element #3 Wattage | 1200.0 |
Element #4 Size | 7.0" (18 cm) |
Element #4 Wattage | 1800.0 |
Power Cord Included | No |
