Quick Specifications
Quick Specifications
- Type : FREEZERS
- Style : ICE MAKERS
- Height : 25
- Depth : 16.75
- Energy Star Rated : NO
- Wifi Connected : NO
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.
- Make the best use of space by installing your icemaker under the counter
- Crescent-shaped ice provides a harder and longer-lasting ice

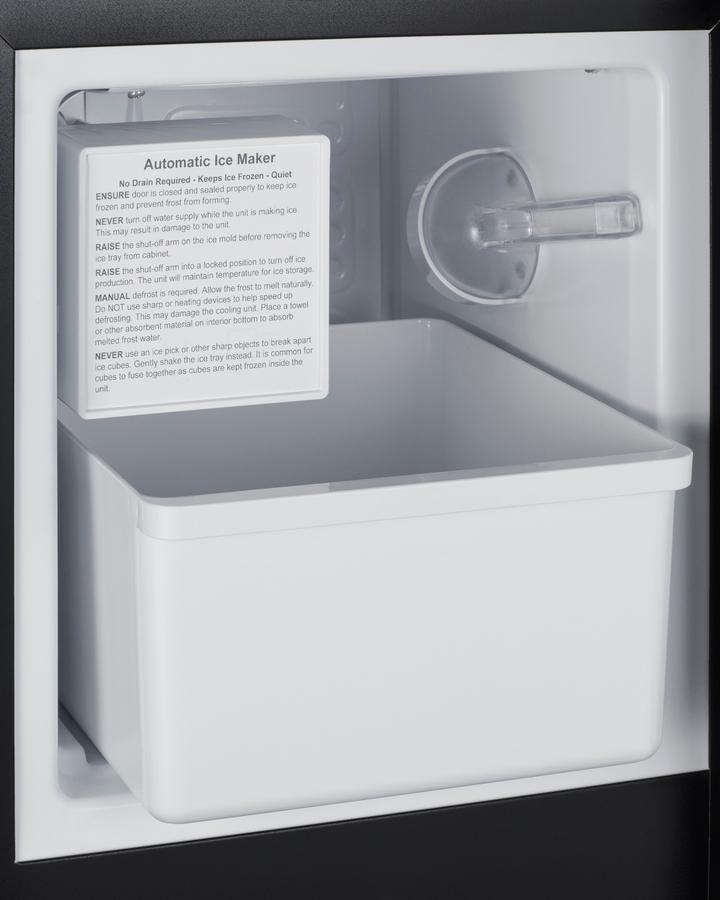

- Users can remove the ice bucket for fast and easy cleaning
- Ice stays solid longer in this cold-protected bin
- For this unit with a standard right hand door swing, see model BIM26
- Environmentally friendly design without ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
- Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs
- Convenient design allows more flexibility in positioning the unit
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

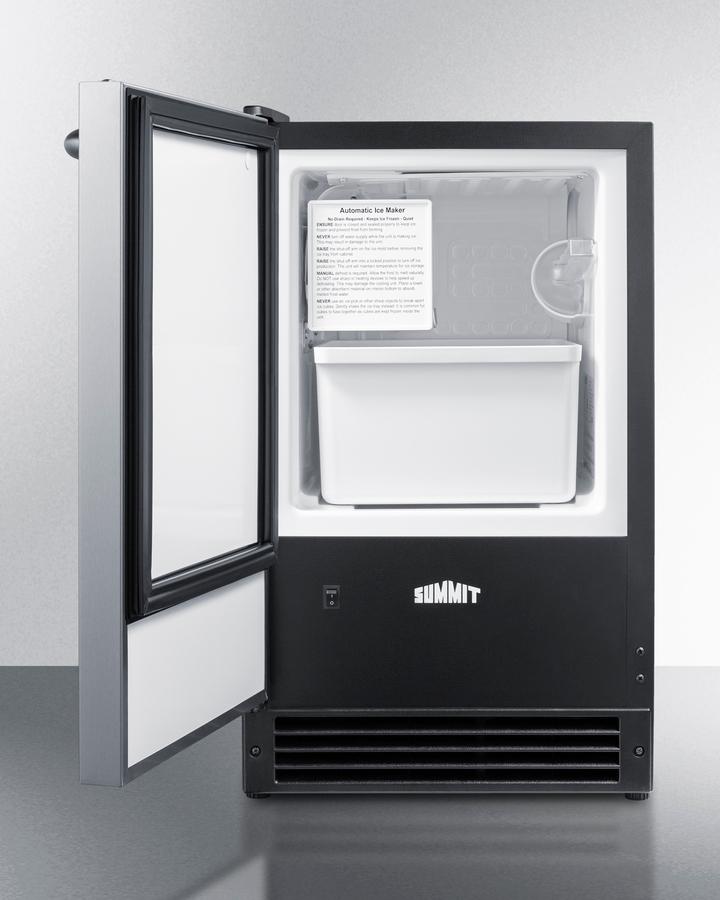

- User-reversible door swing for flexible placement
- Space-saving design with easier cleanability
- Operates with a standard 1/4 OD water supply line

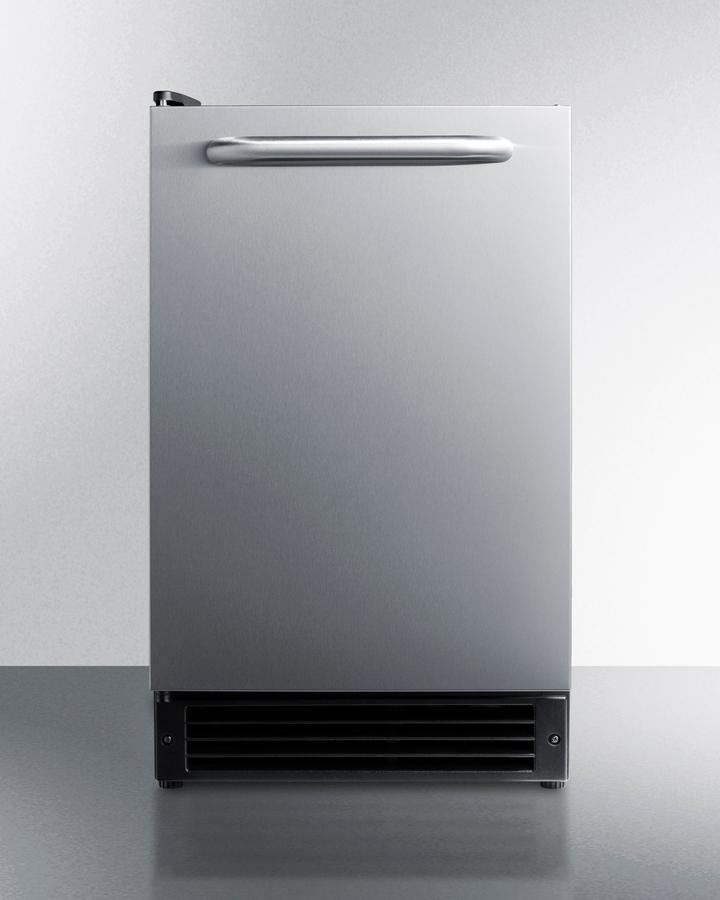

- Horizontally mounted towel bar style handle in stainless steel
- Large ice scoop and holder included for your convenience
Overview | |
Nominal Height | 25.0" (64 cm) |
Height of Cabinet | 24.5" (62 cm) |
Height to Hinge Cap | 25.0" (64 cm) |
Nominal Width | 15.0" (38 cm) |
Width | 14.88" (38 cm) |
Width with Door Open | 15.13" (38 cm) |
Nominal Depth | 17.0" (43 cm) |
Depth | 16.75" (43 cm) |
Depth with door at 90° | 32.25" (82 cm) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 50.0 lbs. (23 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101108452 |
Icemaker | |
Door Swing | LHD |
Reversible | Yes |
Height Adjustable | No |
Daily Ice Production | 15.0 lbs. (7 kg) |
Ice Storage Capacity | 12.0 lbs. (5 kg) |
Ice Shape | Crescent |
Size of Cube | 7/8" x 7/8" x 2-3/8" |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R600a |
Refrigerant Amount | 1.69 oz. |
High Side PSI | 120.0 |
Low Side PSI | 55.0 |
Interior Height | 12.25" (31 cm) |
Interior Width | 11.0" (28 cm) |
Interior Depth | 12.25" (31 cm) |
Level Legs | 4 |
