Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : 36" AND LARGER FREE STANDING GAS RANGE
- Height : 35.43"
- Depth : 23.62"
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : YES
- Burner Type : Sealed
- Self Clean : NO
- Convection : YES
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : NO
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

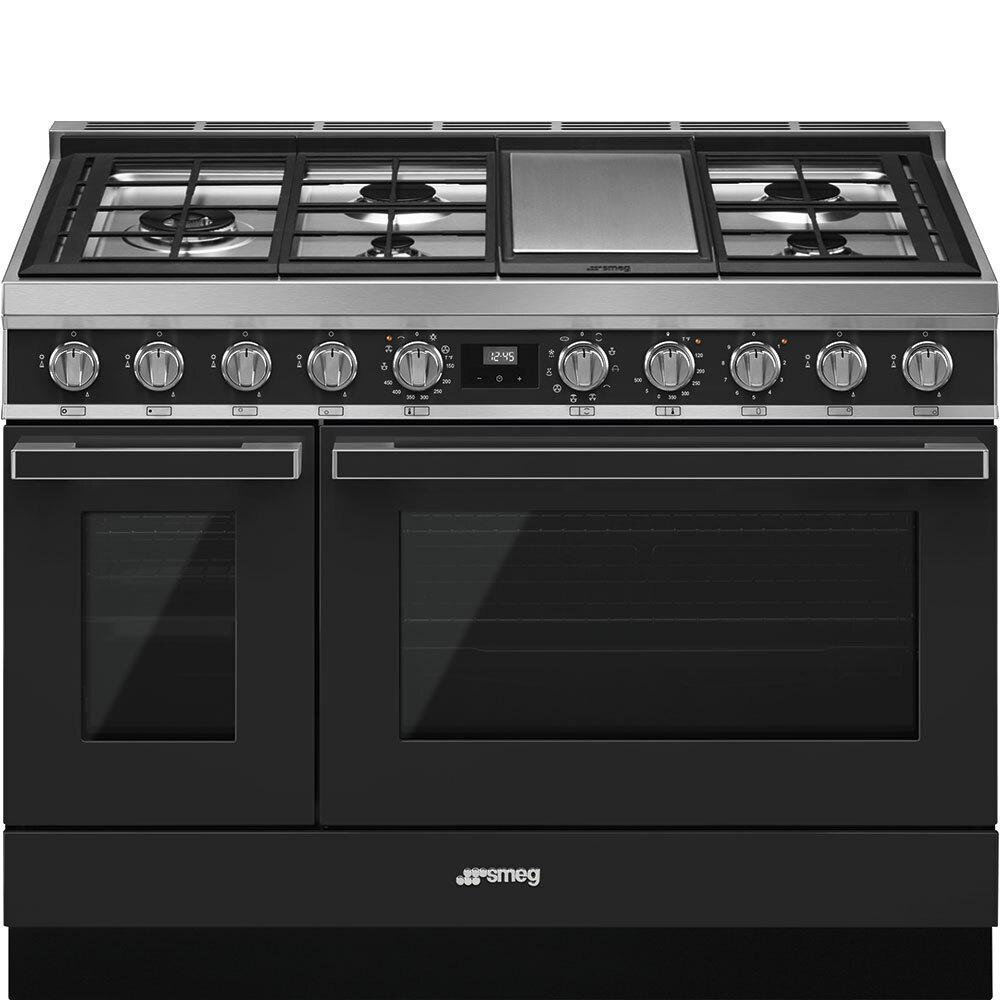

- Product family: Range
- Range size: 48"
- Aesthetics: Portofino
- Color: Anthracite
- Main oven: Thermo-ventilated
- Secondary oven: Static
Type | |
Product family | Range |
Range size | 48" |
Range fuel | Dual-fuel |
N. of ovens | 2 |
Main oven | Thermo-ventilated |
Secondary oven | Static |
EAN code | 8017709266783 |
Aesthetic | |
Color | Anthracite |
Aesthetics | Portofino |
Design | Flush mounted |
Material | Painted metal |
Cooktop color | Stainless steel |
Handle | Portofino |
Display | Touch |
Grates | Cast Iron |
No. of controls | 10 |
Plinth | Black |
Storage compartment | Storage drawer |
Main oven options | |
Timer | Yes |
End-of-cooking alarm | Yes |
Minimum Temperature | 120 °F |
Maximum temperature | 500 °F |
Secondary oven functions | |
Minimum Temperature | 120 °F |
Maximum temperature | 450 °F |
Cooktop technical features | |
Cooking zones | 6 |
Zone 1 - Power | 5.3 kW |
Zone 1 - Power | 18000 BTU |
Zone 2 - Power | 3.5 kW |
Zone 2 - Power | 12000 BTU |
Zone 3 - Power | 1.31 kW |
Zone 3 - Power | 4500 BTU |
Zone 4 - Power | 3.5 kW |
Zone 4 - Power | 12000 BTU |
Zone 5 - Power | 2.34 kW |
Zone 5 - Power | 8000 BTU |
Zone 6 - Power | 1.90 kW |
Zone 6 - Power | 6500 BTU |
Zone 7 - Power | 1.60 (BBQ) kW |
Zone 7 - Power | 5500 (BBQ) BTU |
Burner caps | Enameled matte black |
Gas safety valves | Yes |
Main Oven Technical Features | |
Volume | 0.16 cu. ft. |
Cavity material | EverClean enamel |
No. of shelves | 5 |
Shelves type | Metal racks |
No. of lights | 2 |
Light type | Halogen |
Light Power | 40 W |
Fan number | 3 |
Time setting | Start and end |
Light on when door is open | Yes |
Removable door | Yes |
Total no. of door glasses | 3 |
Safety thermostat | Yes |
Cooling system | Tangential |
Grill type | Electric |
Grill power | 1700 W |
Large grill - Power | 2900 W |
Bottom heating element - Power | 1700 W |
Upper heating element - Power | 1200 W |
Circular heating element - Power | 1500 W |
Soft Close system | Yes |
Secondary oven - Technical specifications | |
Cavity material | EverClean enamel |
No. of shelves | 5 |
Shelves type | Metal racks |
No. of lights | 2 |
Lighting | Halogen |
Light Power | 40 W |
Fan number | 1 |
Light on when oven door is open | Yes |
Removable door | Yes |
No. total door glasses | 3 |
Security Thermostat | Yes |
Cooling system | Tangential |
Large grill - Power | 2050 W |
Lower heating element - power | 750 W |
Electrical Connection | |
Electrical connection rating | 8000 W |
Current | 50 A |
Circuit breaker | 50 A |
Voltage | 240/208 V |
Frequency | 60 Hz |
Power cord length | 47 1/4 " |
Type of electric cable installed | Yes, Double phase |
Gas Connection | |
Gas Type | G20 Natural gas |
Logistic Information | |
Dimensions | 900x1200x600 mm |
Width | 47 1/4 " |
Height | 35 7/16 " |
Depth | 23 5/8 " |
Packaged dimensions | 1060X1280X735 mm |
Gross weight | 412 lbs |
Net weight | 338 lbs |
Packaged width | 50 3/8 " |
Packaged depth | 28 15/16 " |
Packaged height | 41 3/4 " |
Maximum stackability | 2 |
Packaging | Cardboard box |
Packaging composition - Paper | 13 lbs |
Packaging composition - Polystyrene | 5 lbs |
Packaging composition - Wood | 55 lbs |
Packaging composition - Plastics | 1 lbs |
Accessories Included | |
Other gas nozzles included | G30 LPG liquid gas |
Accessories included for main oven and cooktop | |
Cast iron wok support | 1 |
TOP Oven grid with back stop | 2 |
1.6"-deep tray | 1 |
Telescopic Guide rails, total Extraction | 1 |
Accessories included - Secondary oven | |
Wide baking tray | 1 |
Rack with back and side stop | 1 |
Grill mesh | 1 |
Telescopic Guide rails, total Extraction | 1 |
