Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 36 1/2
- Height : 48
- Depth : 21 5/8
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

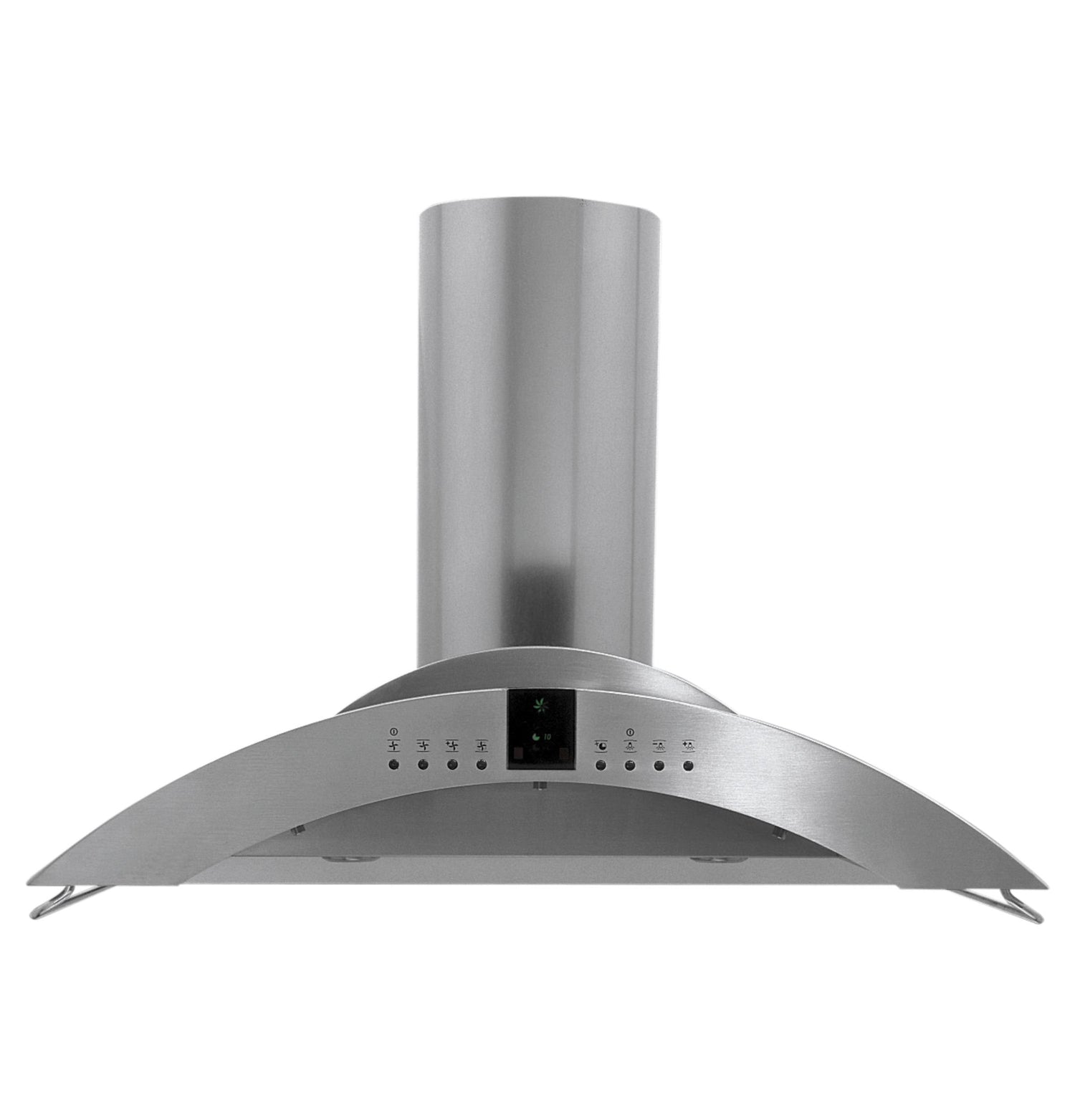

Stainless steel design
beautifully finished on all sides to create a look of elegance that enhances any kitchen

Four halogen lights
Offer six levels of intensity, from ambient to low/night illumination, to meet different needs

350 CFM, four-speed fan
Provides powerful ventilation to help keep the kitchen free of cooking fumes and odors

Three removable filters
Trap airborne grease particles and are dishwasher-safe. An indicator light signals when the filters need cleaning.
- Stainless steel design
- beautifully finished on all sides to create a look of elegance that enhances any kitchen
- 350 CFM, four-speed fan
- Provides powerful ventilation to help keep the kitchen free of cooking fumes and odors
- Four halogen lights
- Offer six levels of intensity, from ambient to low/night illumination, to meet different needs
- Three removable filters
- Trap airborne grease particles and are dishwasher-safe. An indicator light signals when the filters need cleaning.
- Timer
- Can be set for the fan to automatically shut-off after 5, 10 or 20 minutes of operation
- Optional recirculating kit (included)
- Can be installed for internal ventilation
- Stainless steel design
- 350 CFM, four-speed fan
- Four halogen lights
- Three removable filters
- Timer
- Optional recirculating kit (included)
APPEARANCE | |
Exterior Design | Chimney - Wall-Mount |
Design Style | Chimney |
Color Appearance | Stainless Steel |
WARRANTY | |
Labor Warranty | Limited 2-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance |
POWER / RATINGS | |
Amp Rating at 120V | 3.74 |
ACCESSORIES | |

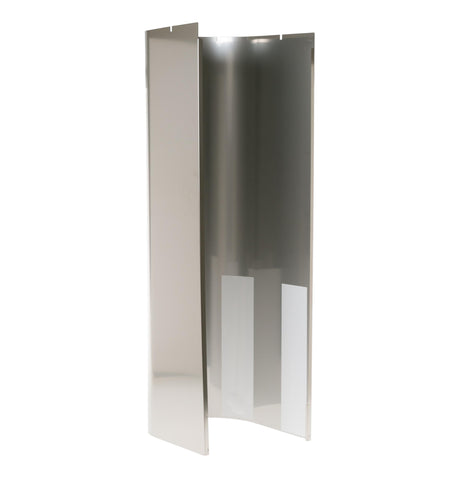

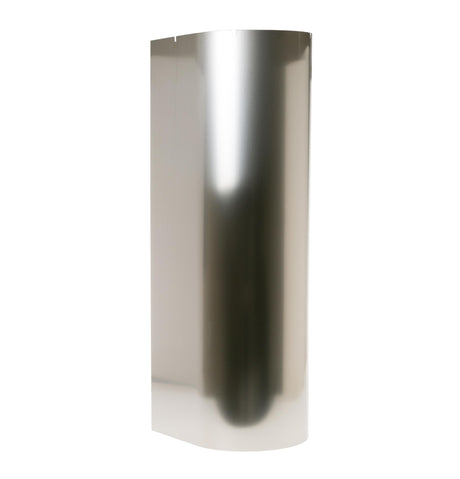

Optional 10" Ceiling Extension | ZX7510SPSS for 10' ceilings |

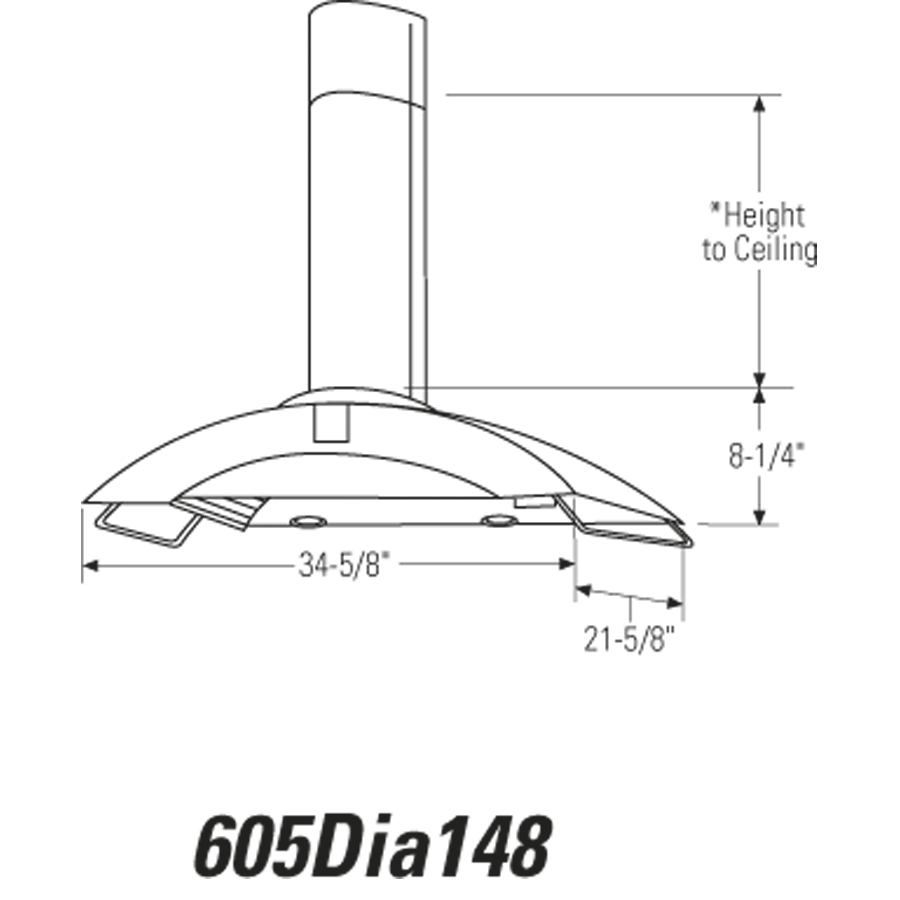

WEIGHTS & DIMENSIONS | |
Cabinet Width | 36 in |
Net Weight | 58 lb |
Overall Depth | 21.625 in |
Approximate Shipping Weight | 98 lb |
Overall Height | 48 in |
Overall Width | 35.75 in |
FEATURES | |
Cooktop Lighting | 4 Halogen |
Max CFM | 350 |
Damper in Transition | Yes |
Short Description | 36" Wall-Mounted Vent Hood |
Removable Stainless Steel Filters | 3 |
CFM/ Sones Rating | 170 / 1.1 (Low Speed) 350 / 6.0 (High Speed) |
Filter Cleaning Reminders | Yes |
Time Delay Shut-Off | Yes |
Exhaust Options | 6" Round Duct (Extends to 9' Ceiling) |
Product Type | Wall-Mount Hood |
Vertical Exhaust Blower Rating (CFM) | 350 |
Variable Speed Fan | Yes |
Control Type | 8 Pushbuttons Electronic |
Lighting Levels | 6 |
Recirculating Capable | Yes, Included |
Blower Levels | 4 Including Boost |
