Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : COOKTOPS (ELECTRIC)
- Width : 29.75"
- Height : 4.625"
- Depth : 20.87"
- Energy Star Rated : NO
- Wifi Connected : YES
- Downdraft Ventilation : NO
- Sabbath Mode : NO
- Induction : YES
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

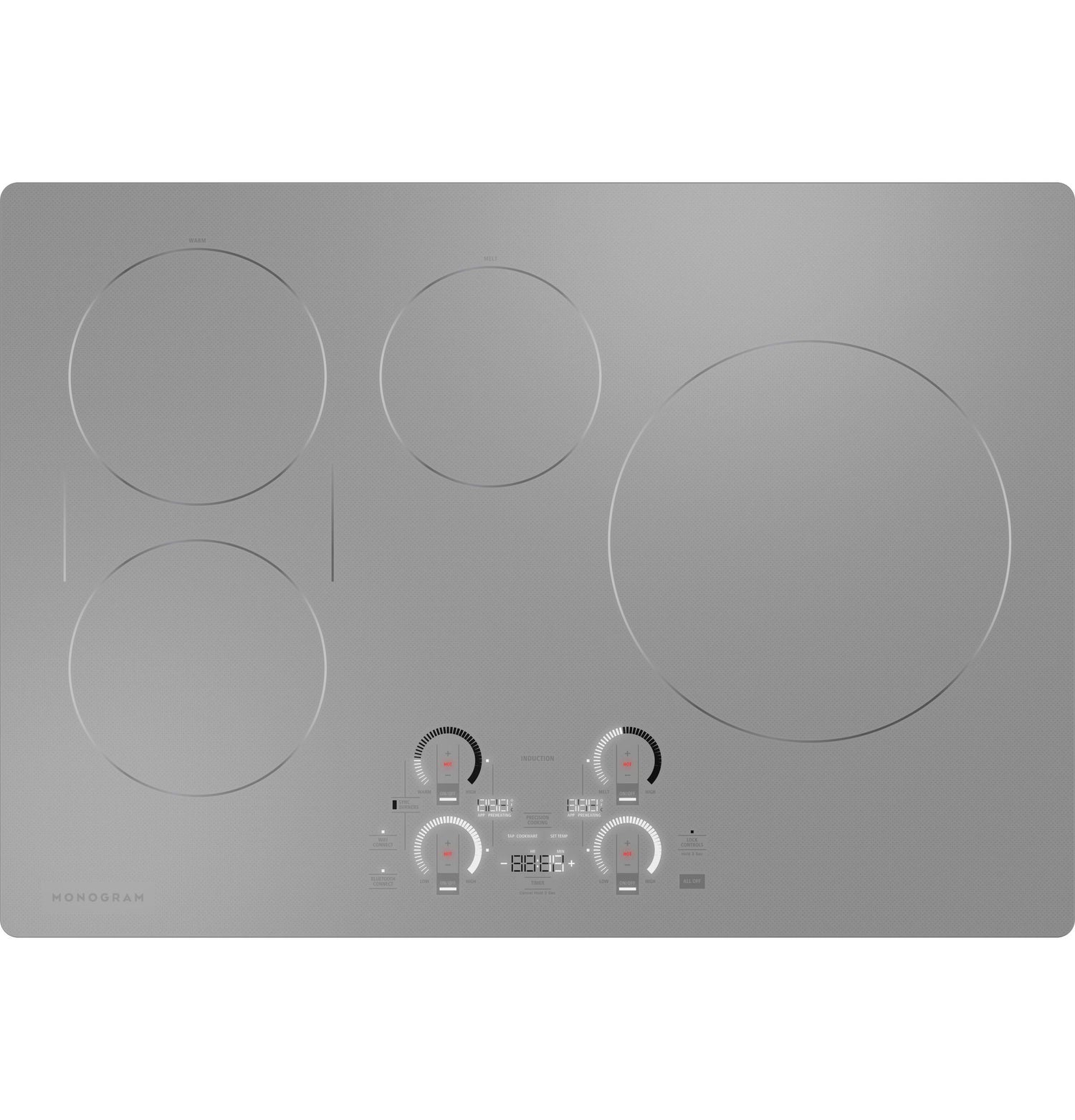

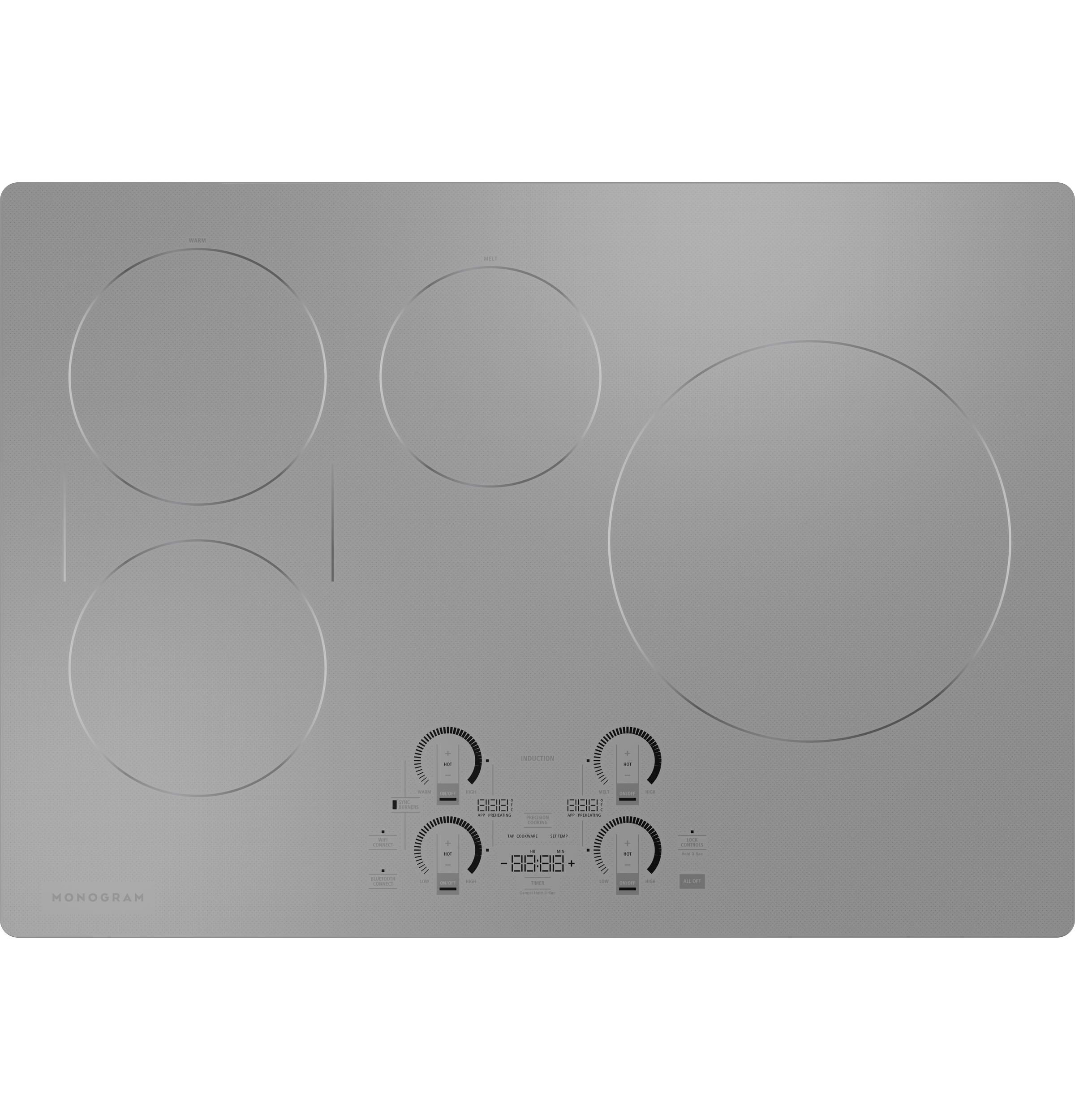

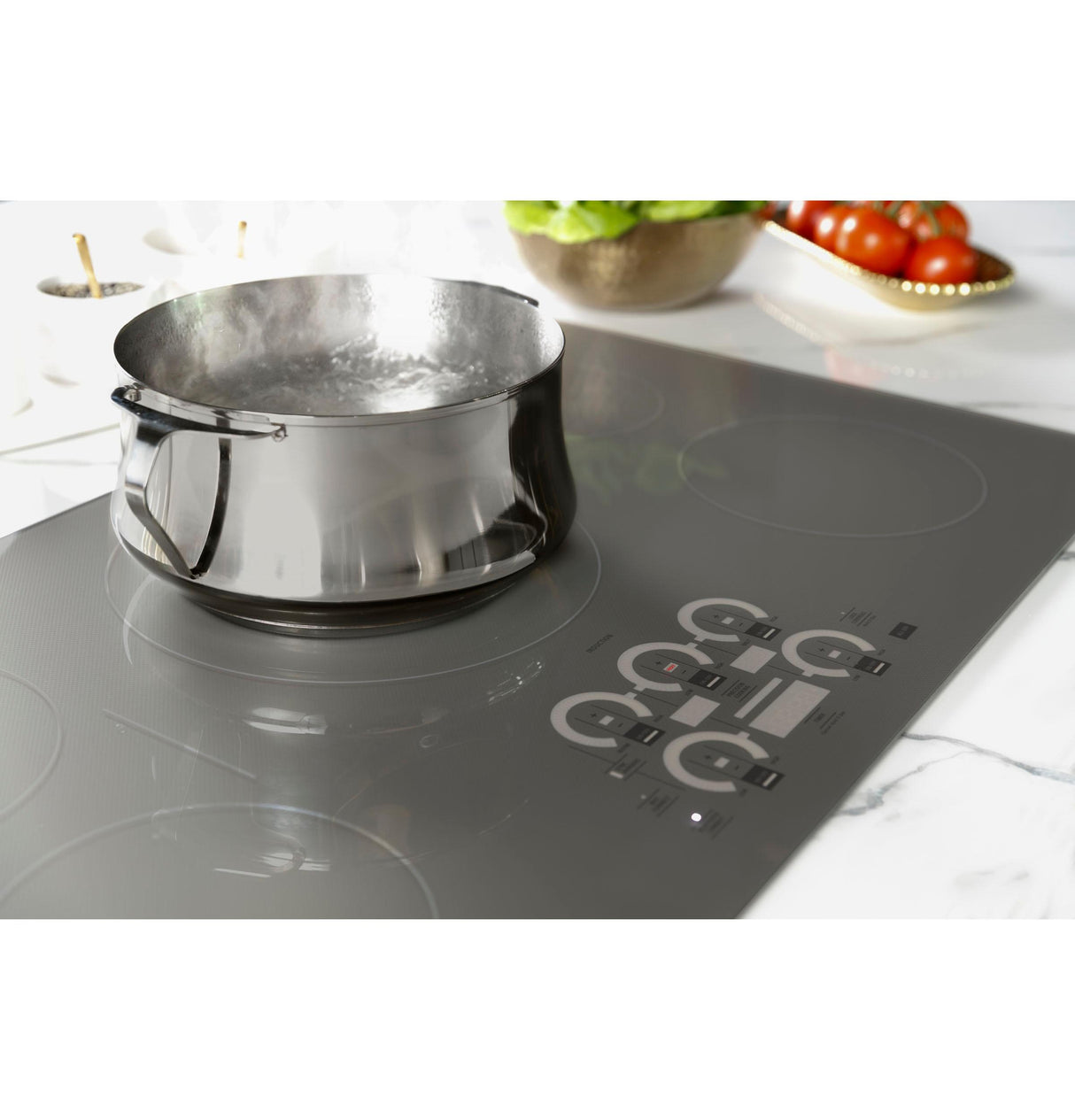

- 4 Induction Cooking Elements
- This 4-burner induction cooktop provides rapid heat that quickly responds when you change the temperature. Electromagnetic technology heats the pan, not the cooktop surface, allowing the cooktop to stay cool.

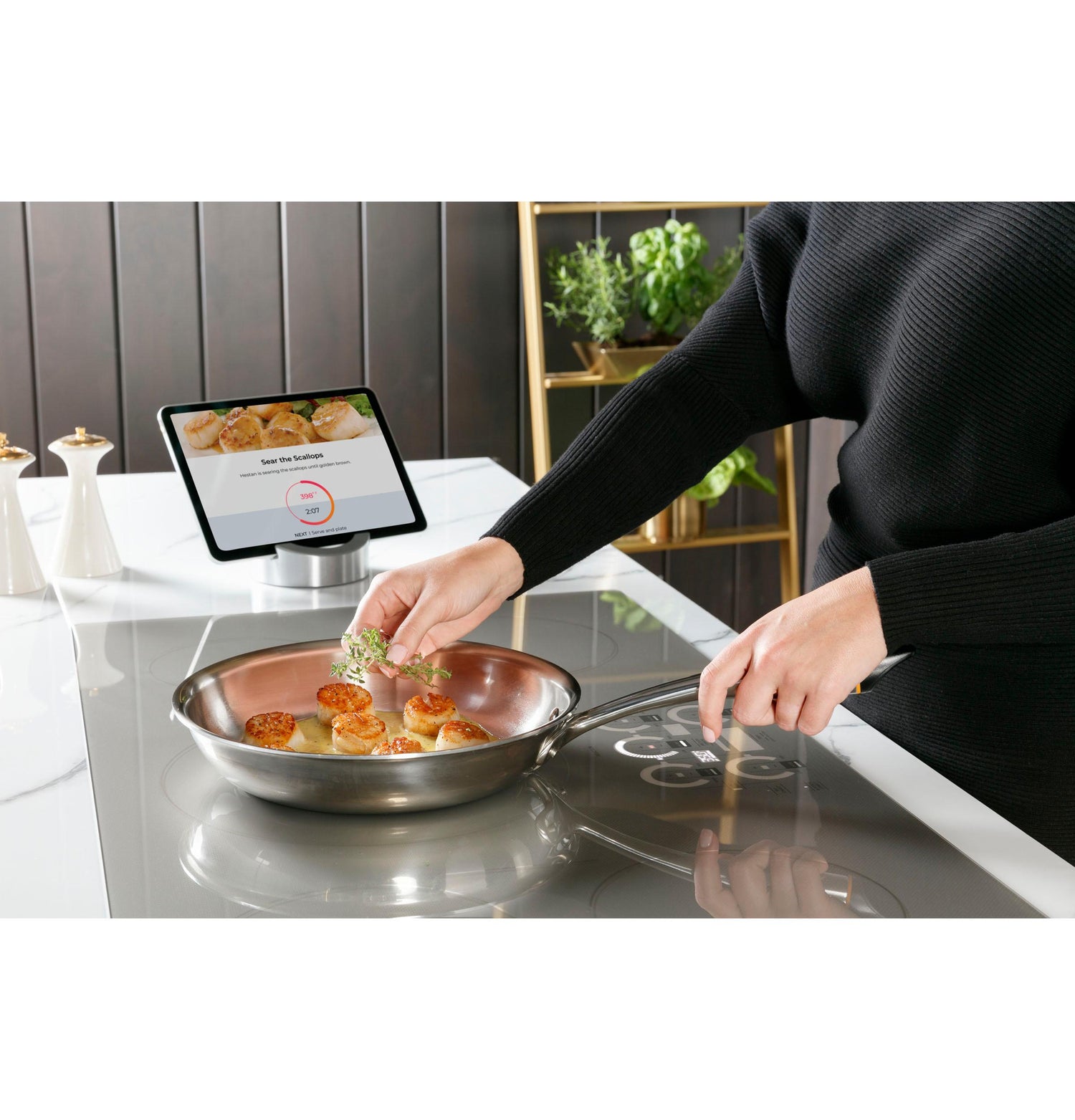

- Guided Cooking
- Follow along a video-guided recipe and your burners will automatically adjust time and temperature using a smart pan. Experience the joy of a perfectly cooked meal, from scallops to scrambles. Pan sold separately.

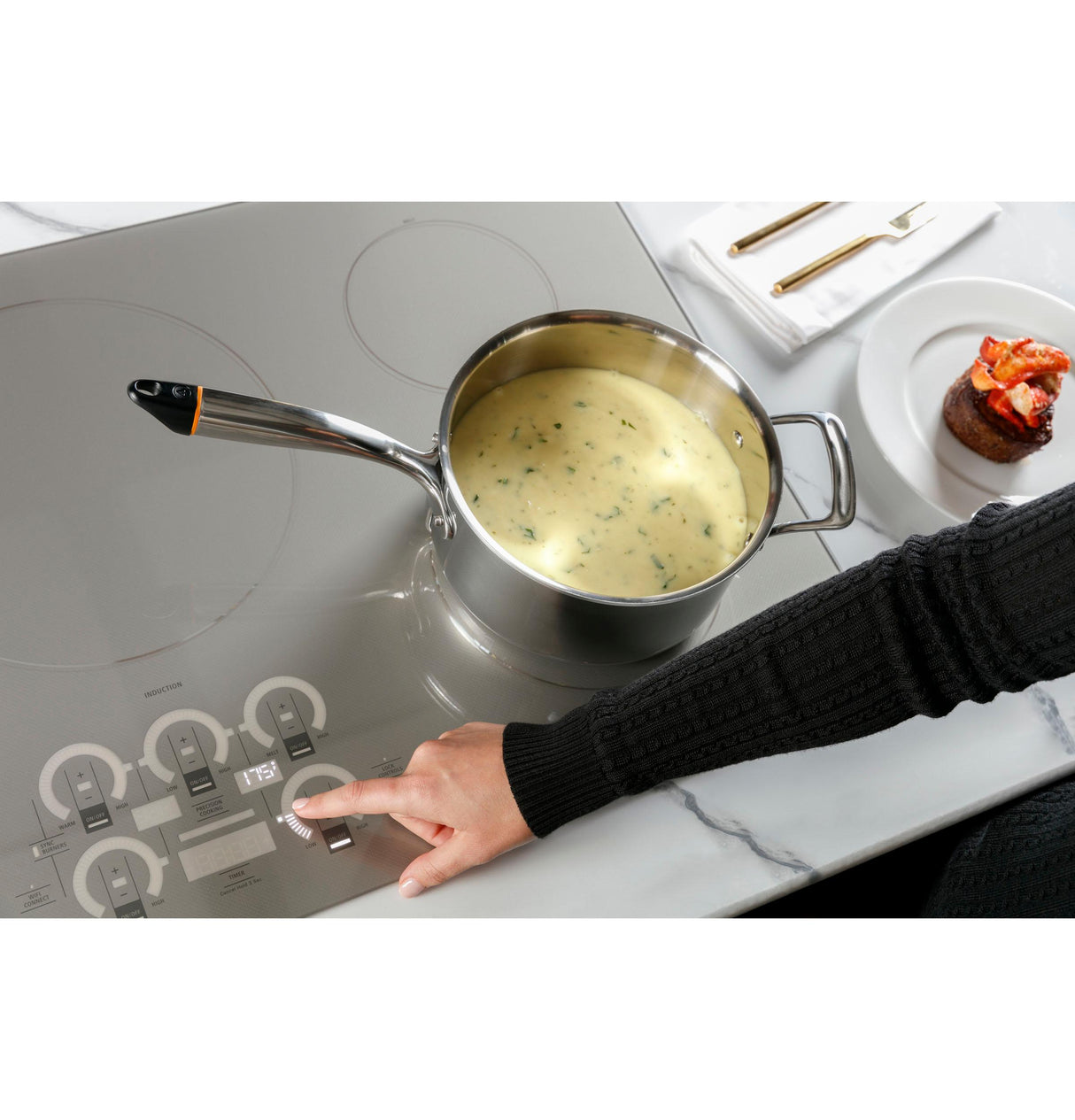

- Precision Temperature Control
- Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature - from 100 to 500 degrees. Perfect for sauces, candies and frying.
- Flush-Mount Capable
- Optional accessory kit enables the cooktop to be flush inset into the countertop for a sleek, modern look

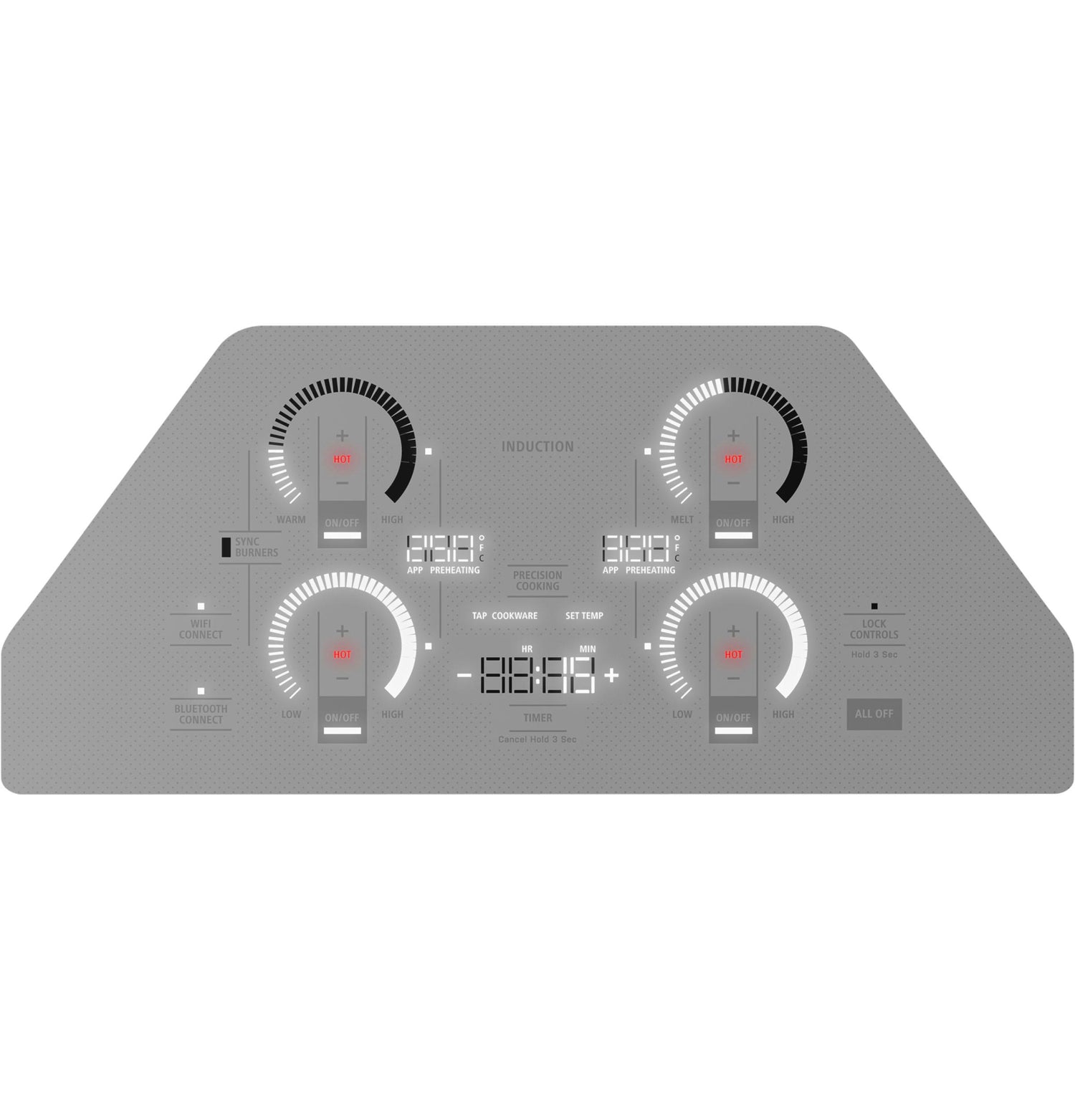

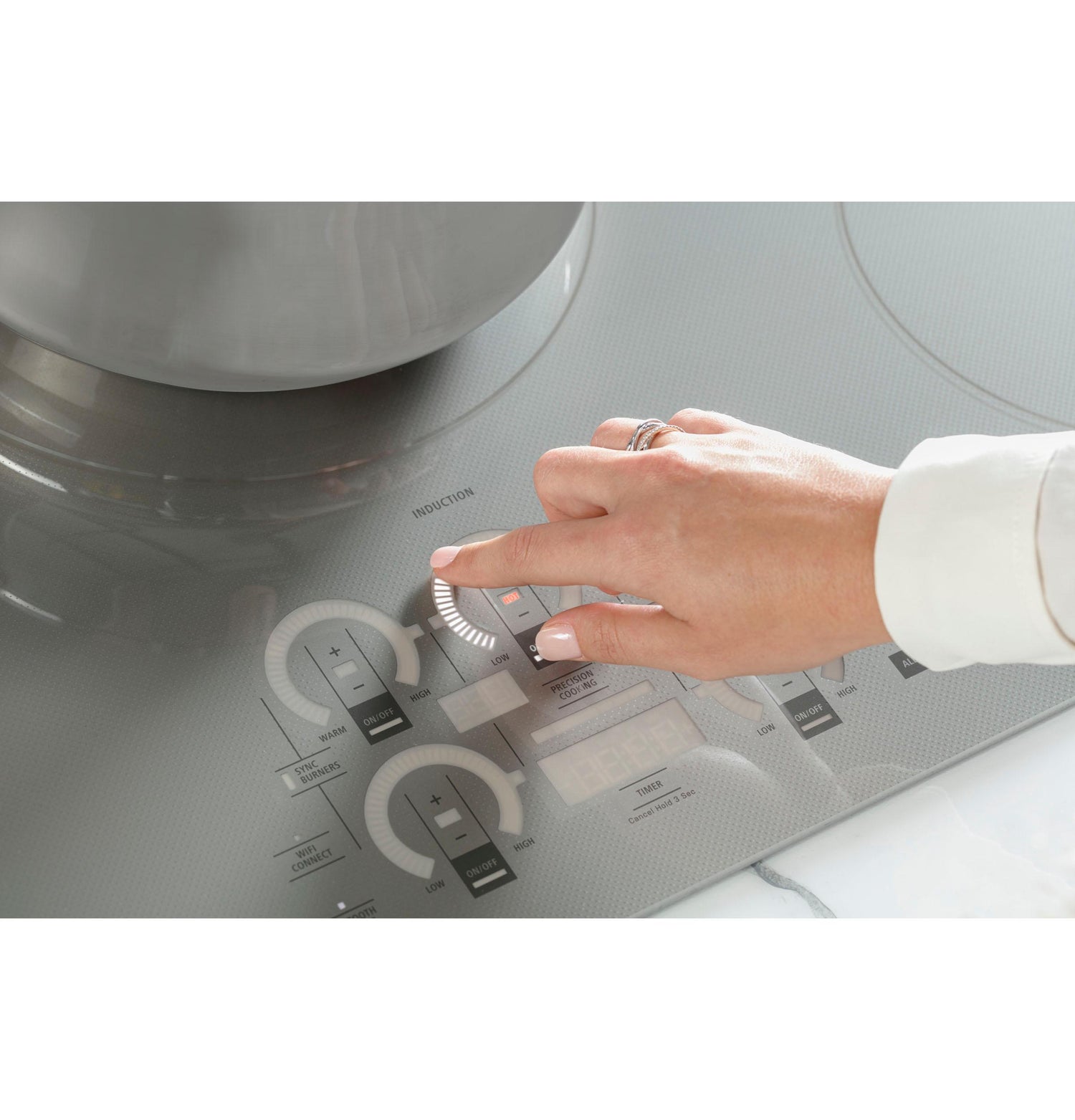

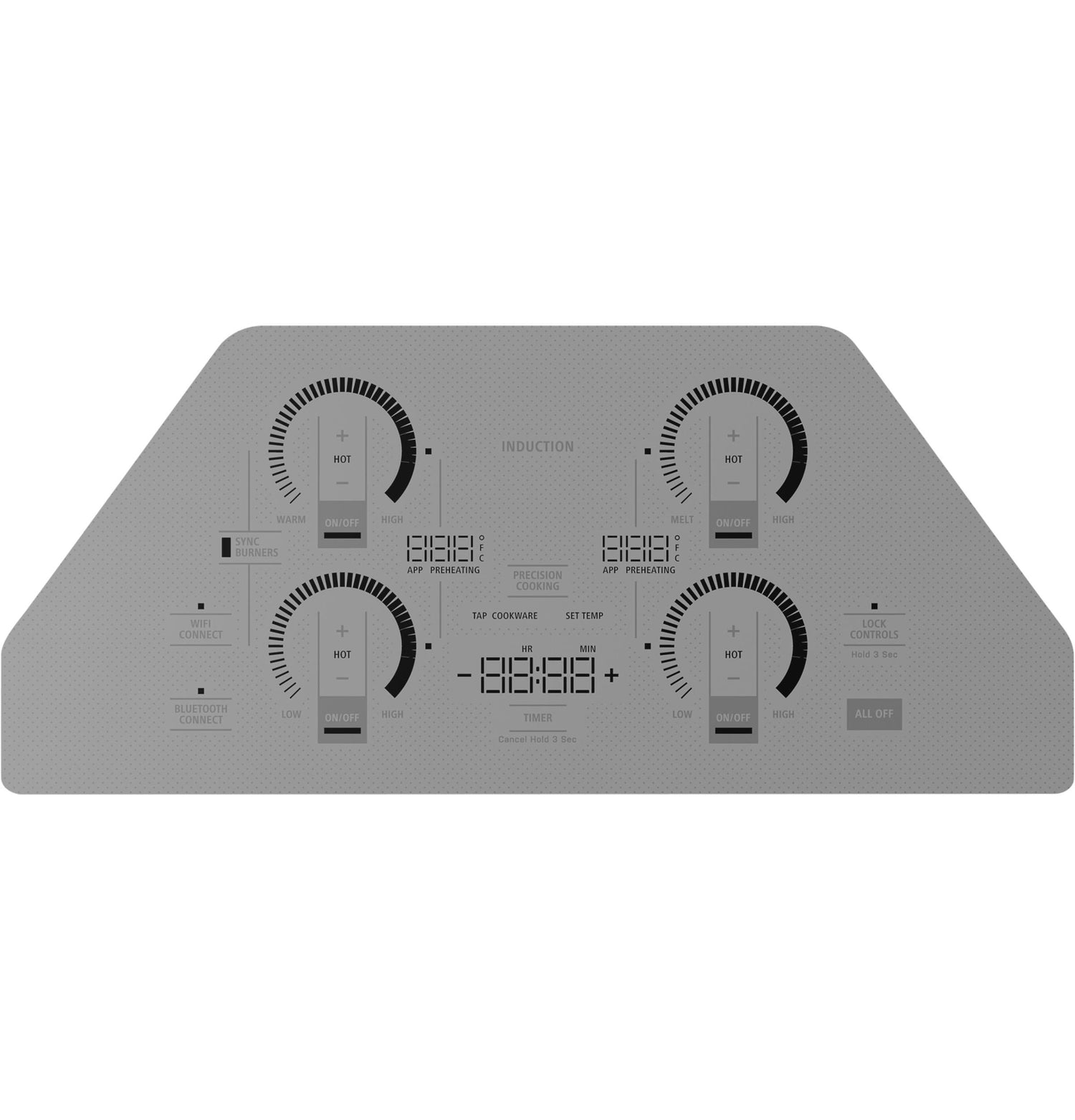

- Glide Touch Controls
- Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.

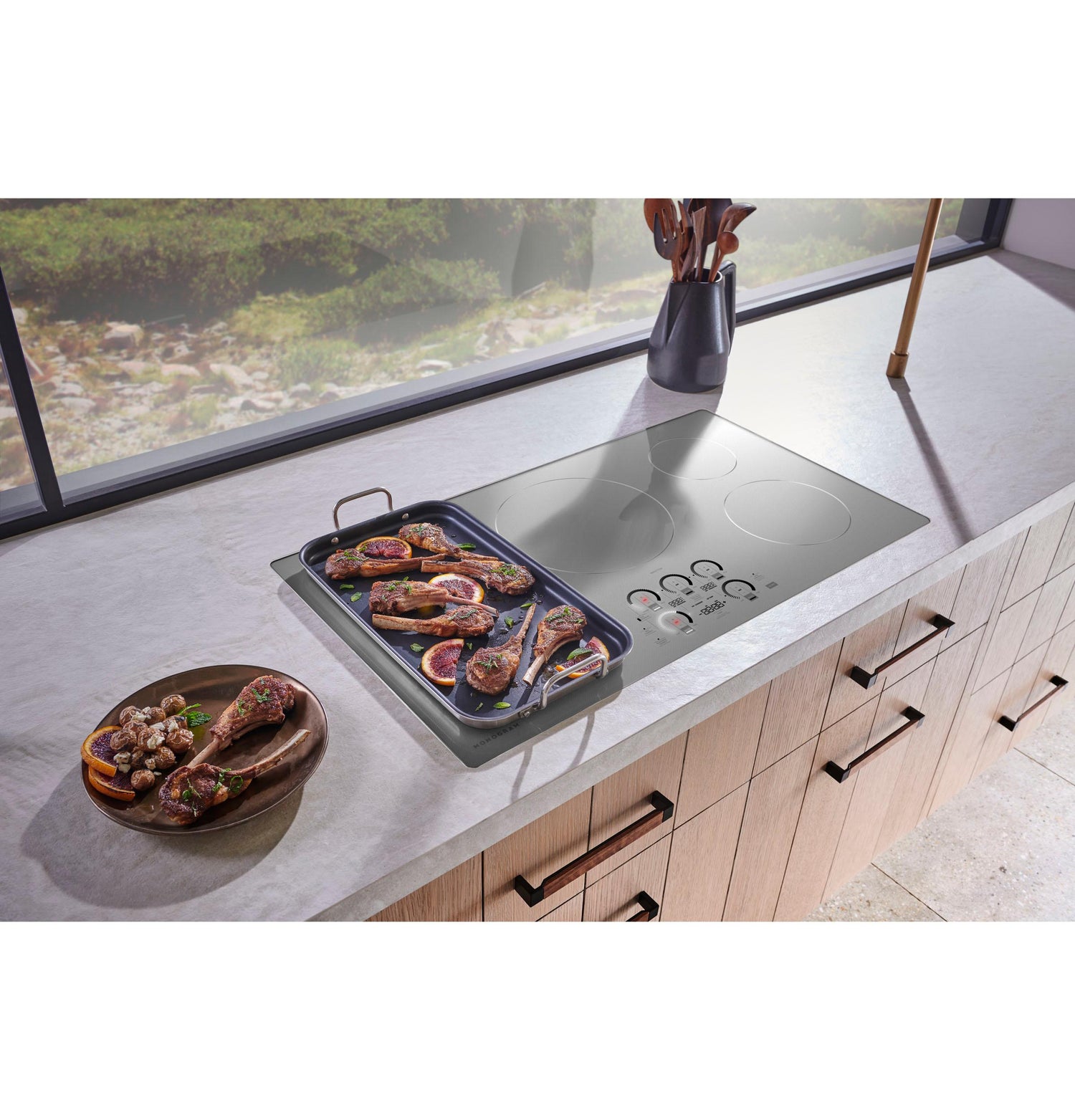

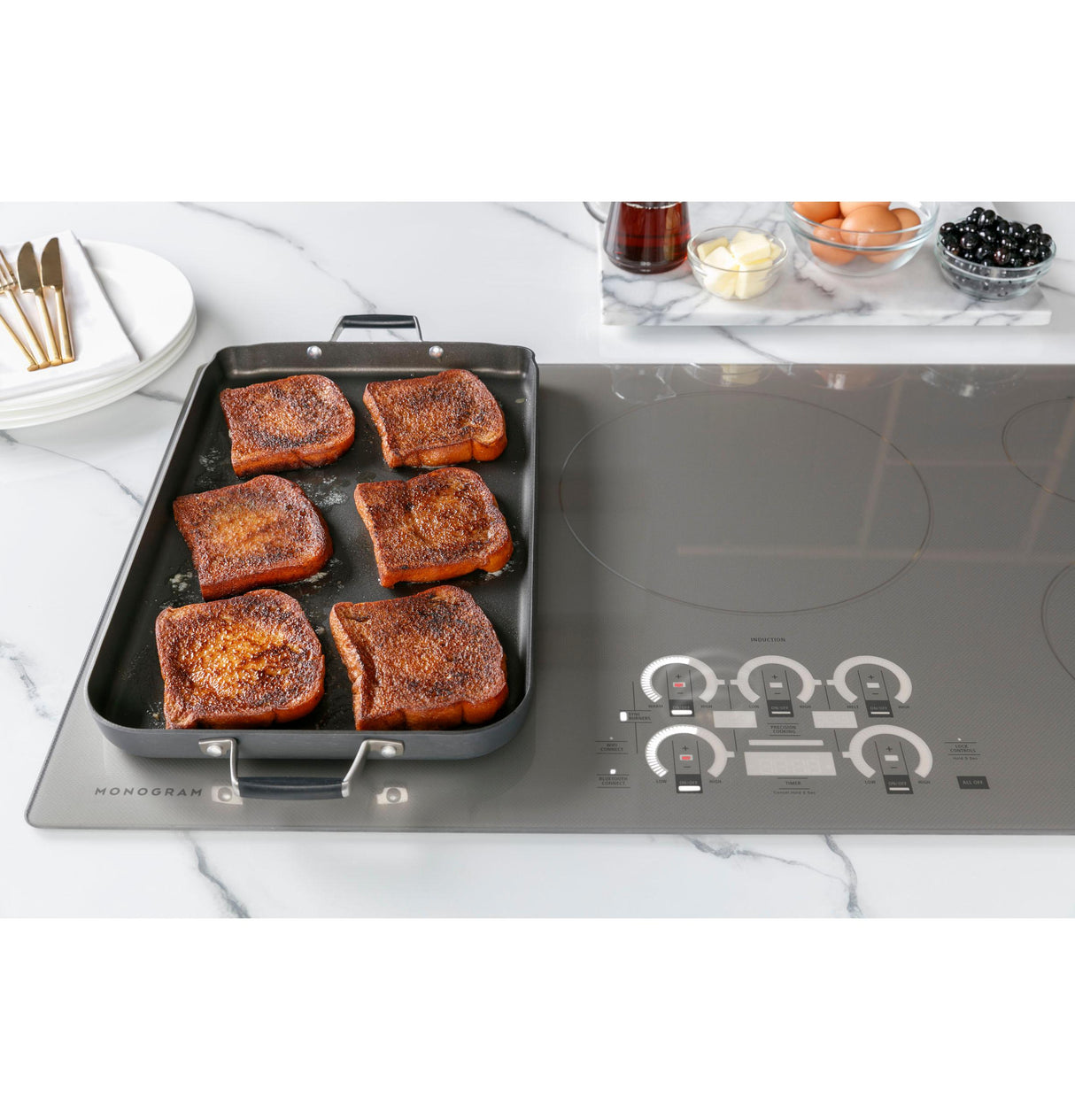

- Synchronized Elements
- Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
- Keep Warm Setting
- This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.

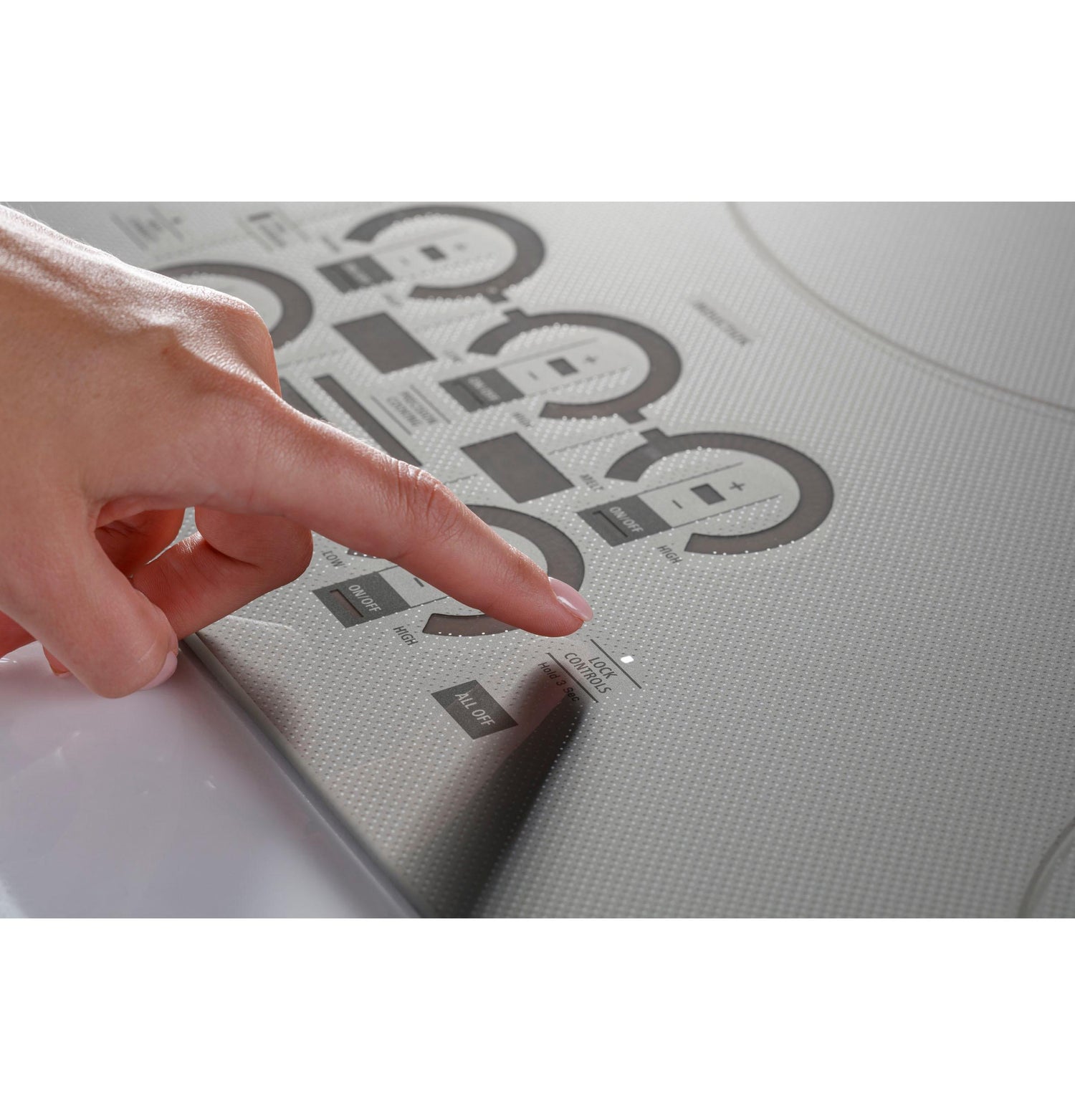

- Control Lock
- Protect against unintentionally turning your cooktop on with a safety control lock setting.
- Hot Surface Indicator Lights
- A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
- 4 Induction Cooking Elements
- Guided Cooking
- Precision Temperature Control
- Flush-Mount Capable
- Glide Touch Controls
- Synchronized Elements
- Keep Warm Setting
- Control Lock
- Hot Surface Indicator Lights
APPEARANCE | |
Color Appearance | Silver |
Installation | Above 120V Advantium Above Wall Ovens (except SDWO) Above Warming Drawer Flush-mount capable With Telescopic Downdraft |
Frameless | Yes |
POWER / RATINGS | |
Recommended Circuit Breaker (Amps) at 240V | 40 |
Max. Connected Load (kW) at 240V | 7.7 |
Max. Current Draw (Amps) at 240V | 32.1 |
Max. Connected Load (kW) at 208V | 6.9 |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Max. Current Draw (Amps) at 208V | 33.2 |
WARRANTY | |
Parts Warranty | Limited 2-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES | |
Optional Accessories | JXPROBE1 - Precision cooking probe |
Cooktop Cleaning | Included |
Optional Flush Mount Kit | JXFLUSH1 |

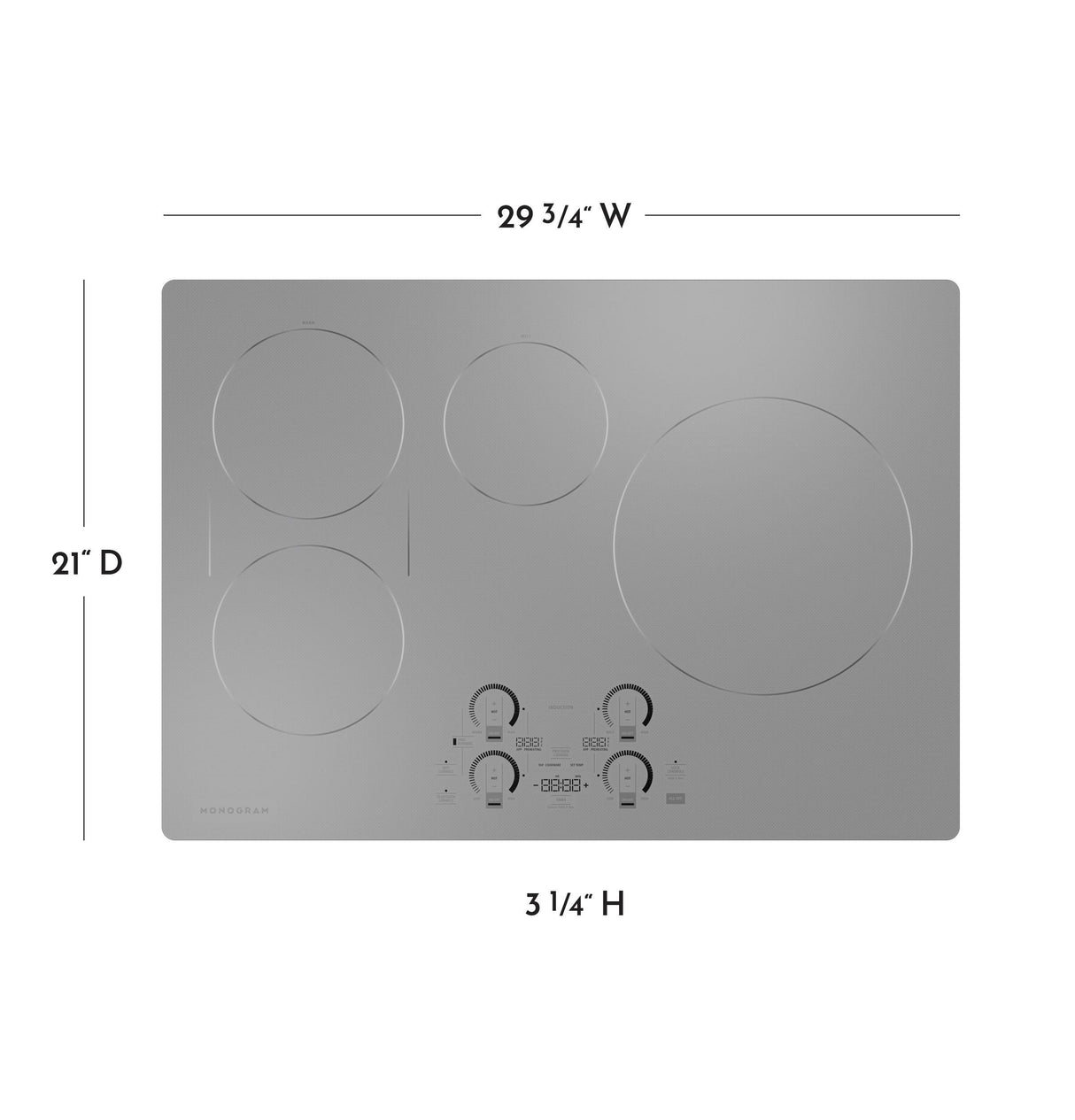

WEIGHTS & DIMENSIONS | |
Cooktop Size | 30 in |
Overall Height | 4.625 in |
Cutout Depth (in) | 19-5/8 |
Cabinet Width | 30 in |
Approximate Shipping Weight | 46 lb |
Overall Width | 29.75 in |
Net Weight | 40 lb |
Cutout Width (in) | 28-1/2 |
Overall Depth | 20.875 in |
FEATURES | |
WiFi Connect | Built-In |
Filler trim kit | JXTR32B |
Cooktop Burner Type | 4 Induction Elements |
Fuel Type | Electric |
Style | Smoothtop |
Element - Left Front | 7" 2500W |
Indicator Lights | 4 Hot Surface Surface Element "ON" |
Short Description | 30" Induction Cooktop |
Element - Right Front | 11" 3700W |
Control Location | Front Center |
Cooking Technology | Induction |
Cooktop Type | Induction |
Cooktop Surface | Silver Glass Ceramic |
Cooktop Control Features | Bridge Control Control Lock Capability Custom Settings Electronic Touch Slider Melt Setting Pan Presence Sensor Pan Size Sensor Sync-Burners |
WiFi Enabled Features | Chef Connect with Hoods/OTRs Interfaces with SmartHQ App Works with HestanCue Pans Works with Precision Cooking Probe |
Timer | Kitchen timer |
Element - Left Rear | 7" 2500W |
Control Type | Electronic Touch Slider |
Element - Right Rear | 6" 1800W |
Power Level Indicator | 19 Levels |
