Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : COOKTOPS (GAS)
- Width : 47.87"
- Height : 8.5"
- Depth : 27.5"
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : NO
- Burner Type : Sealed
- Self Clean : NO
- Convection : NO
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

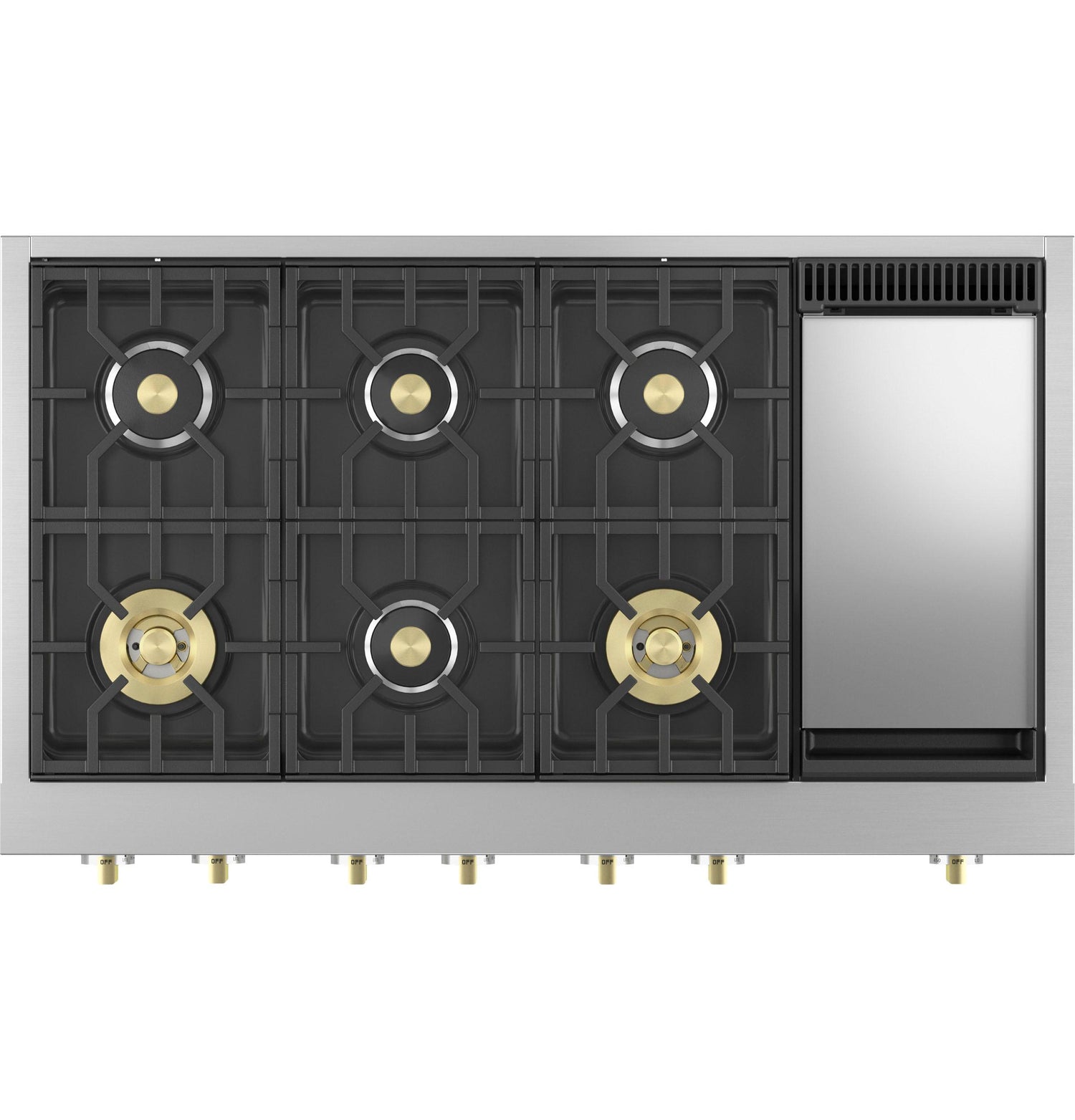

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

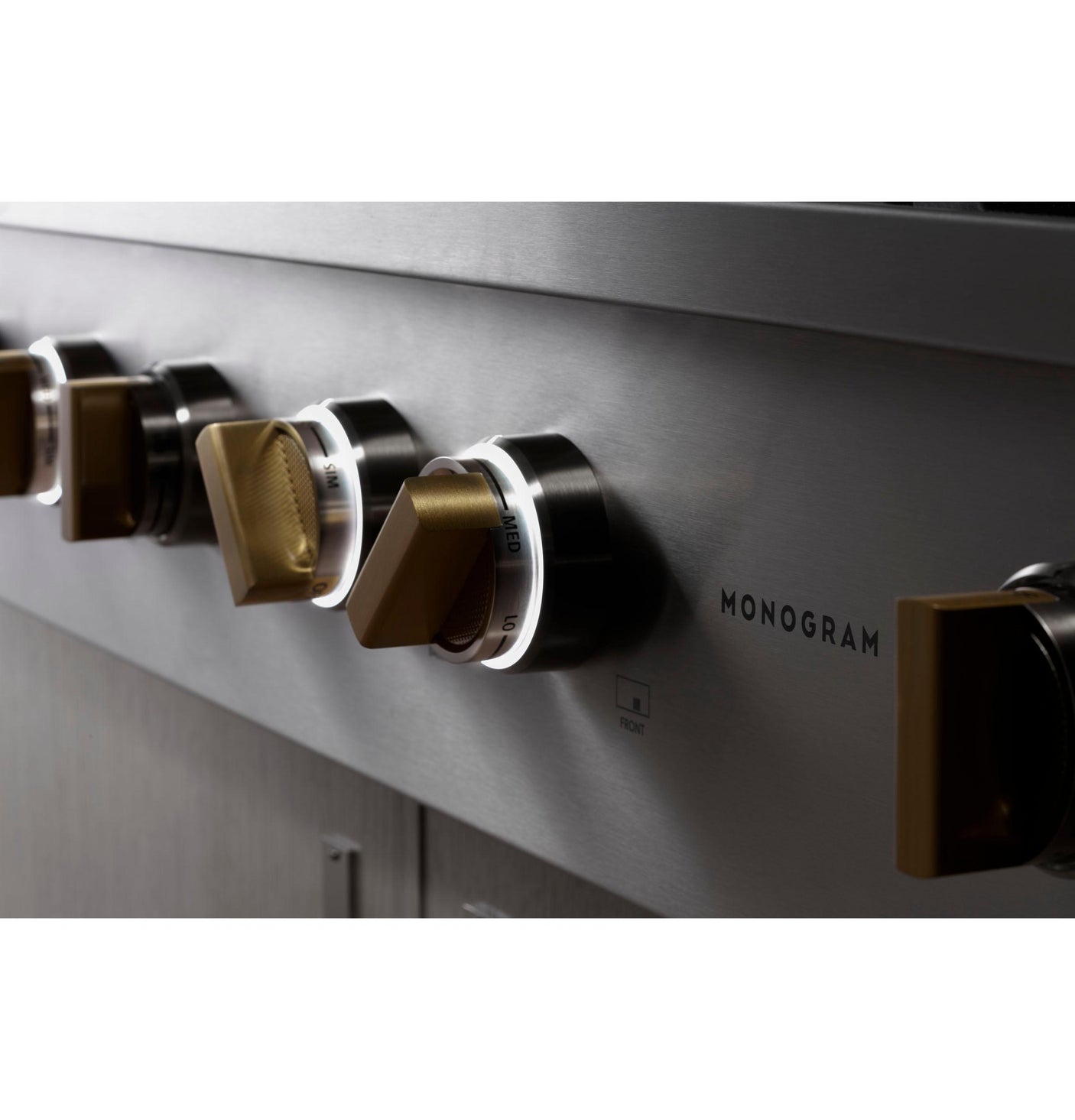

Ring-Lit Knobs
Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

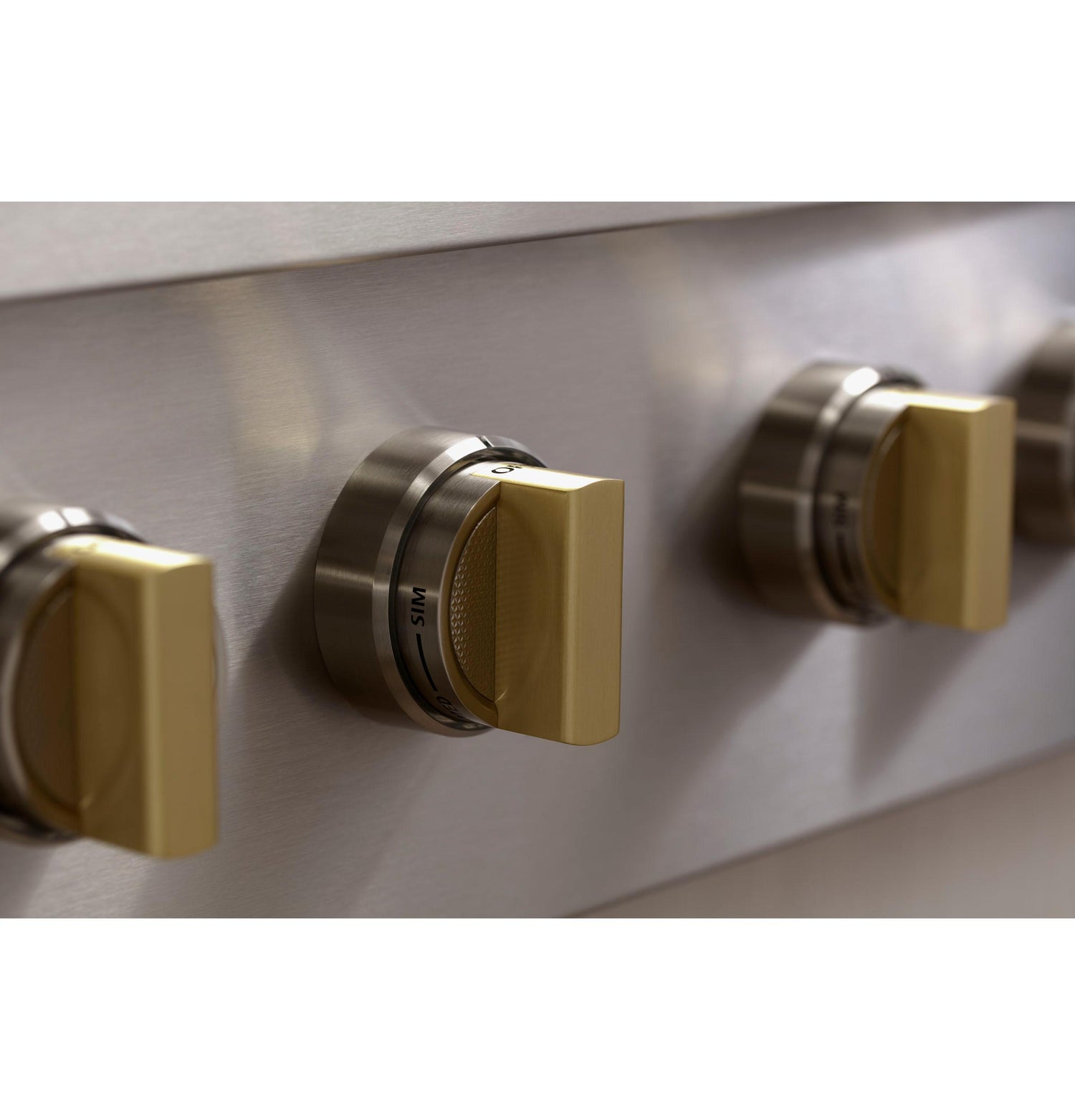

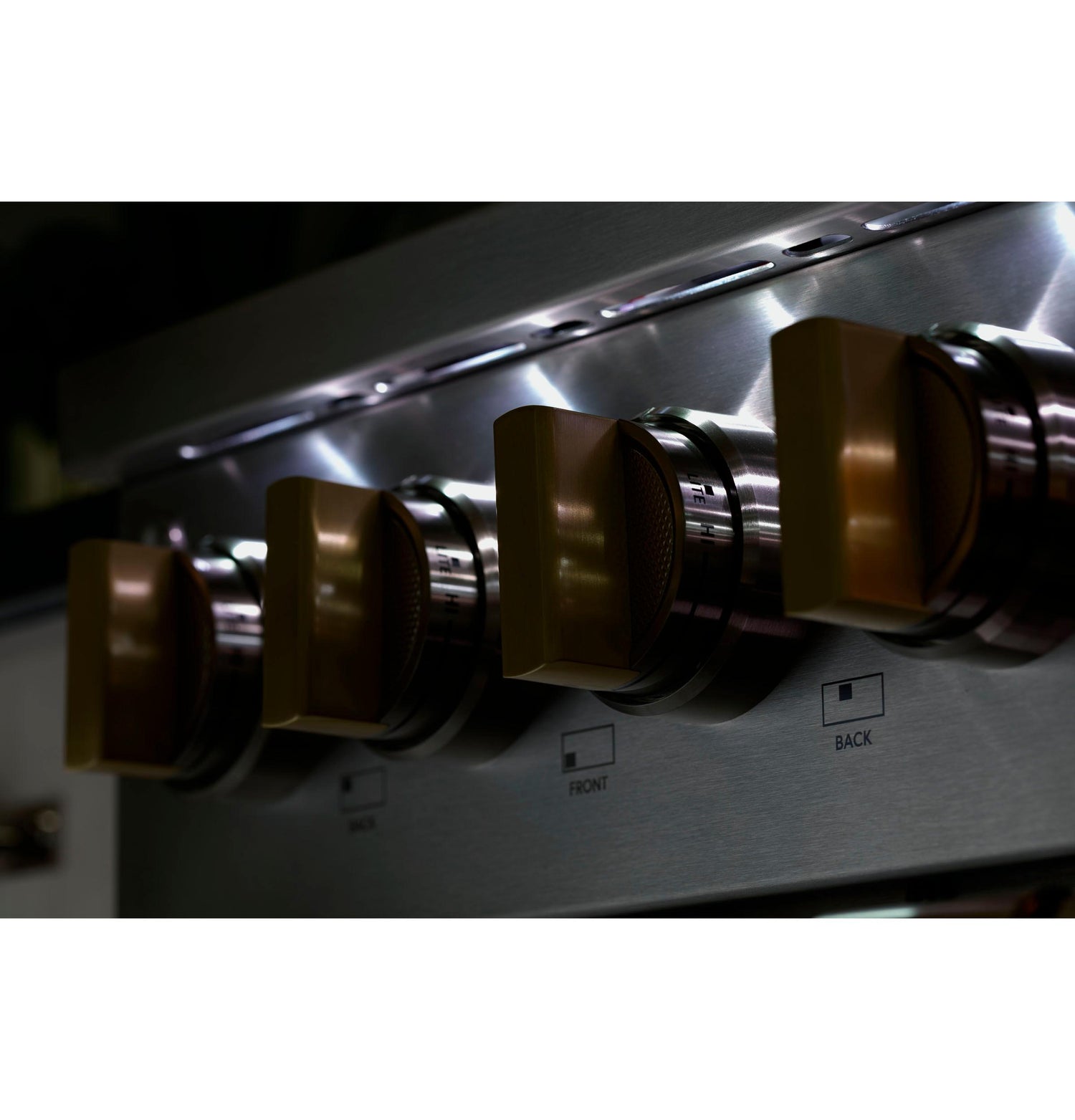

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

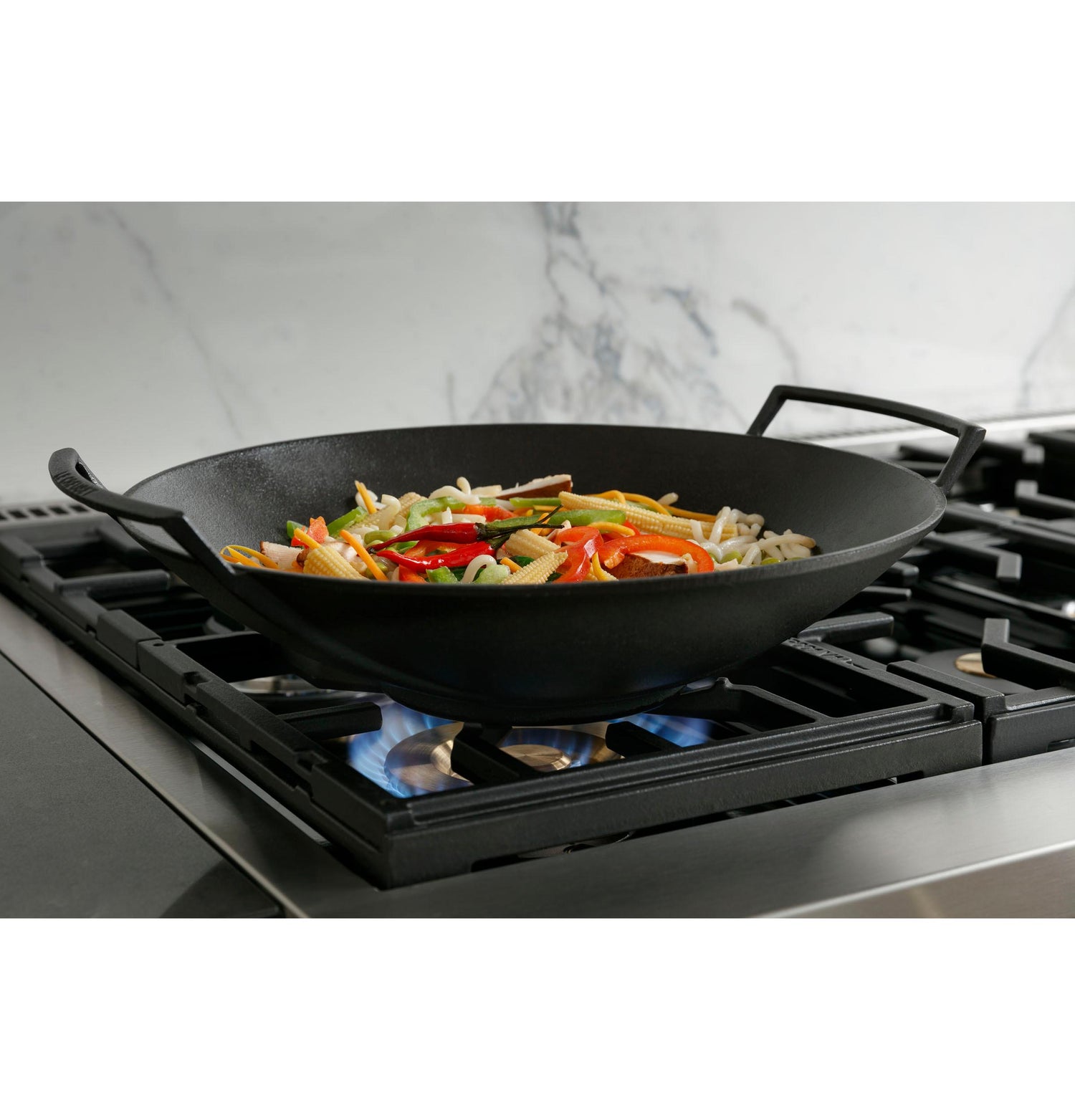

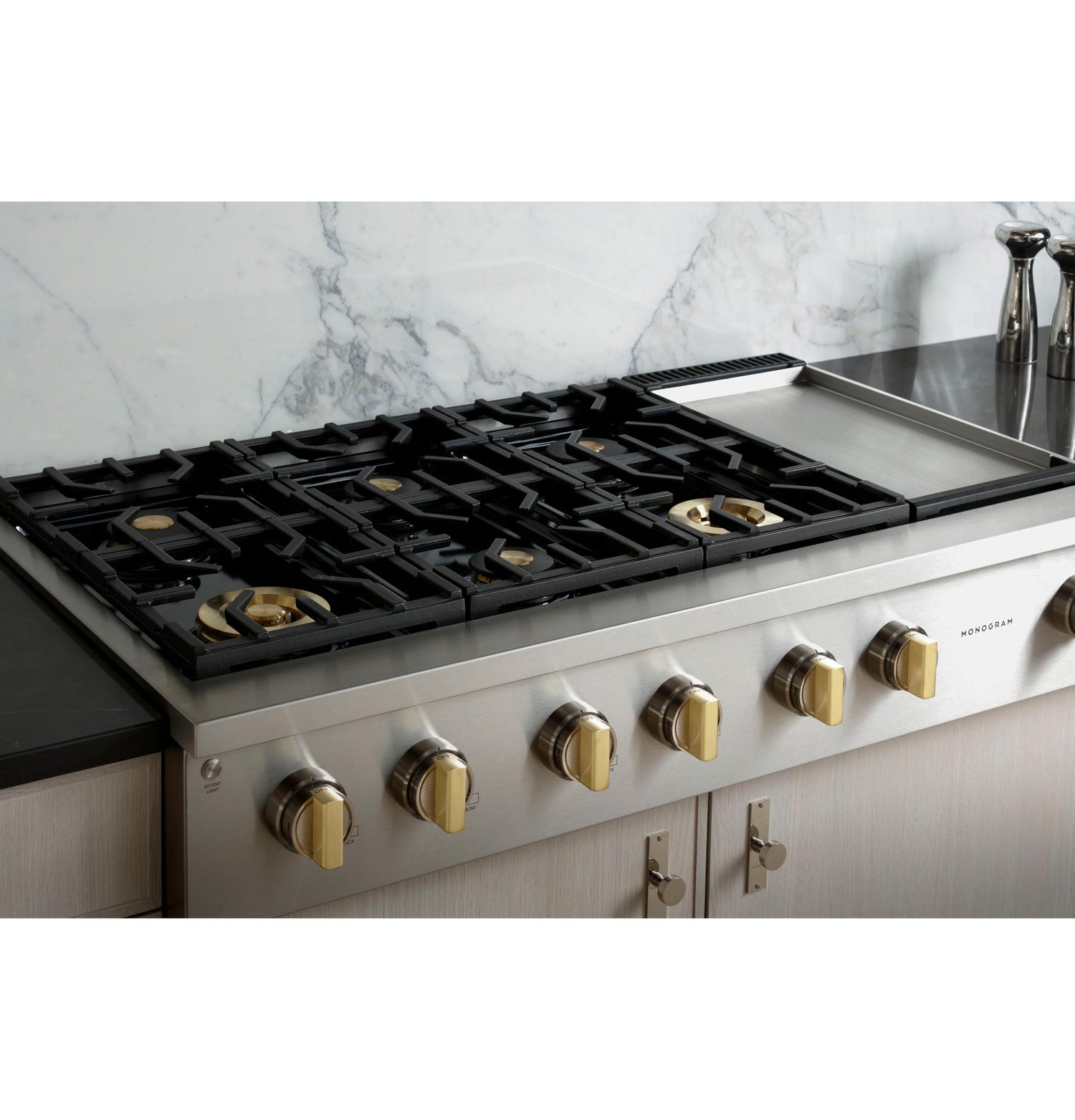

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

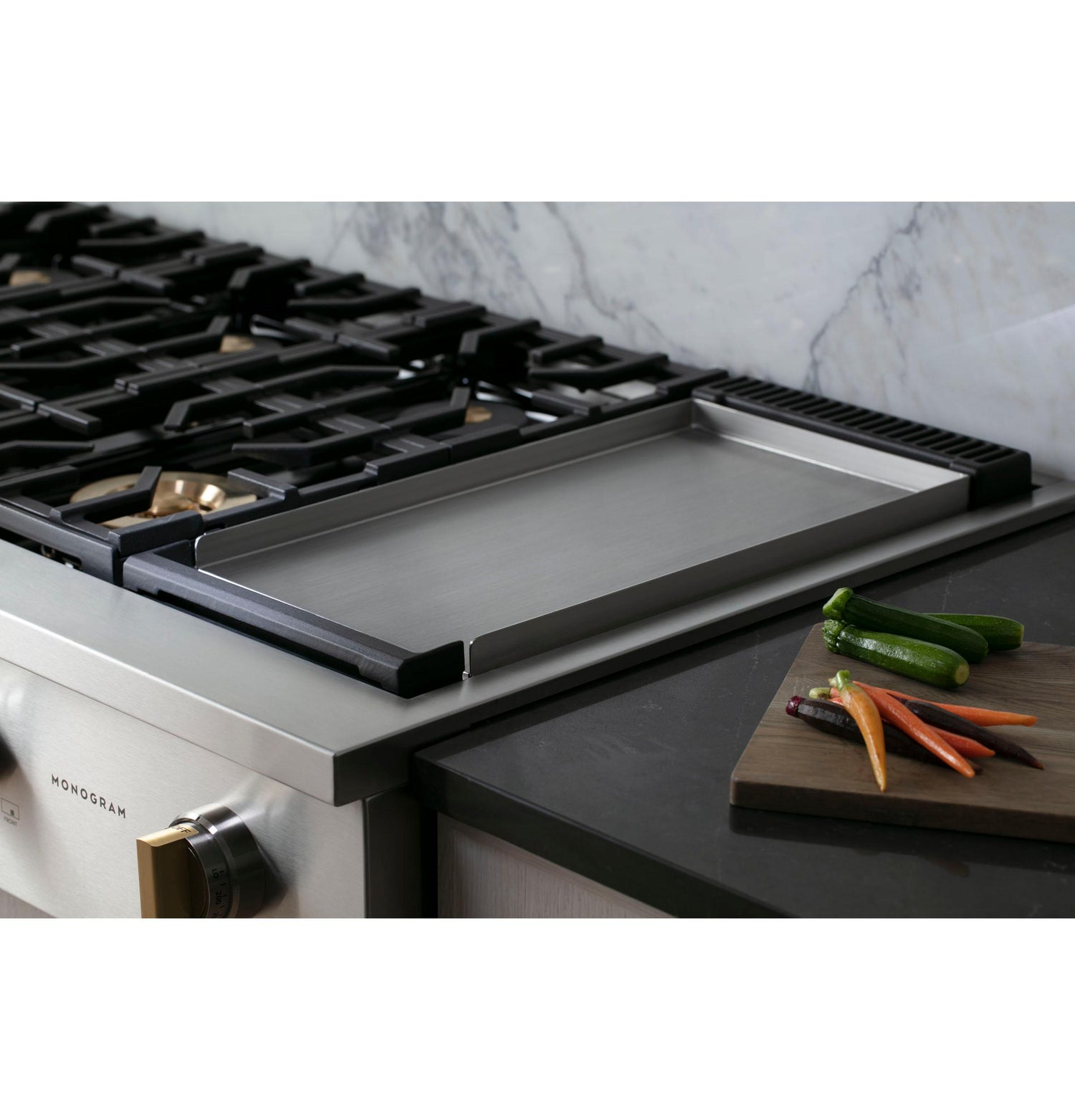

Stainless and Aluminum-Clad Griddle Included
This versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface
- Versatile Gas Burner Configuration
- Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
- 3-Piece Grates with Reversible Wok Feature
- Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
- Ring-Lit Knobs
- Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use
- Solid Brass Blades on Precision Machined Knobs
- With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
- Solid Brass Burners
- Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
- Seamless Stainless Top Frame
- Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
- Stainless and Aluminum-Clad Griddle Included
- This versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface
- Stainless Steel, No-Mark Griddle/Grill Covers Included
- Stainless steel covers help to protect the rangetop and keep it looking pristine, and can also be used as a flat food-preparation surface when the rangetop is not in use
- LP Conversion Kit Included
- Designed to deliver a seamless conversion experience, this self-contained kit includes everything needed to convert a rangetop to liquid propane
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- Ring-Lit Knobs
- Solid Brass Blades on Precision Machined Knobs
- Solid Brass Burners
- Seamless Stainless Top Frame
- Stainless and Aluminum-Clad Griddle Included
- Stainless Steel, No-Mark Griddle/Grill Covers Included
- LP Conversion Kit Included
APPEARANCE | |
Design Style | Statement Collection |
Color Appearance | Stainless Steel |
Installation | Side-by-Side |
Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
Electrical Requirements | 120v; 60Hz; 15A |
Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
WARRANTY | |
Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES | |
Optional Grill Accessory (Cast Iron) | UXPRRGG |
48" Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
High Altitude Kit | WB28K10553 |
Conversion Kit | Included - Nat. Gas to LP |
Factory-installed island backguard | Yes |
Optional Backguard | 12" stainless steel backsplash (UX12BS48PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |

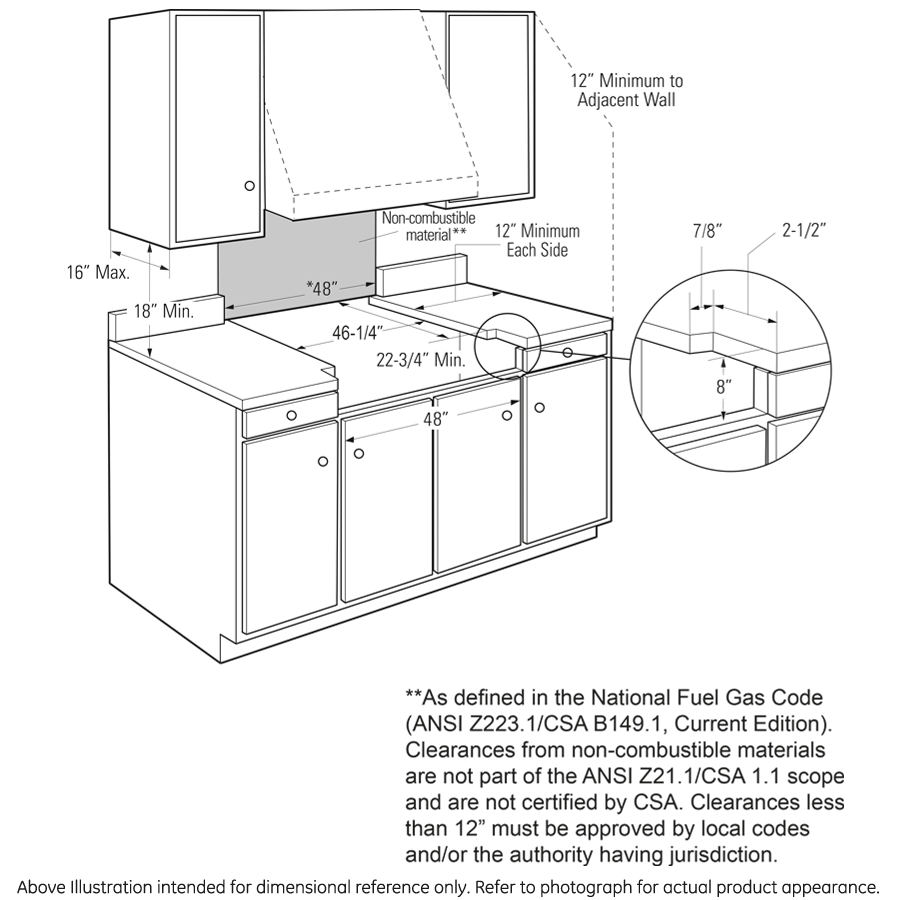

WEIGHTS & DIMENSIONS | |
Overall Height | 8.5 in |
Cabinet Width | 48 in |
Approximate Shipping Weight | 227 lb |
Overall Width | 47.875 in |
Net Weight | 171 lb |
Overall Depth | 27.5 in |
FEATURES | |
Cooktop Burner Type | 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked (Removable Brass Accents) |
Stainless Steel Grill / Griddle Covers | 1 |
Removable Drip Tray Liners | (1) Beneath Griddle |
Fuel Type | Natural Gas |

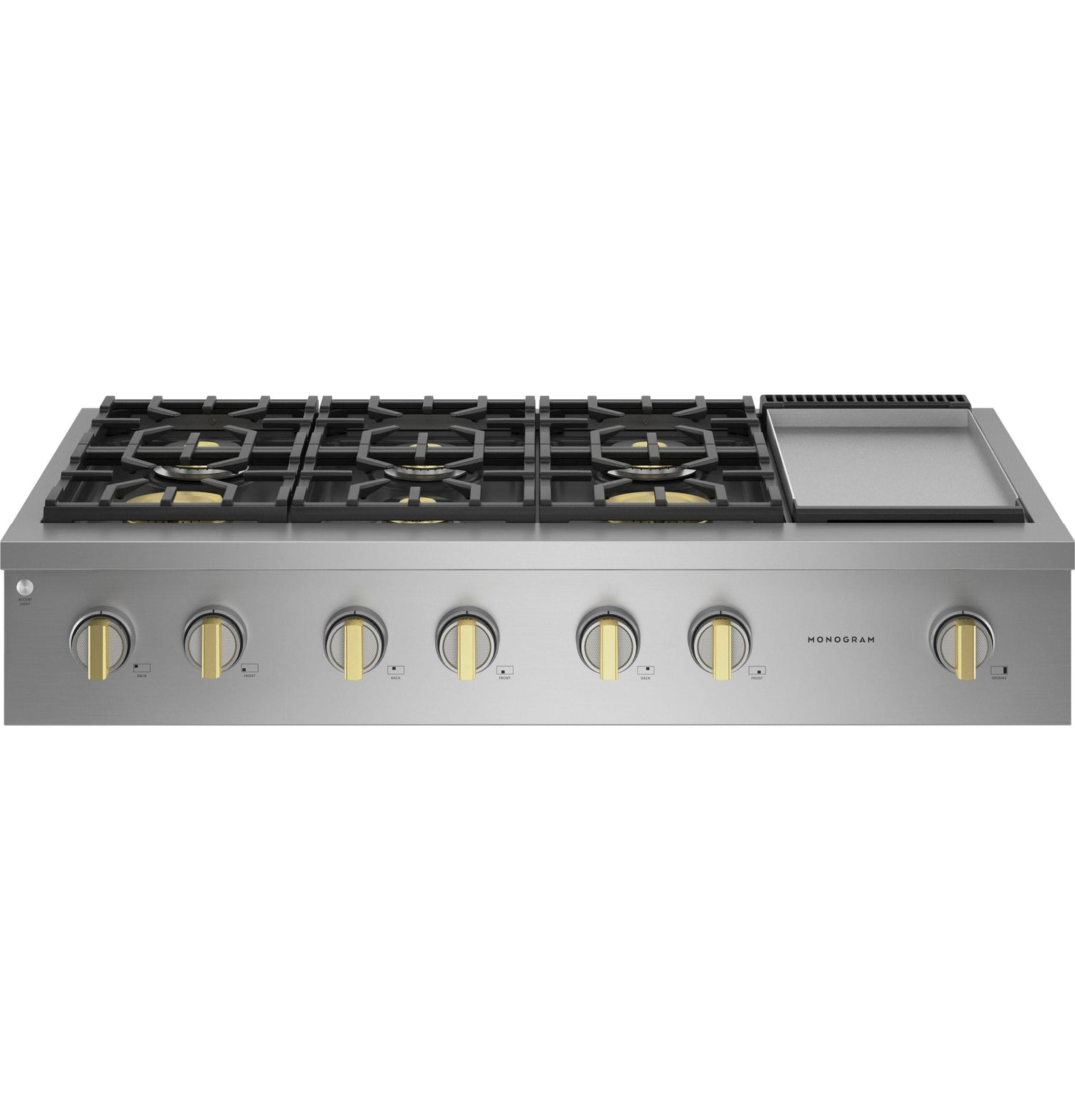

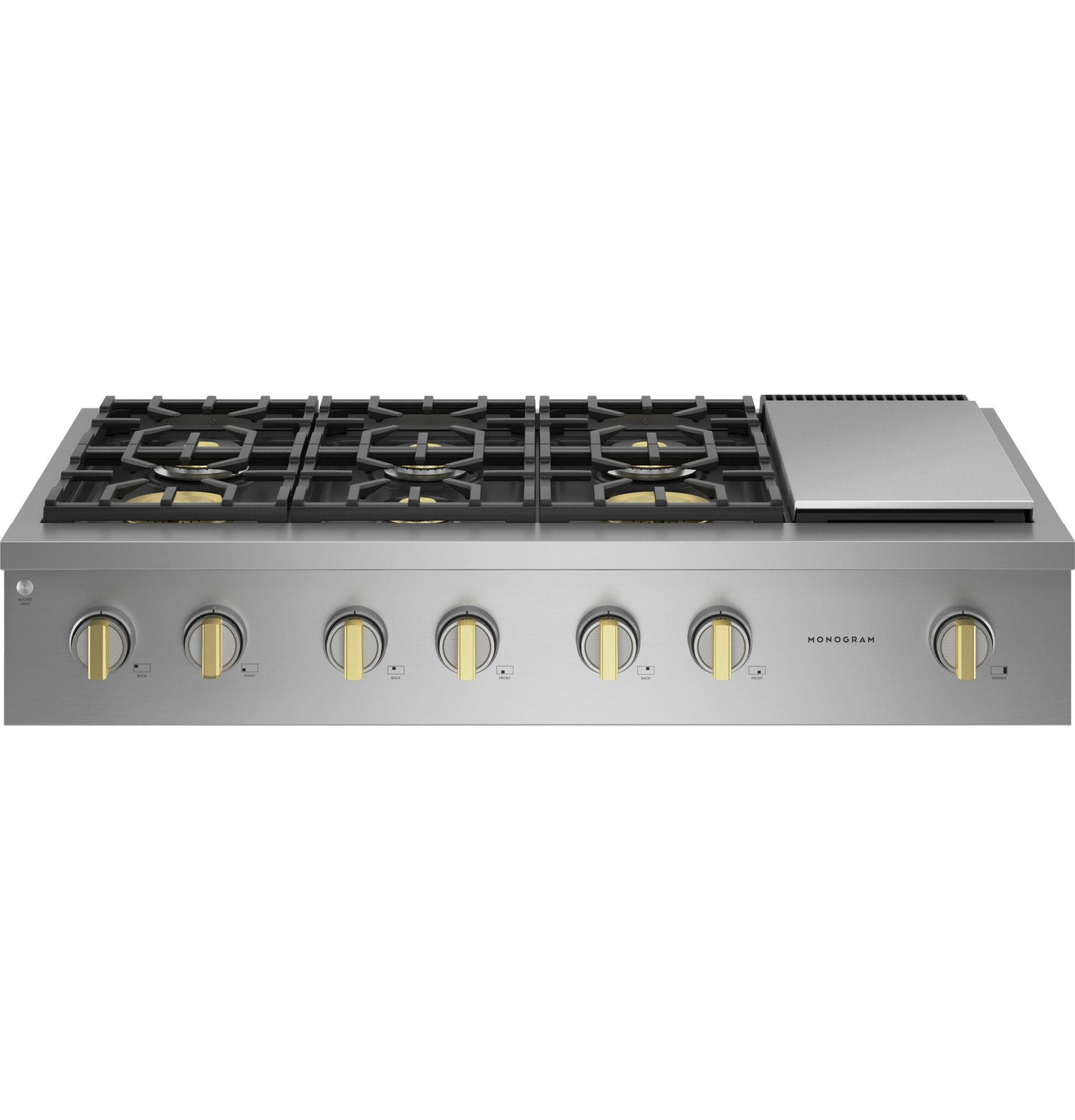

Short Description | 48" Pro Rangetop with Griddle |
Control Location | Upfront |
Ignition System | Electronic |
Lighting | LED Bullnose Task Lighting |
Extra Low Simmer | All Burners - Adjustable |
Burner Indicator Light | Yes |
Automatic Re-Ignition | Yes |
Cooktop Burner Grate Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
Collection | Statement |
Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
140 Deg. Simmer Burner | All Burners - Adjustable |

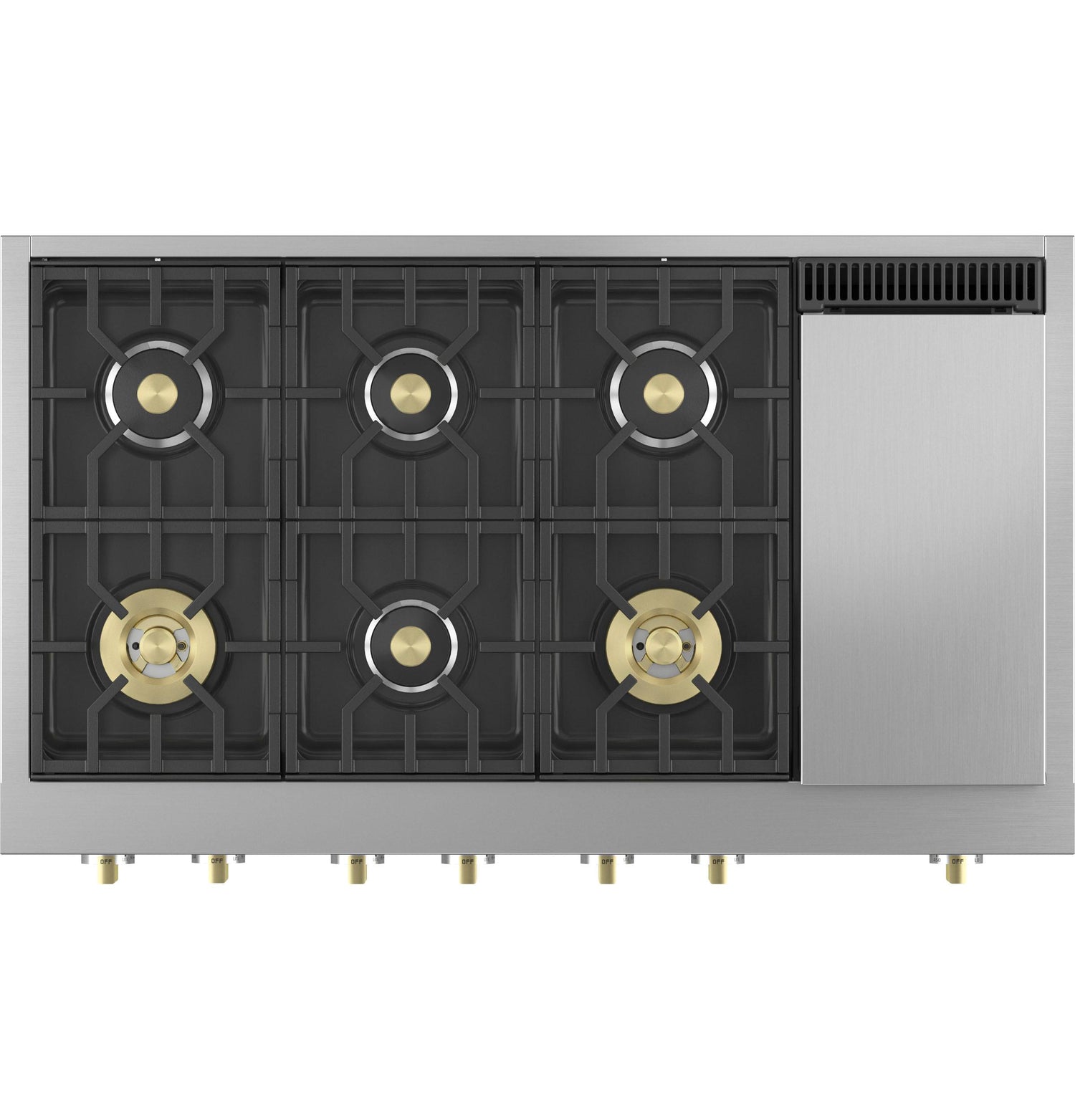

Configuration | 6 Burners; Griddle |
Product Type | Rangetop |
