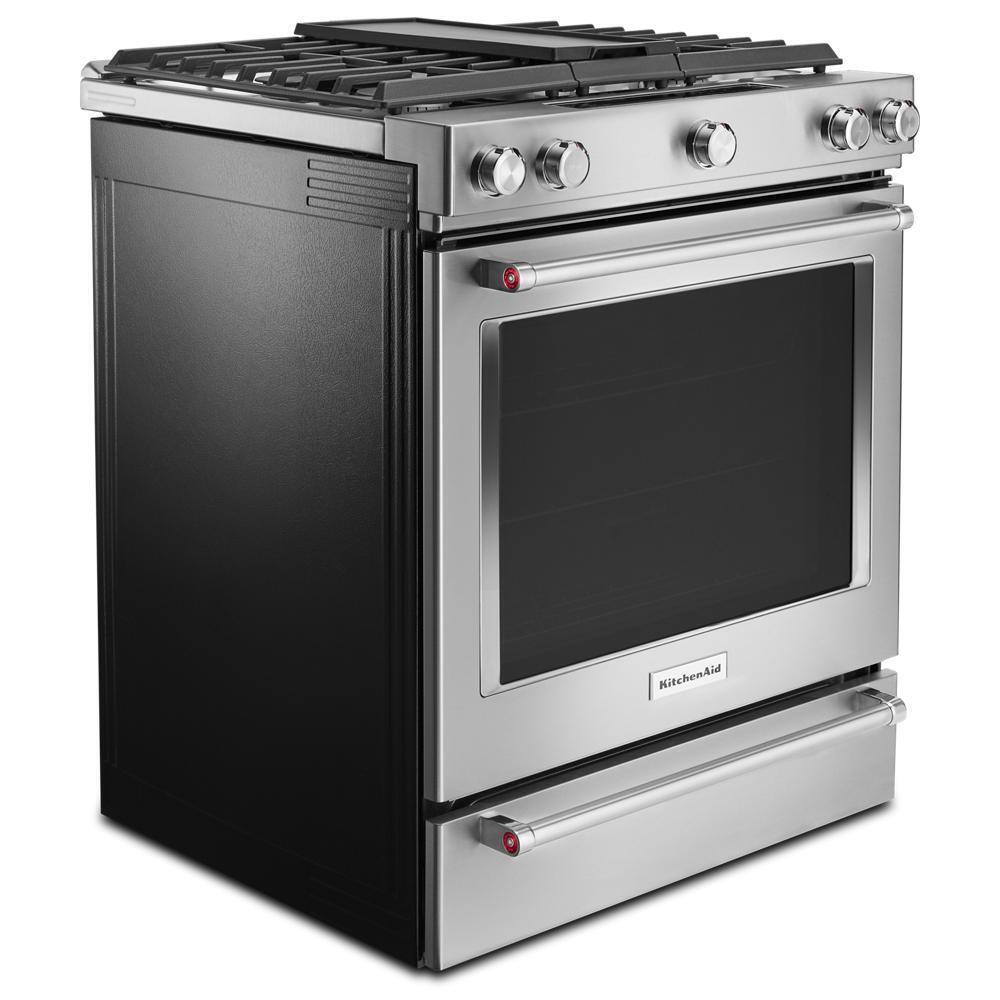

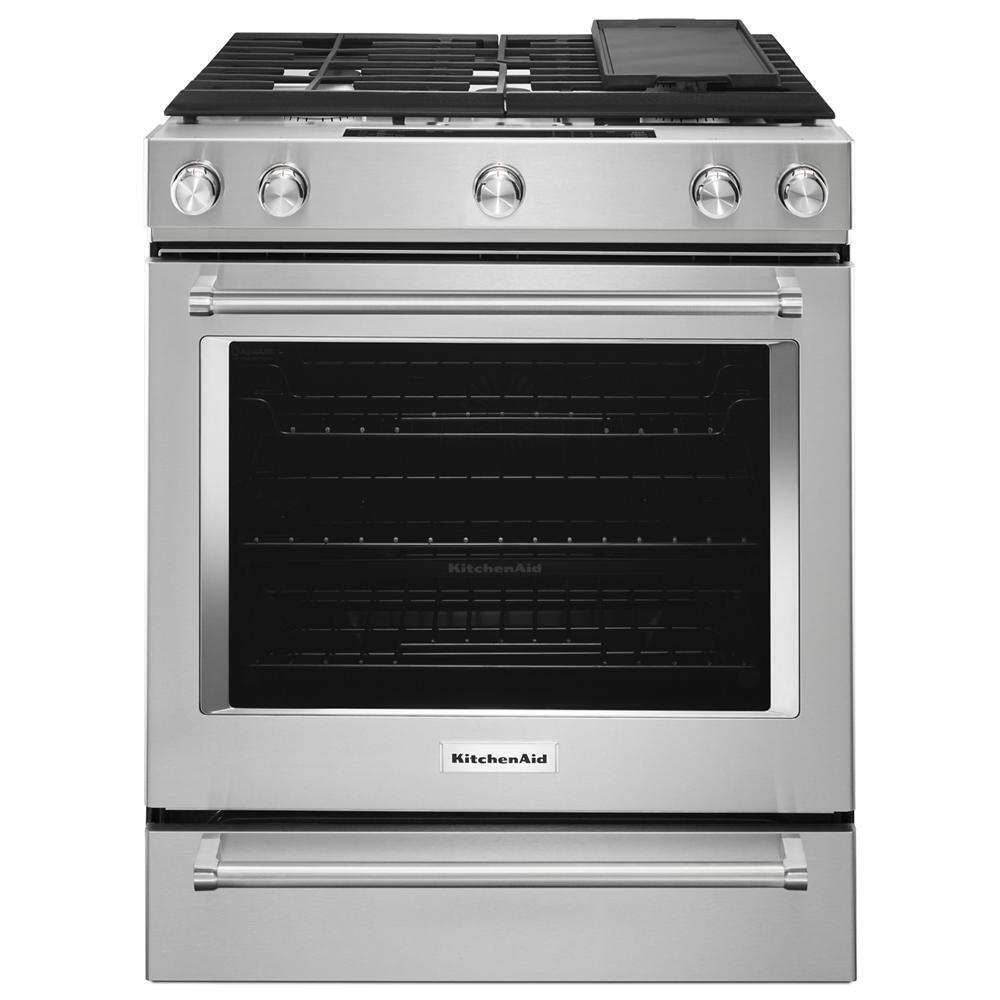

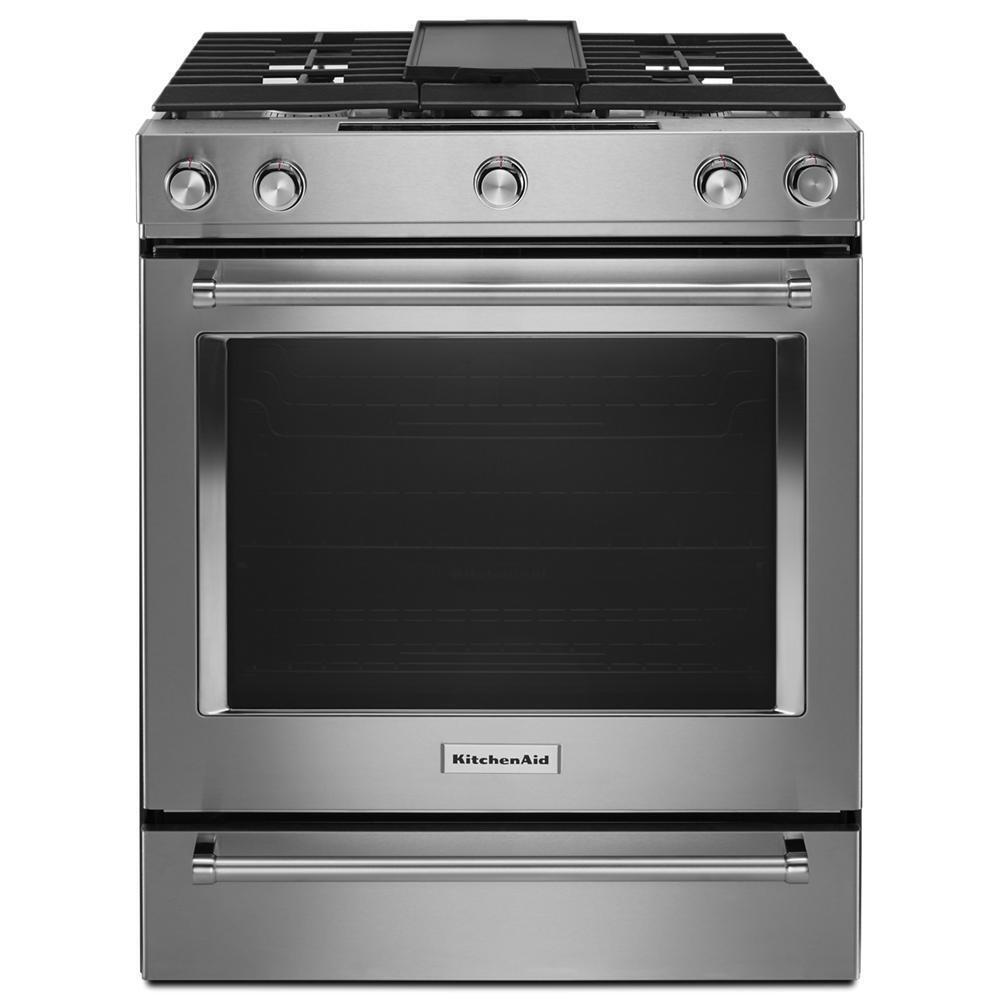

30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
Add to Cart to See Actual Price
30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : SLIDE IN GAS RANGE

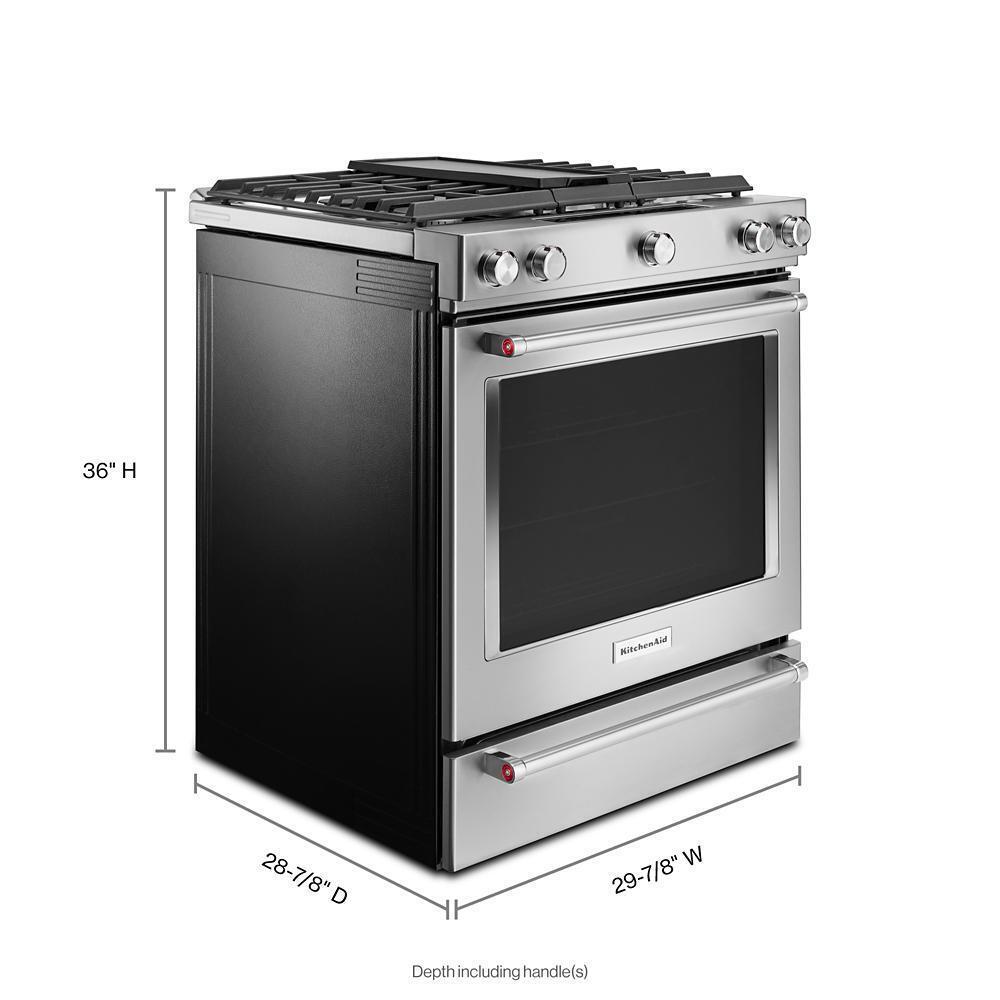

- Width : 29.87"
- Height : 36"
- Depth : 28.87"
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : YES
- Burner Type : Sealed
- Self Clean : YES
- Convection : YES
- Drawer Proof Mode : YES
- Continuous Grate : YES
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
Baking Drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
EasyConvect(TM) Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Even-Heat(TM) True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
FIT Guarantee
Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
- 5 burners (5k, 8k, 9.2k, 15k and 19k)
- Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.
- 7.1 Cu Ft. Total Capacity
- This slide-in range provide an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.

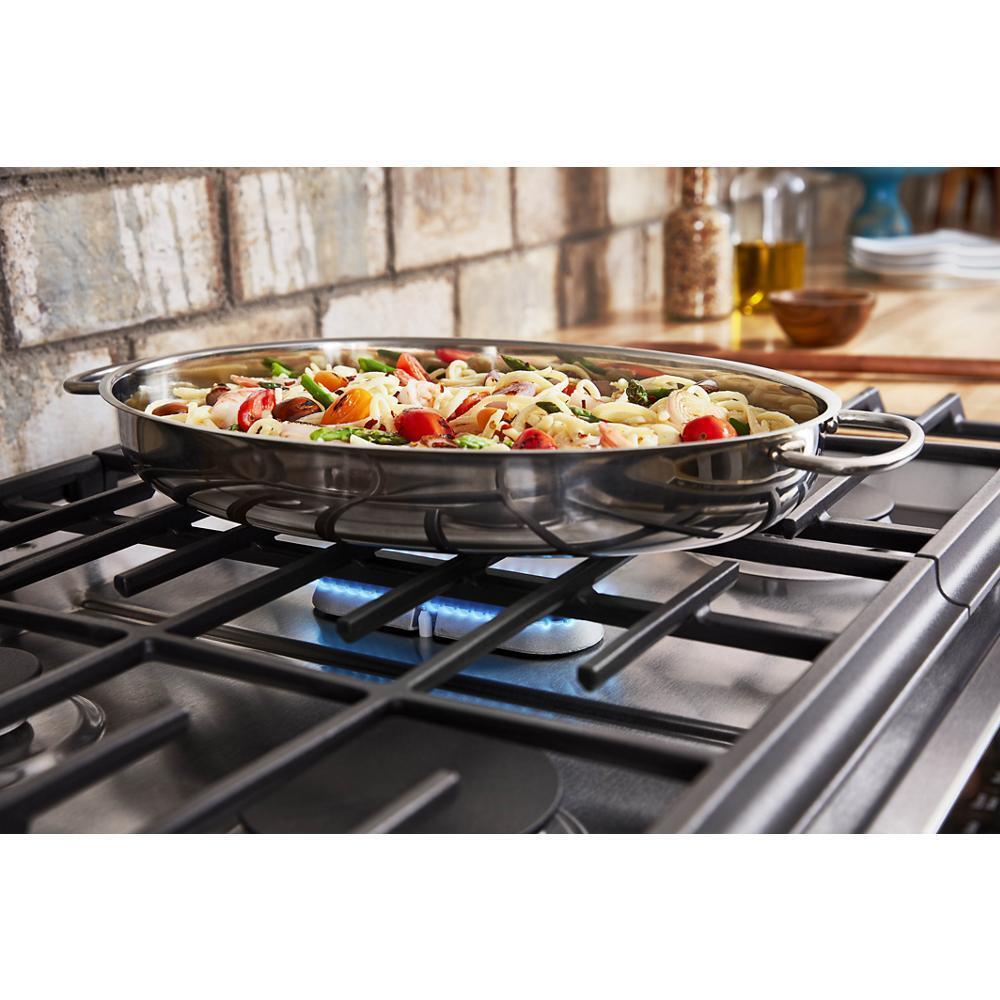

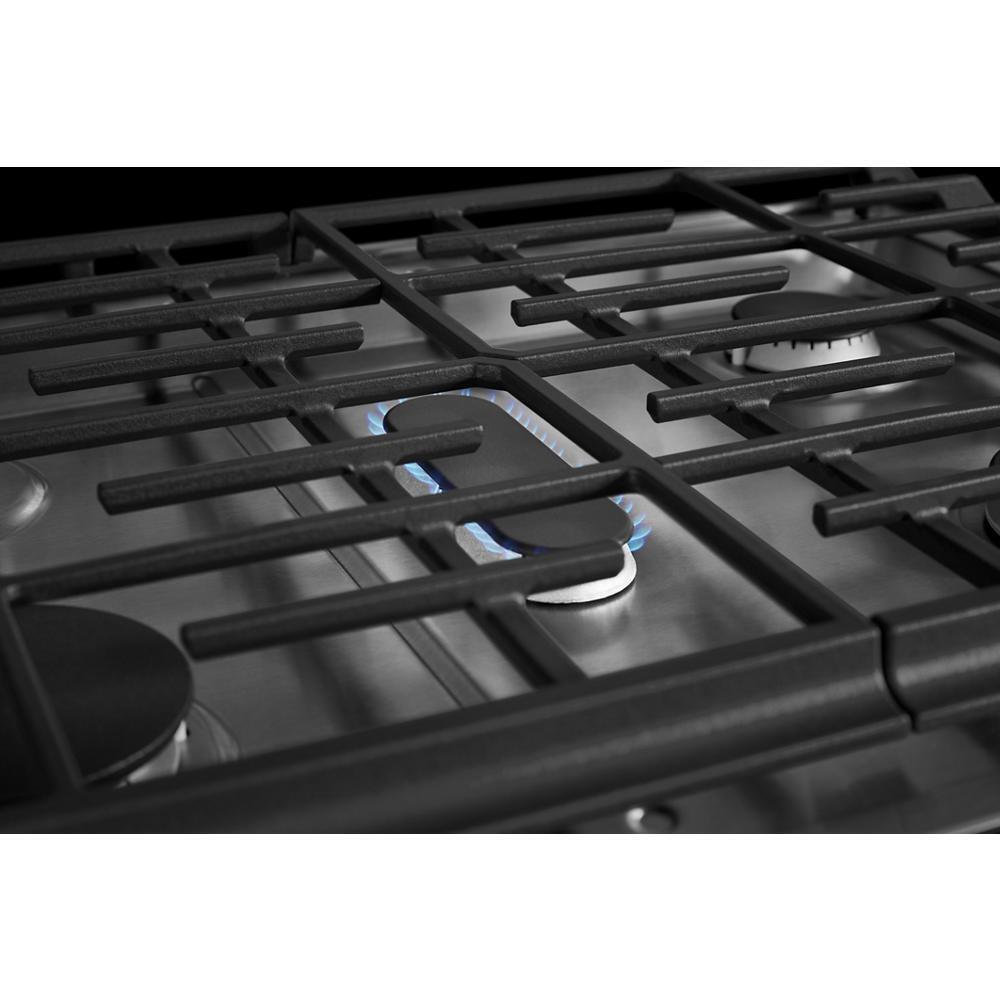

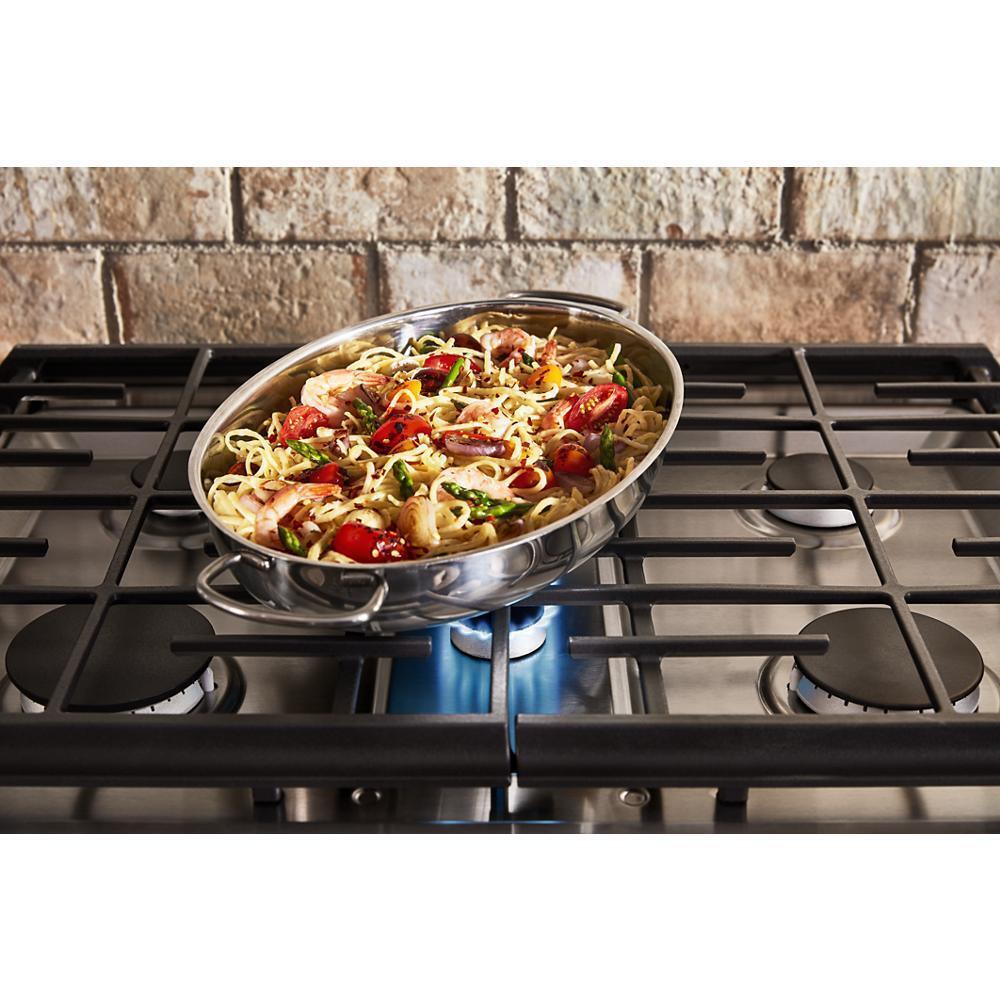

- 8K Center Oval Burner
- Fits large griddles and other longer cookware on this 8,000 BTU fifth burner so they heat evenly on the range top.
- Aqualift®
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.
- Baking Drawer
- Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

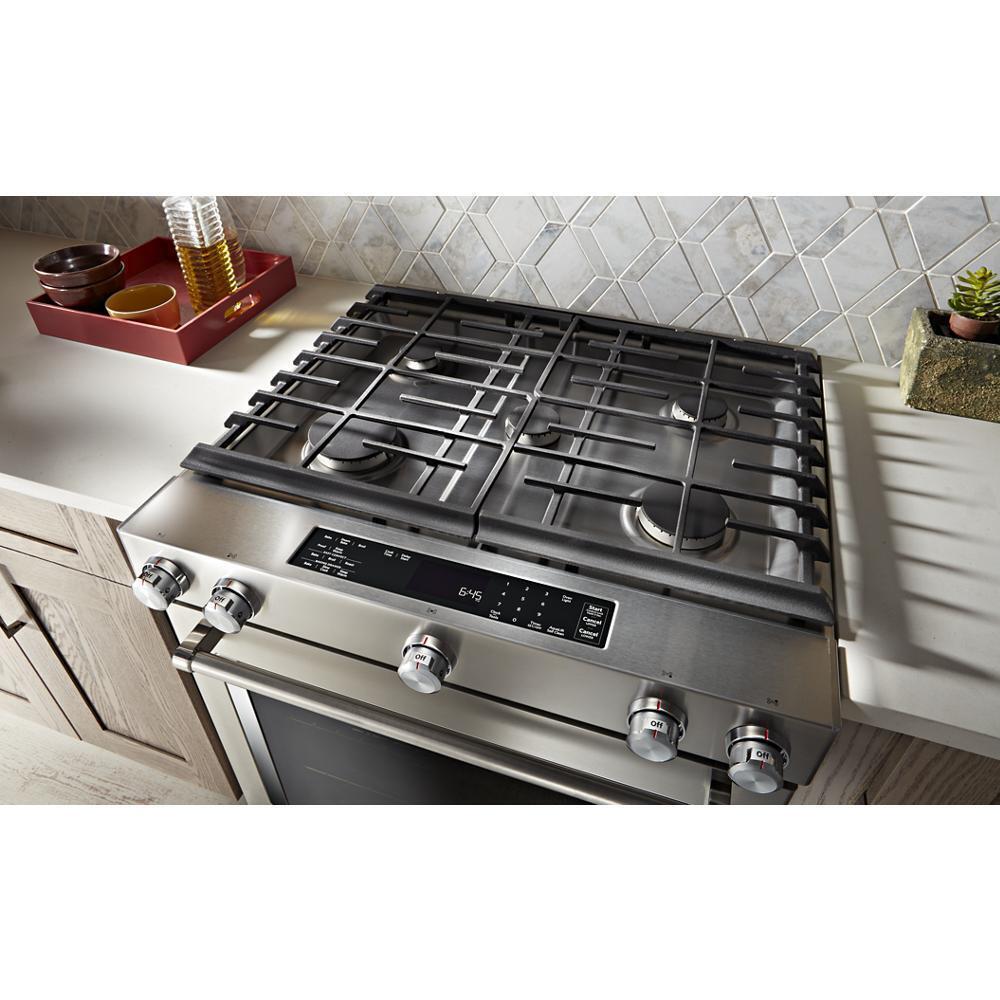

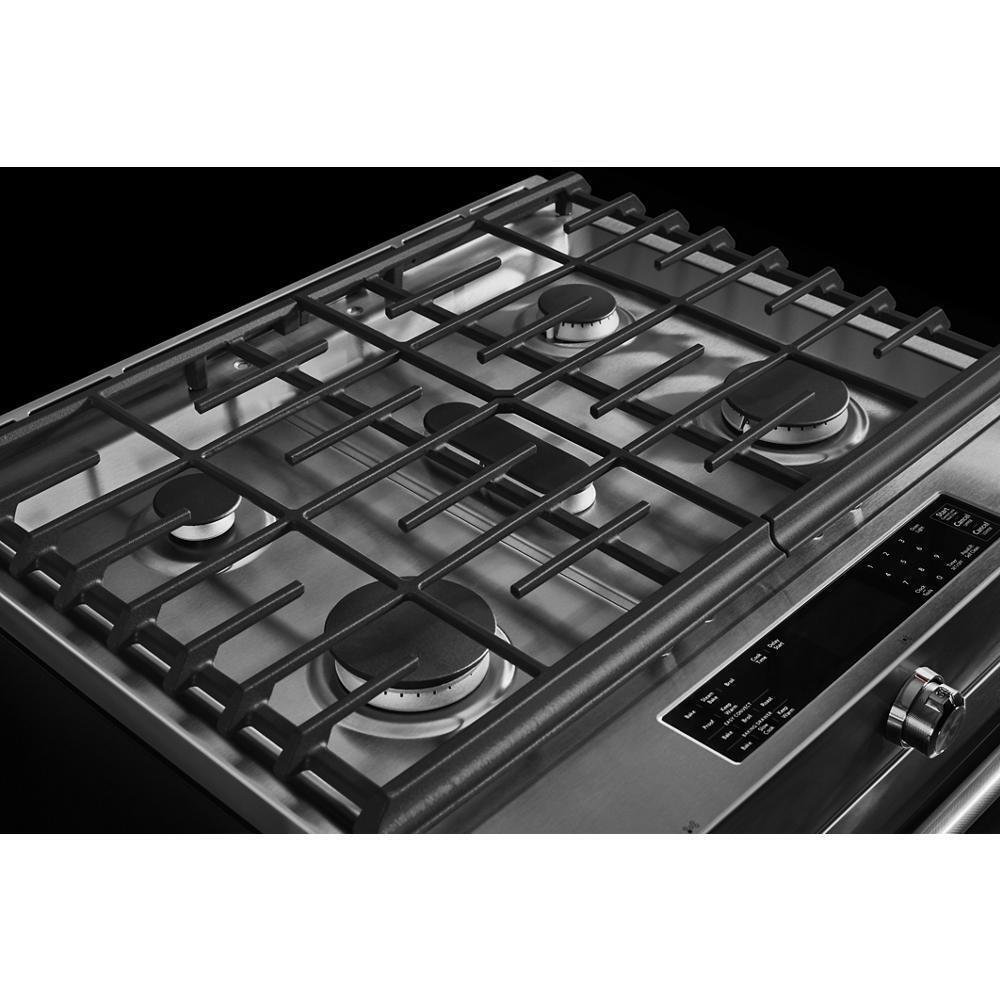

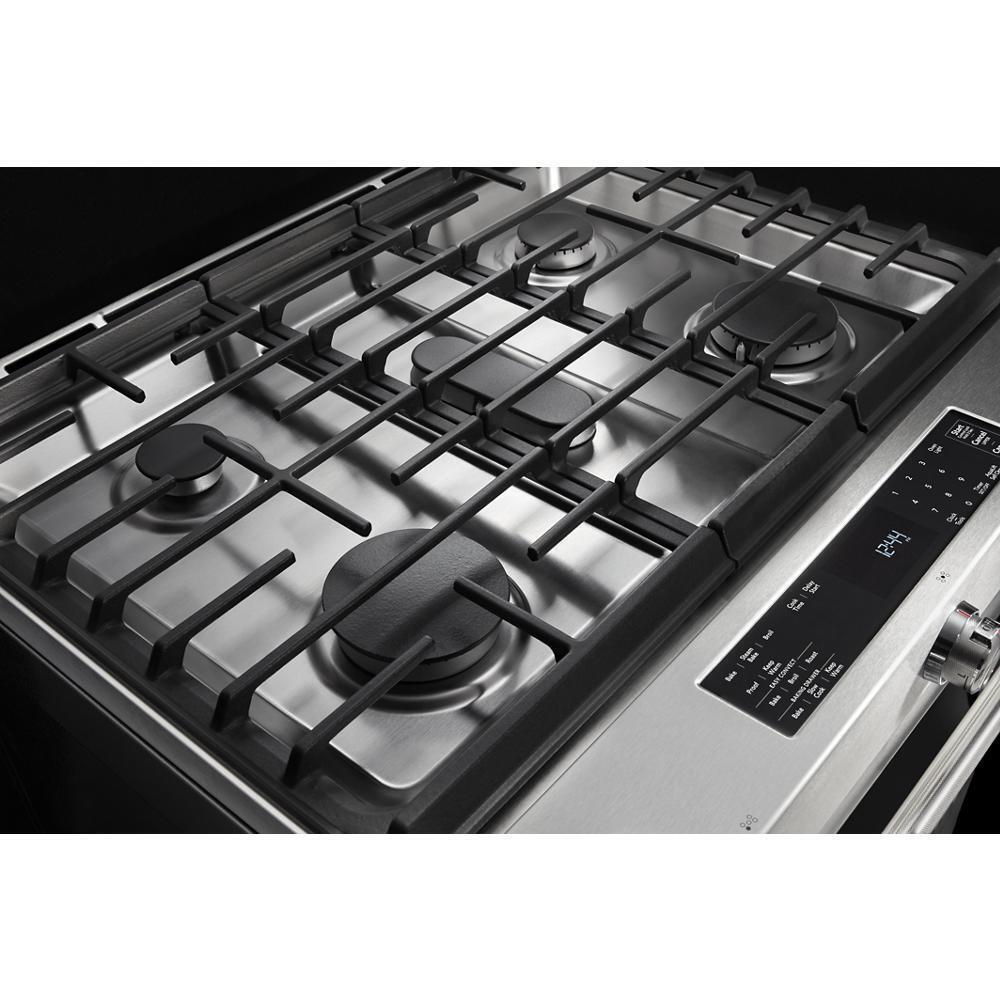

- Continuous Interlocking Grates
- Provide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
- EasyConvect™ Conversion
- Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
- Even-Heat™ True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.
- FIT Guarantee
- Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".

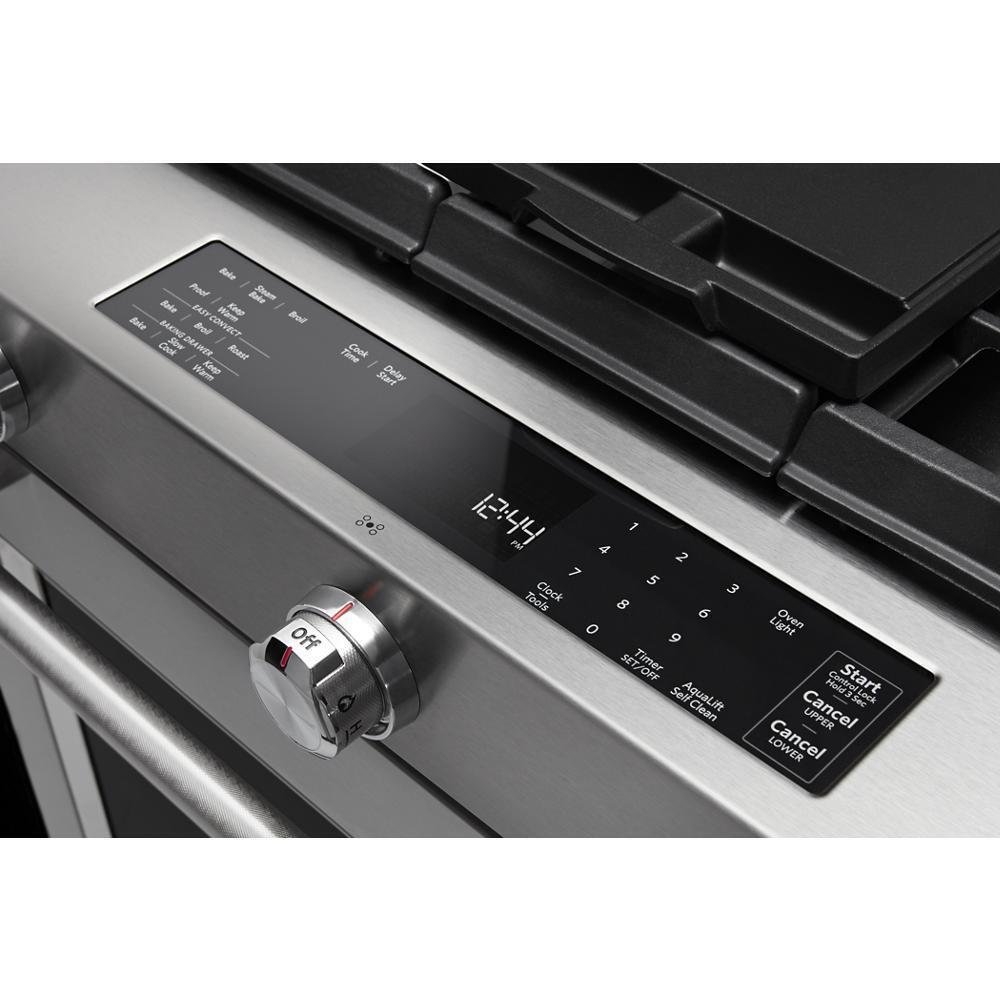

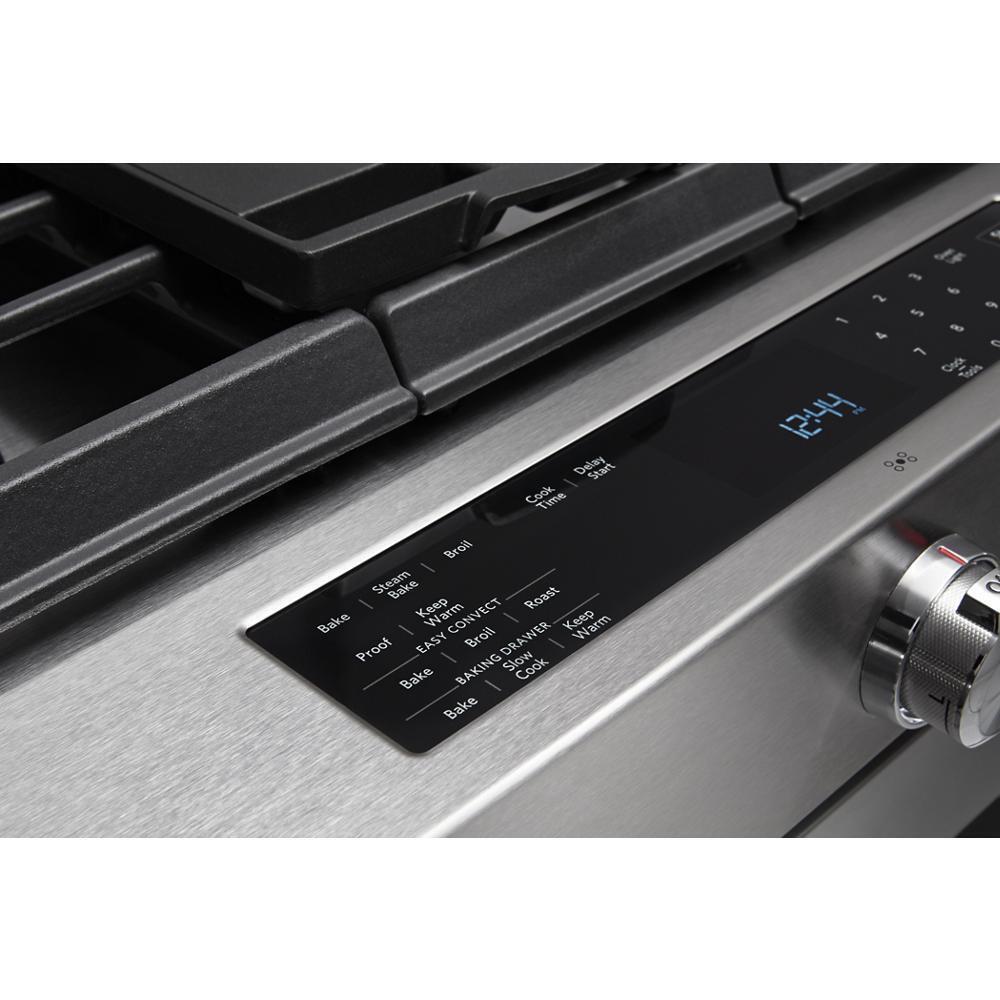

- Glass Touch Controls
- Offer an intuitive, easy-to-use touch screen experience.

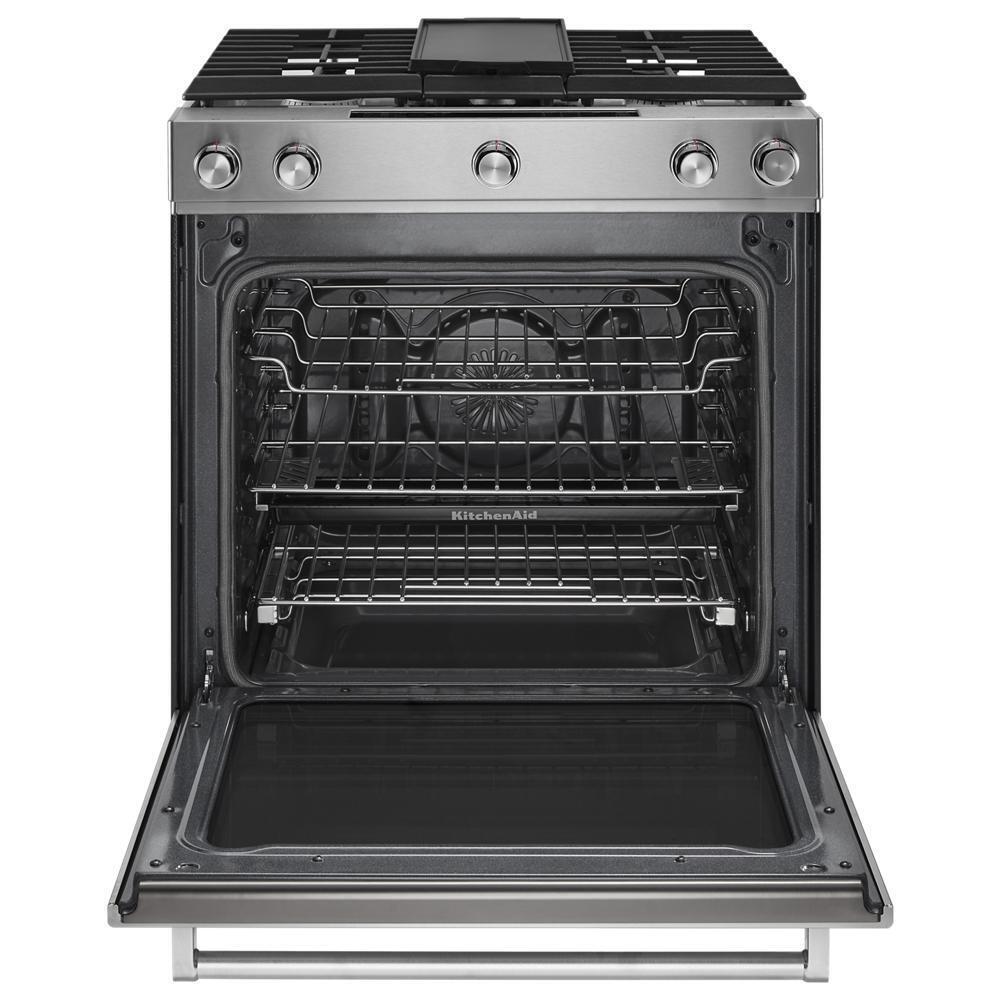

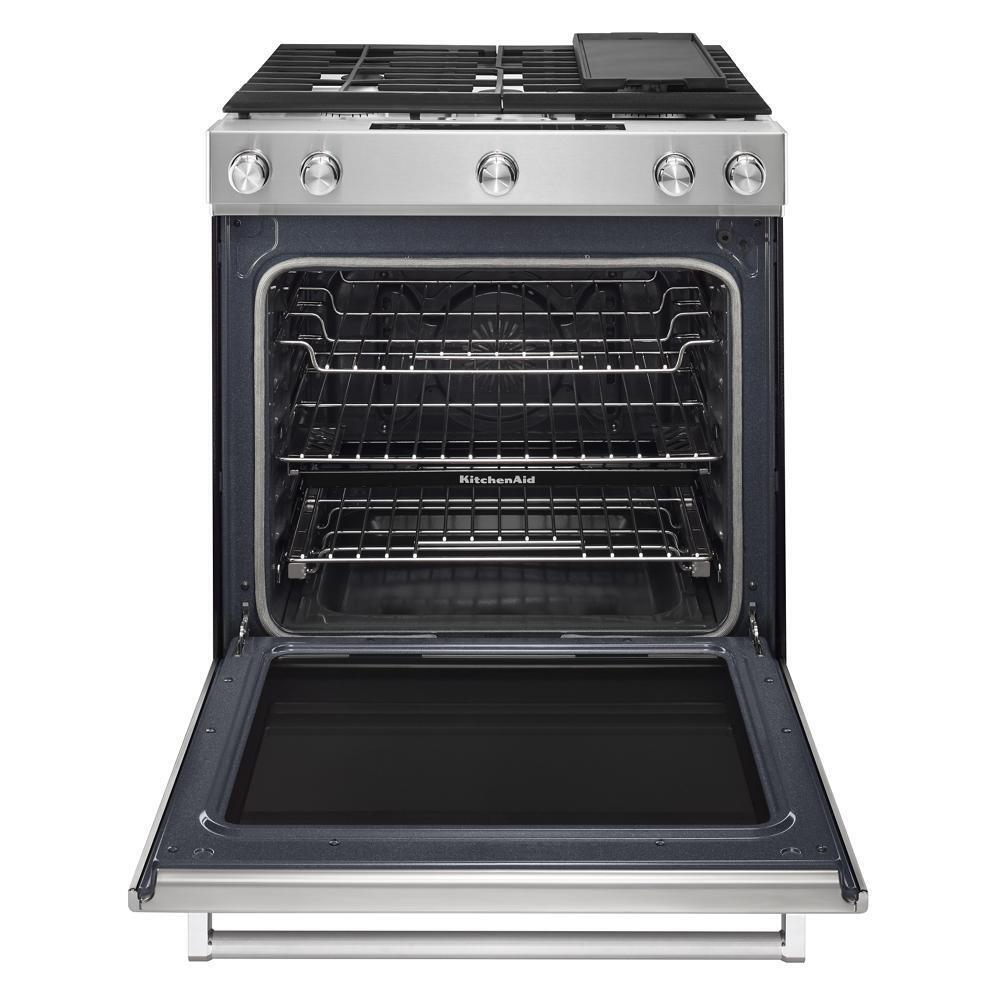

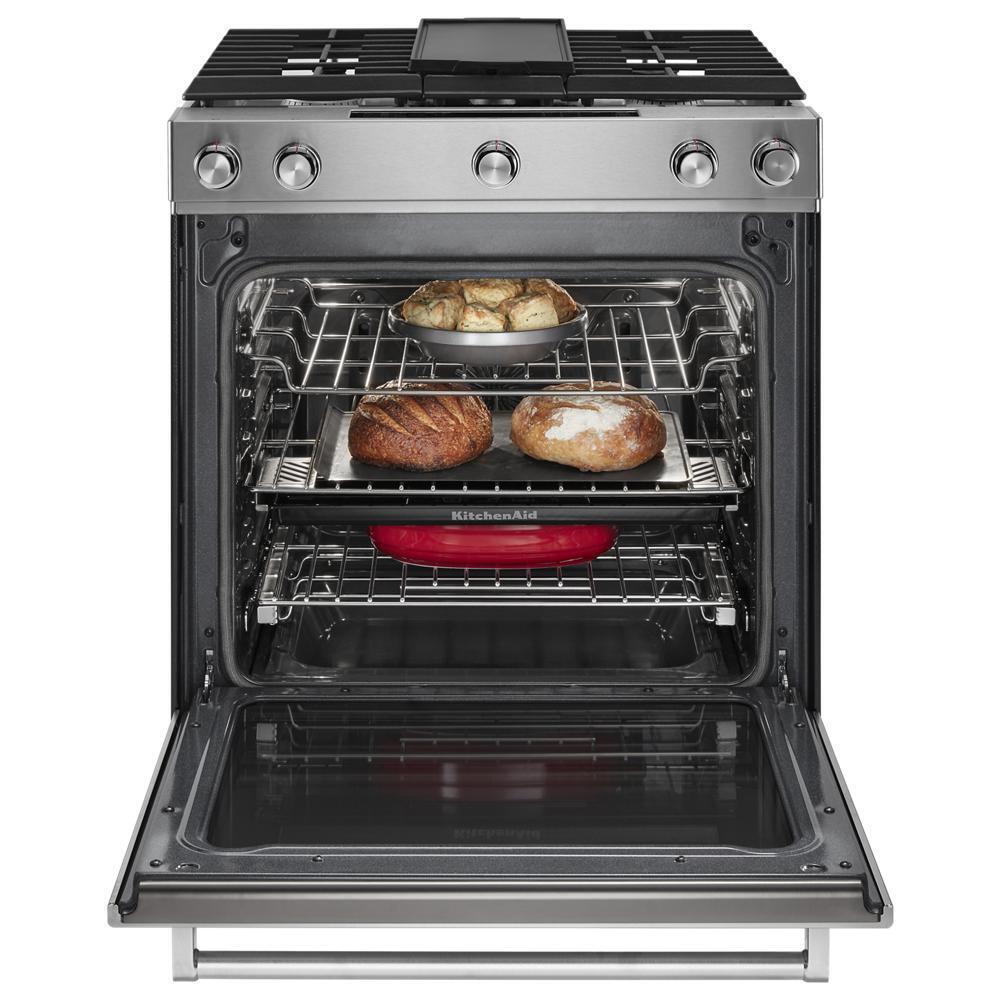

- SatinGlide® Max Racks
- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Side Trim Accessory Kit
- This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
- Steam Rack
- Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
- Baking Drawer
- Even-Heat(TM) True Convection
- Steam Rack
- 7.1 cu ft Total Capacity
- 5 burners (5k, 8k, 9.2k, 15k and 19k)
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Auto Re-ignition | No |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Griddle Included | Included |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Dual Fuel |
Lp Convertible | Yes |
Oven Configuration | Single Oven |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |
Range Drawer Type | Baking Drawer |
Range Type | Slide-in |
Dimensions | |
Carton Depth | 30.51 |
Carton Height | 43.5 |
Carton Width | 31.5 |
Depth Closed Excluding Handles | 26.375 |
Depth Closed Including Handles | 28.875 |
Depth With Door Open 90 Degree | 48.75 |
Gross Weight | 251 |
Net Weight | 233 |
Oven Interior Depth | 20.125 |
Oven Interior Height | 22.125 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 8,000 BTU |
Center Rear Element-burner Type | Sealed Burner |
Cooktop Element Style | Gas Burner |
Left Front Element-burner Power | 19,000 BTU |
Left Front Element-burner Type | Sealed Burner |
Left Rear Element-burner Power | 5,000 BTU |
Left Rear Element-burner Type | Sealed Burner |
Number of Cooking Element-burners | 5 |
Right Front Element-burner Power | 15,000 BTU |
Right Front Element-burner Type | Sealed Burner |
Right Rear Element-burner Power | 9,200 BTU |
Right Rear Element-burner Type | Sealed Burner |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Knob Color | Stainless Steel |
Knob Type | Metal |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 2 |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | Fan |
Convection Functions | Bake; Broil; Roast |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
