Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : COOKTOPS (GAS)

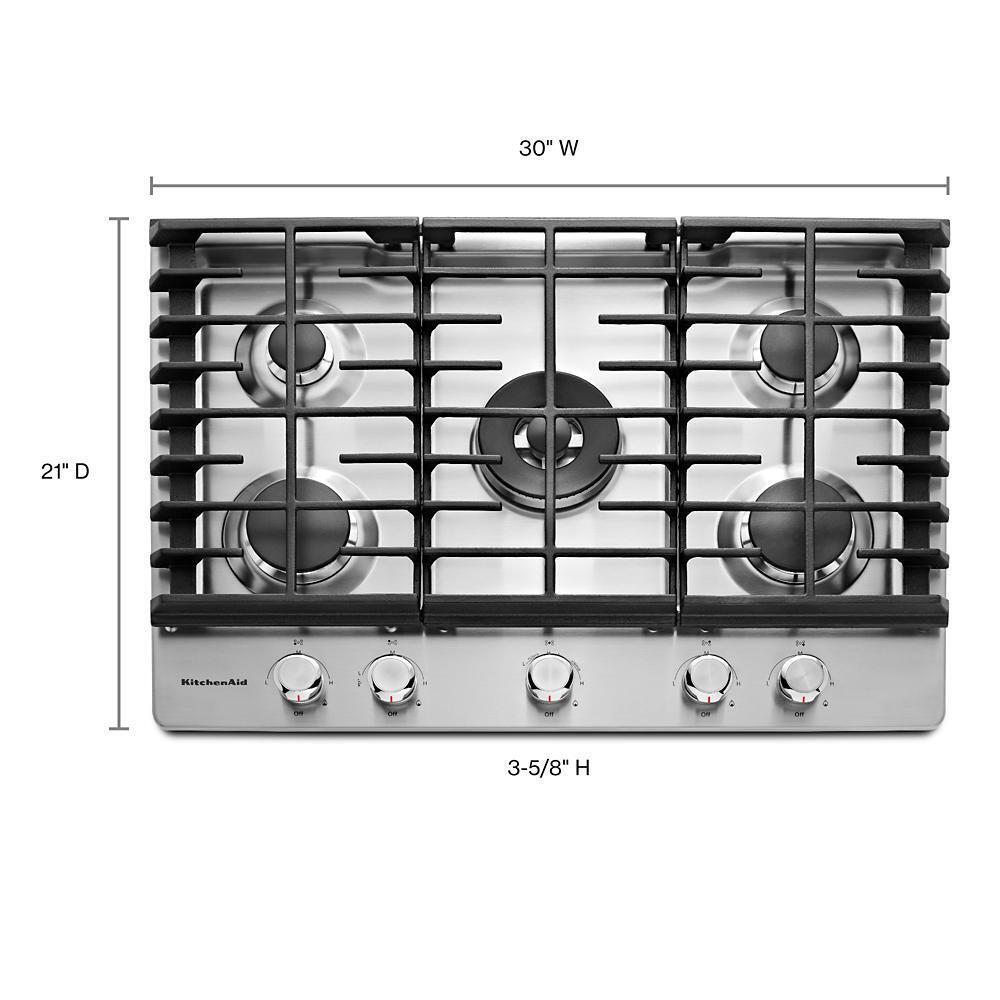

- Width : 30.0
- Height : 3.0625
- Depth : 21.0
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : NO
- Burner Type : Sealed
- Self Clean : NO
- Convection : NO
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

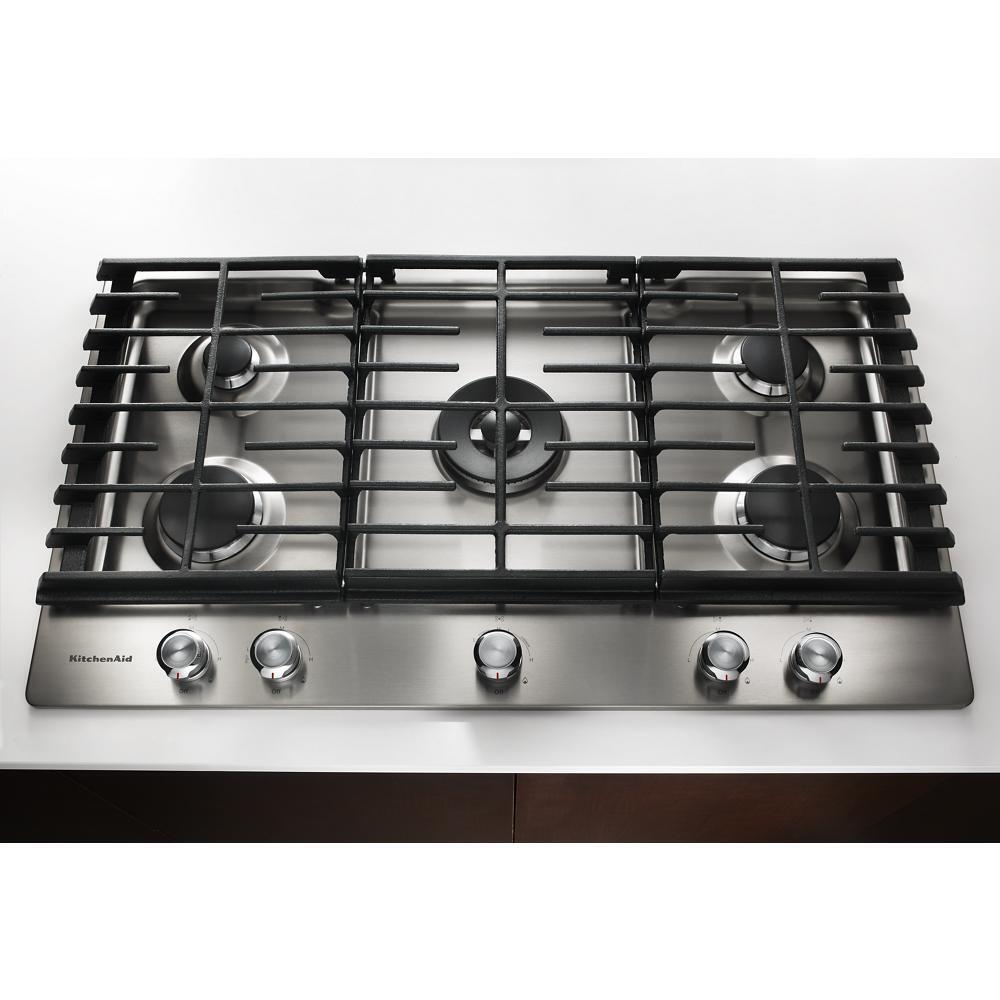

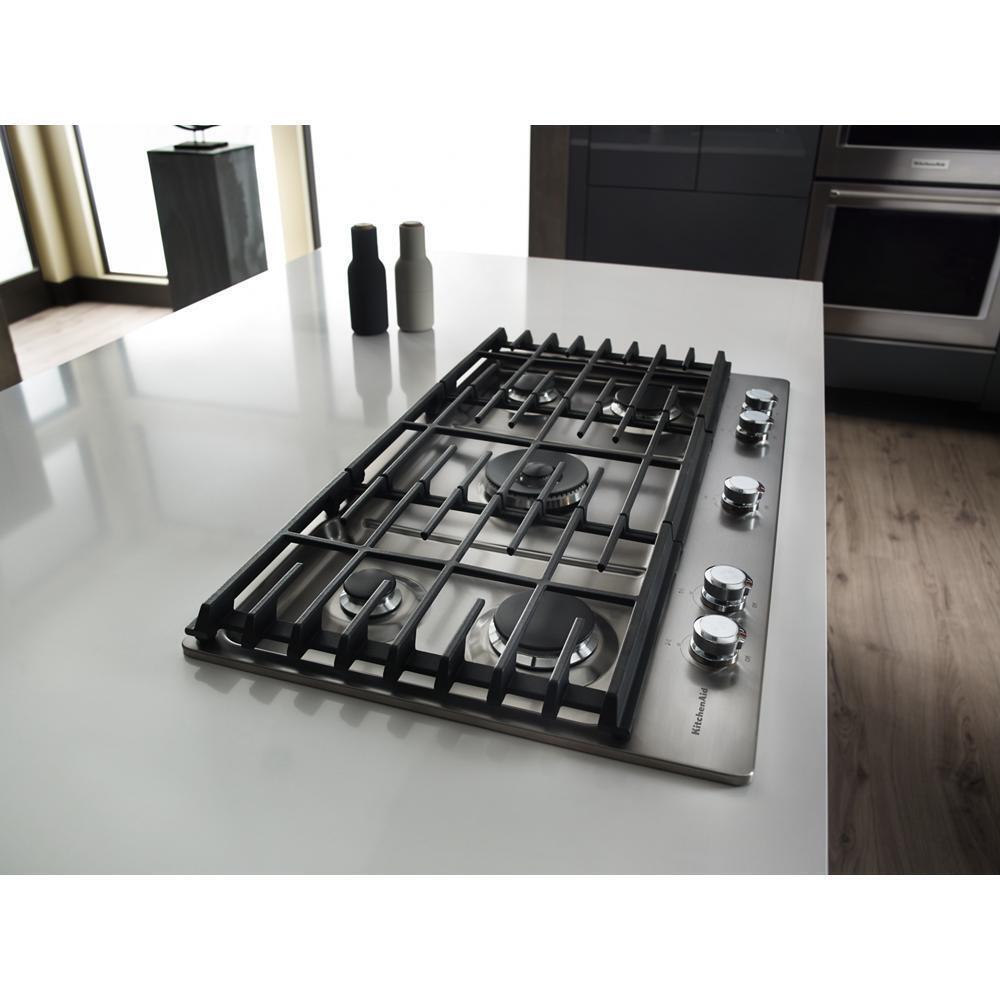

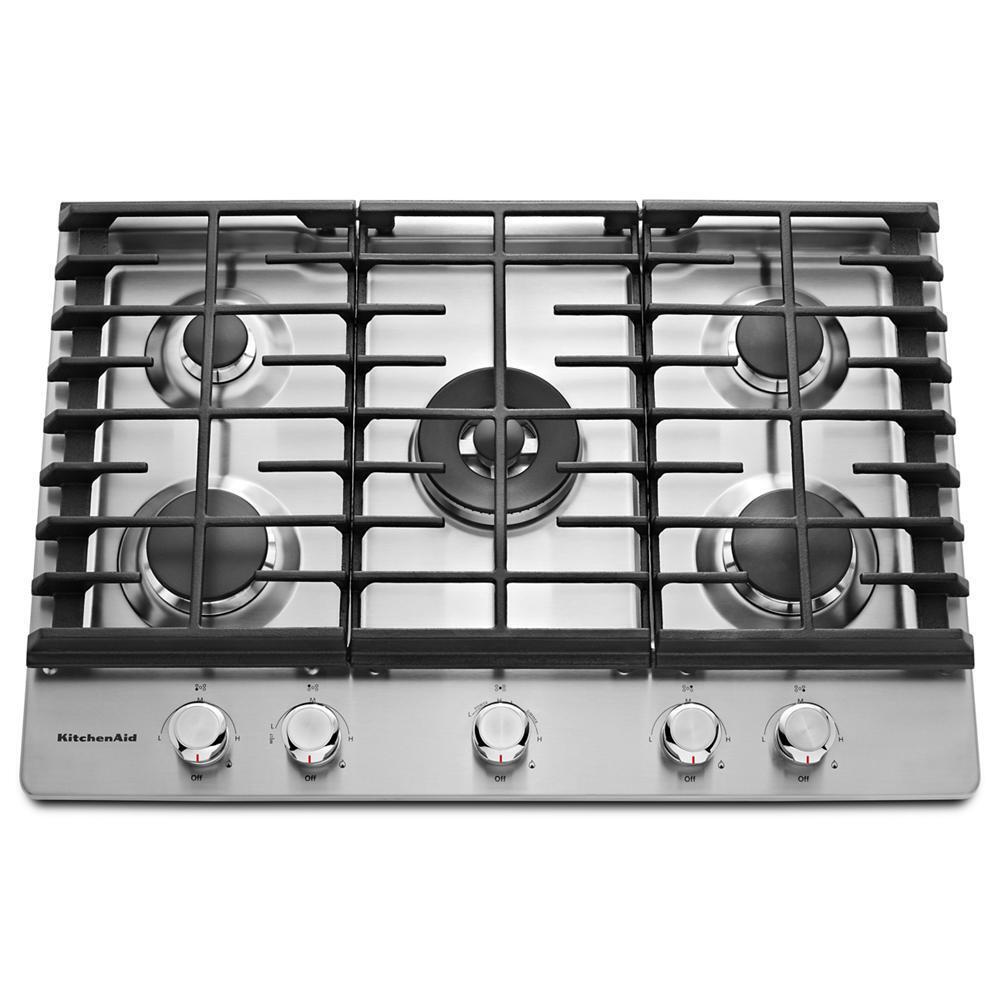

Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

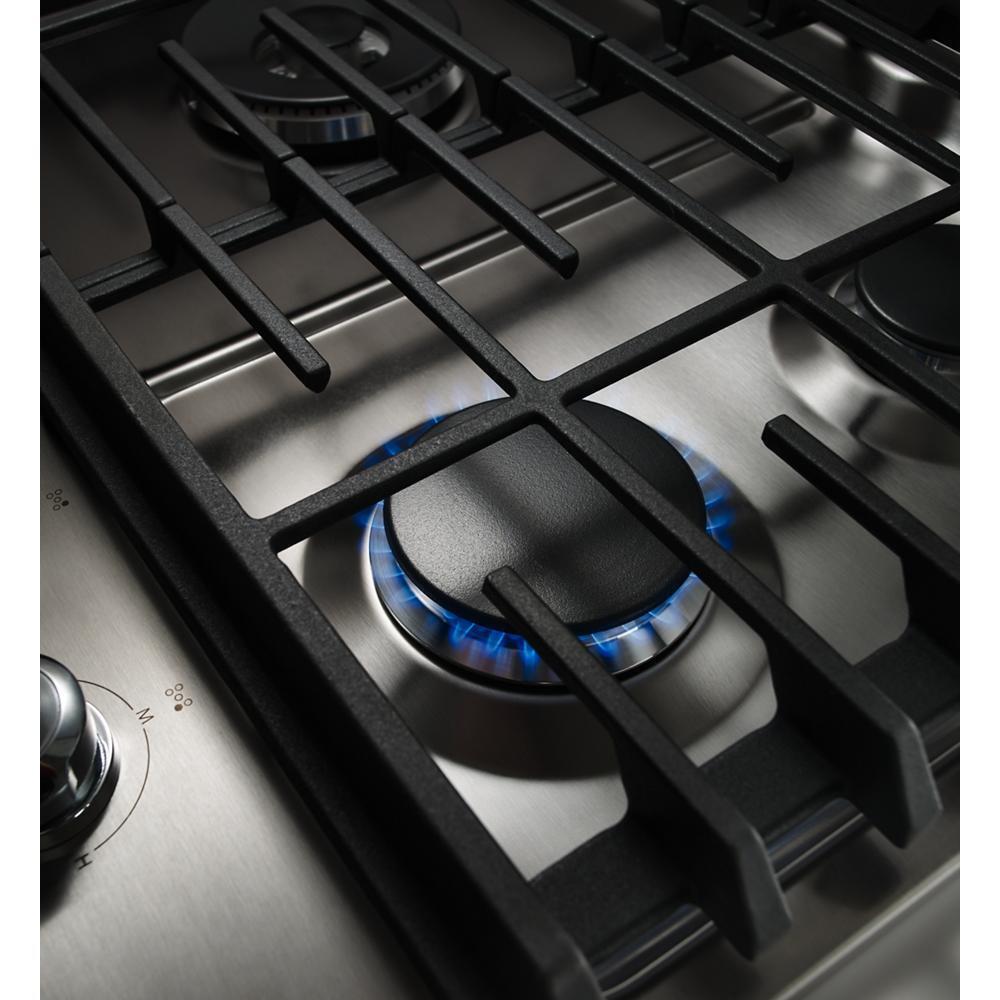

17,000 BTU Professional Dual Ring Burner
Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
Multi-Finish Knobs
Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.

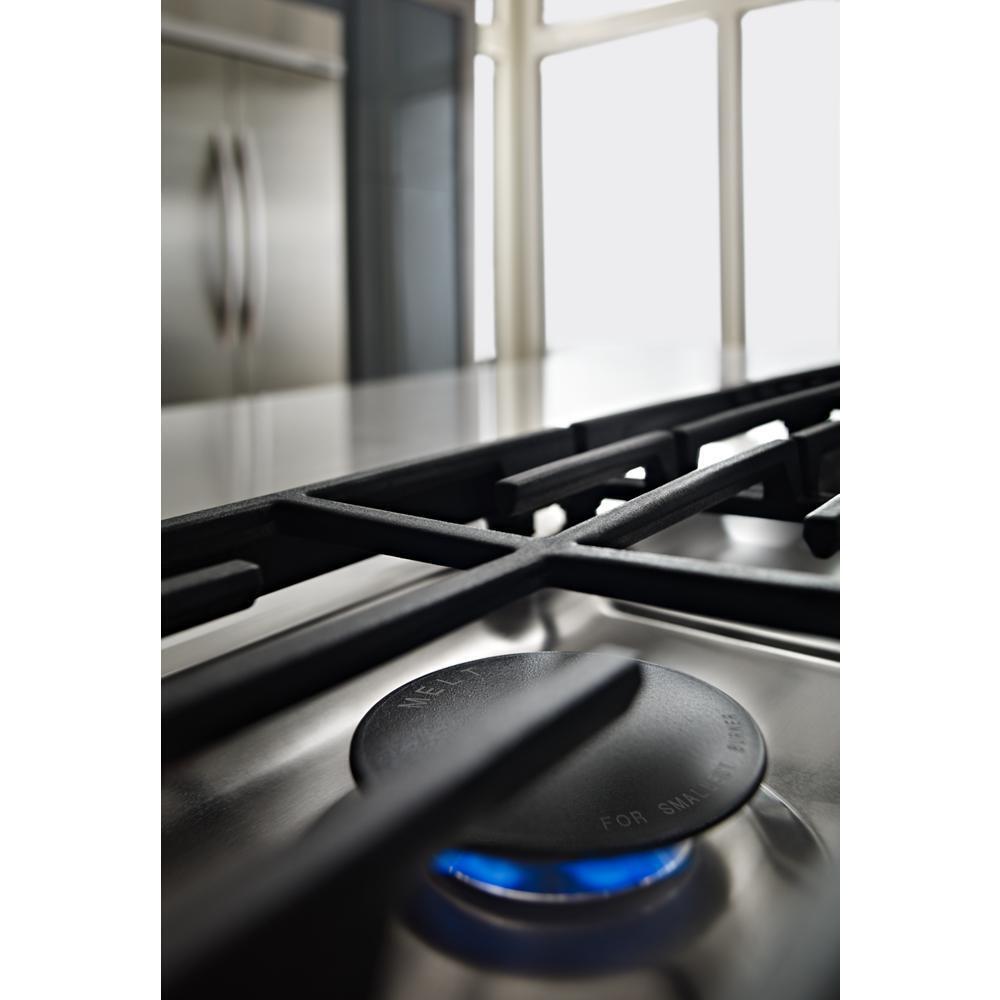

6,000 BTU Even-Heat(TM) Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.

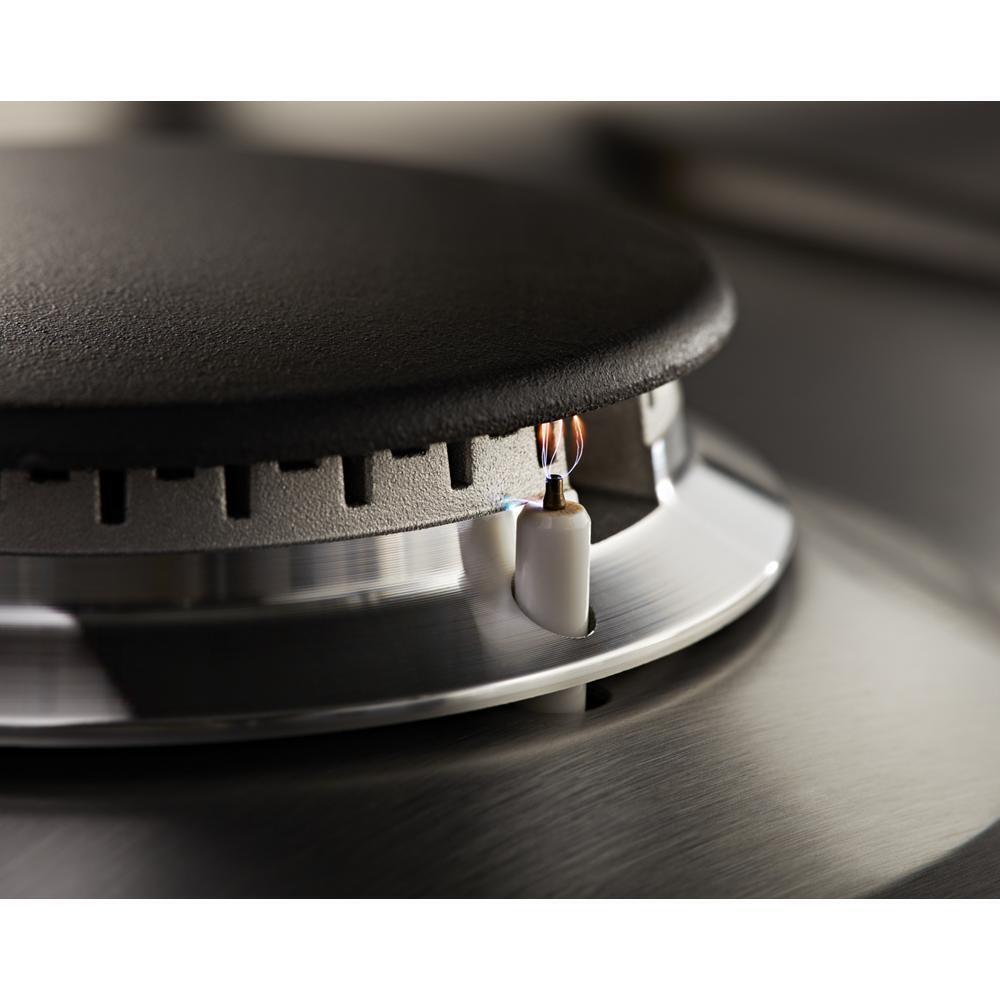

Electronic Ignition
Automatically lights burners so no standing pilot light is needed
- 17,000 BTU Professional Dual Ring Burner
- Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
- 6,000 BTU Even-Heat™ Simmer Burner
- A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
- CookShield Finish
- protects the cooktop from stains that may
occur with high temperature cooking. The
permanent finish makes it easy to wipe clean
without harsh chemicals so it looks clean,
bright and beautiful even longer. - Electronic Ignition
- Automatically lights burners so no standing pilot light is needed
- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

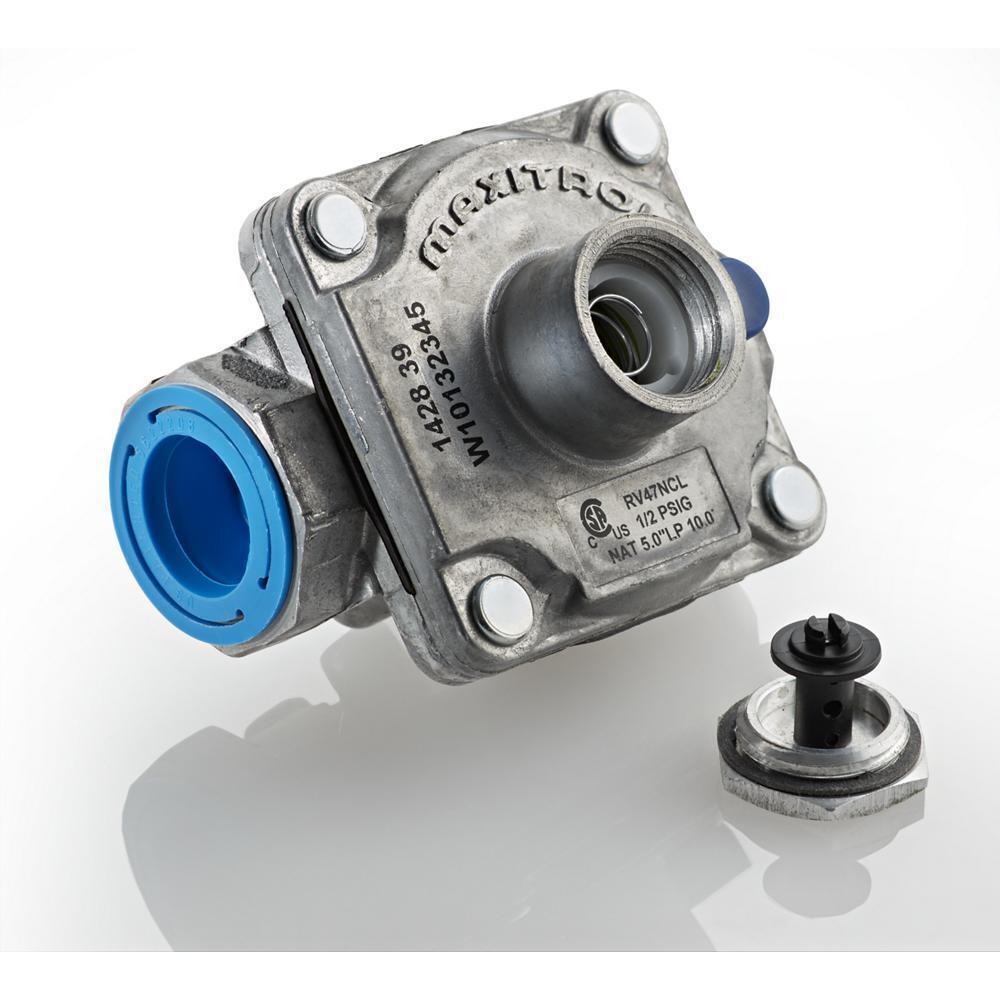

- LP Conversion Kit
- Allows you to convert the cooktop so it can be used with LP gas.
- Multi-Finish Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- 17,000 BTU Professional Dual Ring Burner for simmering or boiling
- 6,000 BTU EVEN-HEAT Simmer Burner for simmering and melting
- CookShield Finish protects the cooktop from stains
- Electronic Ignition automatically lights burners
- Full-Width Cast-Iron Grates allow easy movement of cookware
- LP Conversion Kit (not included) allows use cooktop with LP gas
- Multi-Finish Knobs enhance the look of this cooktop
Certifications | |
Ada Compliant | ADA Height and Side Reach Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Digital Display | No |
Griddle Included | Optional Accessory |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Cooktop Configuration | All Burners |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |
Dimensions | |
Product Height | 3.0625 |
Carton Height | 12.04 |
Gross Weight | 59.6 |
Carton Width | 34.76 |
Product Depth | 21.0 |
Cutout Depth Max | 20 |
Cutout Depth | 19.813 |
Cutout Height | 5.25 |
Carton Depth | 25 |
Cutout Width | 28.875 |
Cutout Width Max | 29.313 |
Net Weight | 53.6 |
Product Width | 30.0 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Element Burner Power | 17,000 BTU |
Center Element Burner Type | Even Heat Dual |
Center Rear Element-burner Power | 17,000 BTU |
Center Rear Element-burner Type | Professional Dual Tier |
Cooktop Type | Standard |
Left Front Element-burner Power | 10000 BTU |
Left Rear Element-burner Power | 6,000 BTU |
Left Rear Element-burner Type | Simmer |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 10,000 BTU |
Right Rear Element-burner Power | 7,000 BTU |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
General | |
Combination Match With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 3 |
Ventilation Details | |
Downdraft Vent | No |
