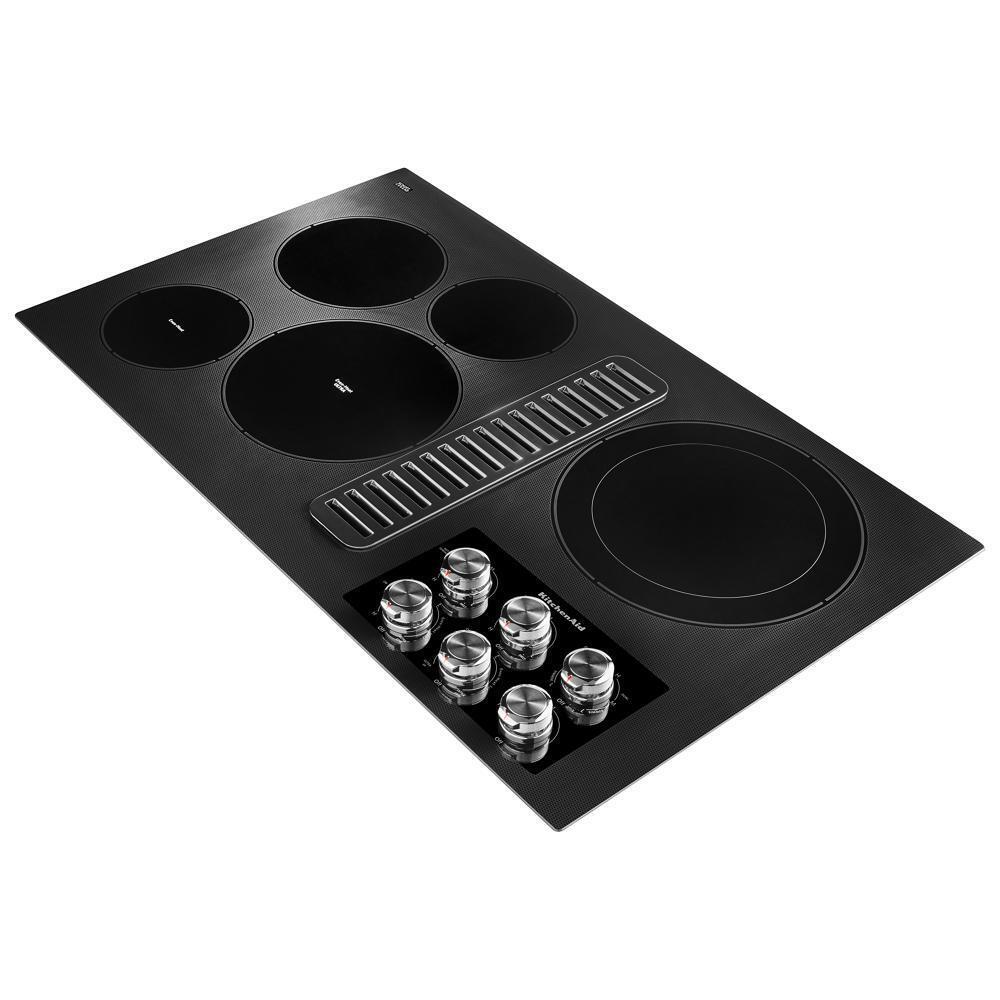

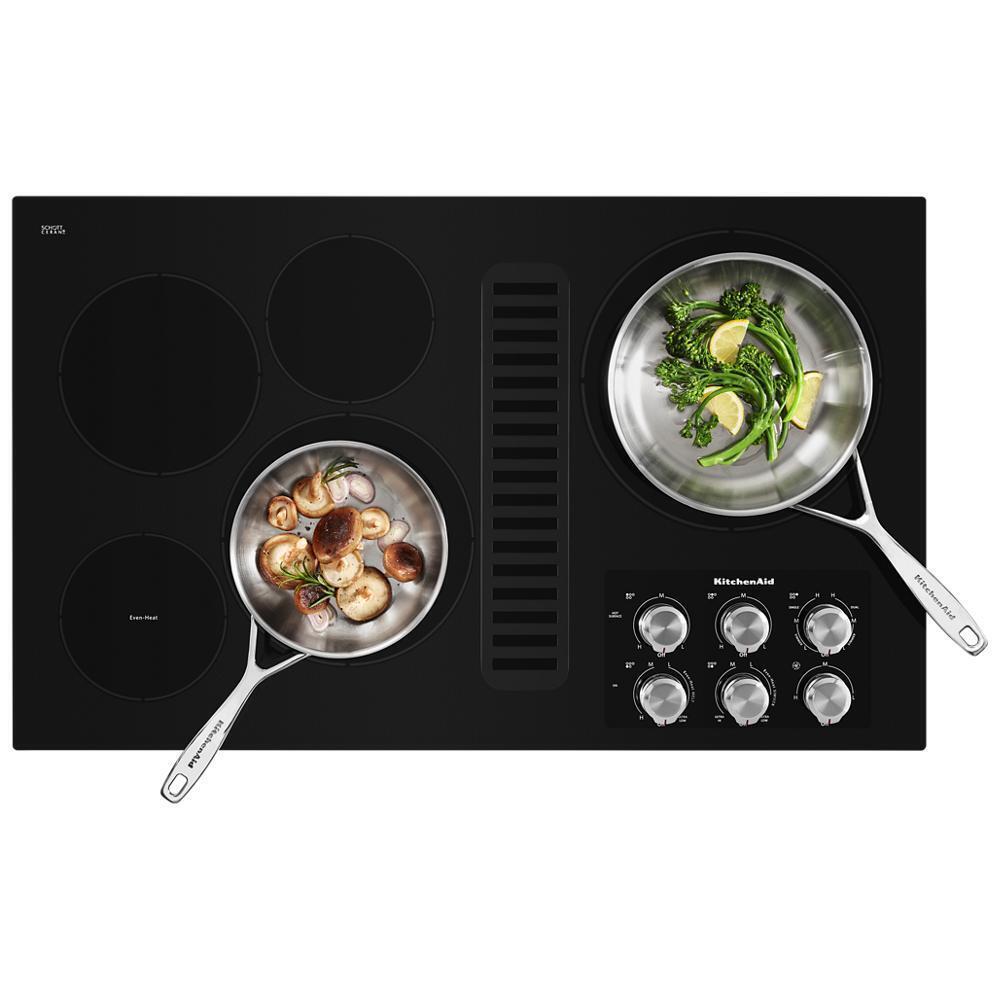

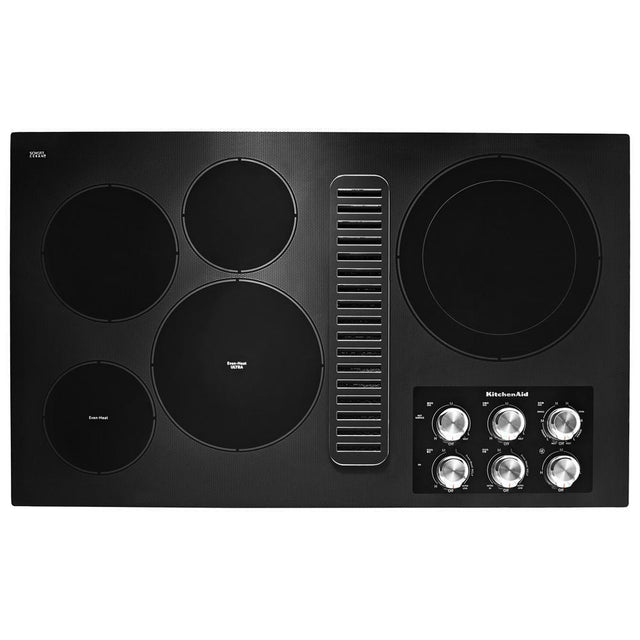

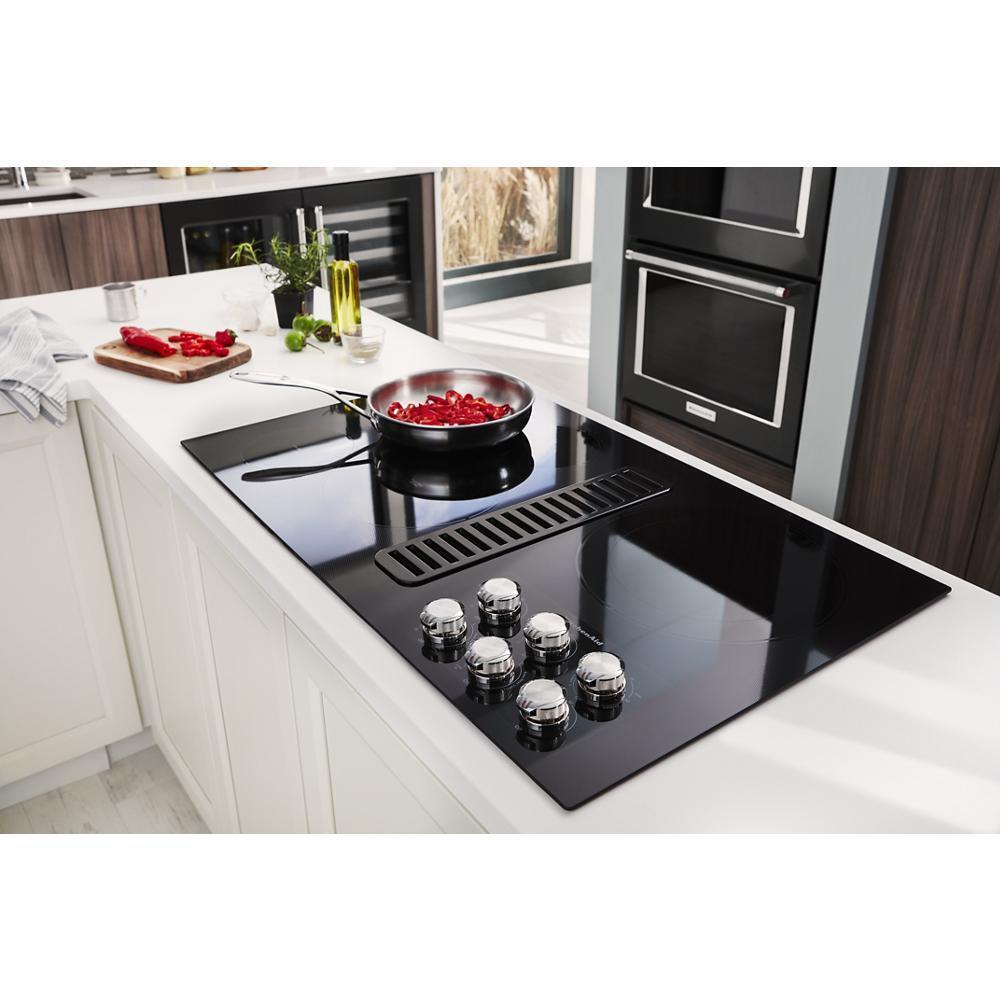

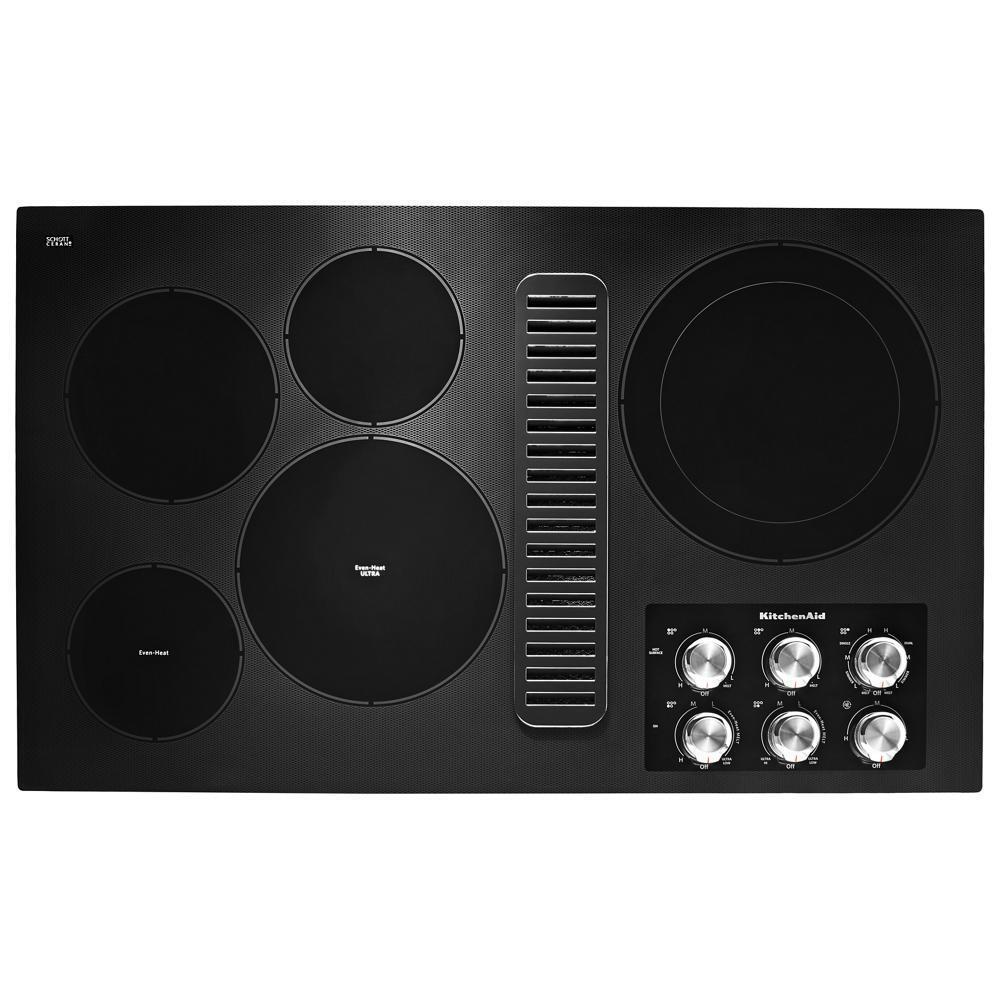

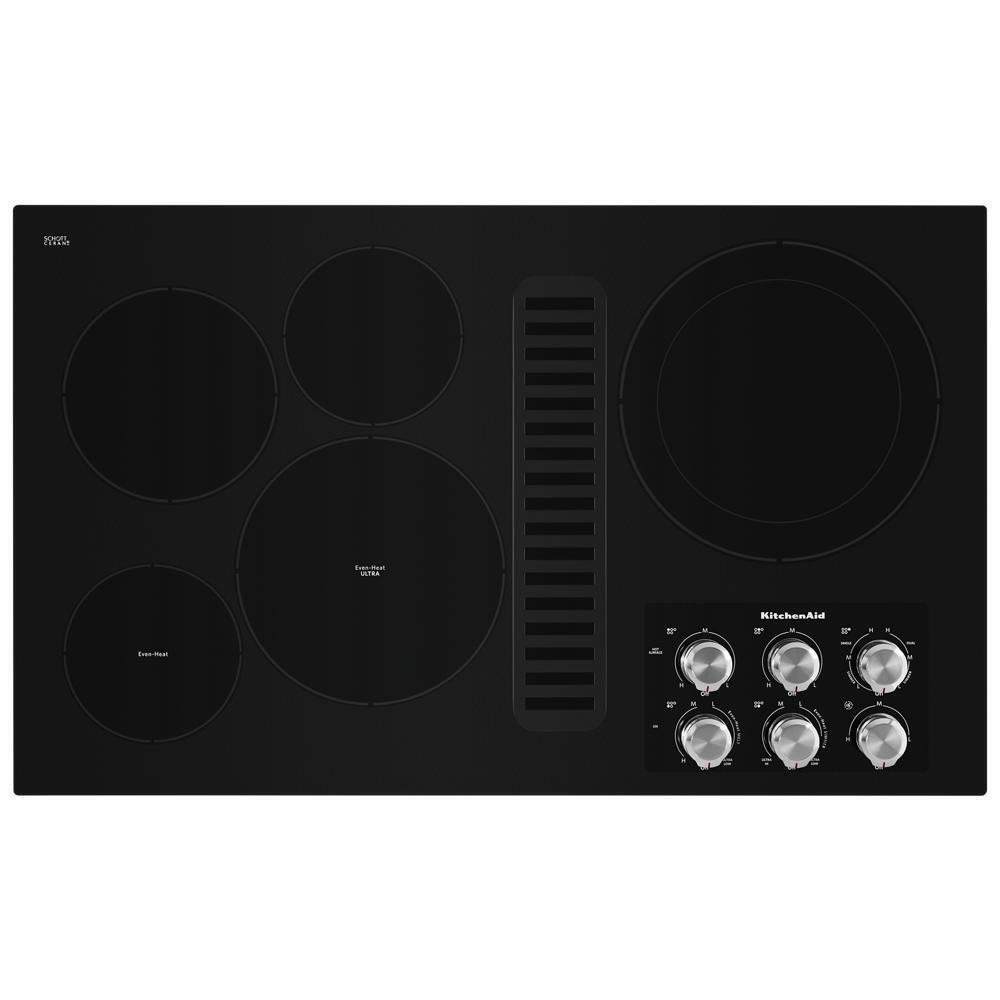

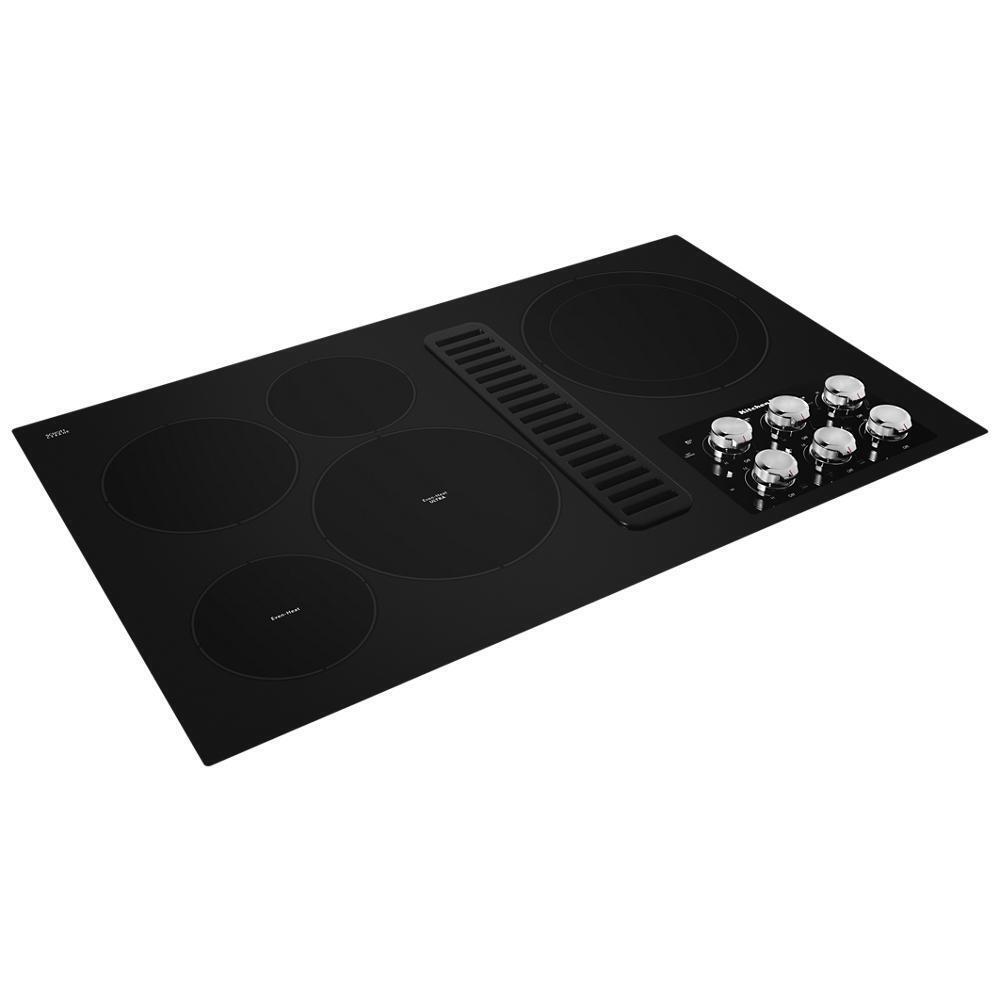

36" Electric Downdraft Cooktop with 5 Elements
Add to Cart to See Actual Price
36" Electric Downdraft Cooktop with 5 Elements is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : COOKTOPS (ELECTRIC)
- Width : 36.3125
- Height : 3.625
- Depth : 22.0625
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : YES
- Sabbath Mode : NO
- Induction : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
Pure Color Ceramic-Glass Surface
Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

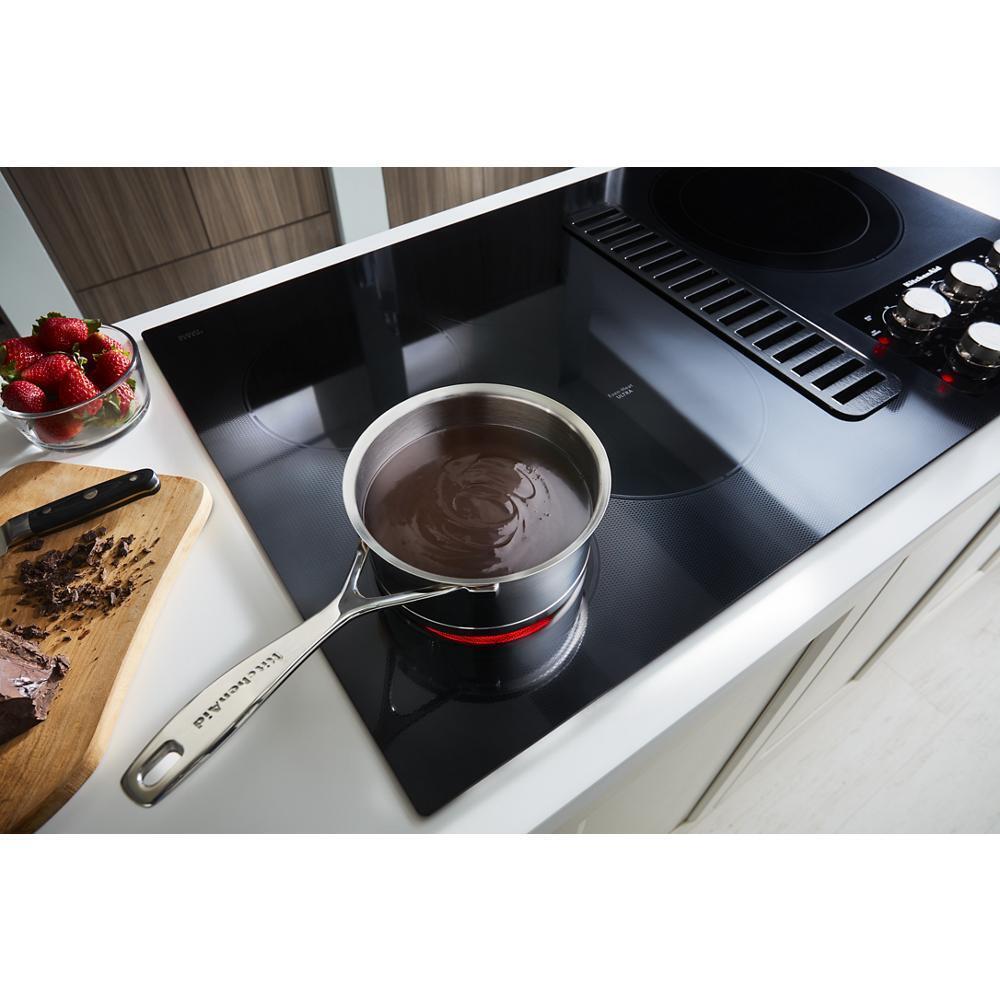

6'' Even-Heat(TM) Element with Melt Setting
Combines the benefits of Even-Heat(TM) Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

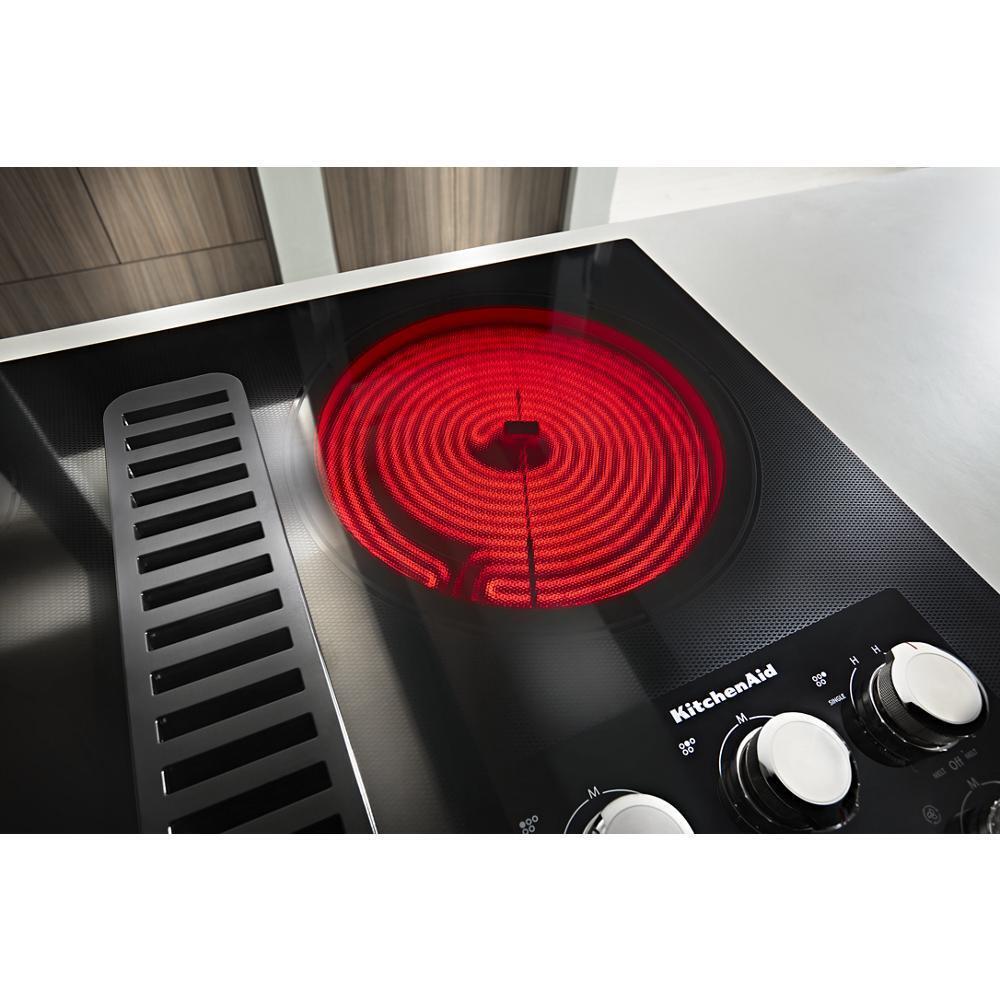

10'' Even-Heat(TM) Ultra Element with Simmer Setting
Provides more versatility for high and low temperature cooking techniques. Even-Heat(TM) Technology maintains a constant supply of power and delivers a range of simmer settings.
8'' Round Element
Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
12''/9'' Double-Ring Element
Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you ll use only the 9-inch inner element.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.

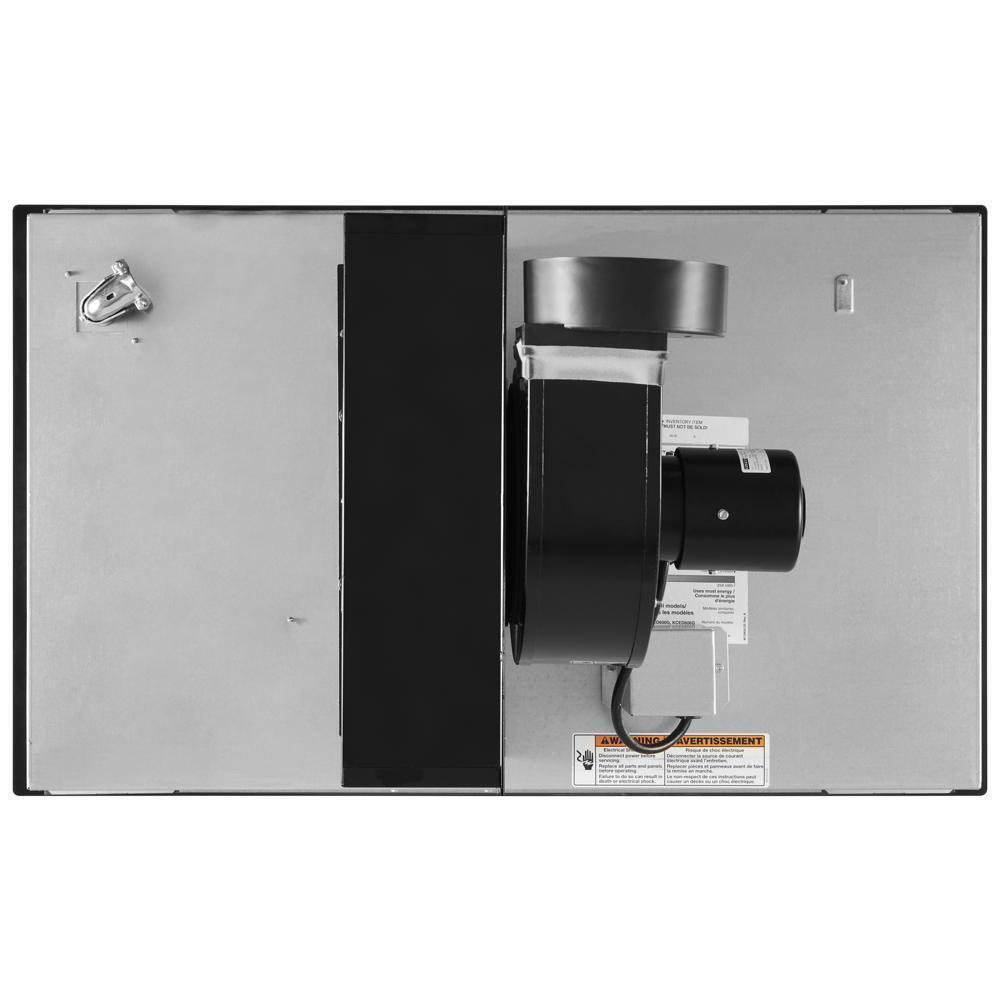

Downdraft Ventilation
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
Hot-Surface Indicator
Provides a clear indication that lets you know if any cooking surface is on or still hot.
- 10'' Even-Heat™ Ultra Element with Simmer Setting
- Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
- 12''/9'' Double-Ring Element
- Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you ll use only the 9-inch inner element.
- 3-Speed Fan Control
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- 300 CFM Exhaust Rating
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- 6'' Even-Heat™ Element with Melt Setting
- Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 6'' Round Element
- Can reach a power output of up to 1200 watts to handle your daily cooking needs.
- 8'' Round Element
- Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
- Convertible to Duct-Free Ventilation
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- CookShield Finish for Glass Surface
- Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
- Downdraft Ventilation
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Hot-Surface Indicator
- Provides a clear indication that lets you know if any cooking surface is on or still hot.
- Power-On Indicator Light
- Lets you know at a glance when an element is on.
- Pure Color Ceramic-Glass Surface
- Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

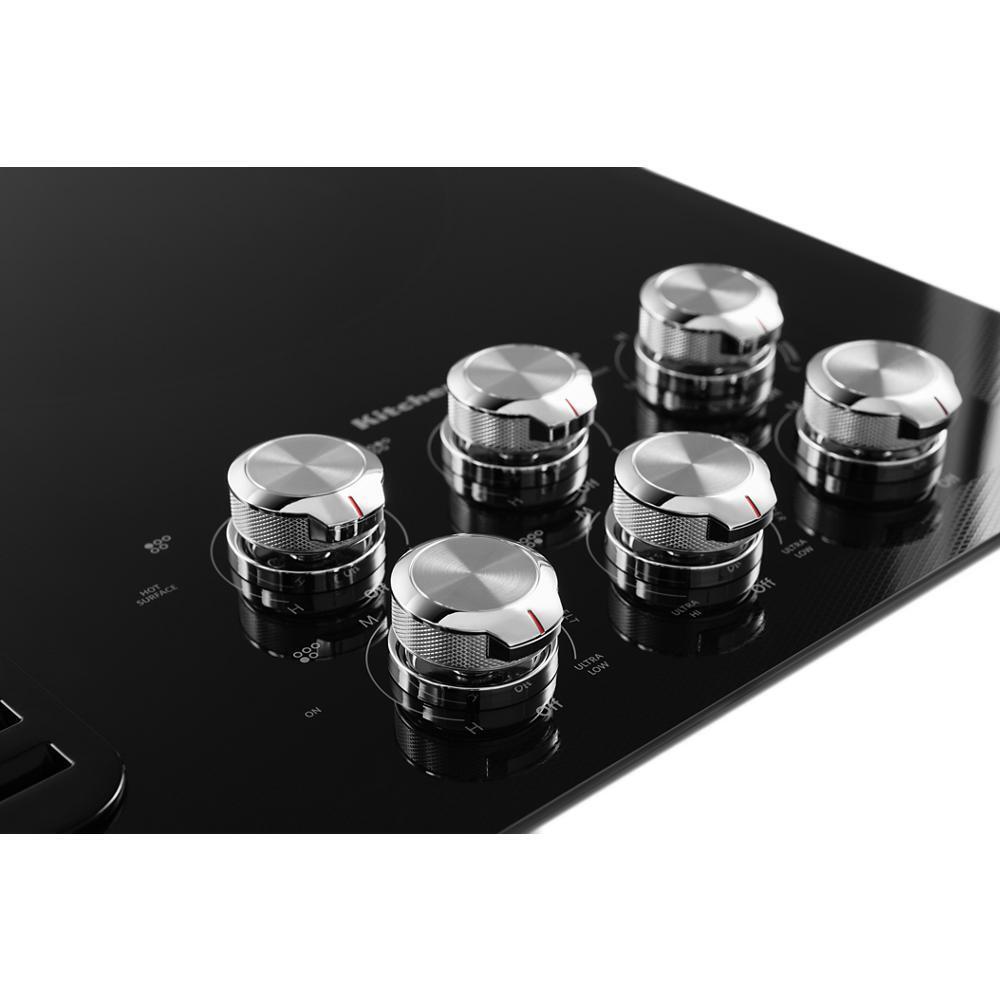

- Stainless Steel Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- 10" EVEN-HEAT Ultra Element w/ EVEN-HEAT Simmer adds versatility
- 12"/9" Double-Ring element lets you use different cookware sizes
- Hot surface indicator light lets you know if an element is hot to the touch
- Power Indicator light lets you know at a glance when an element is on
- Glass surface provides a sophisticated appearance with saturated colors
- Stainless steel knobs add a premium feel with their sturdy construction
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- EVEN-HEAT with a low setting that can melt, not scorch, chocolate
- 6" element has a 1200-watt power output to easily handle daily cooking needs
- 8" element fits commonly-sized pans and offers up to 1800 watts of power
- Vent kit to filter and recirculate air inside, allowing flexible placement
- CookShield Finish for Glass helps protect cooktop surface from scratches
- Downdraft ventilation captures smoke/odors at the surface
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Side |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Digital Display | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Fuel Type | Electric |
Installs Over Built-in Oven | No |
Lp Convertible | No |
Number of Vent Speeds | 3 |
Power Outage Compatible | No |
Dimensions | |
Product Height | 3.625 |
Cutout Depth | 21.125 |
Carton Height | 23.78 |
Gross Weight | 70 |
Carton Depth | 26.38 |
Carton Width | 41.5 |
Cutout Width | 34.563 |
Product Depth | 22.0625 |
Net Weight | 57 |
Product Width | 36.3125 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Center Front Element-burner Power | 3,200W |
Center Front Element-burner Size | 10in. |
Center Front Element-burner Type | Even-Heat™ Ultra |
Center Rear Element-burner Power | 1,200W |
Center Rear Element-burner Size | 6in. |
Center Rear Element-burner Type | Single |
Cooktop Element Style | Radiant |
Cooktop Type | Downdraft |
Left Front Element-burner Power | 1,300W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Even-Heat™ |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Single |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Rear Element-burner Power | 3,000W |
Right Rear Element-burner Size | 12in./9in. |
Right Rear Element-burner Type | Dual-Stacked Burner |
Exterior Details | |
Knob Color | Color Coordinated |
Knob Type | Metal |
Ventilation Details | |
Cfm Motor Class | 300 |
Downdraft Vent | Yes |
