Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : COOKTOPS (GAS)
- Height : 5.1875
- Depth : 20.0625
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Burner Type : Sealed
- Continuous Grate : NO
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- 12,000 BTU Burner
- Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
- 18,000-BTU Dual-Stacked PowerBurner
- Two stacked, symmetrical flames bloom and retreat as you change temperature, offering total control of up to 18,000 BTUs. Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
- 4,000 BTU Burner
- A burner that reaches 4,000 BTUs for lower-temperature sauteing and cooking.
- 6,300 BTU Burner
- A burner that reaches a maximum power level of 6,300 BTUs and fulfills most everyday cooking functions.
- ADA Compliant
- Designed to meet ADA standards when installed according to the ADA guidelines.
- Built-In Single Wall Oven Compatible
- Versatility and functionality converge with the ability to install above a JennAir® single wall oven, in an island or countertop.

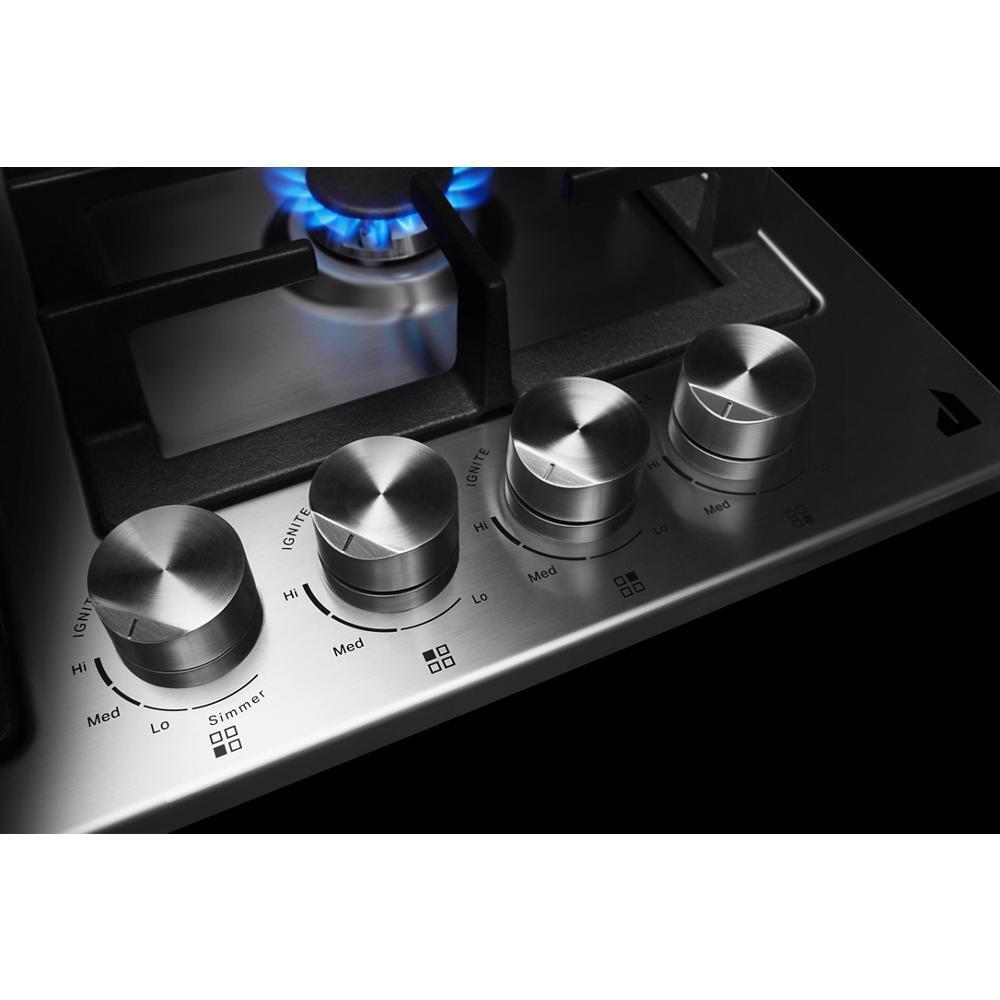

- Die-Cast Metal Knobs
- Robust, die-cast metal knobs offer precise control and seamlessly match the sleek stainless steel of the cooktop.

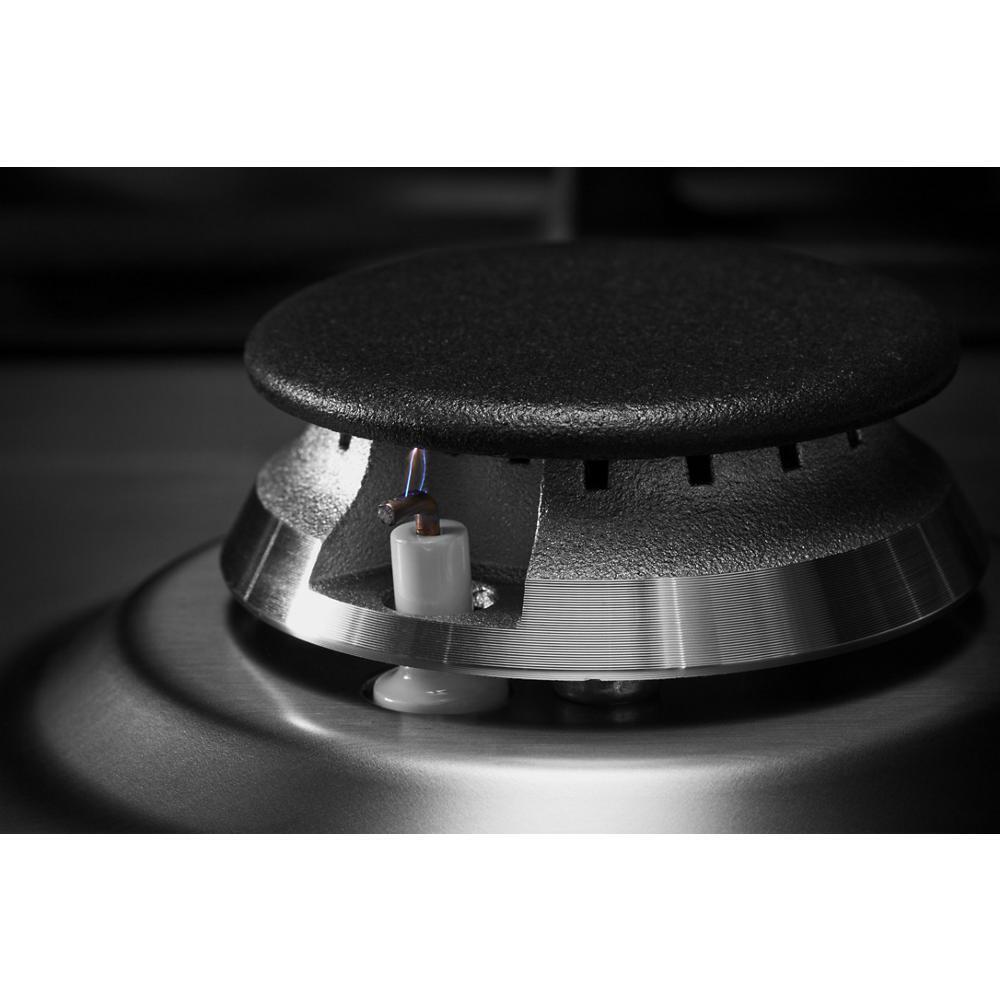

- Electronic Ignition with Flame-Sensing™ Reignition
- If a sudden draft blows out a flame, intelligent Flame-Sensing™ Reignition automatically sparks it back to life.
- Infinite Burner Control Settings
- Select your preferred burner setting from the precise cooking controls - low temperatures for melting butter and chocolates, scaling up to high temperatures for stir-frying and filet searing.
- Lustre Brushed Metal Design
- The stainless steel cooktop surface combines modern aesthetics and classic materials for a refined, upscale look.
- Most Powerful 24"" Natural Gas Cooktop in Luxury* *Based on combined cooktop burner BTUs. Natural gas only.
- With combined burner BTUs of over 40k, this JennAir® cooktop is the most powerful 24" natural gas cooktop in luxury.*
*Based on combined cooktop burner BTUs. Natural gas only. - Sealed Burners
- Sealed burners prevent food and liquid spills from falling into the burner, allowing you to clean up with ease.
- Serviced by a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
- Up to 12,000 BTU output for high temperature cooking
- Reaches a maximum of 18,000 BTUs and a low of 450 BTUs
- "With combined burner BTUs of over 40k, this JennAir(R) cooktop is the most powerful 24"" natural gas cooktop in luxury.* *Based on combined cooktop burner BTUs. Natural gas only."
- Prevents liquid spills and foods from falling into the burner
- A dedicated network of experienced service providers
- Up to 4,000 BTU output for versatile cooking needs
- Up to 6,300 BTU output for everyday cooking functions
- Designed to meet ADA standards
- Ability to install over a single built-in wall oven
- Precisely control heating levels with Die-Cast Metal Knobs
- Flame-Sensing(TM) Reignition sparks the flame back to life
- Select preferred burner settings for precise temperature control
- A sleek cooktop surface designed with brushed stainless steel
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Stainless |
Cooktop Surface Material | Stainless Steel |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Flame-Sensing™ Re-ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Cooktop Configuration | All Burners |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |
Dimensions | |
Product Height | 5.1875 |
Carton Height | 8.25 |
Gross Weight | 41 |
Carton Width | 23.63 |
Product Depth | 20.0625 |
Cutout Depth Max | 19.375 |
Cutout Width Min | 23.5 |
Cutout Height | 3.333 |
Carton Depth | 28.38 |
Cutout Depth Min | 19.313 |
Cutout Width Max | 23.625 |
Net Weight | 37.4 |
Product Width | 24.5 |
Electrical | |
208v Compatible | No |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Sealed Burners |
Cooktop Type | Standard |
Left Front Element-burner Power | 18,000 BTU |
Left Front Element-burner Size | 4.5in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 6,300 BTU |
Left Rear Element-burner Size | 3in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 4,000 BTU |
Right Front Element-burner Size | 2in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 12,000 BTU |
Right Rear Element-burner Size | 4in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
General | |
Combination Match With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Grate Details | |
Grate Details | Cast Iron Grates; Individual |
Number of Grates | 4 |
Ventilation Details | |
Downdraft Vent | No |
Ventilation Type | Updraft |
