Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : COOKTOPS (GAS)
- Height : 4.5
- Depth : 21.0
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : NO
- Burner Type : Sealed
- Self Clean : NO
- Convection : NO
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

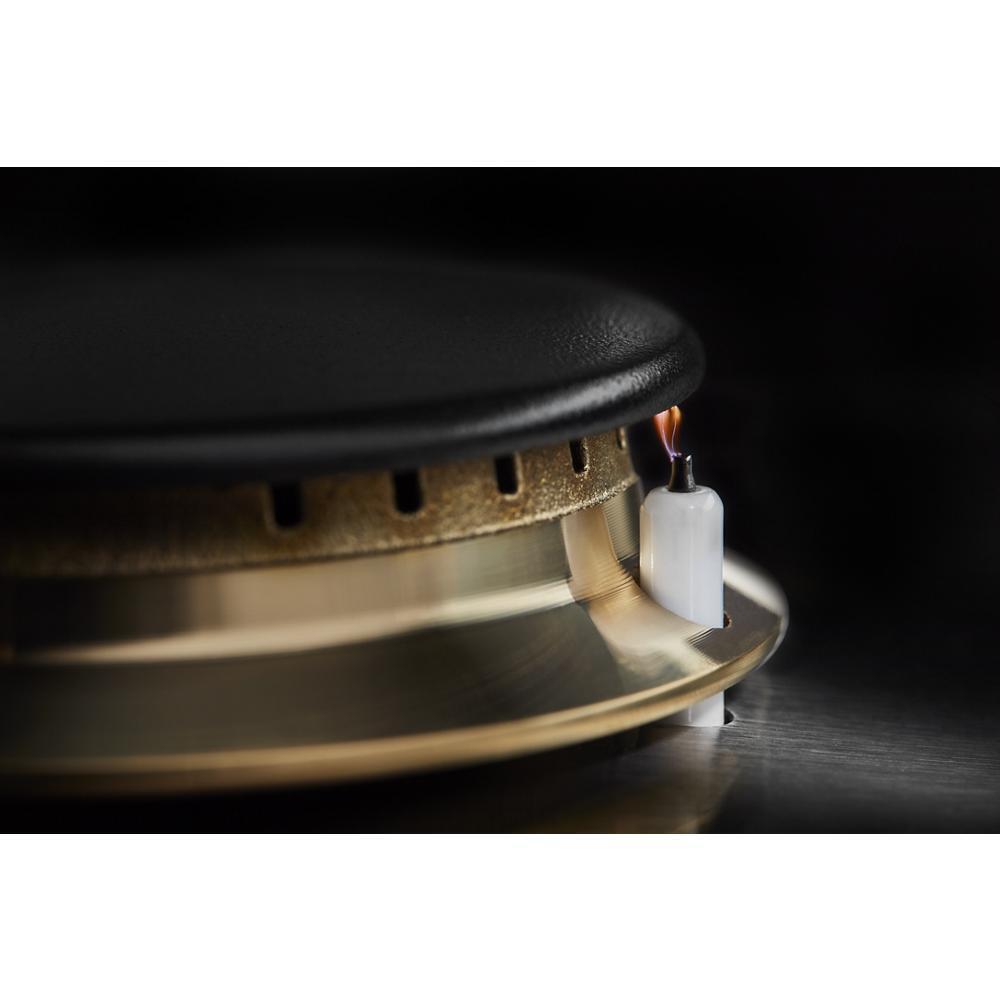

Single Point Electronic Ignition and Flame-Sensing(TM) Re-ignition
If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.

18,000-BTU Dual-Stacked PowerBurner
This dual-stacked burner helps you achieve exceptional results with high-heat cooking techniques like searing or wok cooking while also giving you the control for delicate simmering.

White LED Burner Indicator
White indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.

Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

6,000 BTU Brass Simmer Burner
Melt chocolate and butter or simmer sauces just below boiling with a high-precision burner that offers a wide range of power.
- 15,000 BTU Brass Burner
- Reaching a powerful 15,000 BTUs, this versatile burner features the brilliance of brass and combines precise simmer capabilities with the capacity to quickly boil water or stir fry vegetables.
- 18,000-BTU Dual-Stacked PowerBurner
- This dual-stacked burner helps you achieve exceptional results with high-heat cooking techniques like searing or wok cooking while also giving you the control for delicate simmering.
- 6,000 BTU Brass Simmer Burner
- Melt chocolate and butter or simmer sauces just below boiling with a high-precision burner that offers a wide range of power.
- 9,000 BTU Brass Burner
- Perfect for everyday cooking, this brass burner also allows you to meet special cooking needs like saut(eback)ing and braising.
- Built-in Oven Compatible
- Experience premium design and performance from high-end appliances when you install a single wall oven beneath your electric cooktop.
- Electronic Ignition and Flame-Sensing™ Re-ignition
- Gas burners light reliably every time, and if a draft blows the flames out, they are automatically re-ignited.
- Euro-Style Stainless Design
- With design elegance, this stainless steel suite combines modern aesthetics and classic flair for a timeless, upscale look.
- Infinite Burner Control Settings
- Enjoy precise temperature controls by selecting your preferred burner setting - from low to high and everywhere in between.
- Low-Profile Design
- With an extremely low profile, you can have a minimal look -nearly flush with the countertop - for an integrated transition to the cooktop.
- Semi-Flush Installation
- Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
- Single Point Electronic Ignition and Flame-Sensing™ Re-ignition
- If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.
- White LED Burner Indicator
- White indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.
- Installs semi-flush, 3mm above the countertop
Certifications | |
Ada Compliant | Yes |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Side |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Stainless |
Cooktop Surface Material | Stainless Steel |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Ignition Type | Flame-Sensing™ Re-ignition |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Cooktop Selections | Simmer |
Design Expression | Stainless Steel |
Fuel Type | Gas |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Dimensions | |
Product Height | 4.5 |
Carton Height | 3.25 |
Gross Weight | 62 |
Carton Depth | 21 |
Carton Width | 30 |
Product Depth | 21.0 |

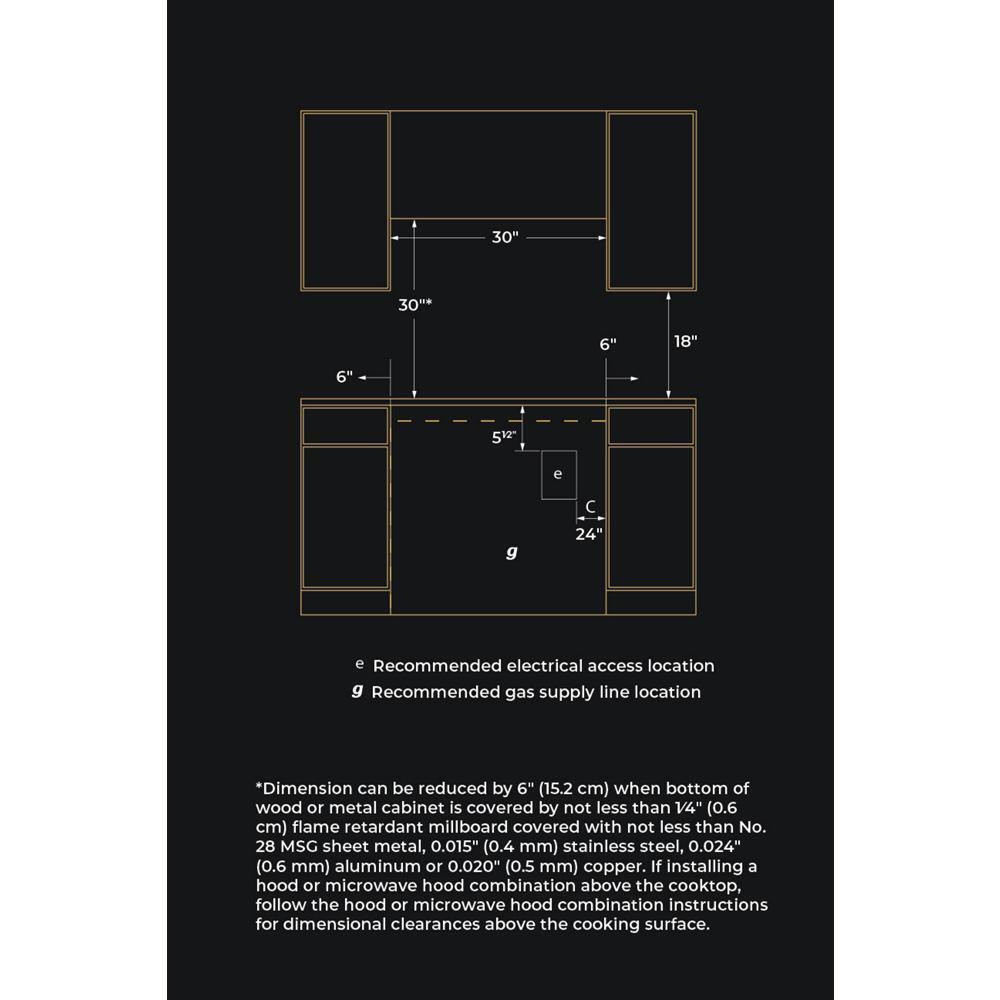

Cutout Width Max | 29.375 |
Net Weight | 0 |
Product Width | 30.0 |
Cutout Depth Max | 20.375 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Front Element-burner Power | 15,000 BTU |
Cooktop Element Style | Sealed Burner |
Cooktop Type | Traditional |
Left Front Element-burner Power | 18,000 BTU |
Left Front Element-burner Type | Power™ Burner |
Left Rear Element-burner Power | 12,000 BTU |
Left Rear Element-burner Type | Burner |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 9,000 BTU |
Right Front Element-burner Type | Burner |
Right Rear Element-burner Power | 6,000 BTU |
Right Rear Element-burner Type | Simmer |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
General | |
Combination Match With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Grate Details | |
Grate Details | Dishwasher Safe; Individual; Matte Finish; Steel Grates |
Number of Grates | 3 |
Ventilation Details | |
Downdraft Vent | No |
Ventilation Type | Updraft |
