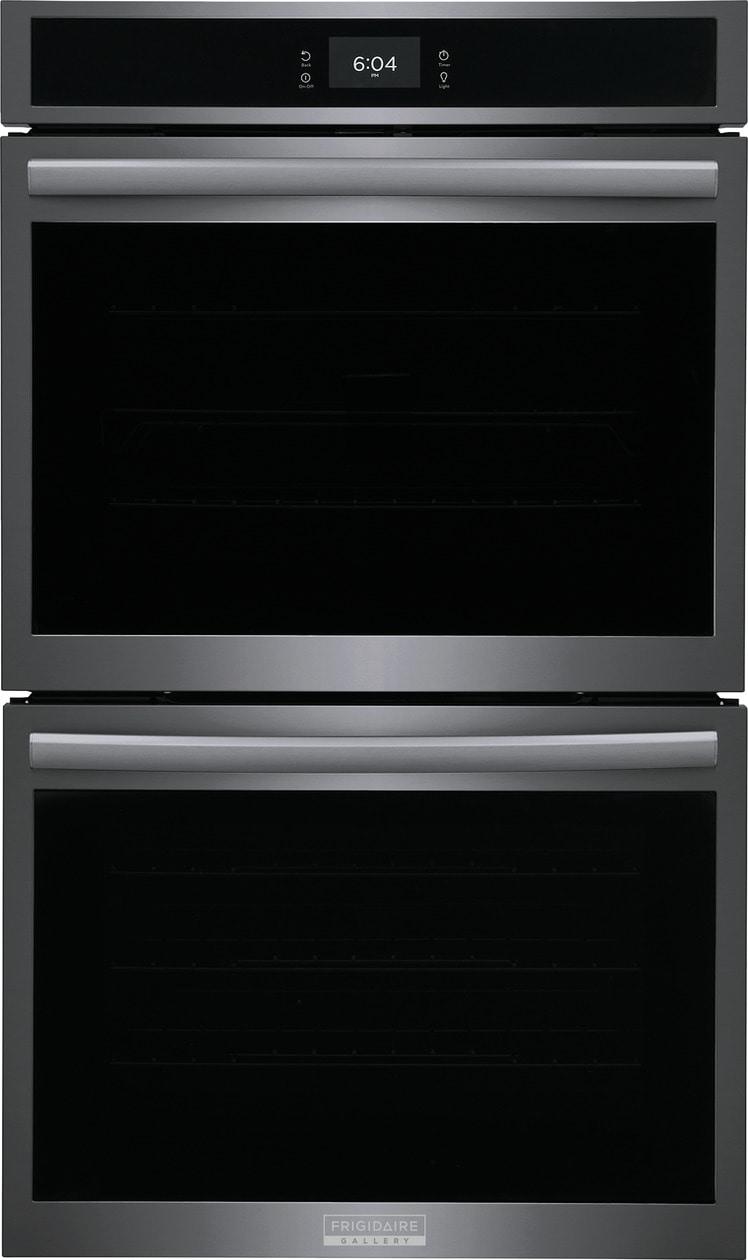

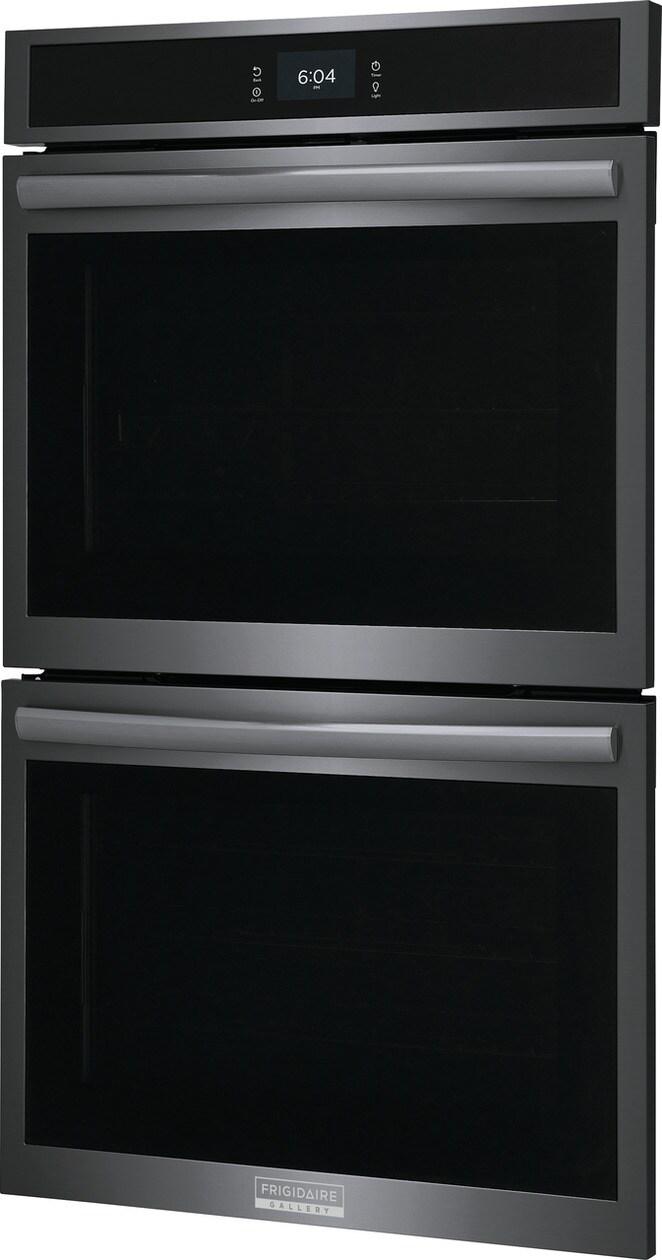

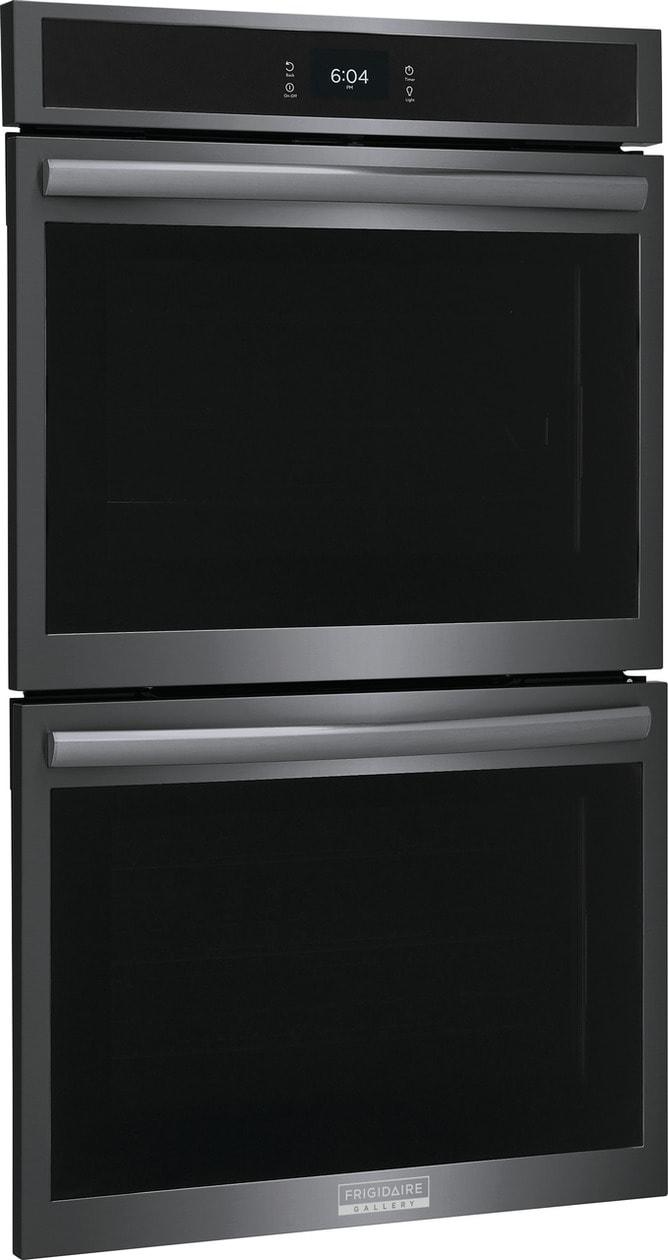

Frigidaire Gallery 30" Double Electric Wall Oven with Total Convection
Add to Cart to See Actual Price
Frigidaire Gallery 30" Double Electric Wall Oven with Total Convection is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : DOUBLE WALL ELECTRIC OVEN
- Width : 29 7/8
- Height : 50 3/4
- Depth : 25 3/16
- Energy Star Rated : NO
- Wifi Connected : NO
- Self Clean : YES
- Convection : YES
- Drawer Proof Mode : YES
- Sabbath Mode : YES
Documents
Documents
- Approved Built-In Appliance Combinations (en, fr, es)
- Complete Owner's Guide (en)
- Feuille de sp(eback)cifications du produit (fr)
- Guide d'utilisation complet (fr)
- Product Specifications Sheet (en)
- Installation Instructions (en, fr, es)
- Quick Start Guide (en)
- Guide de d(eback)marrage rapide (fr)
- Energy Guide (en, fr)
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

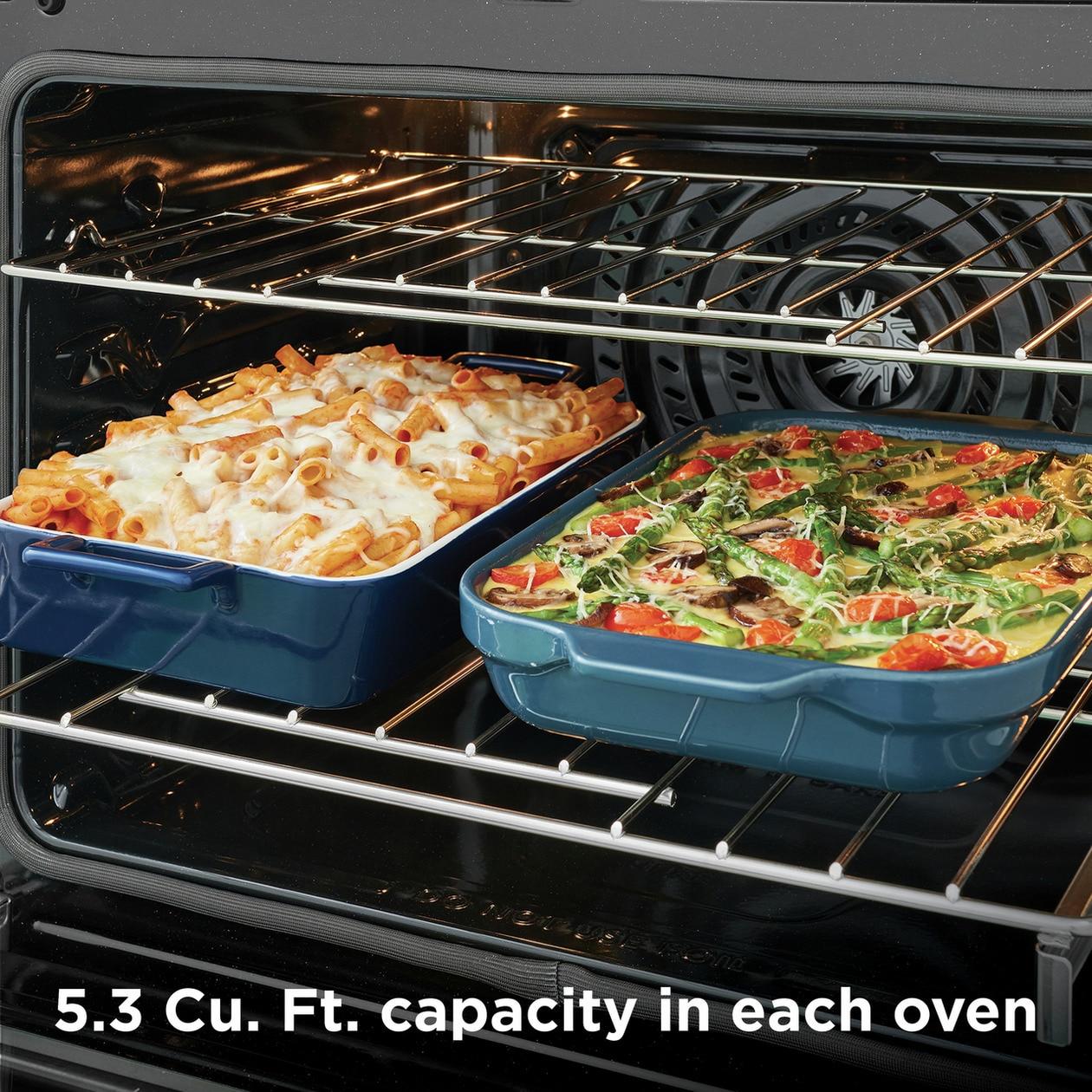

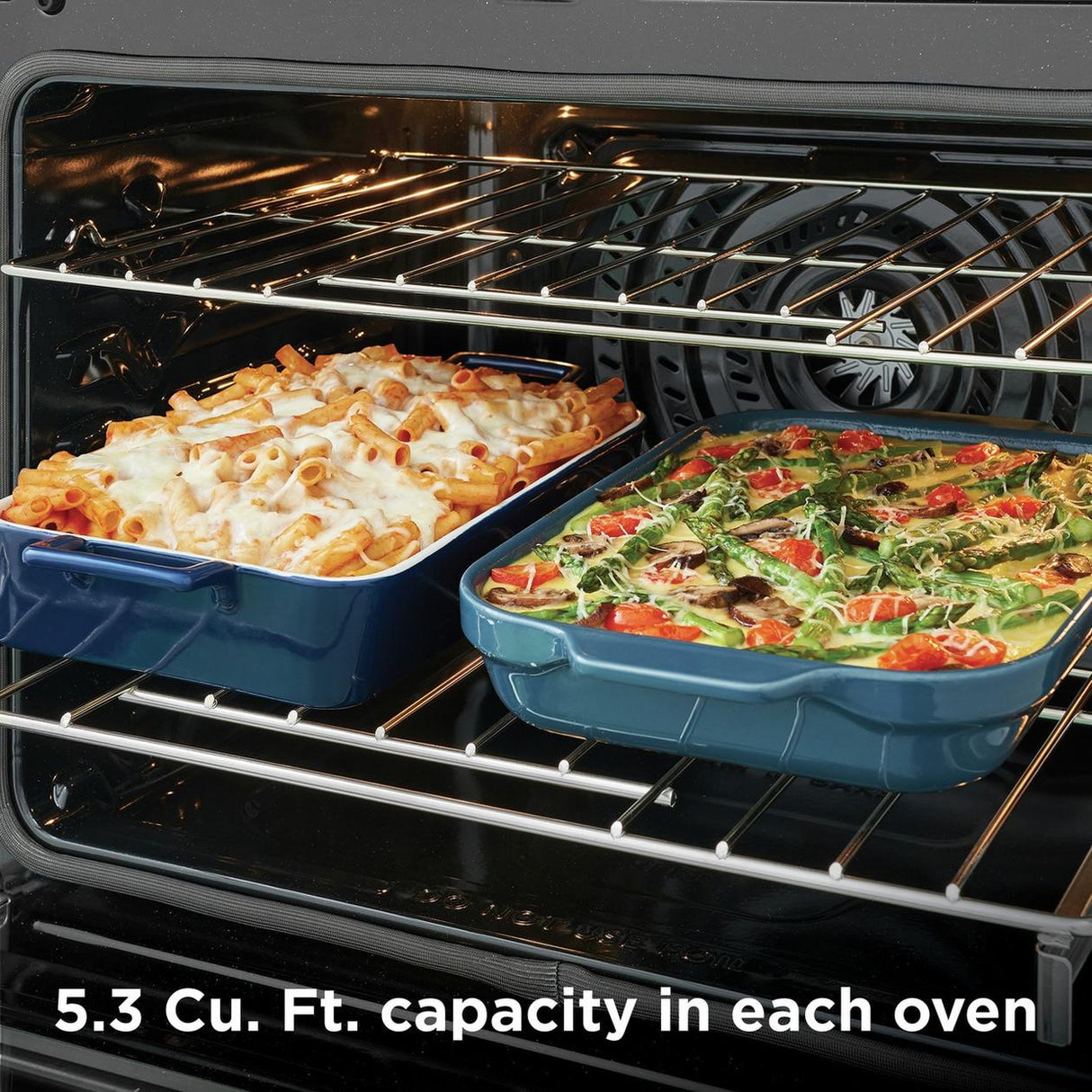

Extra Large Oven Capacity
Cook more at once with a combined 10.6 cu.ft. of oven capacity.
Steam Roast
Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
Smudge-Proof(R) Black Stainless Steel
Resists fingerprints and cleans easily.

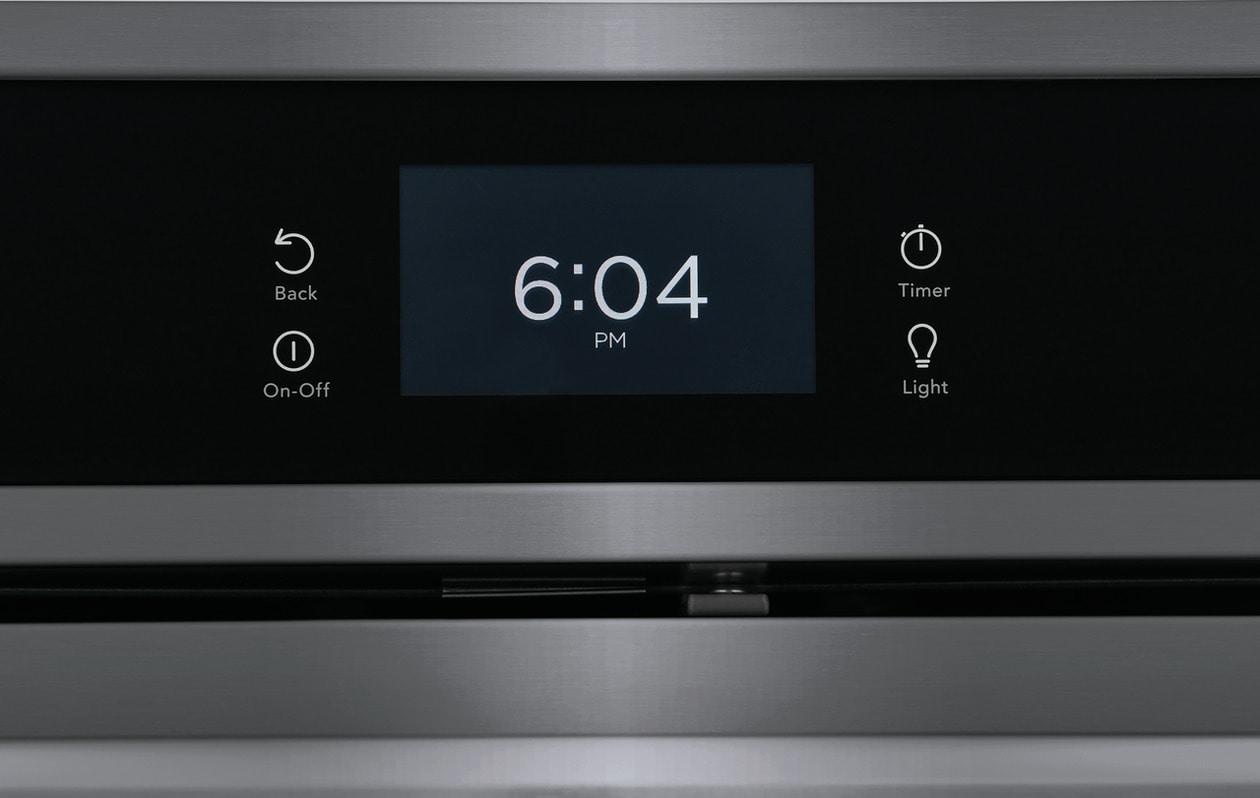

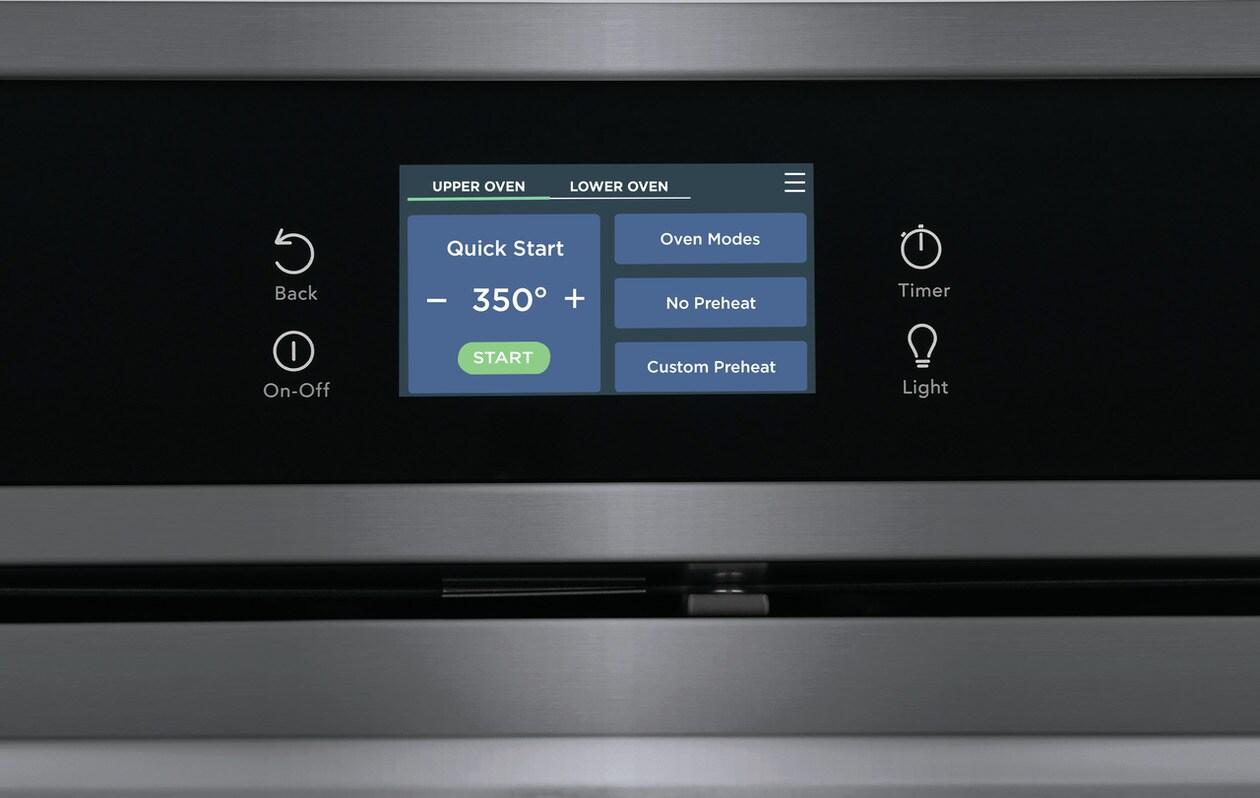

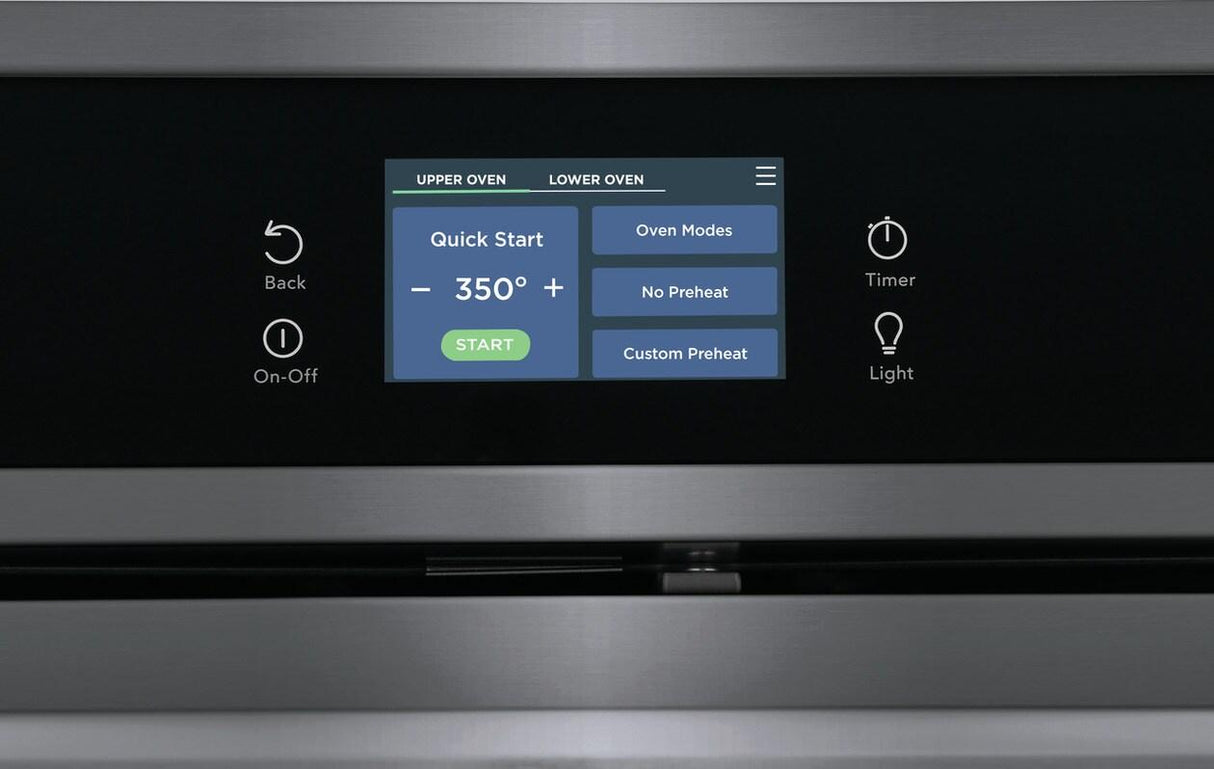

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

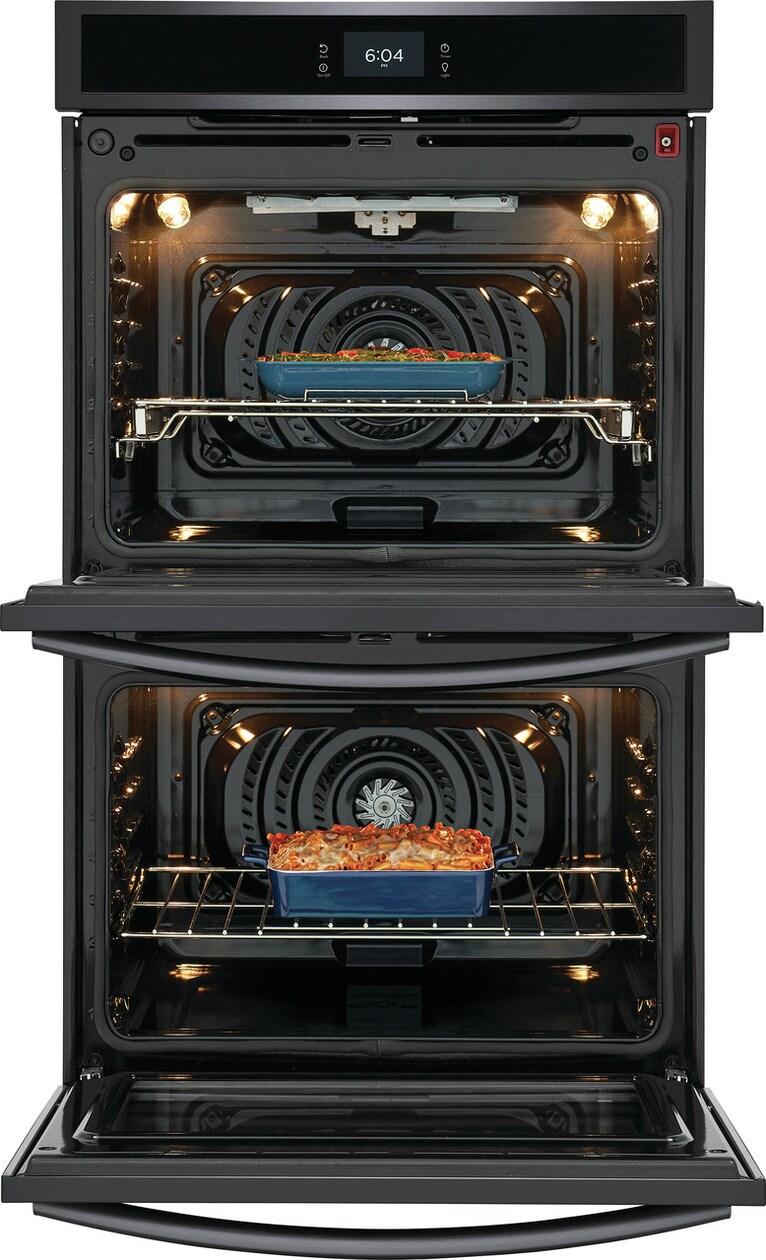

Total Convection System
Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
ReadyCook(TM) Air Fry Tray-Sold separately
Optional ReadyCook(TM) Air Fry Tray allows you to achieve perfectly crispy and delicious results. * ReadyCook(TM) Air Fry Tray is not required to use Air Fry.
Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Air Fry
Make healthier and delicious meals for your entire family - right in your oven.
No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
Temperature Probe
Monitors and alerts when the desired finished cooking temperature has been reached.
Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
Air Sous Vide
Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.

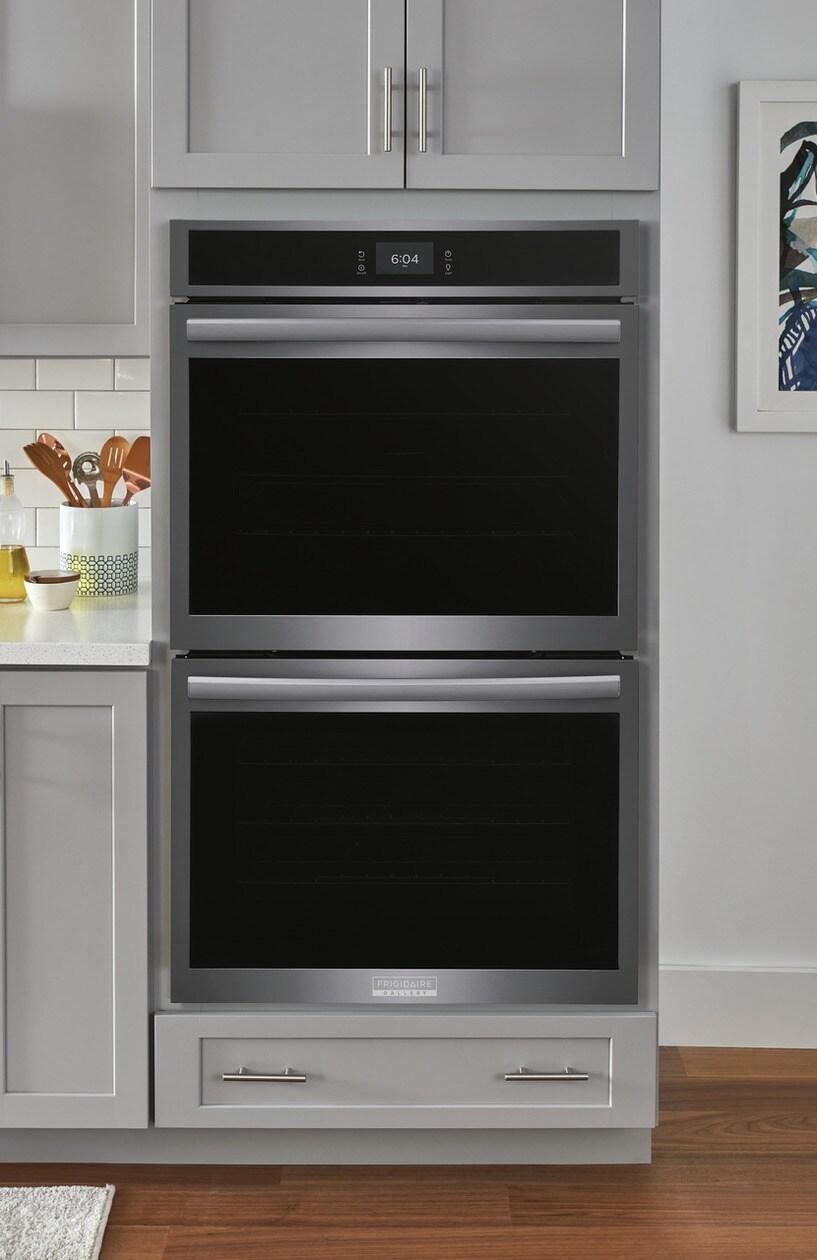

Frigidaire(R) Fit Promise
We promise that your new 30" Frigidaire(R) Gallery double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.

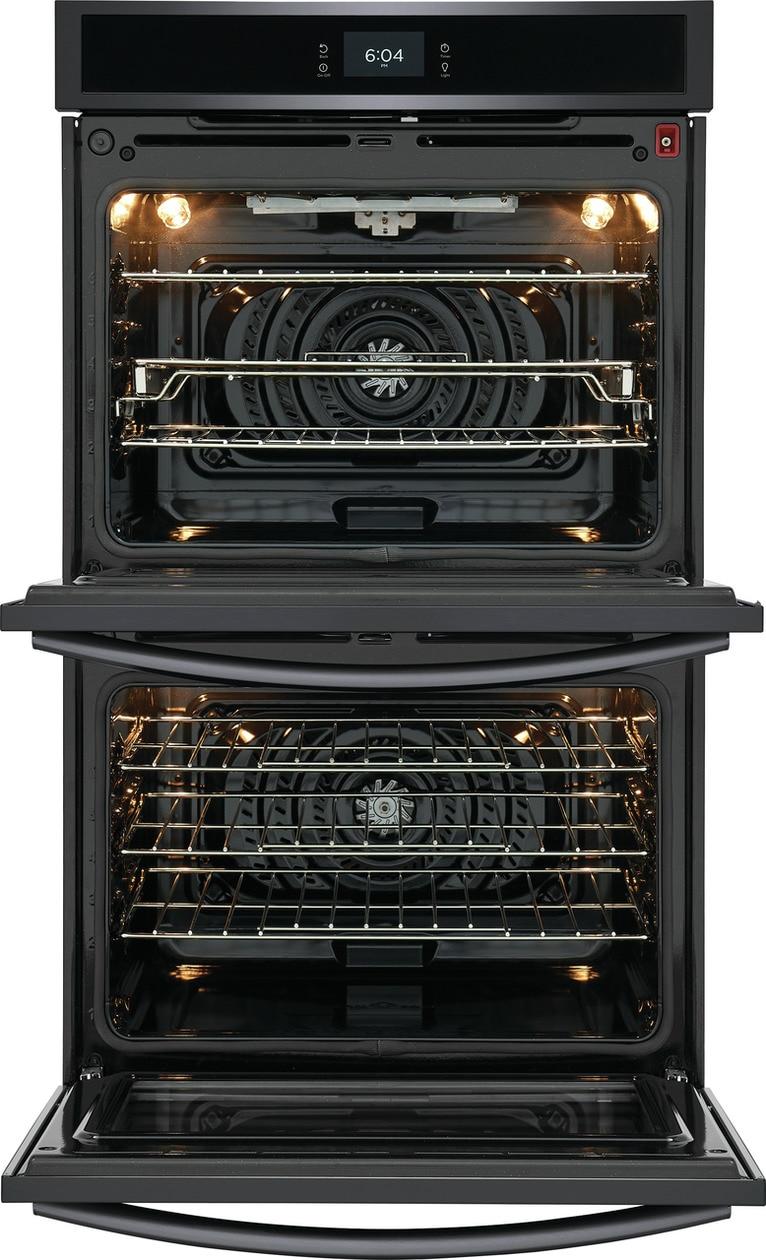

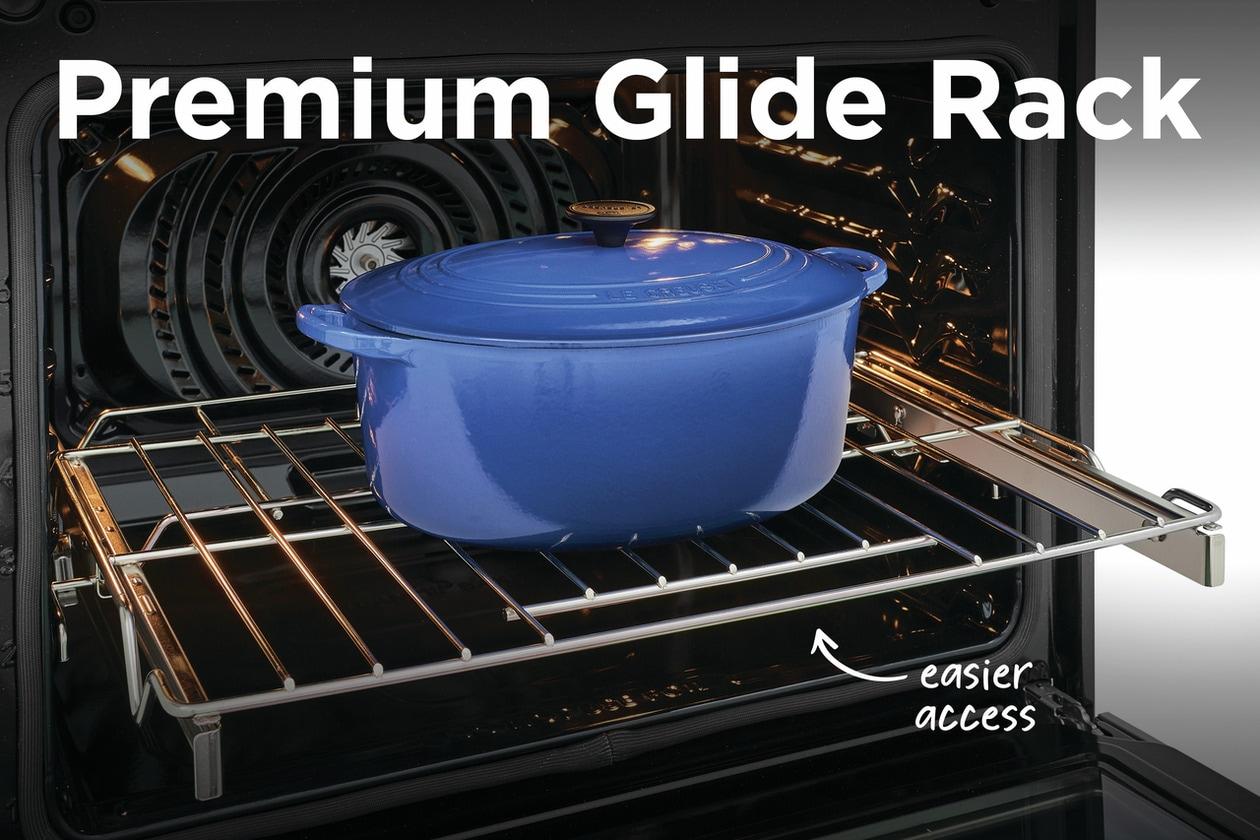

Premium Glide Rack
Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
Self and Steam Clean Cycles
Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Total Convection System
- Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
- No Preheat
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.
- Slow Cook
- With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100(degree) F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Steam Bake
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Temperature Probe
- Monitors and alerts when the desired finished cooking temperature has been reached.
- Frigidaire® Fit Promise
- We promise that your new 30" Frigidaire® Gallery double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.
- Self and Steam Clean Cycles
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Steam Roast
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
- Premium Touch Screen Control Panel
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
- Air Sous Vide
- Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
- Premium Glide Rack
- Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
- Extra Large Oven Capacity
- Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Smudge-Proof® Black Stainless Steel
- Resists fingerprints and cleans easily.
- ReadyCook™ Air Fry Tray-Sold separately
- Optional ReadyCook™ Air Fry Tray allows you to achieve perfectly crispy and delicious results. * ReadyCook™ Air Fry Tray is not required to use Air Fry.
- Total Convection System
- No Preheat
- Air Sous Vide
- Premium Glide Rack
- Extra Large Oven Capacity
- Smudge-Proof(R) Black Stainless Steel
- ReadyCook(TM) Air Fry Tray-Sold separately
- Air Fry
- Slow Cook
- Steam Bake
- Temperature Probe
- Frigidaire(R) Fit Promise
- Self and Steam Clean Cycles
- Steam Roast
- Premium Touch Screen Control Panel
Product Line | Double Wall Oven |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Built-In |
Factory | Springfield |
Color | Black Stainless Steel |
Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Bake Time | Yes |
Bread Proof | Yes |
Broil | Yes |
Cancel | Yes |
Child Lock | Yes |
Clear Off | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Dehydrate | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Fast Preheat | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
My Favorite | Yes |
No Preheat | Yes |
Off | Yes |
Oven Light | Yes |
Perfect Turkey | Yes |
Preheat | Yes |
Probe | Yes |
Quick Preheat | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Start Time | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Stop | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Timed Cooking | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 3800 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 5 |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
Exterior | |
Exterior Finish | Smudge-Proof® Black Stainless Steel |
Handle Color | Stainless Steel |

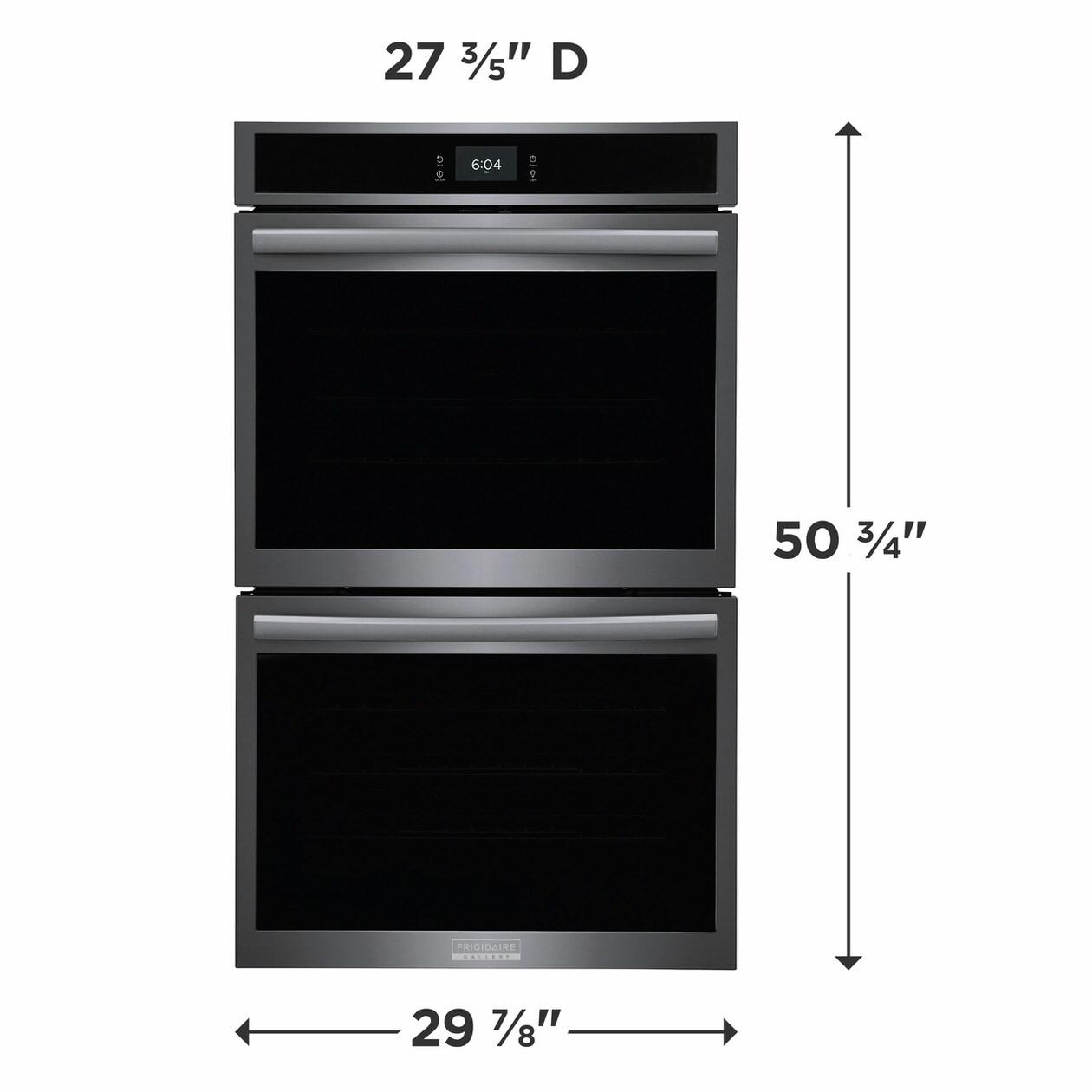

Dimensions and Volume | |
Height | 50 3/4" |
Width | 29 7/8" |
Depth | 25 3/16" |
Depth With Door 90° Open | 48 3/16" |
Depth With Handle | 27 3/5" |
Lower Oven Interior Height | 18 1/8" |
Lower Oven Interior Width | 25 1/5" |
Lower Oven Interior Depth | 19 7/8" |
Upper Oven Interior Height | 18 1/8" |
Upper Oven Interior Width | 25 1/5" |
Upper Oven Interior Depth | 19 7/8" |
Minimum Cutout Height | 48 7/8" |
Minimum Cutout Width | 28 1/2" |
Maximum Cutout Height | 50 1/4" |
Maximum Cutout Width | 29" |
Oven Lower Capacity | 5.3 Cu. Ft. |
Oven Upper Capacity | 5.3 Cu. Ft. |
Total Capacity | 10.6 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 9 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 260 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Power Supply Connection Location | Top Left |
Safety Certifications and Approvals | |
CSA Listed | Yes |
RoHS | Yes |
UL Listed | Yes |
Accessories | |
Optional Air Fry Tray Part Number | FRIGPEREAFT |
Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS |
30" Double Electric Wall Oven with Total Convection Black Stainless Steel GCWD3067AD
