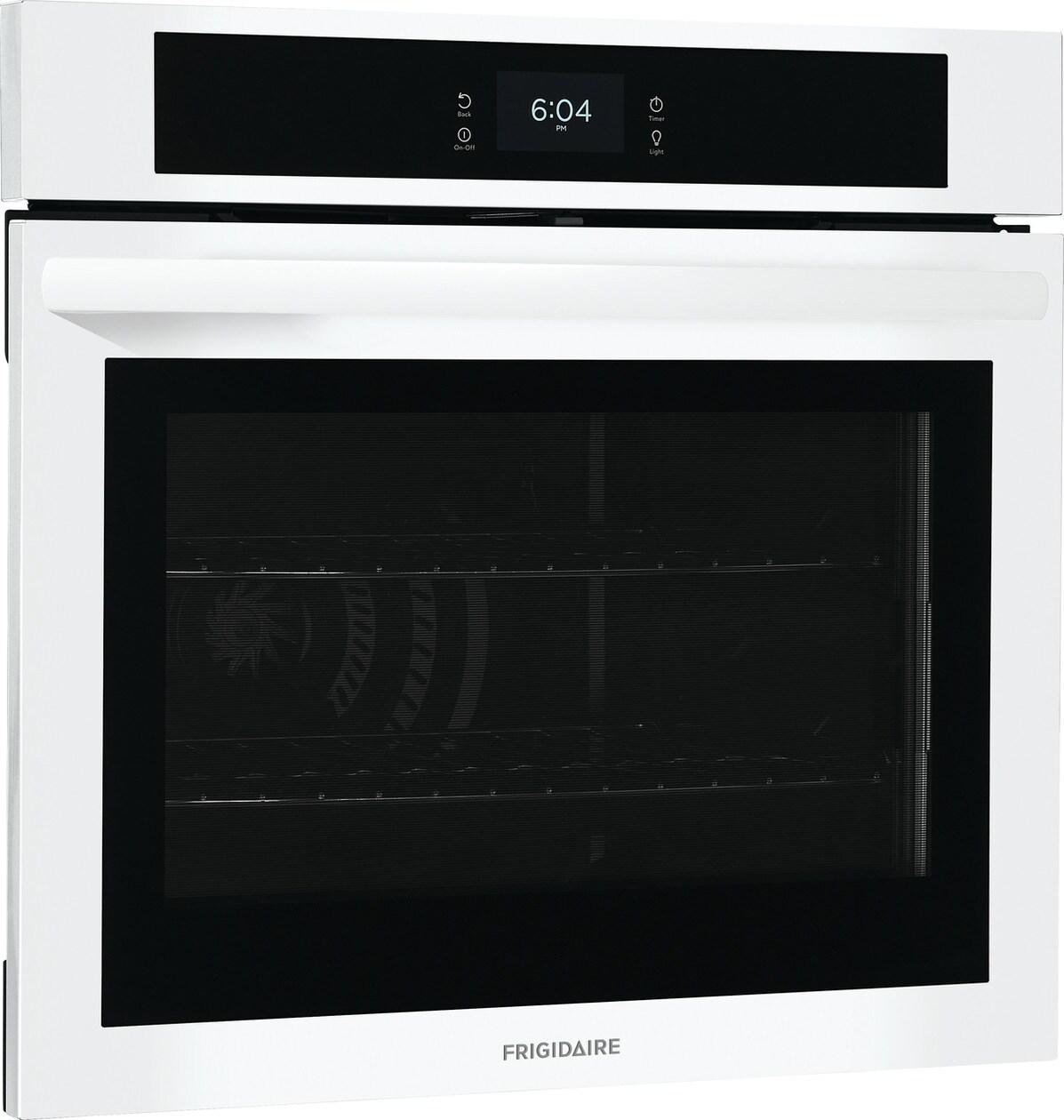

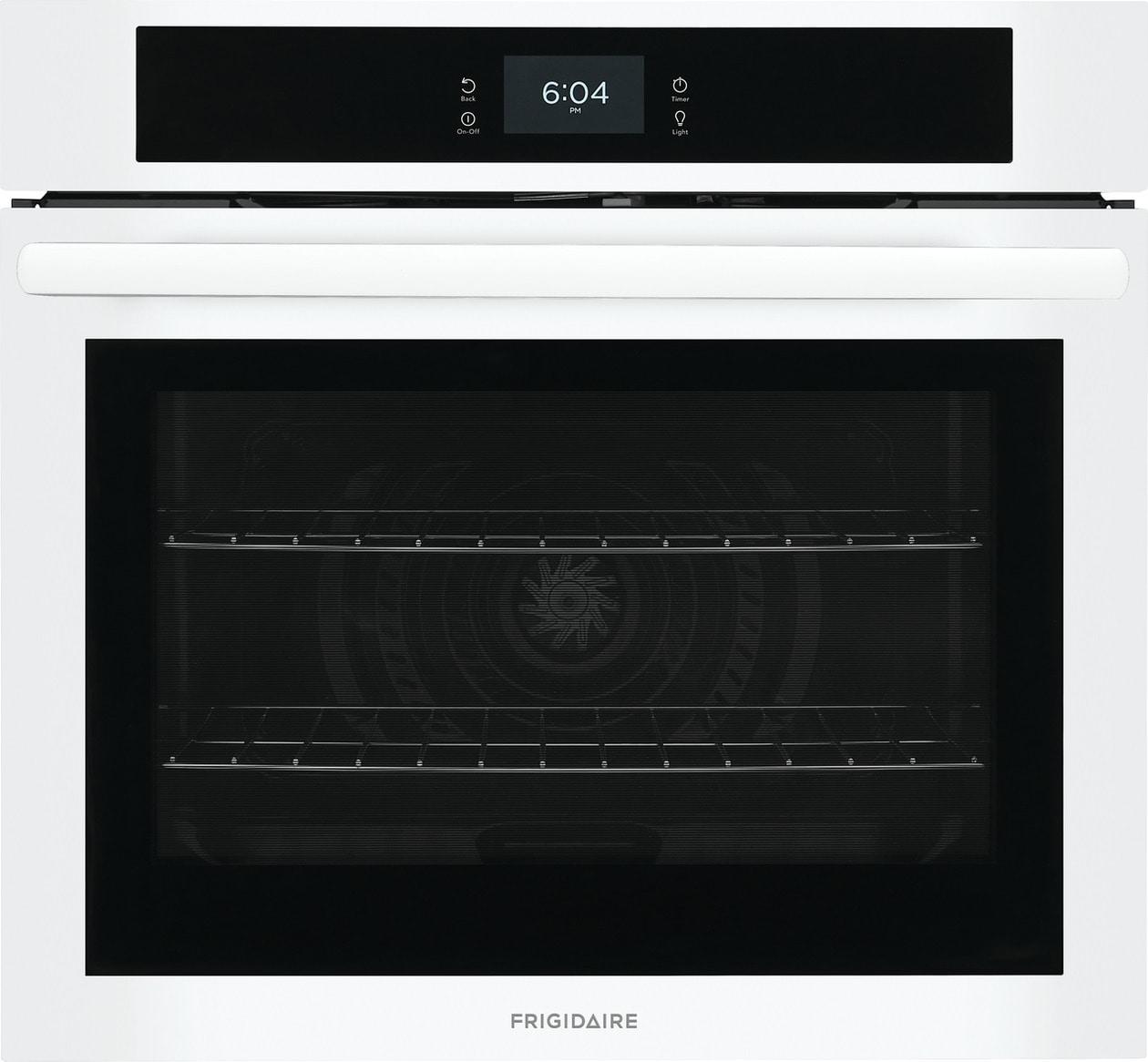

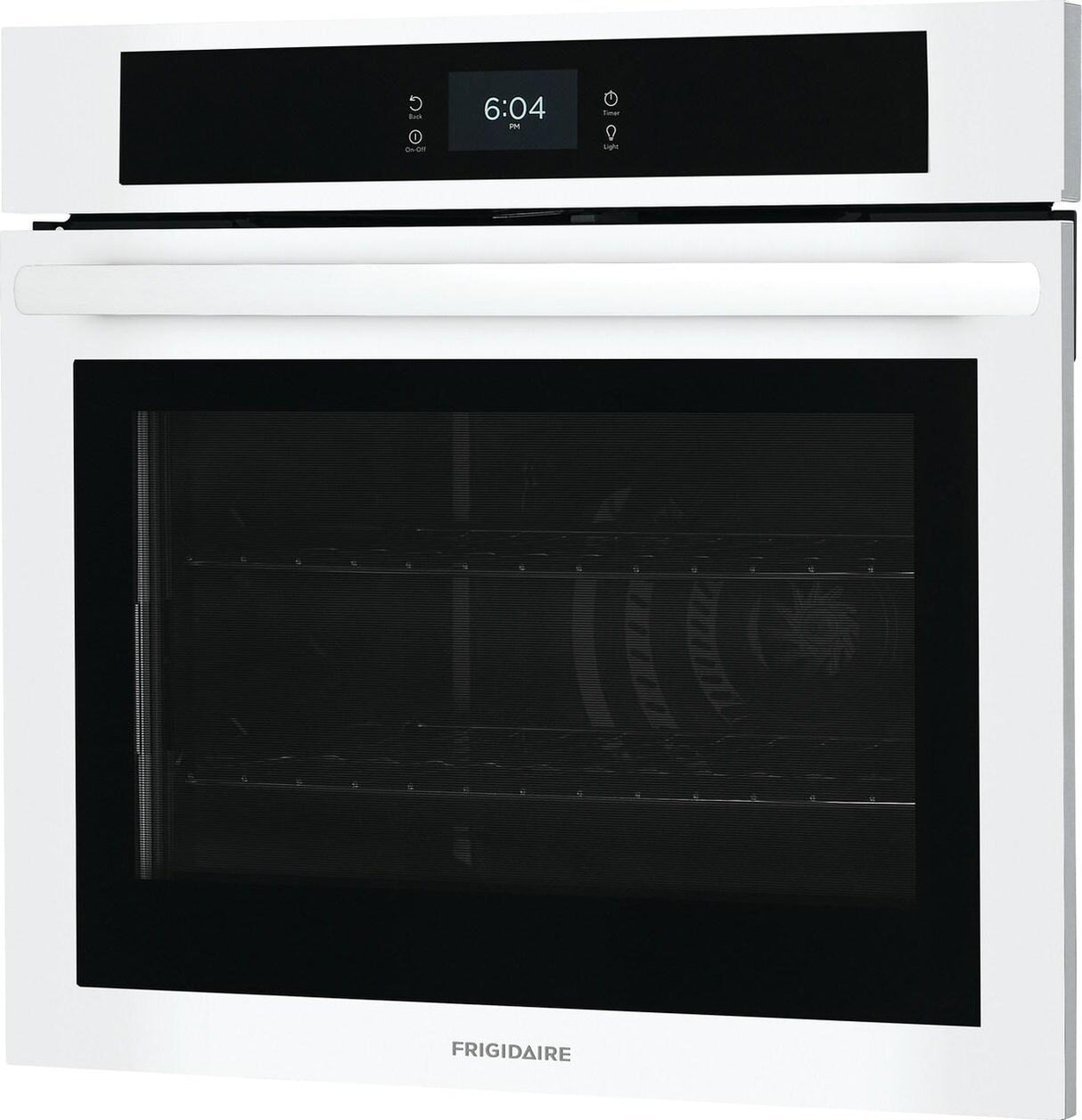

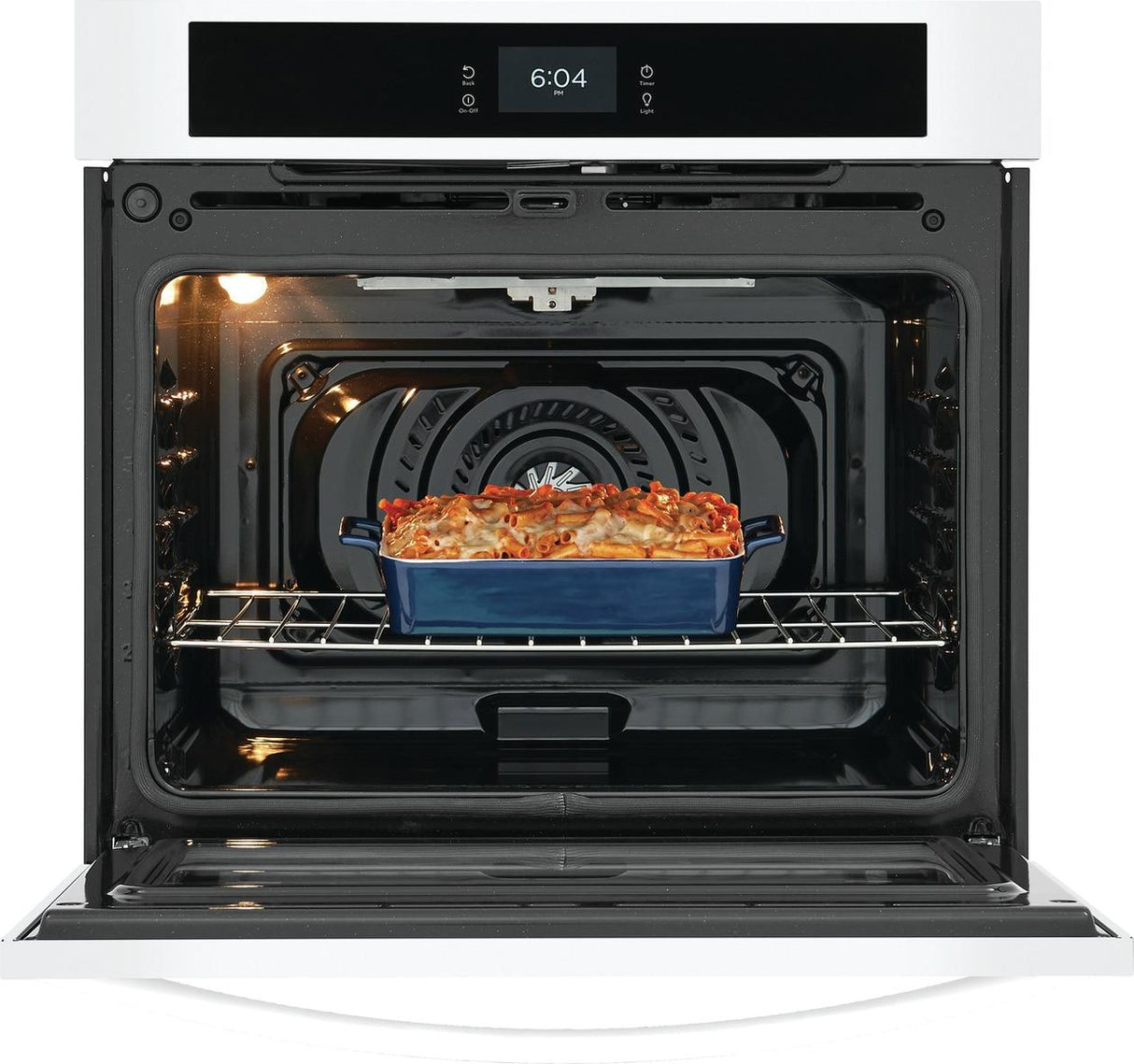

Frigidaire 30" Single Electric Wall Oven with Fan Convection
Add to Cart to See Actual Price
Frigidaire 30" Single Electric Wall Oven with Fan Convection is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : SINGLE WALL ELECTRIC OVEN
- Width : 29 7/8
- Height : 28
- Depth : 25 3/16
- Energy Star Rated : NO
- Wifi Connected : NO
- Self Clean : YES
- Convection : YES
- Drawer Proof Mode : NO
- Sabbath Mode : YES
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
![Convenient Cook Time Setting](https://images.webfronts.com/cache/frkuwnlafguu.jpg)
Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
![Frigidaire(R) Fit Promise](https://images.webfronts.com/cache/frxjiowxmjvt.jpg)
Frigidaire(R) Fit Promise
We promise that your new 30" Frigidaire(R) single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.
![Premium Touch Screen Control Panel](https://images.webfronts.com/cache/frwolscbvosx.jpg)

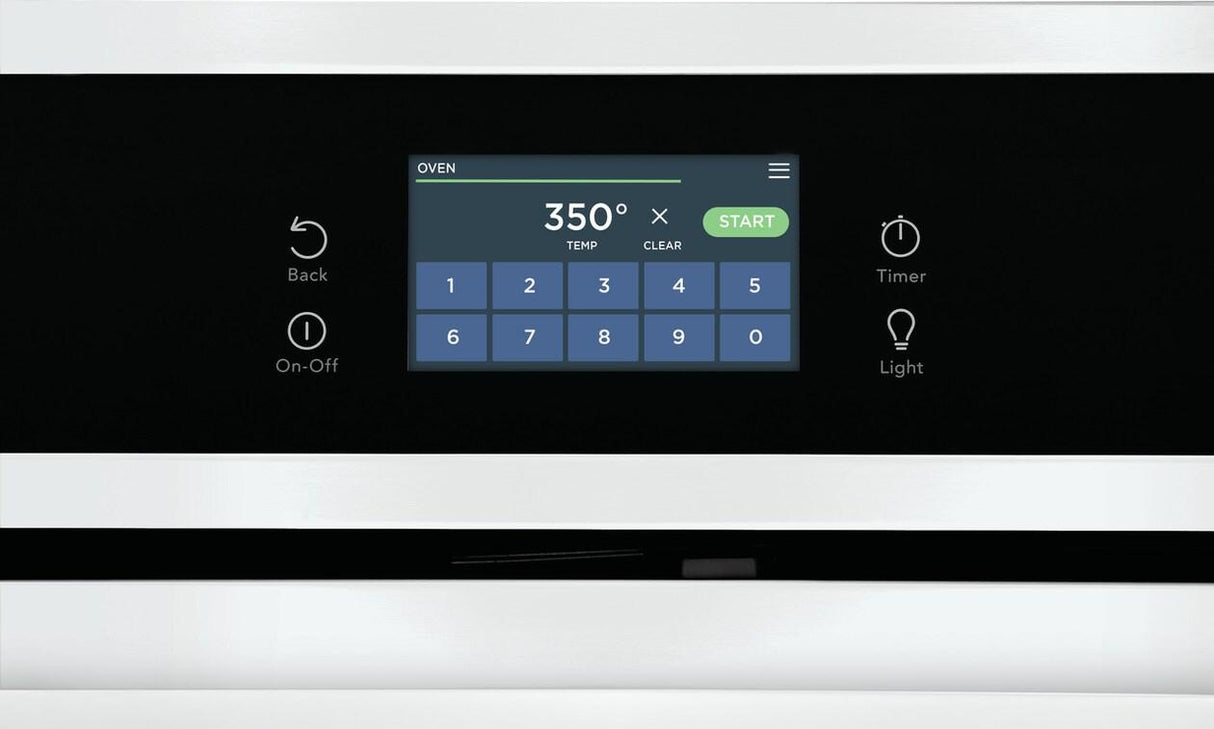

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

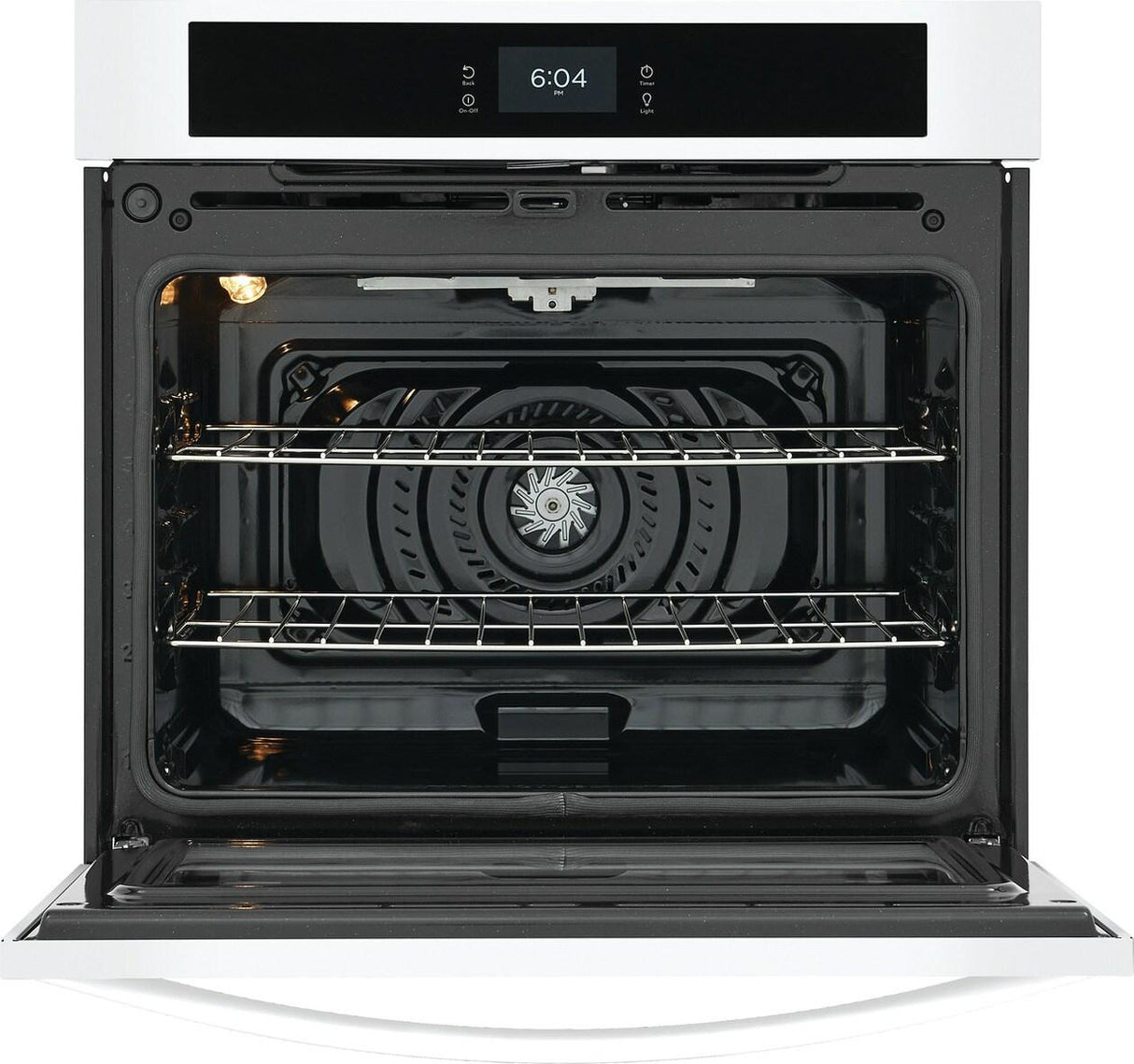

![Fan Convection](https://images.webfronts.com/cache/frxaffoksfwt.jpg)
Fan Convection
Get faster, more even multi-rack baking results with Fan Convection.
![Extra Large Oven Capacity](https://images.webfronts.com/cache/freaeeglmbpc.jpg)
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu. ft. capacity oven.
![Self Clean Oven](https://images.webfronts.com/cache/friplimgrdxo.jpg)
Self Clean Oven
Self clean options available in convenient 2, 3 and 4-hour cycles.
![Custom Broil Temp Setting](https://images.webfronts.com/cache/frrbmijgdttc.jpg)
Custom Broil Temp Setting
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
- Fan Convection
- Get faster, more even multi-rack baking results with Fan Convection.
- Self Clean Oven
- Self clean options available in convenient 2, 3 and 4-hour cycles.
- Frigidaire® Fit Promise
- We promise that your new 30" Frigidaire® single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.
- Premium Touch Screen Control Panel
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
- Extra Large Oven Capacity
- Cook more at once with our extra large, 5.3 cu. ft. capacity oven.
- Custom Broil Temp Setting
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
- Convenient Cook Time Setting
- Allows you to program the amount of time you want your oven to cook and then turn off.
- Keep Warm Setting
- Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
- Fan Convection
- Self Clean Oven
- Frigidaire(R) Fit Promise
- Premium Touch Screen Control Panel
- Extra Large Oven Capacity
- Custom Broil Temp Setting
- Convenient Cook Time Setting
- Keep Warm Setting
Product Line | Single Wall Oven |
Power Type | Electric 240v |
Size | 30" |

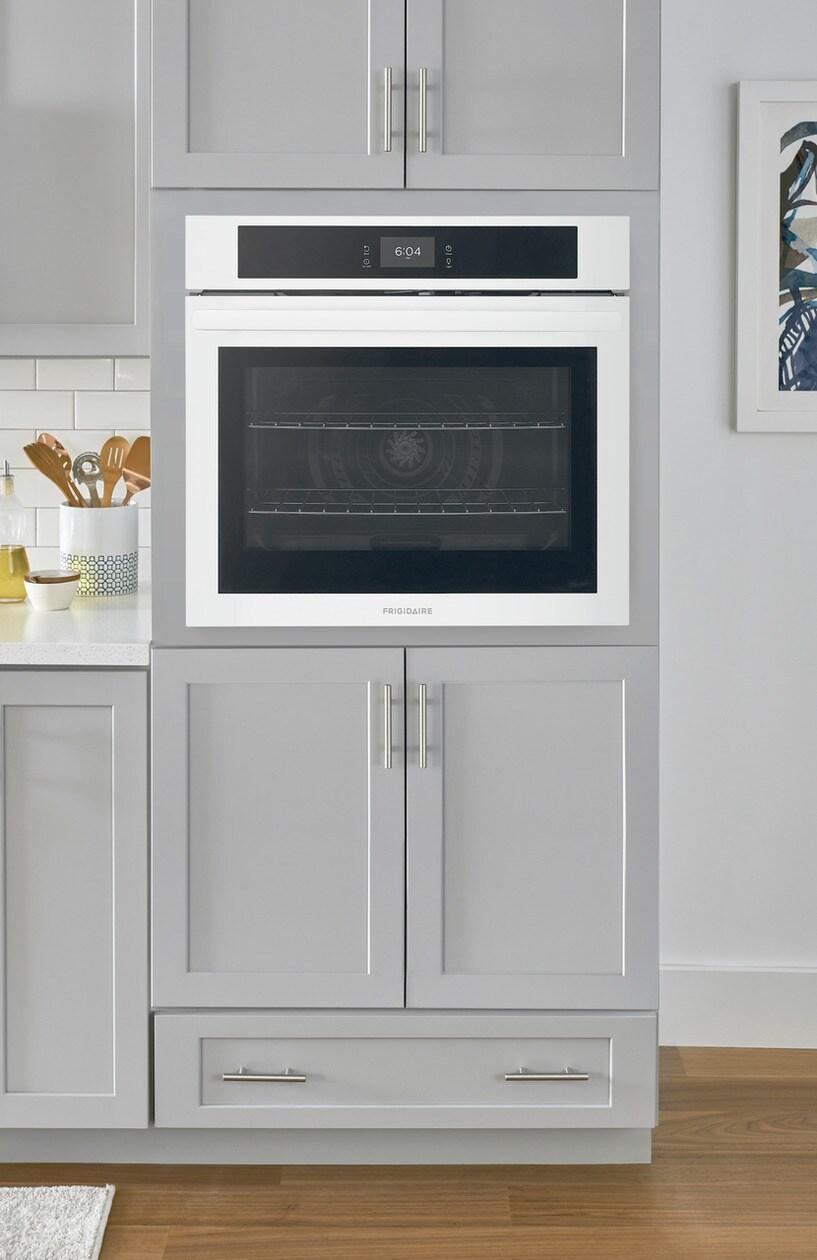

Installation Type | Built-In |
Factory | Springfield |
Color | White |
Cooking Controls | |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Cancel | Yes |
Clock | Yes |
Convection Bake | Yes |
Cook Time | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
Exterior | |
Handle Color | White |

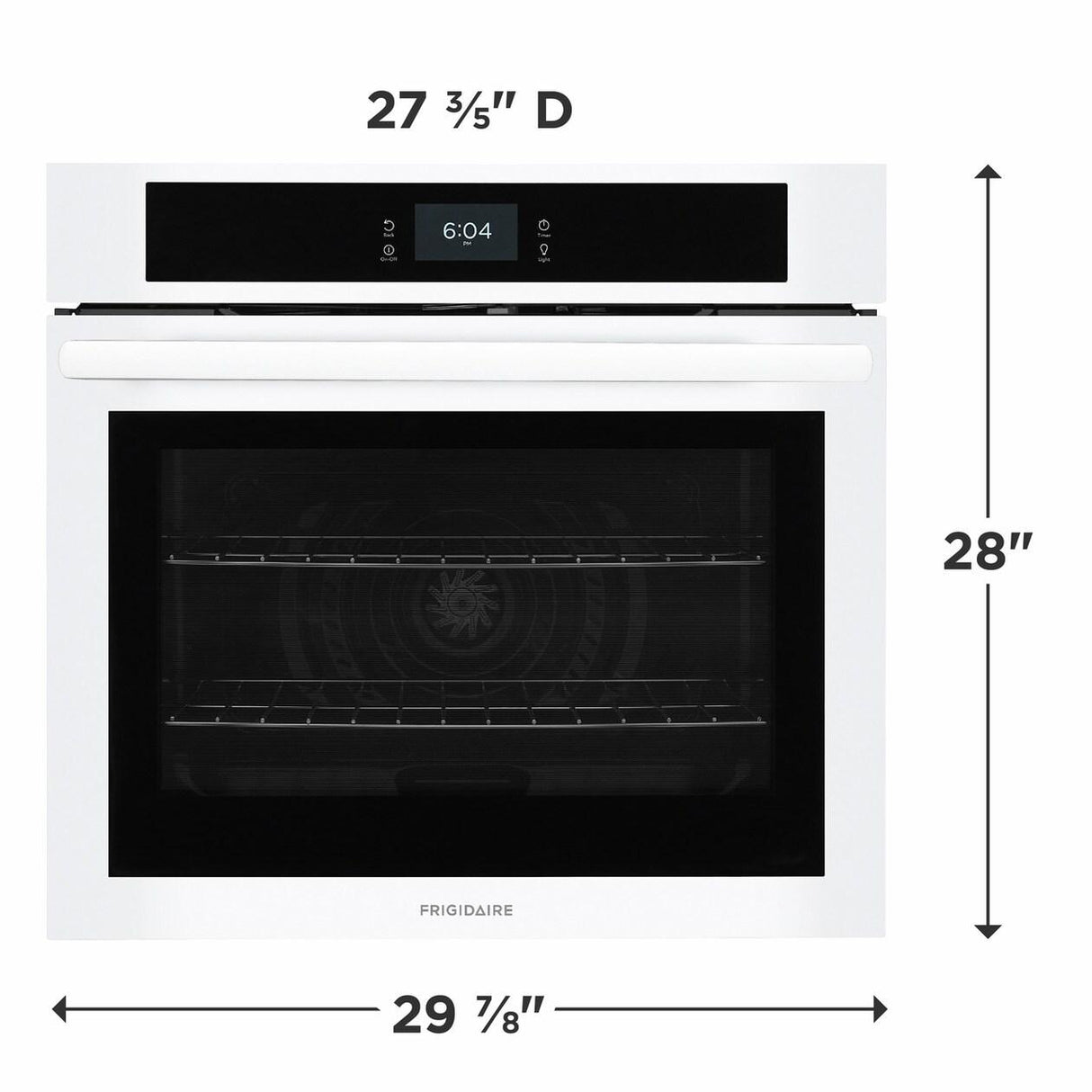

Dimensions and Volume | |
Height | 28" |
Width | 29 7/8" |
Depth | 25 3/16" |
Depth With Door 90° Open | 48 3/16" |
Depth With Handle | 27 3/5" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 1/5" |
Oven Interior Depth | 19 7/8" |
Minimum Cutout Height | 26 3/4" |
Minimum Cutout Width | 28 1/2" |
Maximum Cutout Height | 28" |
Maximum Cutout Width | 29" |
Oven Capacity | 5.3 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 20 Amps |
Connected Load @ 240V | 3.7 kW |
Minimum Circuit Required | 20 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 130 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Power Supply Connection Location | Top Left |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
RoHS | Yes |
UL Listed | Yes |
Accessories | |
Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
