Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : 30" FREE STANDING GAS RANGE
- Depth : 26
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : NO
- Burner Type : Sealed
- Self Clean : NO
- Convection : NO
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

Air Fry
Make healthier and delicious meals for your entire family - right in your oven.

One-Touch Self Clean
A convenient 3 hour self clean cycle cleans your oven, so you don't have to.

Five Burner Cooktop
Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.

Convection Bake
Get faster, more even baking results with our fan convection baking system.

Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

Quick Boil
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
- Air Fry
- Make healthier and delicious meals for your entire family - right in your oven.
- Convection Bake
- Get faster, more even baking results with our fan convection baking system.
- Five Burner Cooktop
- Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.
- Quick Boil
- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
- One-Touch Self Clean
- A convenient 3 hour self clean cycle cleans your oven, so you don't have to.
- Dishwasher Safe Burner Caps
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Continuous Edge-to-Edge Grates
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Extra Wide Store-More™ Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Capacitive Touch Control Panel
- Easy to use, glass capacitive touch control panel.
- Large Oven Capacity
- Cook more at once with our large, 5.1 cu.ft. capacity oven.
- Hidden Bake Element
- Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
- Air Fry
- Convection Bake
- Hidden Bake Element
- Five Burner Cooktop
- Quick Boil
- One-Touch Self Clean
- Dishwasher Safe Burner Caps
- Continuous Edge-to-Edge Grates
- Extra Wide Store-More(TM) Storage Drawer
- Capacitive Touch Control Panel
- Large Oven Capacity
Product Line | Gas Range |
Power Type | NG |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |

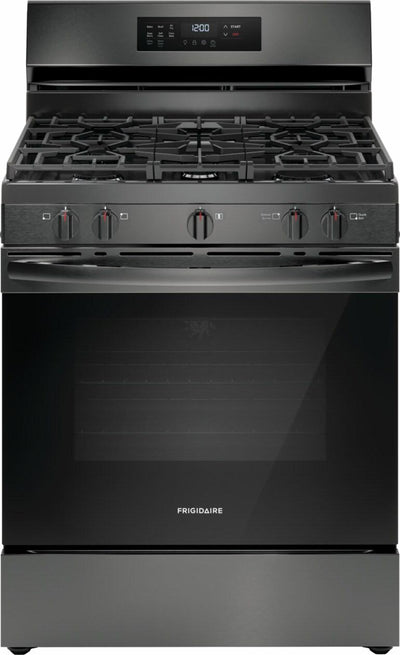

Color | Black Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Rear Element Burner | 10000 BTU |
Cooking Controls | |
Air Fry | Yes |
Bake | Yes |
Broil | Yes |
Child Lock | Yes |
Clock | Yes |
Convection Bake | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Oven Lock | Yes |
Preheat | Yes |
Self Clean | Yes |
Set Clock | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 17000 BTU |
Broil Element | 1400 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | Capacitive Touch |
Dimensions and Volume | |
Minimum Height | 46 3/4" |
Maximum Height | 47 3/4" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 17 5/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Amps @ 120 Volts | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Product Weight | 184 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
