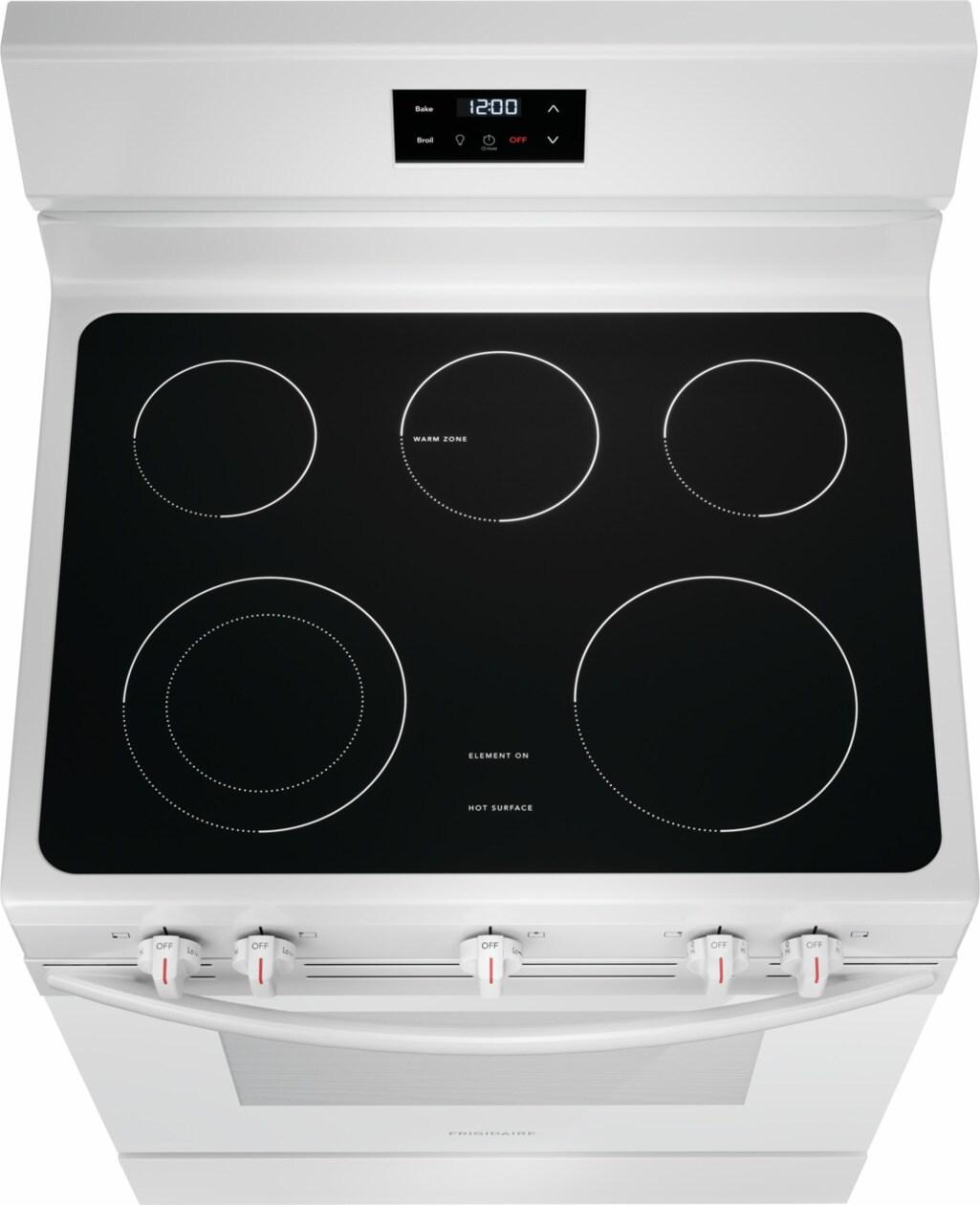

30" Electric Range
Quick Specifications
Quick Specifications
- Type : ELECTRIC RANGES
- Style : FREESTANDING SMOOTHTOP ELECTRIC RANGE
- Width : 30
- Depth : 26
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Self Clean : NO
- Convection : NO
- Drawer Proof Mode : NO
- Sabbath Mode : NO
- Induction : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
Quick Boil Element
Get meals to the table faster with the powerful 3,000W Quick Boil element.
5.3 Cu. Ft. Oven Capacity
Large oven capacity allows you to cook more at once.
Even Baking Technology
Designed to deliver even baking results, every time.
Five Element Cooktop
Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
Extra Wide Store-More(TM) Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

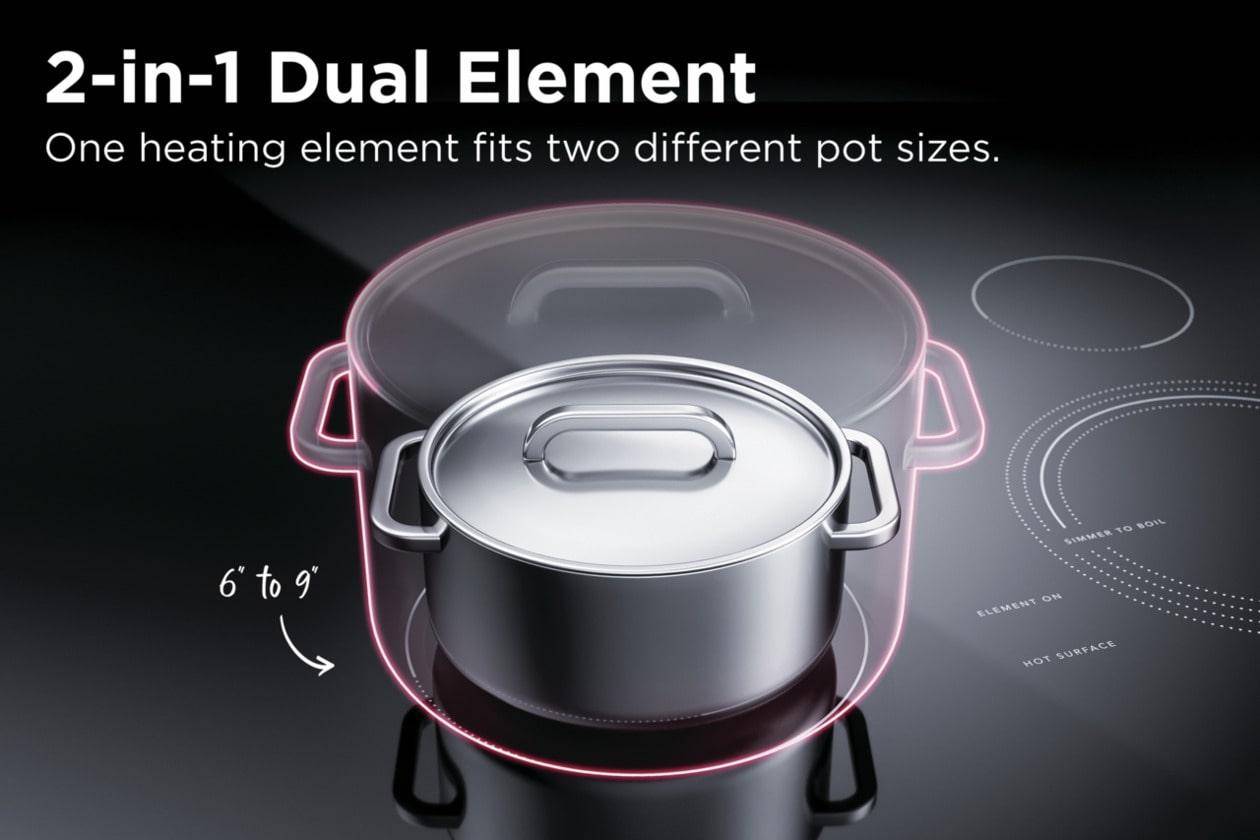

SpaceWise(R) Dual Expandable Element
Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
- Quick Boil Element
- Get meals to the table faster with the powerful 3,000W Quick Boil element.
- Five Element Cooktop
- Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
- Even Baking Technology
- Designed to deliver even baking results, every time.
- SpaceWise® Dual Expandable Element
- Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
- 5.3 Cu. Ft. Oven Capacity
- Large oven capacity allows you to cook more at once.
- Extra Wide Store-More™ Storage Drawer
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Cooktop Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.
- Proudly Assembled in the USA
- Quick Boil Element
- Five Element Cooktop
- Even Baking Technology
- SpaceWise(R) Dual Expandable Element
- 5.3 Cu. Ft. Oven Capacity
- Extra Wide Store-More(TM) Storage Drawer
- Cooktop Keep Warm Zone
- Proudly Assembled in the USA
| Product Line | Electric Range |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | White |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Element On Indicator Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 6" |
| Left Front Element Burner Size (Large) | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner | 3000 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Small) | 1400 Watts |
| Left Front Element Burner (Large) | 3000 Watts |
| Left Rear Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Kitchen Timer | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Up / Down Arrow | Yes |
| Warm Zone | Yes |
| Cooking Controls Function | |
| Program Fahrenheit or Celsius | Yes |
| Oven | |
| Bake Element | 2600 Watts |
| Bake Element Pass | 4 |
| Bake Element Type | Raised |
| Broil Element | 3000 Watts |
| Broil Element Pass | 4 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Drawer | |
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |

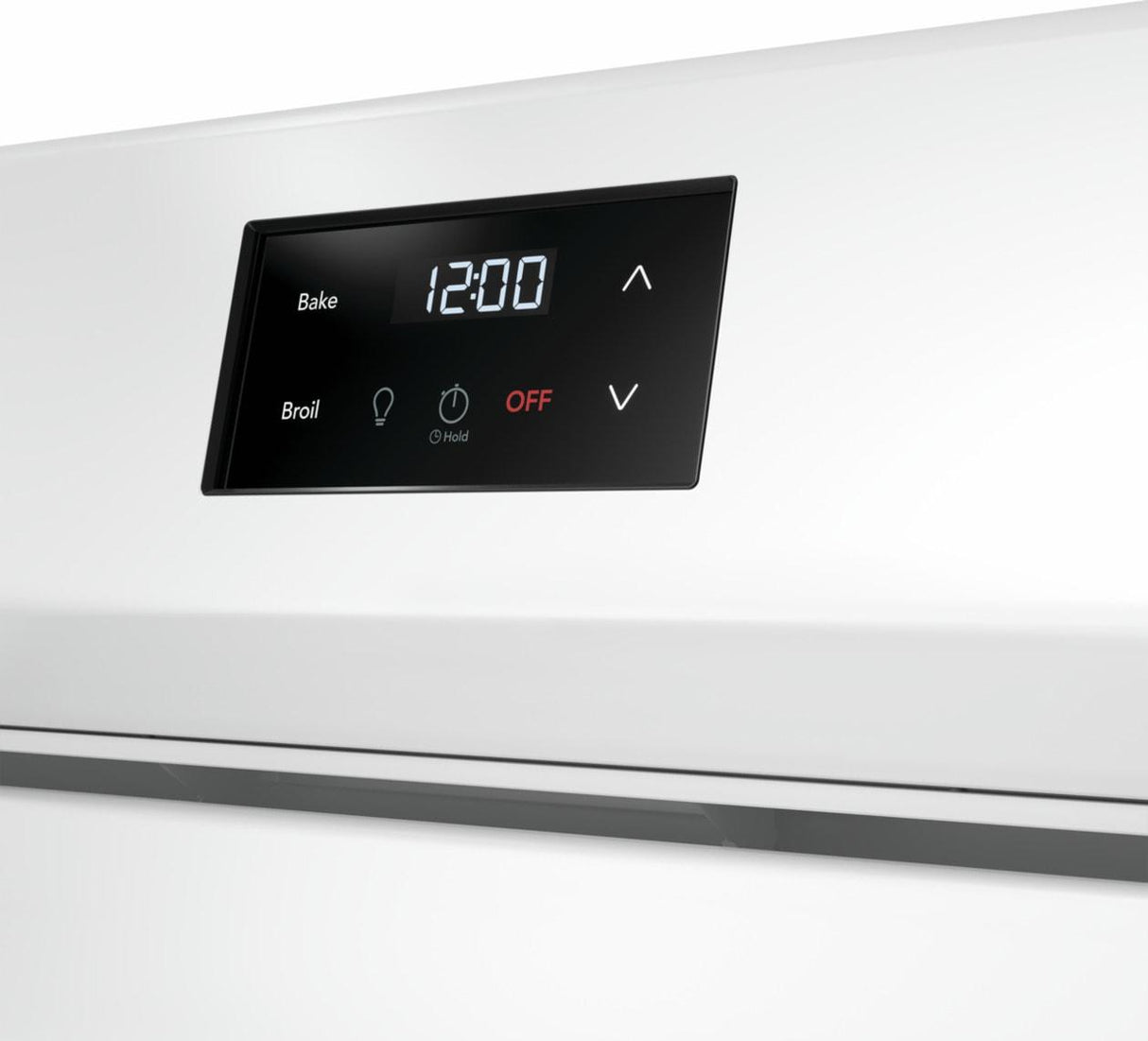

| Display | |
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | LED |

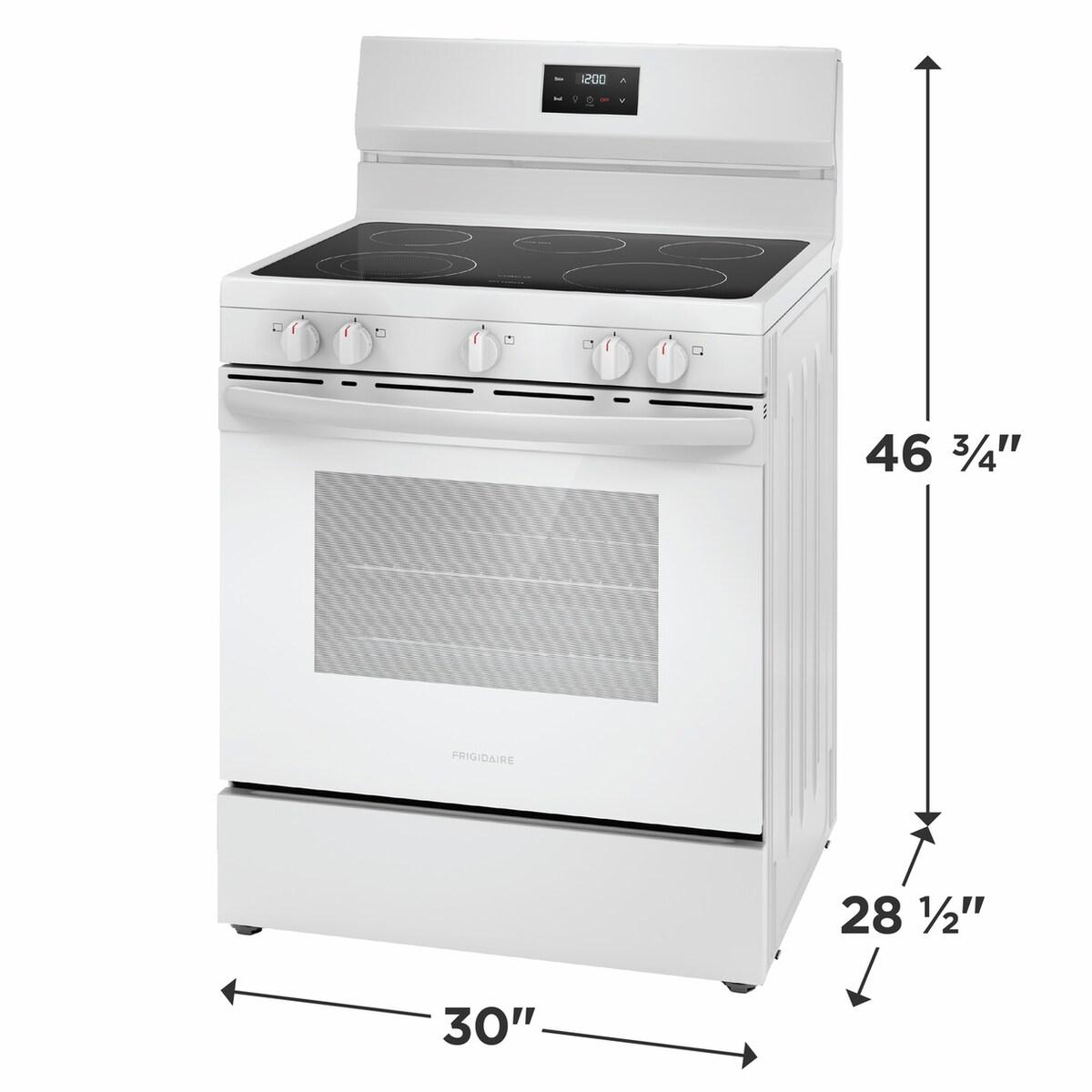

| Dimensions and Volume | |
| Minimum Height | 46 3/4" |
| Maximum Height | 47 3/4" |
| Width | 30" |
| Depth | 26" |
| Depth With Door 90° Open | 47 5/16" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 18 1/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Oven Capacity | 5.3 Cu. Ft. |
| Electrical Specifications | |
| Connected Load @ 240V | 12 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 160 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Safety Certifications and Approvals | |
| RoHS | Yes |
| UL Listed | Yes |
