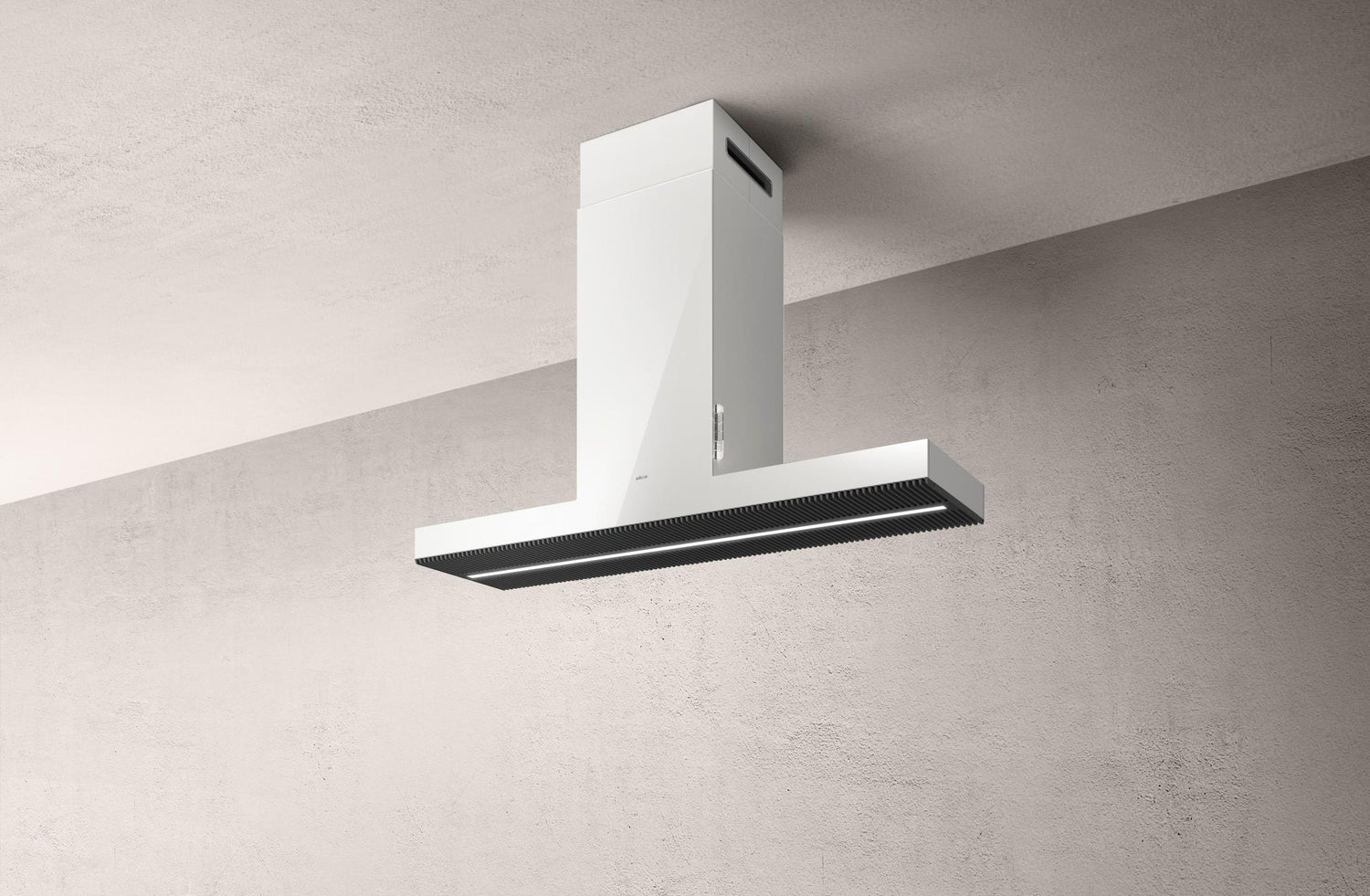

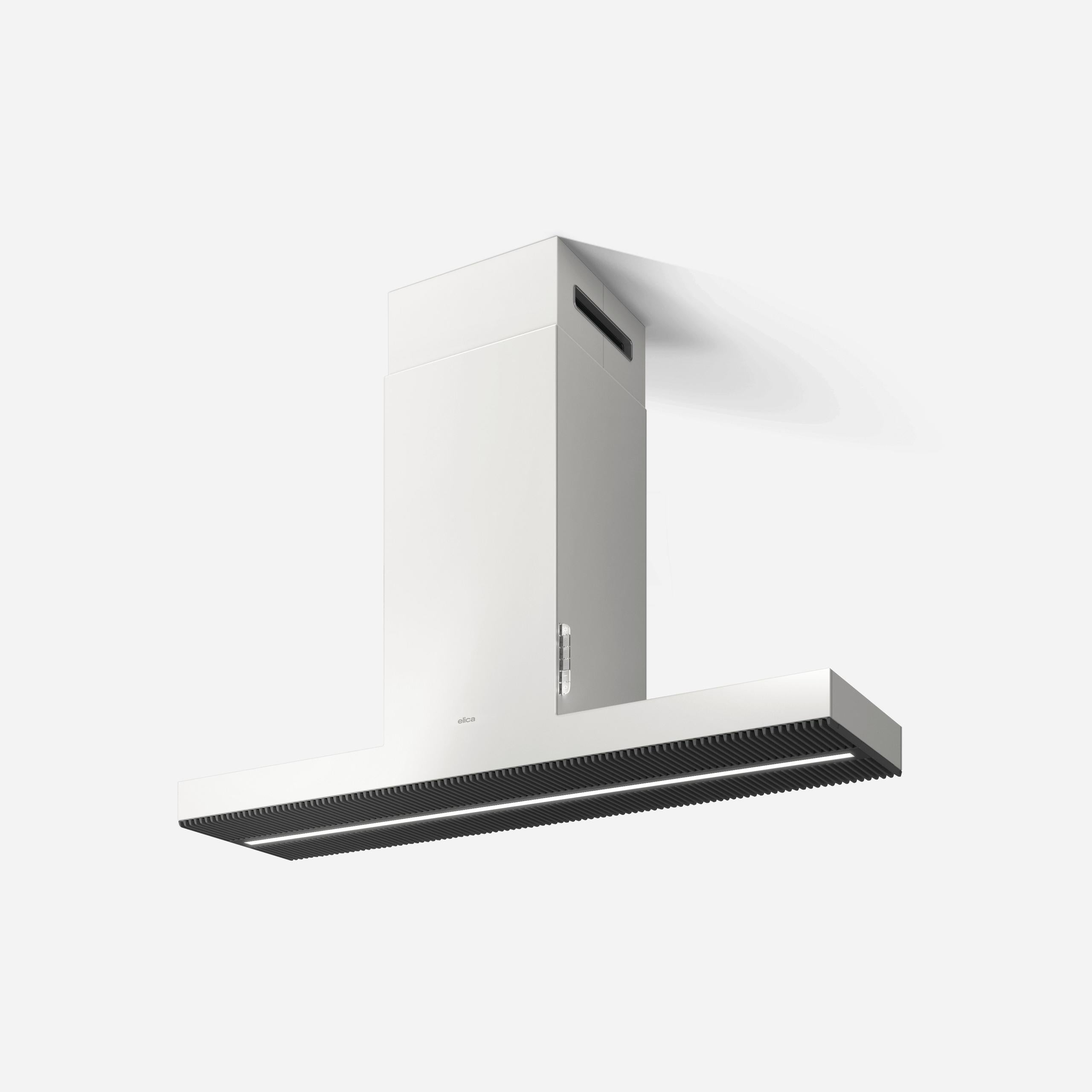

HAIKU IS Island Range Hood 48" wide - 600CFM
Add to Cart to See Actual Price
HAIKU IS Island Range Hood 48" wide - 600CFM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Energy Star Rated : NO
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- Special Material
- In the quest for attractive products to show off but which have a functional, everyday use, materials play a key role. They can make the difference by becoming an attractive signature feature or by disappearing into the background and by being easy to maintain in the long term. They are fundamental in the process of innovation, forming the basis of an attractive look and a fulfilling user experience. Elica selects materials in which sturdiness, easy cleaning and aesthetic impact are combined in a perfect balance. The wide selection of finishes available offers maximum freedom of choice whatever the setting.
- Total Integration
- The total look trend is becoming increasingly popular in kitchens now, guaranteeing a uniform, linear design with respect to the space. The Total Integration products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
- Long Life Filter
- To ensure the best performance and long-term duration of your hood, the traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65(degree) and dry it in the oven at 100(degree) for ten minutes every two months to keeping it looking good as new. The level of efficiency is about 60%.
- Top Performance
- Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
- Long life filter
- Special Materials
- Led Light
- Maintenance alarm
- Total Integration
- Comfort silence
Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
SHIPPING WEIGHT (kg) | 53.40 |
NET WEIGHT (kg) | 39.80 |
CARTON LENGHT (mm) | 781.00 |
CARTON HEIGHT (mm) | 413.00 |
CARTON WIDTH (mm) | 1284.00 |
VOLUMEN (M3) | 0.41 |
SHIPPING WEIGHT | 117.73 |
NET WEIGHT | 87.74 |
CARTON LENGHT | 30.75 |
CARTON HEIGHT | 16.26 |
CARTON WIDTH | 50.55 |
COUNTRY OF MANUFACTURE | PL |
QTY PACKAGE | 1.00 |
INTENDED APPROVED USE | Residential use |
Finish | Stainless steel + white KRION |
Color | white |
Type of Ventilation | Convertible |
HOODS FEATURES | Long life filter, Special Materials, Led Light, Maintenance alarm, Total Integration, Comfort silence |
WIDTH (IN) | 48" |
WIDTH (CM) | 120.00 |
AIRFLOW (M3/H) | 1020.00 |
CFM (MAX) | 600.00 |
db (min) | 36.40 |
db (max) | 55.00 |
SONES | 1.8 - 6.8 |
EXHAUST VERSION | Convertible with Kit |
EXHAUST SIZE | Round 6" |
DUCT SHAPE | Round |
EXHAUST LOCATION | Top Only |
RECTANGULAR DUCTH HEIGHT | NA |
RECTANGULAR DUCT WIDTH | NA |
Round duct diameter | 6" |
ELECTRIC (VOLTS) | 120 V/60 Hz |
AMPERAGE | 3.8 A |
HERTZ | 60.00 |
WATTS | 460.00 |
LIGHTING | Strip LED 1 x 7 ww 3500 KK |
BULB TYPE | Strip LED |
BULB INCLUDED | YES |
NUMBER OF LIGHTS | 1.00 |
BULB WATTS | 7.00 |
KELVINS | 3500.00 |
GREASE FILTER TYPE | Sophisticated Black Iron Grates + 6 Layer Mesh Filter |
DISHWASHERSAFE FILTER | YES |
FILTER MATERIAL | Iron |
BLOWER TYPE | Interior Unit |
CONTROL TYPE | Sensitive Touch Control with Backlight |
SPEED CONTROL | YES |
NUMBER OF SPEEDS | 3 + booster |
REMOTE CONTROL | NO |
POWER SOURCE | Power Cord |
OUTDOOR USE | NO |
SMUDGE RESISTANT | NO |
RECIRCULATION KIT NEEDED | YES |
CFM REDUCTION | No |
DIMENSIONS | 120 x 32 x 83 |
DIMENSIONS inches | 48" x 13" x 33 - 49 |
ADJUSTABLE HEIGHT | YES |
Minimum Overall Height - Top to Bottom | 33" |
Maximum Overall Height - Top to Bottom | 49" |
Overall Height - Top to Bottom | 33 - 49 |
Overall Width - Side to Side2 | 48" |
Overall Depth - Front to Back | 13" |
Hood Height | 33" |
Minimum Compatible Ceiling Height | 7'9" |
Maximum Compatible Ceiling Height | 10'1" |
Minimum Height Above Cooktop | 30" |
Maximum Height Above Cooktop | 36" |
Chimney Width - Side to Side | 11 13/20" |
Chimney Depth - Front to Back | 12" |
Chimney Height - Top to Bottom | 33" |
STYLE | Modern |
RECIRCULATION KIT NUMBER | CFC0141725AUL |
CHIMNEY EXTENSION NUMBER | NA |
TELESCOPIC DUCT COVER | - |
DUCT TRANSITION | - |
TRANSITION REDUCER KIT | - |
BACKDRAFT DAMPER | - |
NON RETURN VALVE | - |
UPGRADE FILTER | - |
CFM REDUCTION KIT | - |
BACKSPLASH KIT | - |
INTERNAL BLOWER | - |
INLINE BLOWER | - |
EXTERNAL BLOWER | - |
INLINE BLOWER SHELL KIT | - |
EXTERNAL BLOWER SHELL KIT | - |
HEAT LAMPS | - |
SPACER/LINER | - |
WALL MOUNT BRACKET | - |
HIGH CEILING EXTENSION KIT | - |
REMOTE CONTROL KIT | - |
cUL listed | YES |
UL listed | YES |
AHAM verified | YES |
TITLE 24 | YES |
Prop65 Disclosure | YES |
ENERGY STAR | NO |
WIFI CAPABLE | NO |
COMERCIAL USE APPROVED | NO |
ADA COMPLIANT | NO |
APP CAPABLE | NO |
VENTILATION DIRECTION | HORIZONTAL |
SMART COMPATIBLE | NO |
FITLER INDICATOR LIGHT | YES |
HEAT SENSOR | NO |
CHAROCAL FILTER | YES |
CERTIFICADO NOM | Activo |
