Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : 36" AND LARGER FREE STANDING GAS RANGE
- Width : 35.87"
- Height : 36"
- Depth : 28.38"
- Energy Star Rated : NO
- Wifi Connected : NO
- Downdraft Ventilation : NO
- Dual Fuel : YES
- Burner Type : Sealed
- Self Clean : YES
- Convection : YES
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : YES
Documents
Documents
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

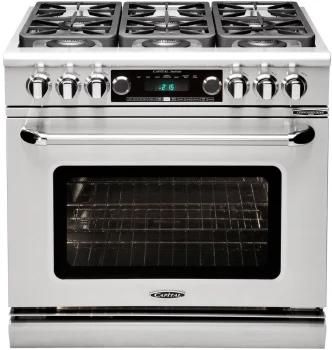

(P)The Connoisseurian family of Dual Fuel Ranges was invented for professionals, but made for families. Combining flawless design with best in class features and with hand-crafted made in the USA quality, Connoisseurian ranges give you the searing power and control of gas top burners with the even heat and multi-rack capabilities of an electric oven.(/P) (P) (/P) (P) (/P) (P)(B)Model Number: (/B)CSB366(/P) (P)(B)Configuration: (/B)6 Sealed Burners(/P) (P)(B)Size: (/B)36"(/P) (P)(B)Burner Type: (/B)Sealed Burner(/P) (P)(B)Range Fuel: (/B)Natural Gas, Liquid Propane(/P) (P)(B)Oven Fuel: (/B)Electric(/P) (P)(B)Cleaning: (/B)Self Clean(/P) (P)(B)Utility Type: (/B)Dual Fuel(/P)(BR)(B)Product Feautures(/B)(BR)(BR) (UL)(LI)MOIST cooking - This feature reduces food drying during cooking resulting in some of the juiciest meals ever(/LI)(LI) BAKE(/LI)(LI) BROIL(/LI)(LI) ROAST(/LI)(LI) DELICATE(/LI)(LI) BAKE(/LI)(LI) PERFECT CONVECTION(/LI)(LI) CONVECTION COOKING: Bake, Broil, Roast, Delicate Bake(/LI)(LI) SELF-CLEAN(/LI)(LI) Meat Probe Cooking(/LI)(LI) All glass oven bottom with hidden Bake elements(/LI)(LI) Ribbon Broil element under glass for easy clean up and efficient oven heating(/LI)(LI) TIMED Cook - you can set the oven to turn itself after a set of time(/LI)(LI) Digital Time of Day Clock(/LI)(LI) Dual Kitchen Timers(/LI)(LI) Flush island friendly trim(/LI)(LI) Moto-Rotis Built-In motorized rotisserie with stainless steel spit rod and forks (primary oven)(/LI)(LI) EZ-Glides™ - full extension removable drip trays mounted on bearing rails(/LI)(LI) Flex-Roll™ Oven Racks for smooth operation(/LI)(LI) 6 rack positions (/LI)(LI) Height adjustable rear casters for easy installation(/LI)(LI) Height adjustable front leveler legs(/LI)(LI) Two speed cooling fan reduces noise(/LI)(LI) Sabbath mode(/LI)(/UL) (BR)(BR) (B)Rangetop features(/B)(BR)(BR) (UL)(LI)Six (6) 19,000 BTU Power-Flo™ sealed burners all turn down to a True Simmer(/LI)(LI) Stay-Cool™ die cast, chrome plated metal knobs(/LI)(LI) Auto-ignition/re-ignition on all burners(/LI)(LI) Smooth-top continuous cast iron grates with easy to clean matte porcelain finish(/LI)(LI) Flush Island Friendly Trim(/LI)(/UL) (B)Primary Oven Features(/B)(BR)(BR) (UL)(LI)Self-Clean(/LI)(LI) Dual air-flow convection(/LI)(LI) Large 5.4 cu. ft. oven cavity - 27" W X 16-1/2" H X 21" D(/LI)(LI) Moist Cooking(/LI)(LI) Moto-Rotis(/LI)(LI) Meat Probe(/LI)(LI) Timed and Delay Cook features(/LI)(LI) Hidden 10 pass dual bake element under glass for easy clean up and efficient oven heating(/LI)(LI) Ribbon Broil element under glass results in BBQ quality searing(/LI)(LI) Flex-Roll™ oven racks for smooth operation(/LI)(LI) 6 rack positions w/ 3 racks provided (/LI)(LI) Titanium speck porcelain oven interior(/LI)(LI) Broil pan provided(/LI)(LI) 1-1/4" diameter professional-style handle(/LI)(LI) Heavy-duty oven door hinges(/LI)(LI) Extra-large viewing window(/LI)(LI) Bright oven lights(/LI)(LI) Sabbath Mode(/LI)(/UL)
Electrical Rating | 240 VAC, 60 Hz |
Shipping Weight | 420 lbs |
Product Weight | 380 lbs |
Shipping Dimensions | 40" W x 48" H x 34" D |
Product Dimensions | 35-7/8" W x 36" H x 28-3/8" D |
Max Current | 22.9 AMP |
Circuit Breaker Size | 40 AMP |
Wiring Type | Permanently connected 4 wires (L1, L2, Neutral, Ground) |
Gas Connections | 1/2" NPT Male |
Max. allowable input pressure | 1/2 psi |
Natural Gas | 7" WC input pressure, 5" WC pressure regulator provided |
Liquid Propane | 11" WC input pressure, 10" WC Pressure Regulator provided |
Oven Dimensions | 27" W x 16-1/2" H x 21" D (19-1/2" usable) |
Oven Volume | 5.4 cubic feet |
Oven Control Type | Digital |
Cutout Dimension | 36-1/8"W X 24" D (std) |
