Quick Specifications
Quick Specifications
- Type : DISHWASHERS
- Style : BUILT IN DISHWASHER
- Width : 23.56"
- Height : 34
- Depth : 25.18"
- Energy Star Rated : NO
- Wifi Connected : NO
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

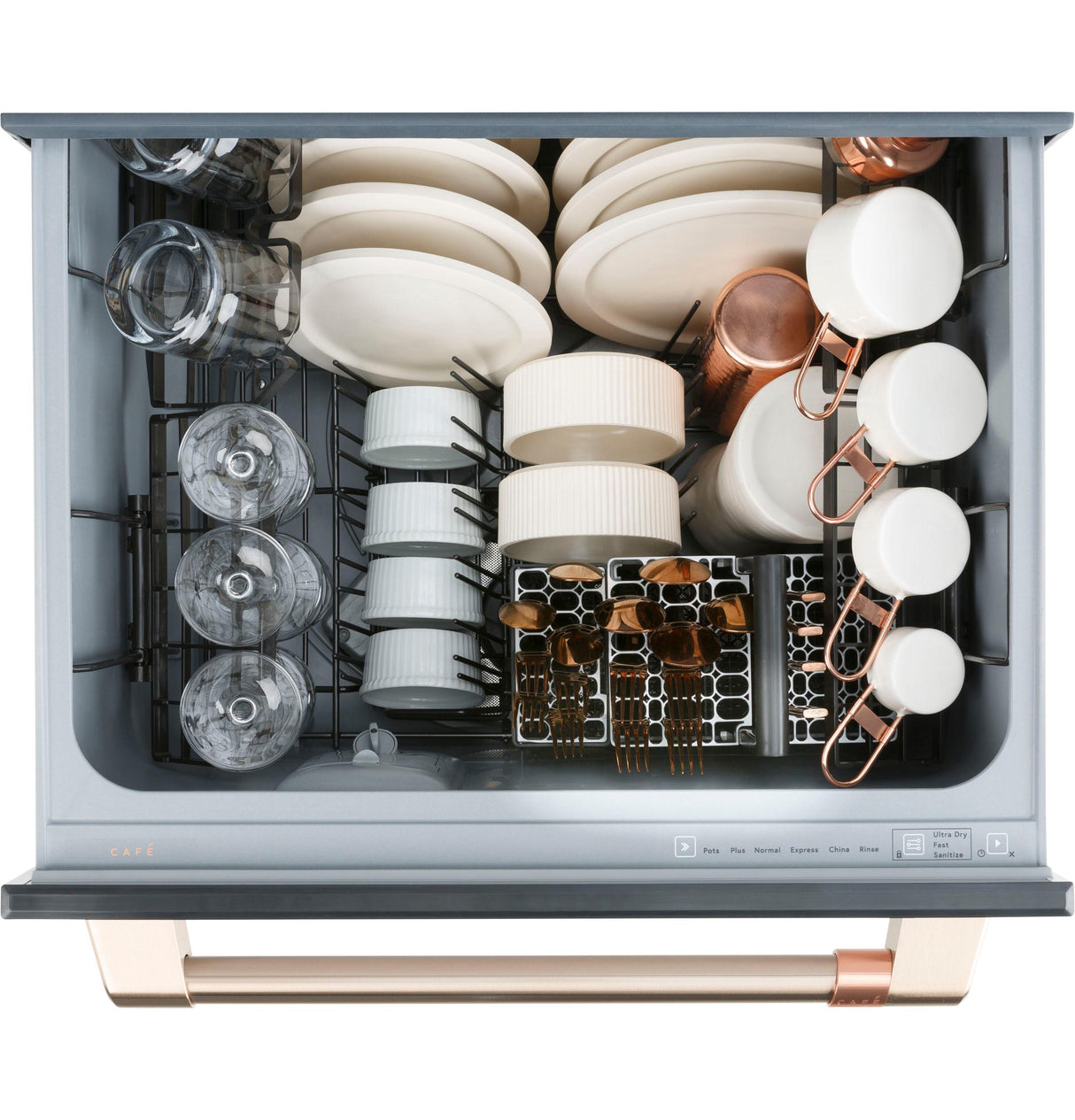

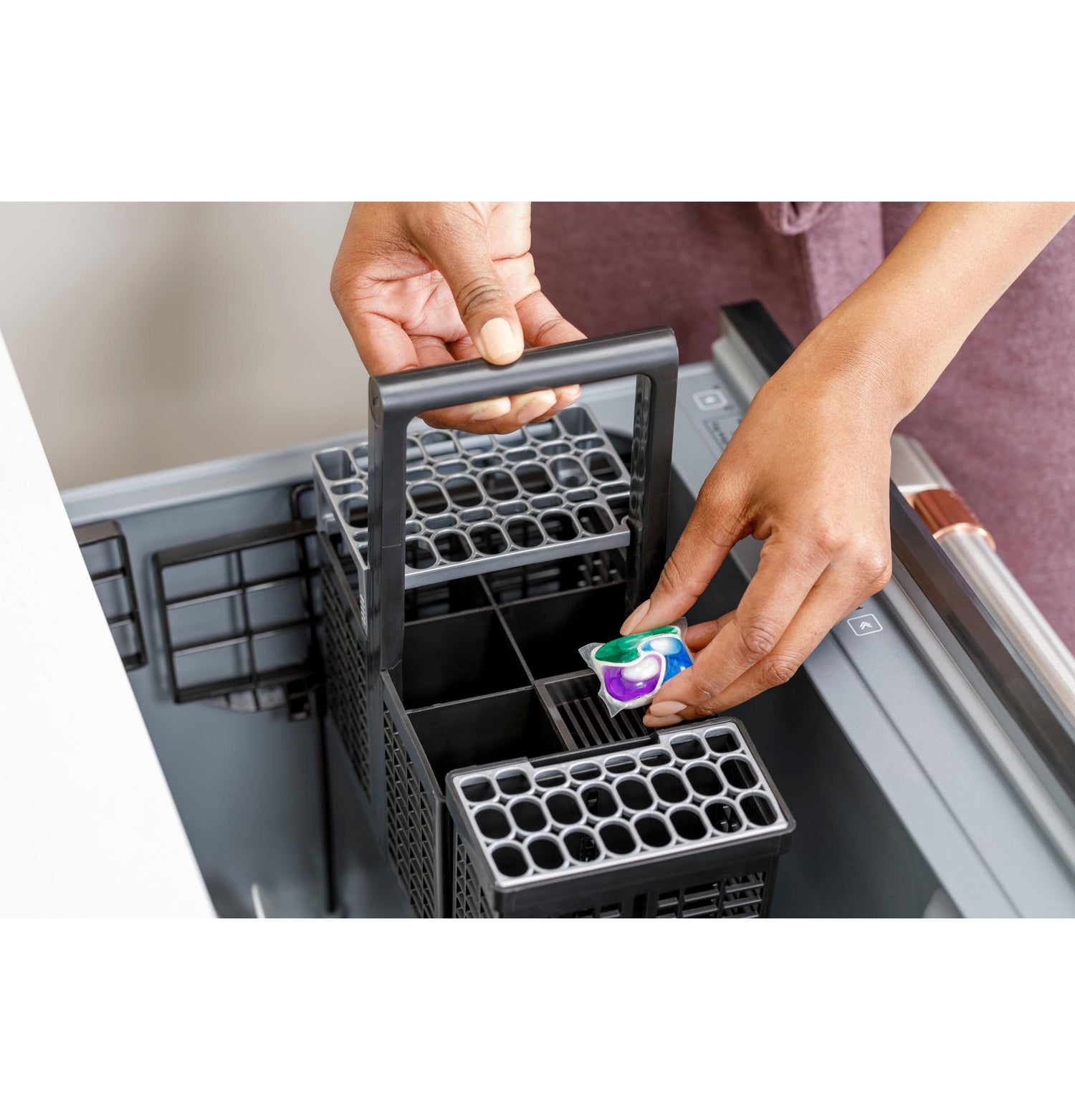

Accommodates Large Dish Loads
With two removable silverware baskets and enough capacity for 14 place settings, you can wash every item in a single load, even after the largest meals
Small Load Setting
Wash every load with a clean conscience thanks to an energy efficient dishwasher with two special settings for conserving resources. Guilt-free Small Load is ideal for partial loads, while Eco-Cycle was designed to consume less energy and water
6 Wash Cycles
Go beyond the normal wash and dry with six cycles, plus Fast Dry, Sanitize and Ultra Dry options
Knock to Pause Function
Pause the dishwasher mid-cycle with a simple knock, then press Start/Play to resume

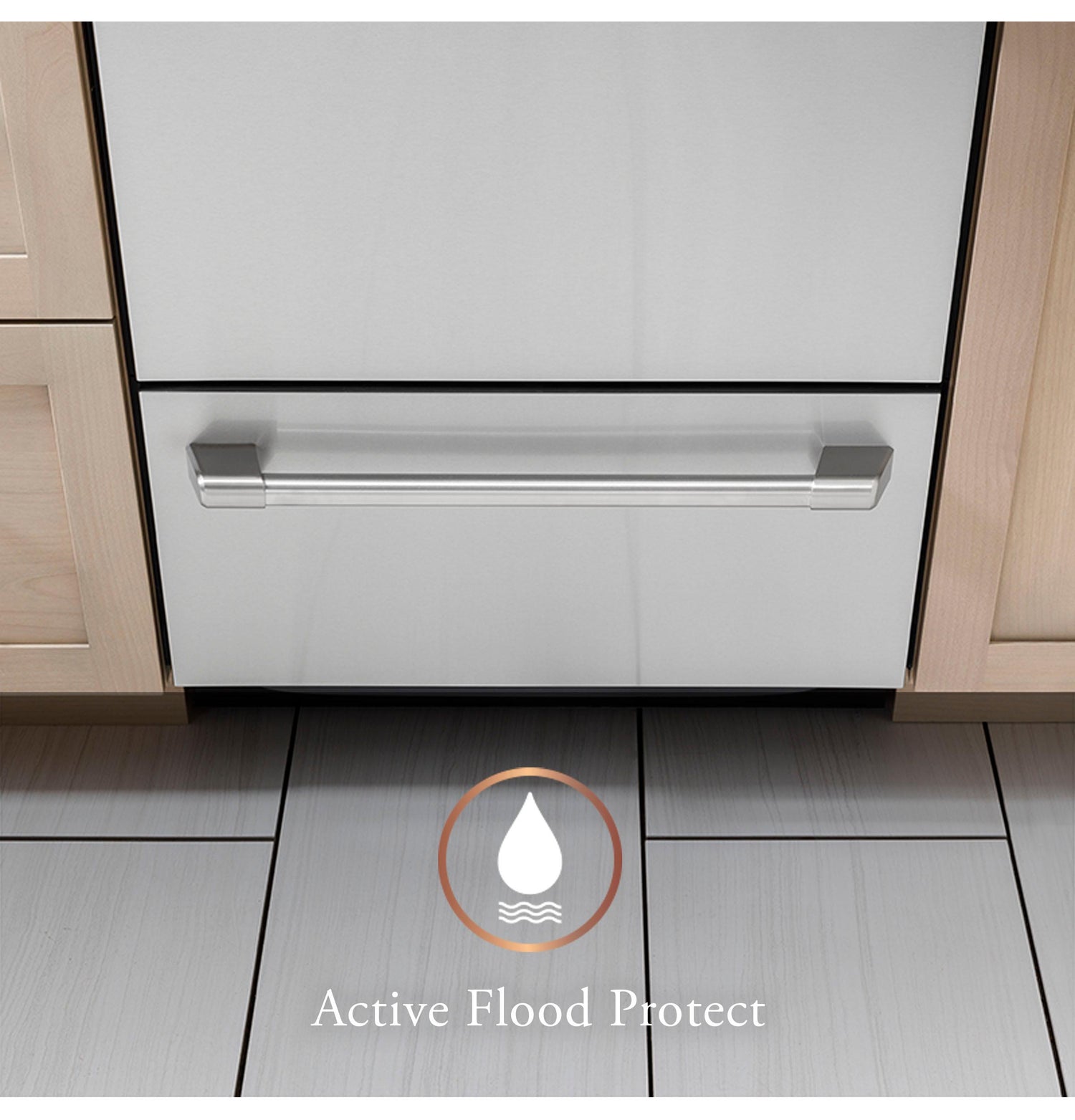

Water Leak Sensor
This dishwasher features Water Leak Sensor, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone

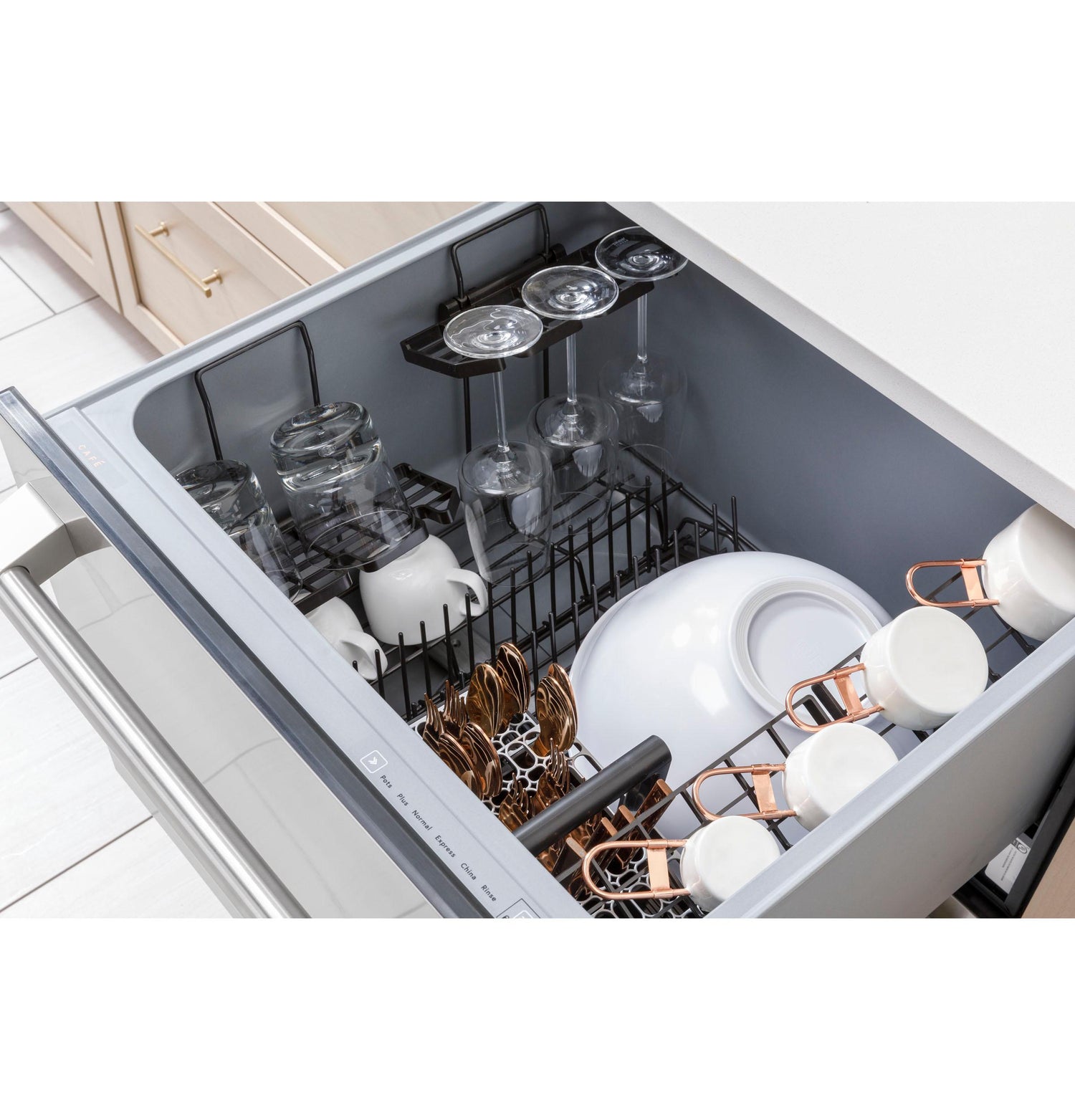

Adjustable Racks
Never worry about how to load the dishwasher again thanks to the loading flexibility that comes with racks that can be adjusted to accommodate any item

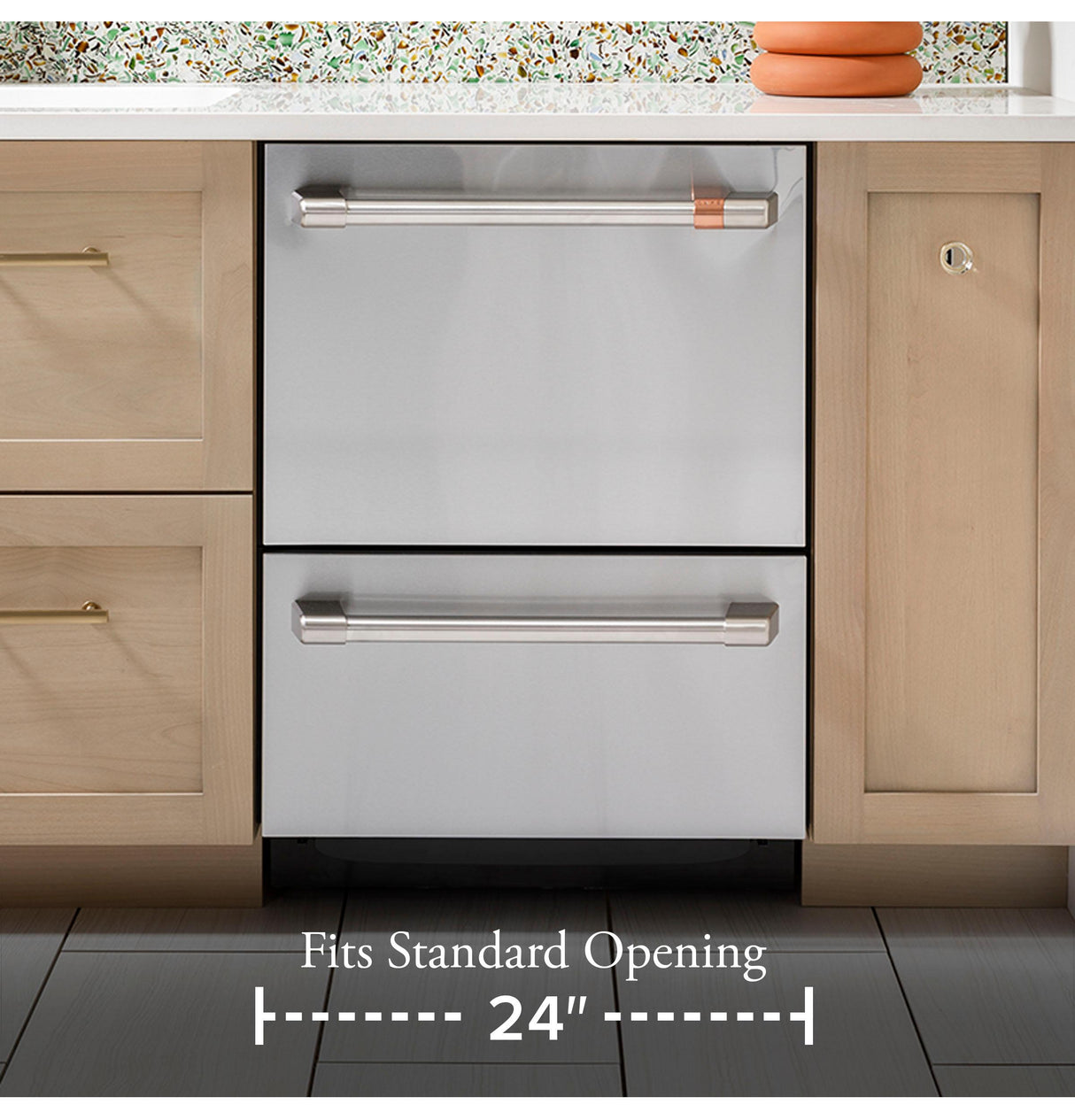

Fits Standard 24" Cutout
The dishwasher dimensions allow for easy installation in a standard 24"-wide cutout
Delay Start
A dishwasher delay function lets you set it to start while you're working, sleeping or out of the house

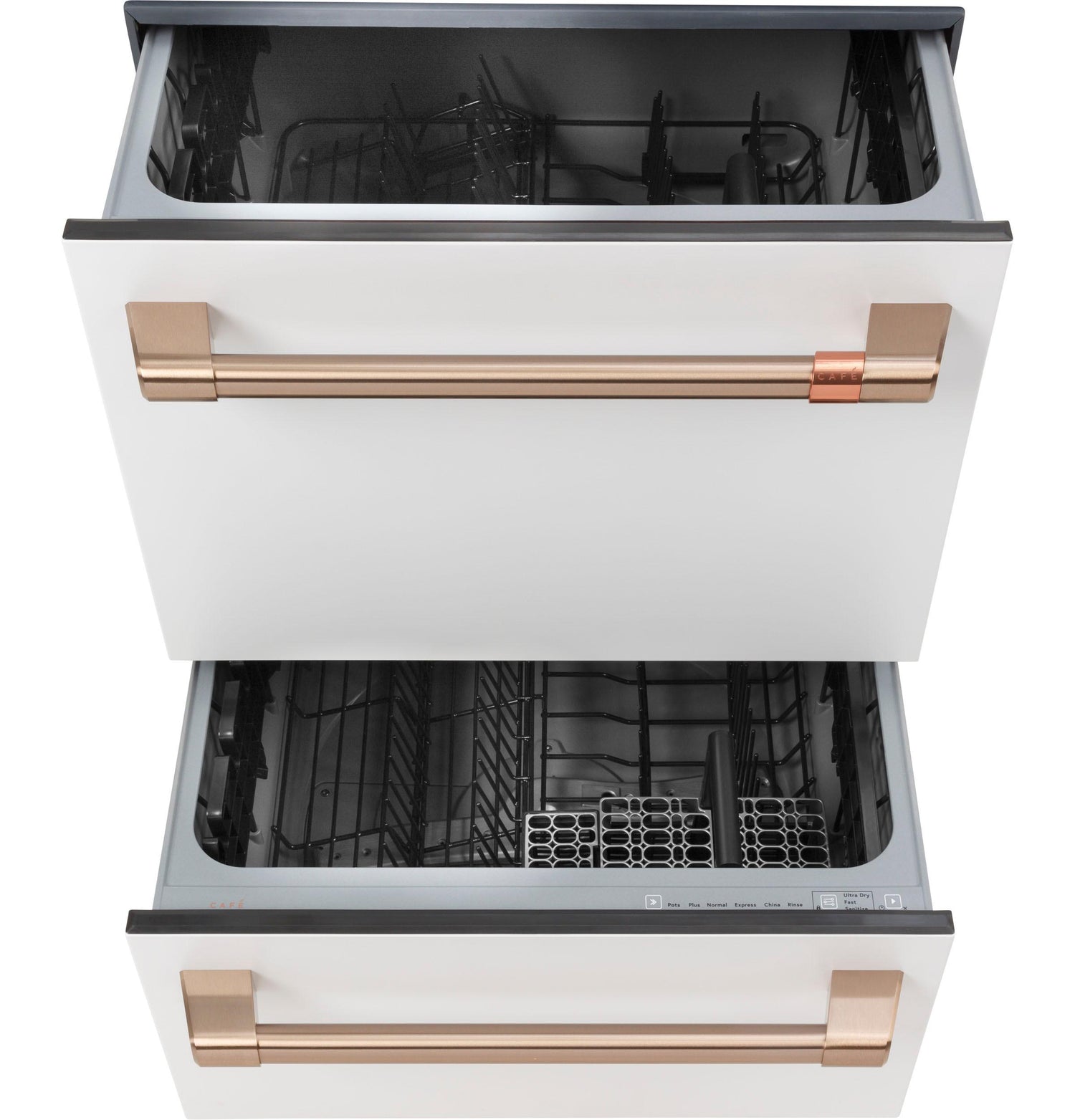

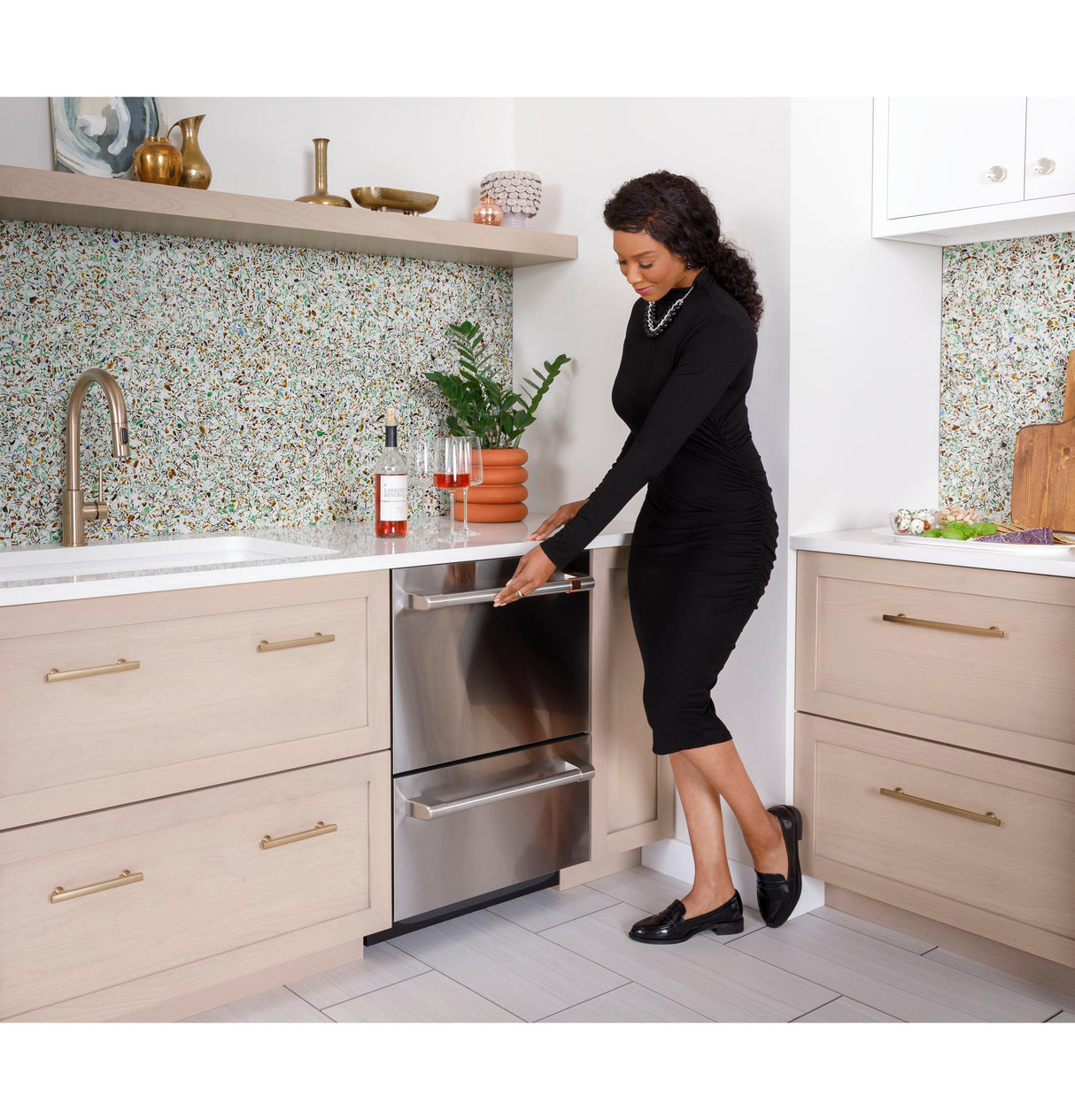

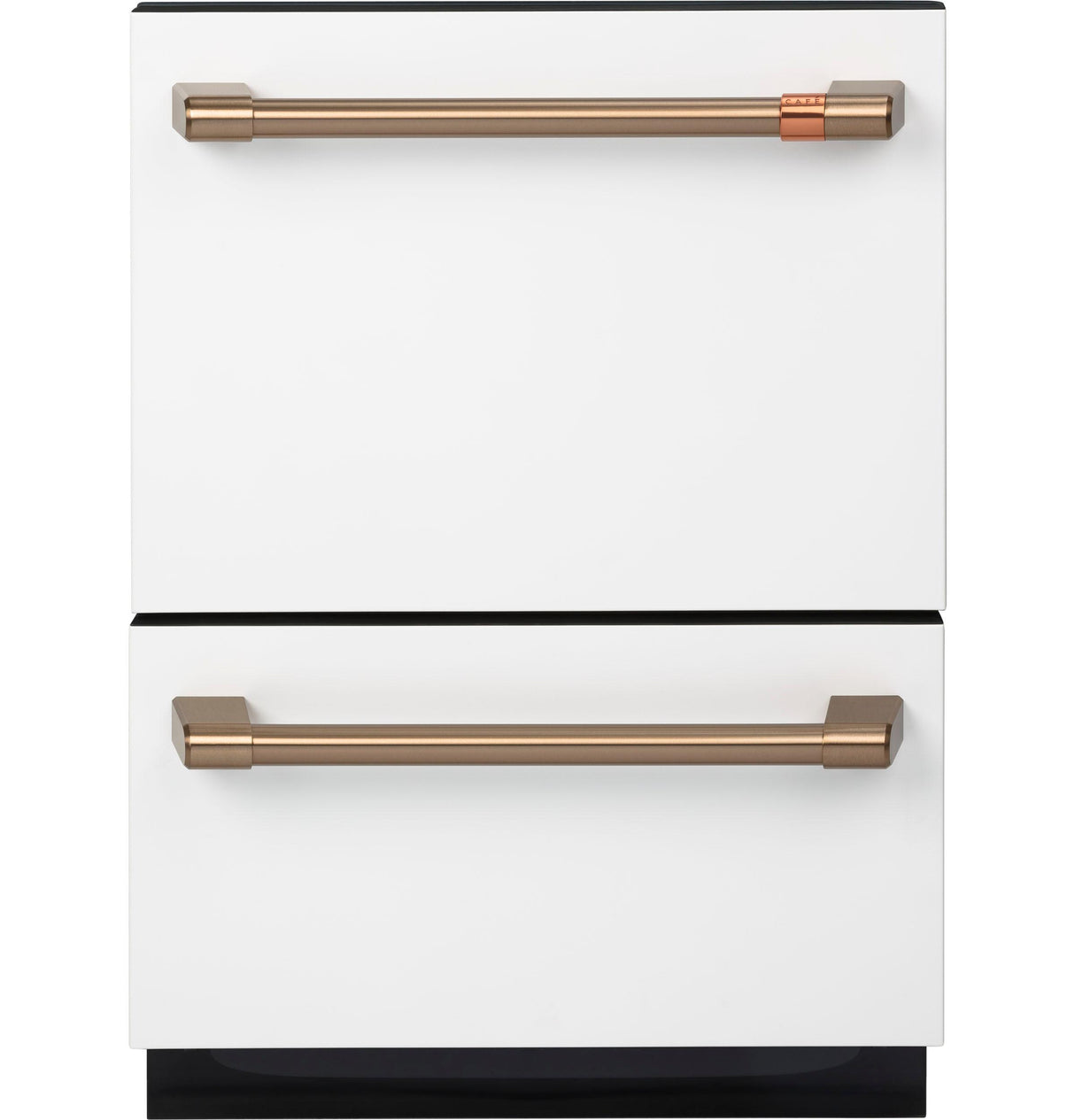

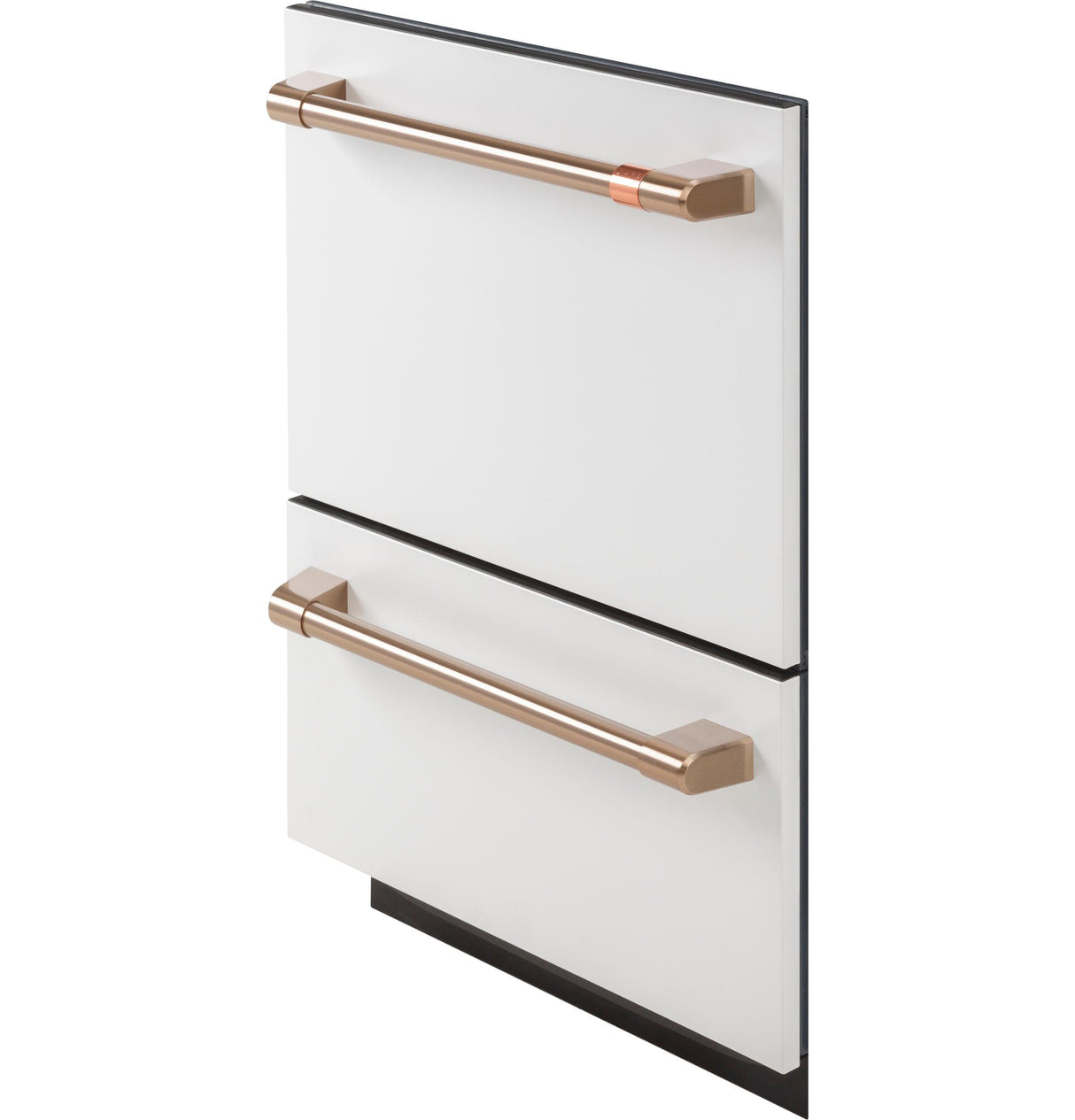

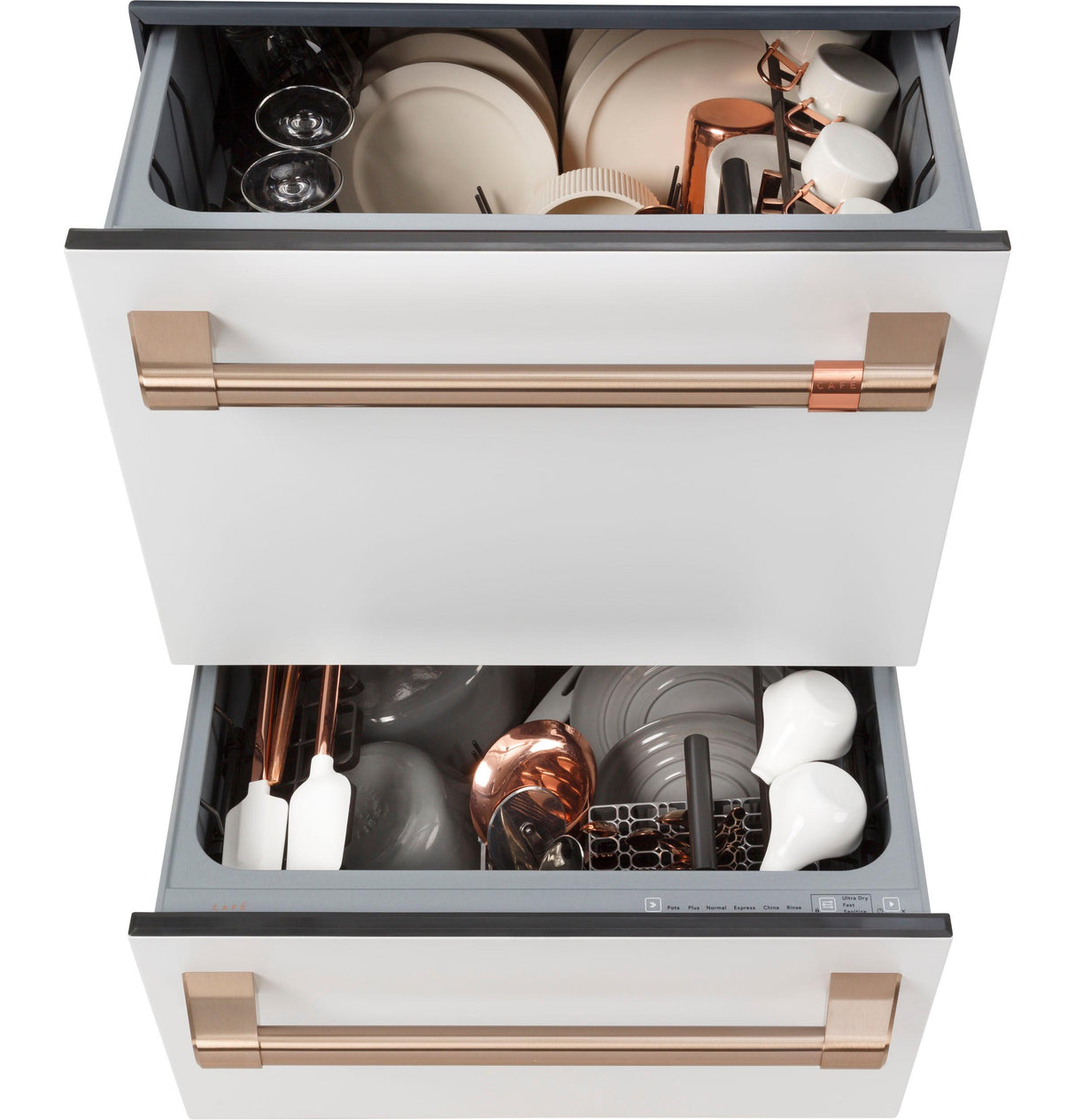

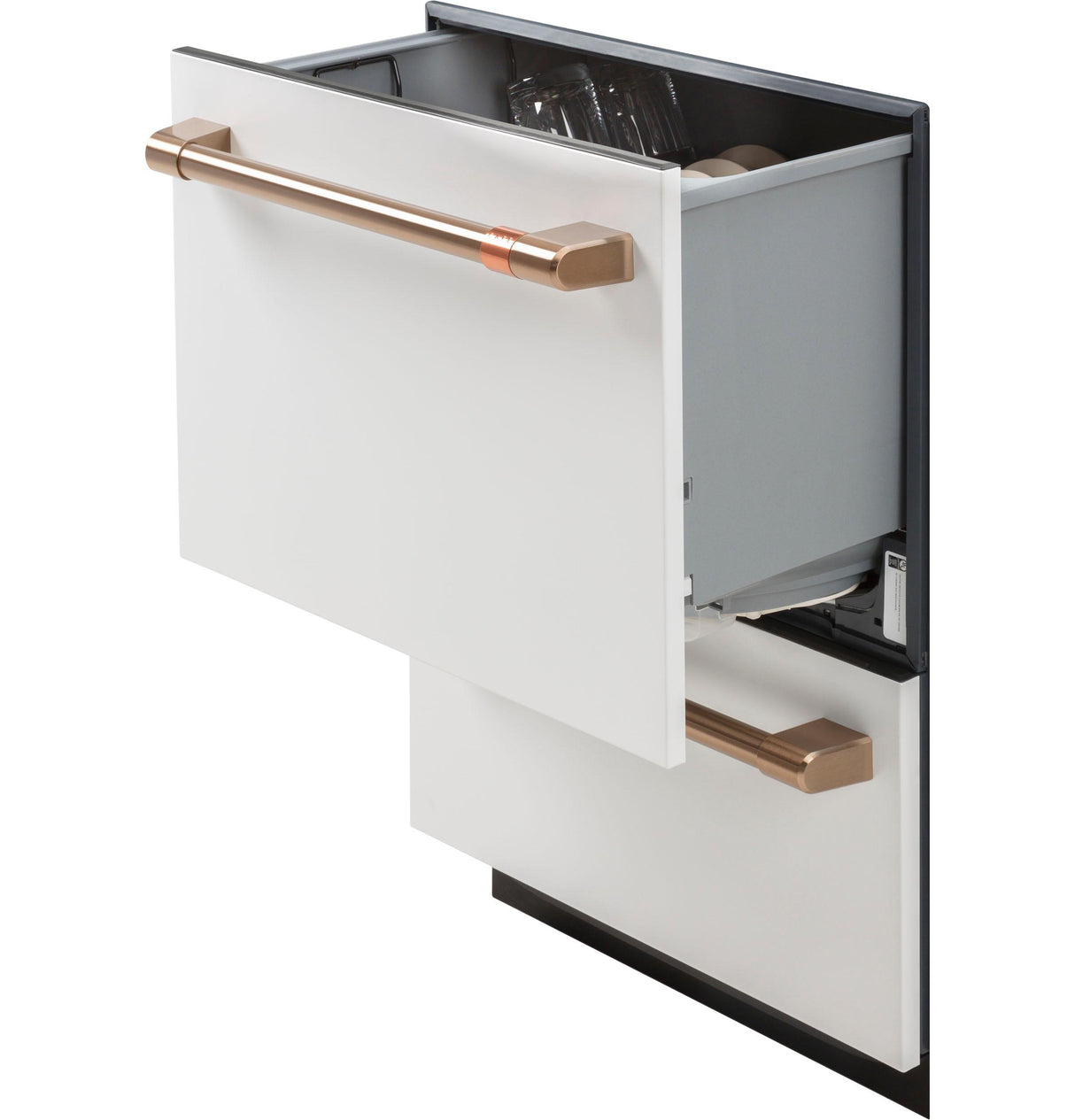

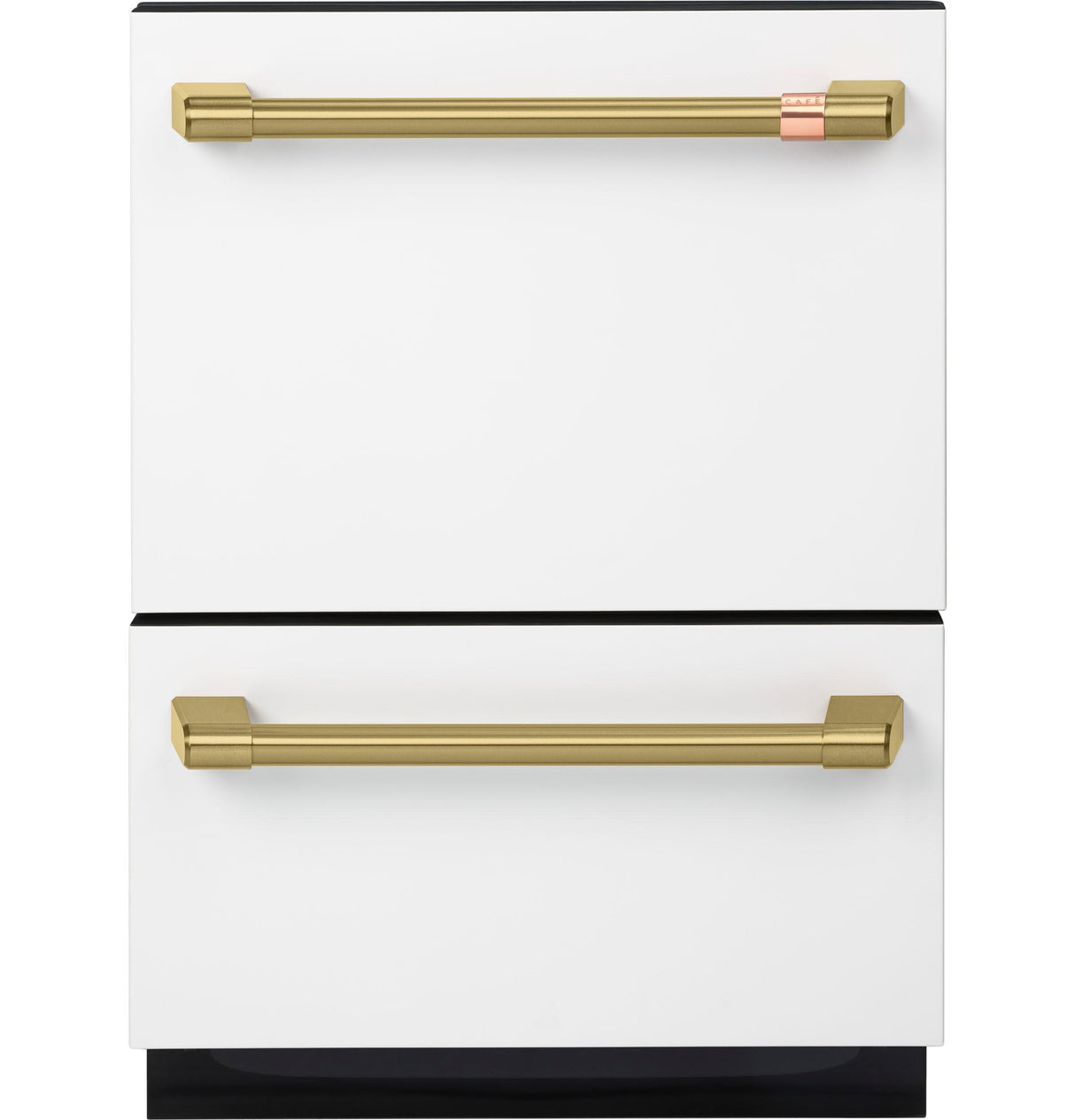

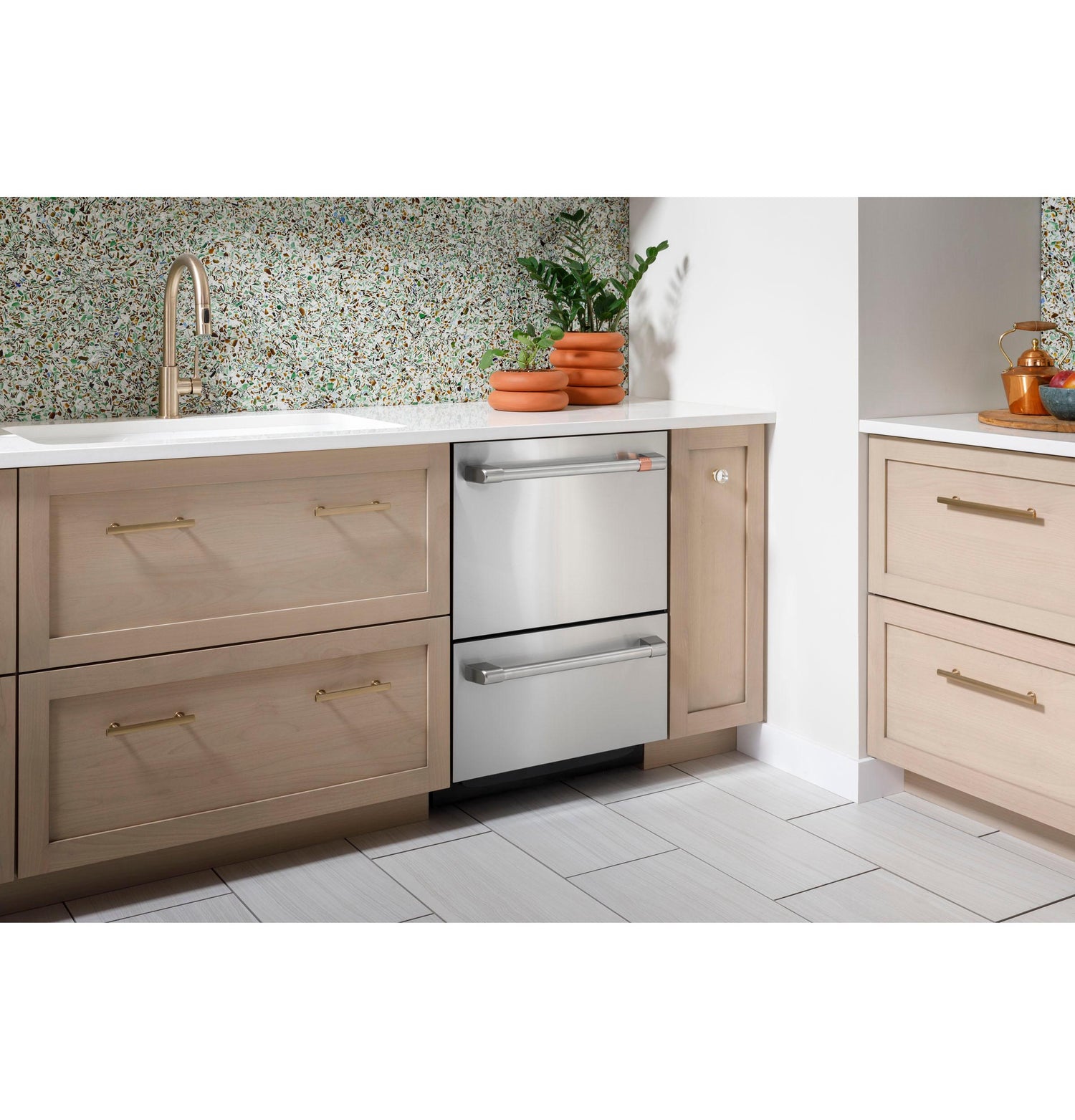

Double Drawer

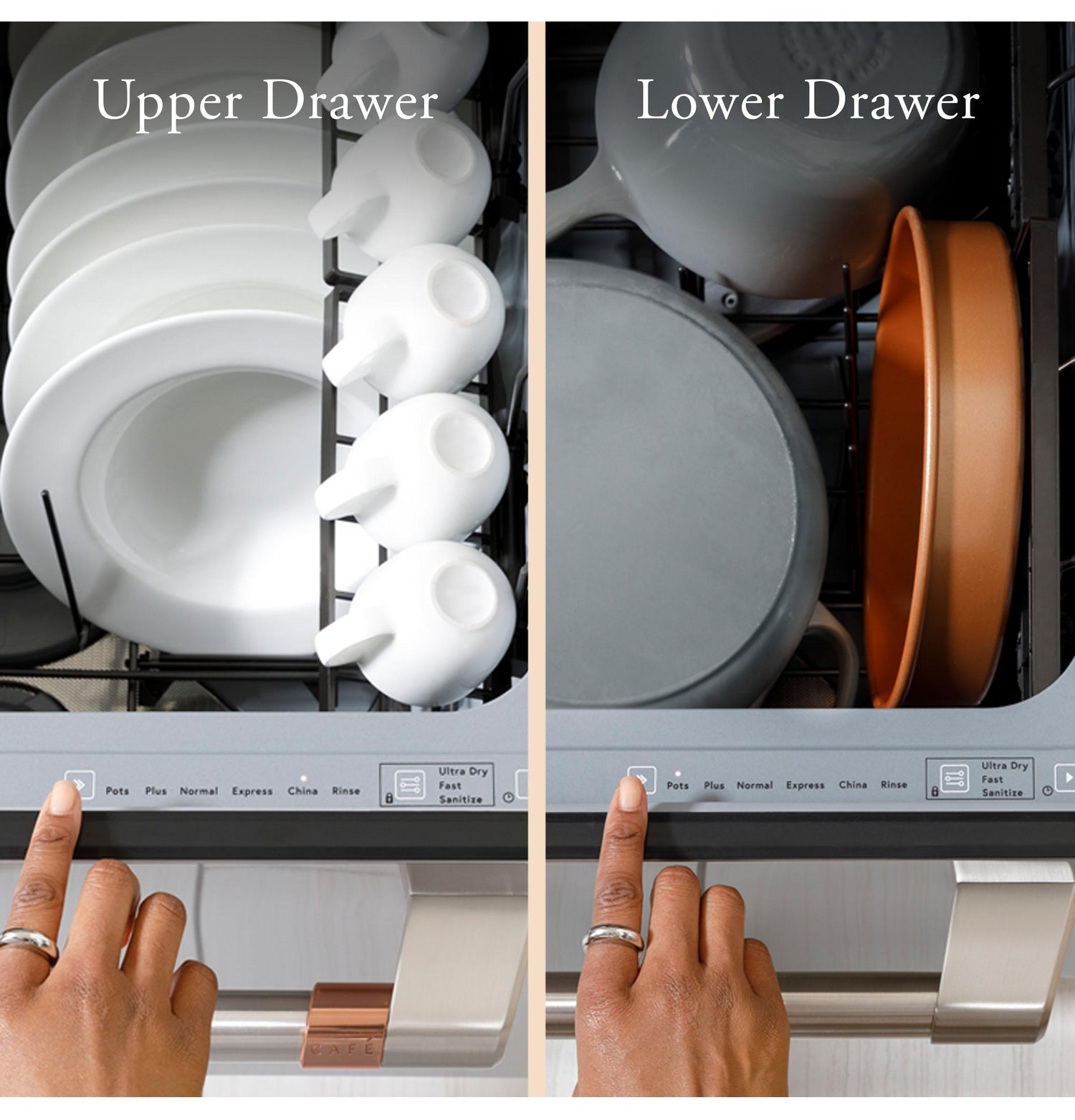

Experience the convenience of two drawers that you can use independently to wash everything from heirloom place settings to casserole dishes with separate cycles

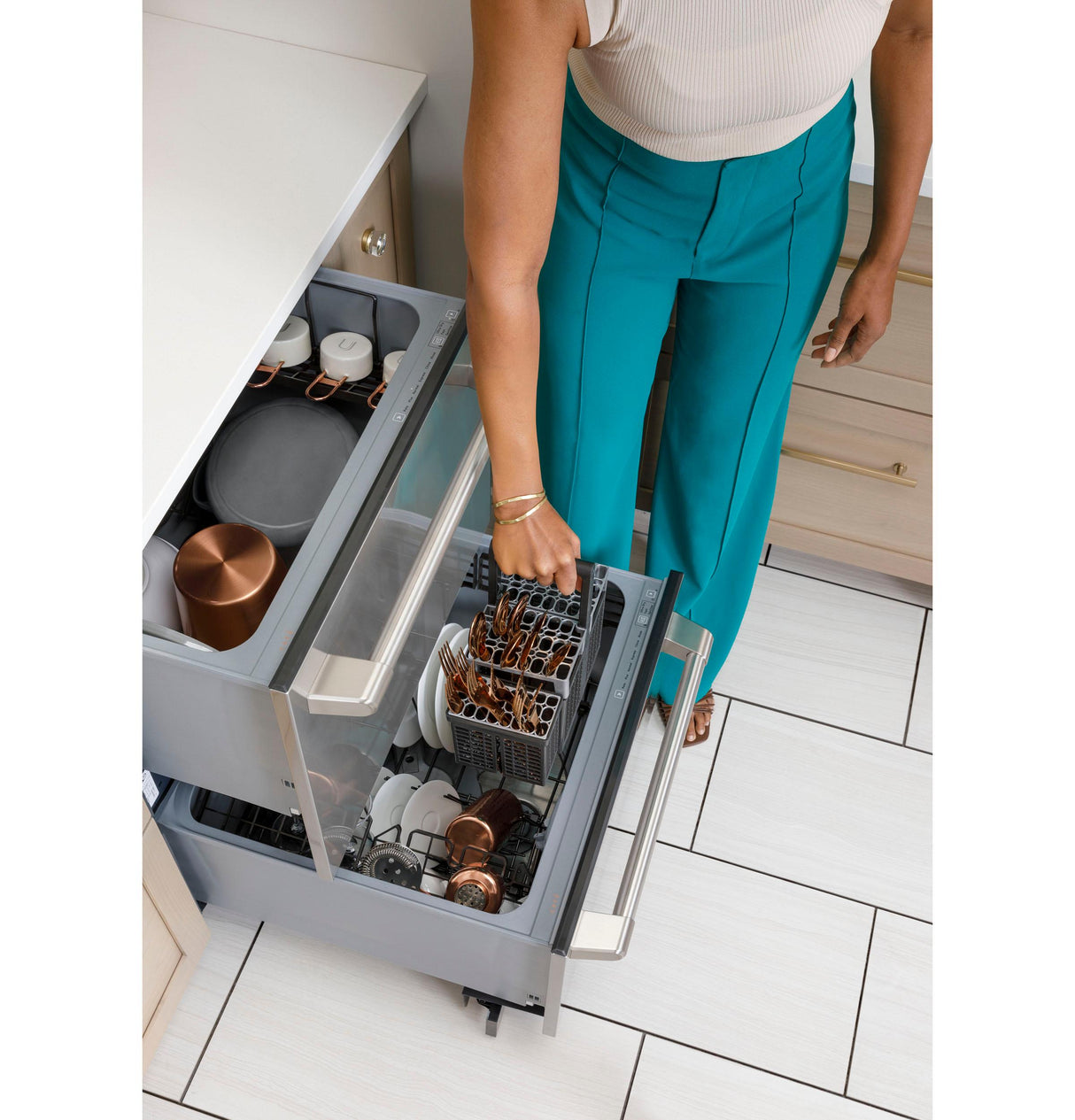

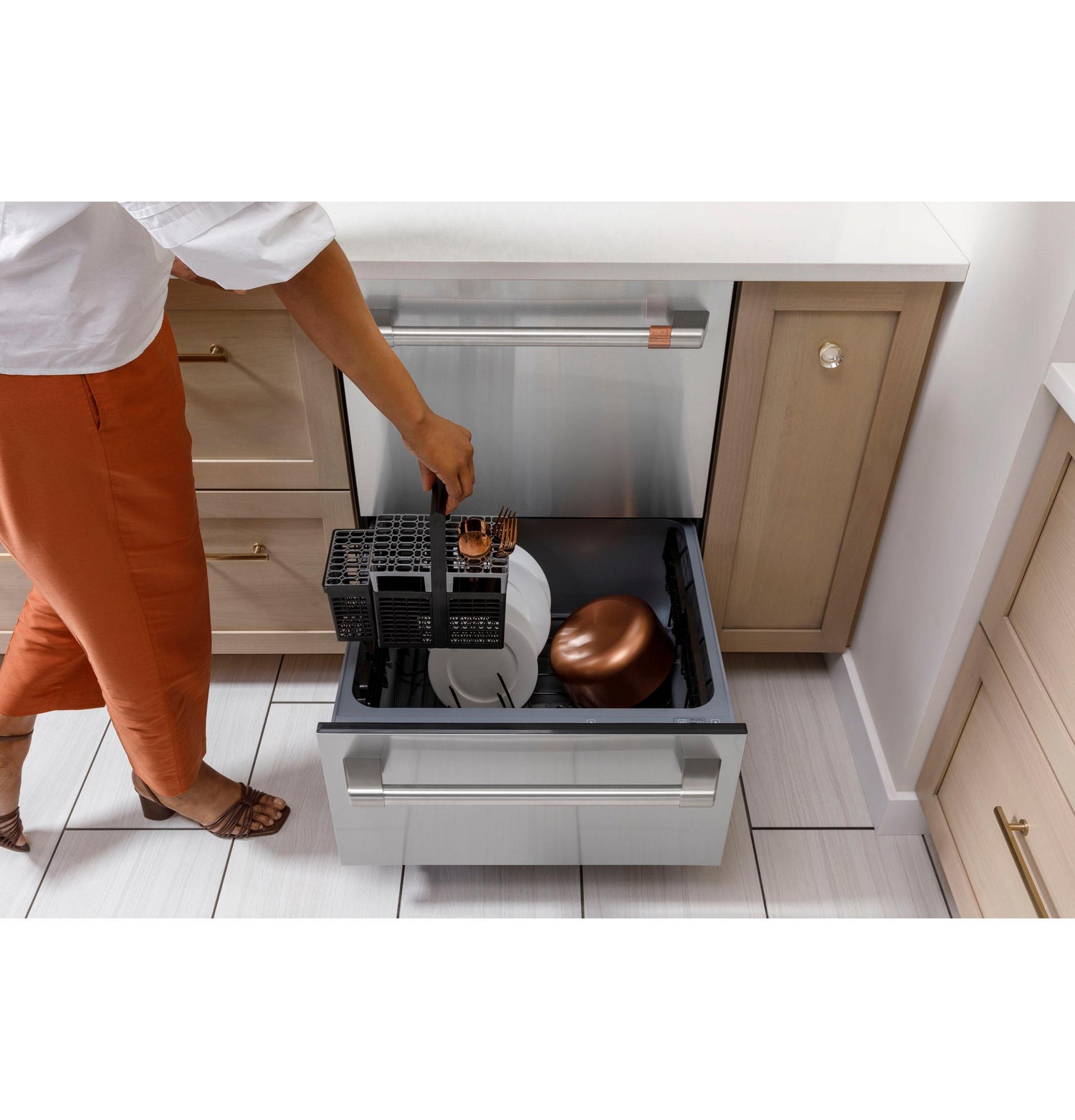

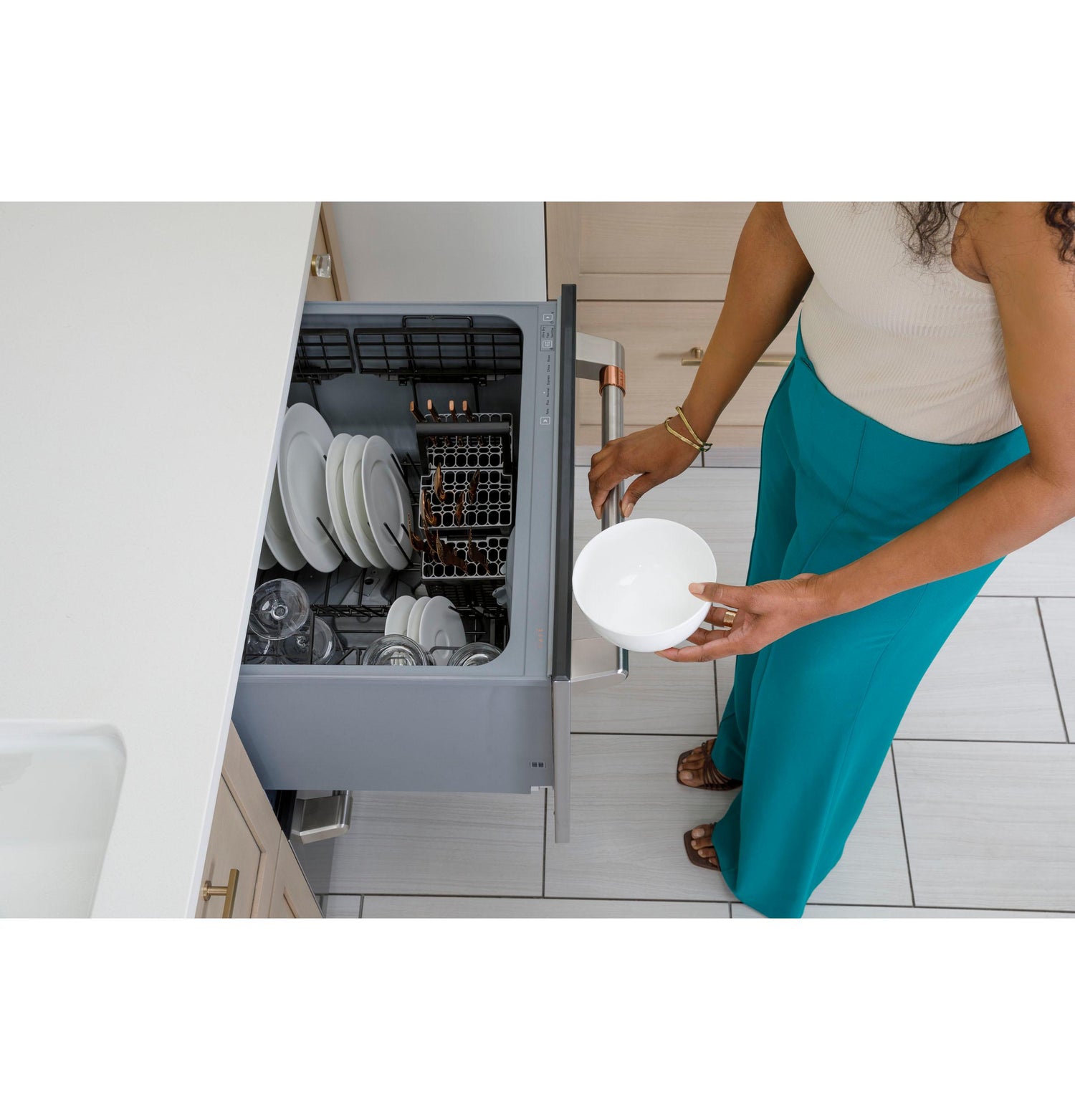

Easy to Load and Unload
Keep bending to a minimum while you load and unload the conveniently placed, ergonomically designed upper drawer

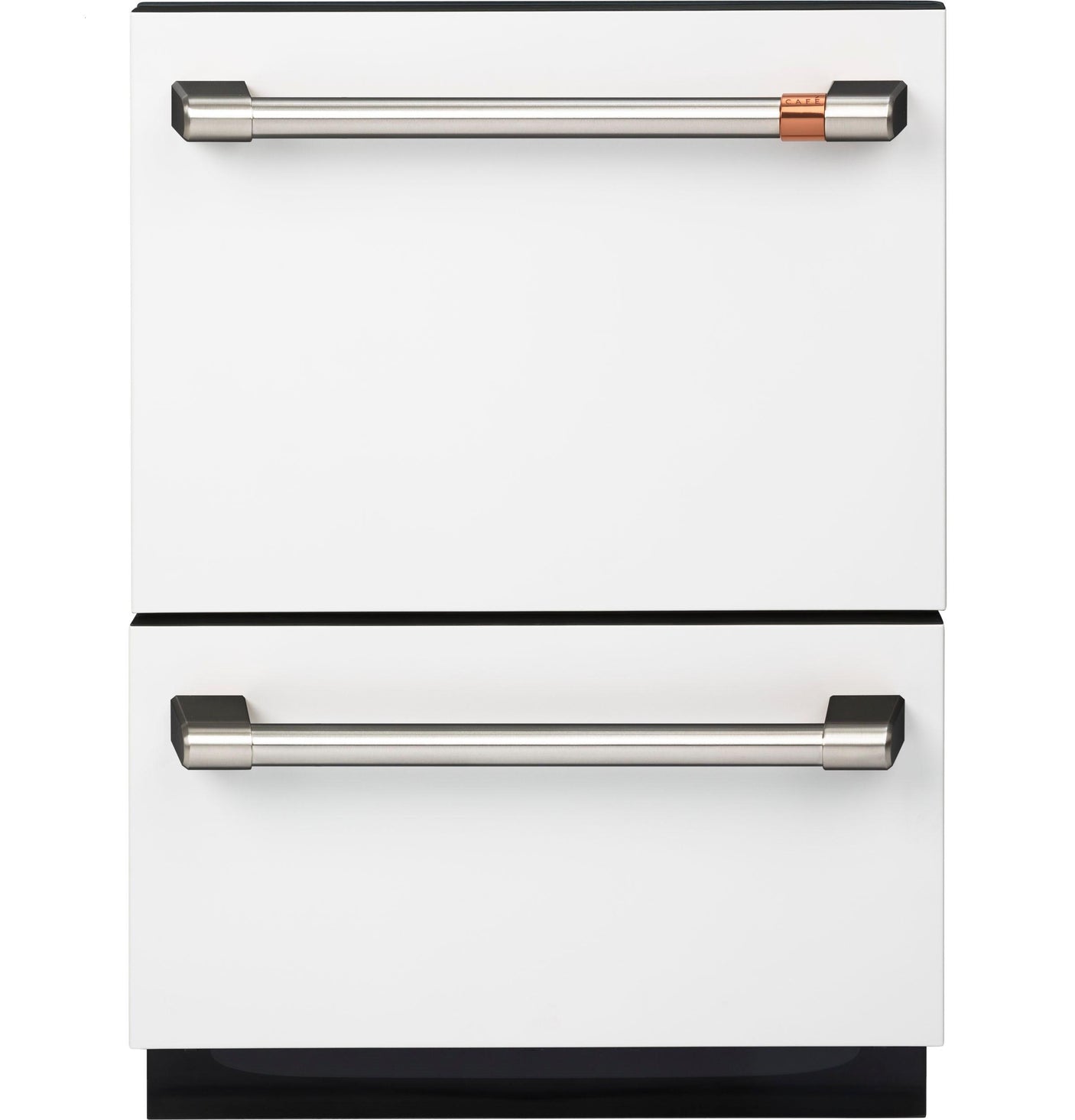

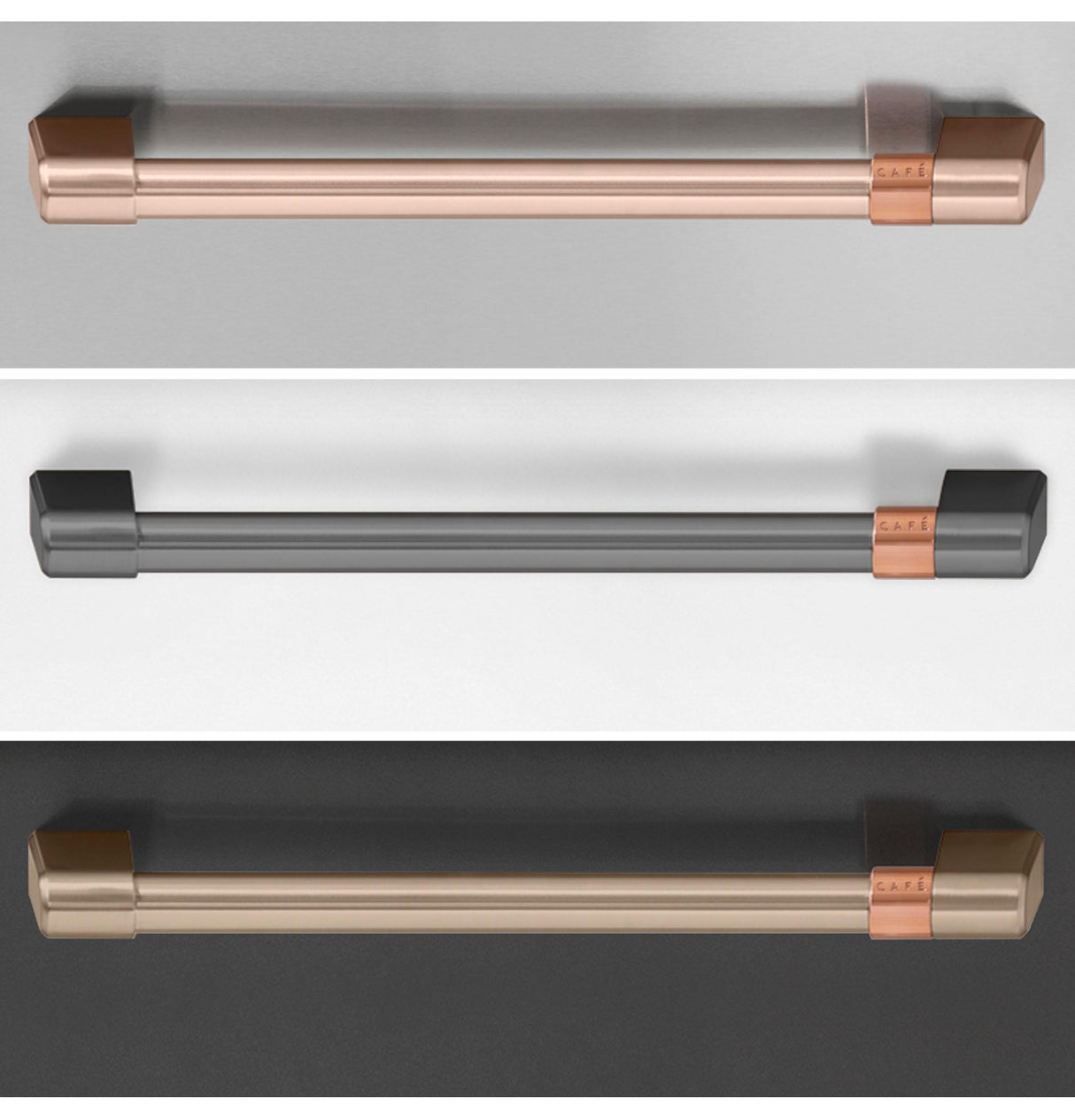

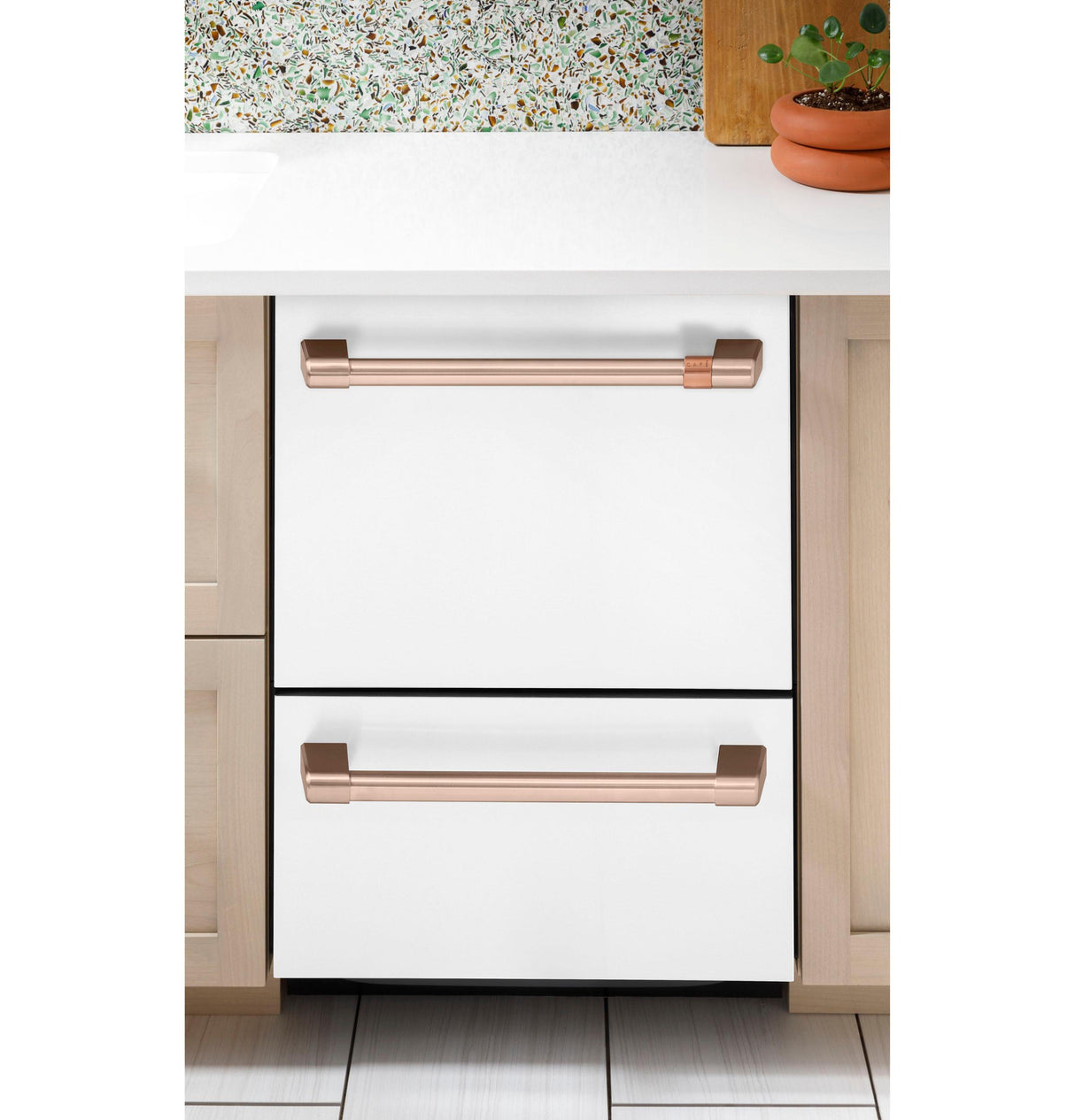

Create a Look That Matches Your Personal Style
With this customizable dishwasher, you can combine any of the premium finishes and hardware options for a stylish appearance that's truly unique
- Double Drawer
- Experience the convenience of two drawers that you can use independently to wash everything from heirloom place settings to casserole dishes with separate cycles
- Create a Look That Matches Your Personal Style
- With this customizable dishwasher, you can combine any of the premium finishes and hardware options for a stylish appearance that's truly unique
- Small Load Setting
- Wash every load with a clean conscience thanks to an energy efficient dishwasher with two special settings for conserving resources. Guilt-free Small Load is ideal for partial loads, while Eco-Cycle was designed to consume less energy and water
- Knock to Pause Function
- Pause the dishwasher mid-cycle with a simple knock, then press Start/Play to resume
- Easy to Load and Unload
- Keep bending to a minimum while you load and unload the conveniently placed, ergonomically designed upper drawer
- Accommodates Large Dish Loads
- With two removable silverware baskets and enough capacity for 14 place settings, you can wash every item in a single load, even after the largest meals
- 6 Wash Cycles
- Go beyond the normal wash and dry with six cycles, plus Fast Dry, Sanitize and Ultra Dry options
- Water Leak Sensor
- This dishwasher features Water Leak Sensor, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone
- Fits Standard 24" Cutout
- The dishwasher dimensions allow for easy installation in a standard 24"-wide cutout
- Delay Start
- A dishwasher delay function lets you set it to start while you're working, sleeping or out of the house
- Adjustable Racks
- Never worry about how to load the dishwasher again thanks to the loading flexibility that comes with racks that can be adjusted to accommodate any item
- 46 dBA Single Drawer & 49 dBA Double Drawer
- This quiet dishwasher keeps your kitchen peaceful whether you're using one or both of the drawers
- Double Drawer
- Create a Look That Matches Your Personal Style
- Adjustable Racks
- 46 dBA Single Drawer & 49 dBA Double Drawer
- Small Load Setting
- Knock to Pause Function
- Easy to Load and Unload
- Accommodates Large Dish Loads
- 6 Wash Cycles
- Water Leak Sensor
- Fits Standard 24" Cutout
- Delay Start
APPEARANCE | |
Handle | Café™ |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included |

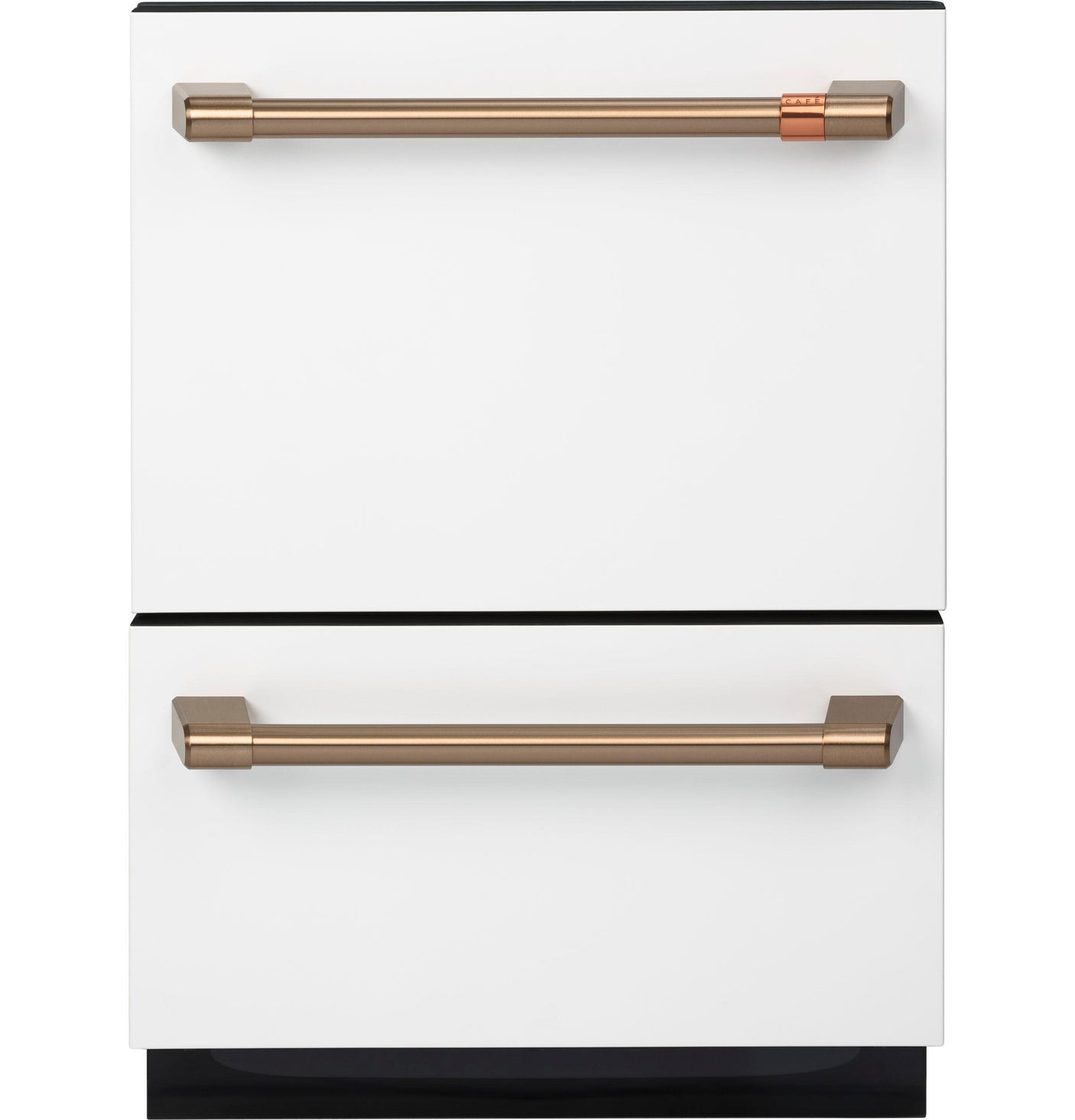

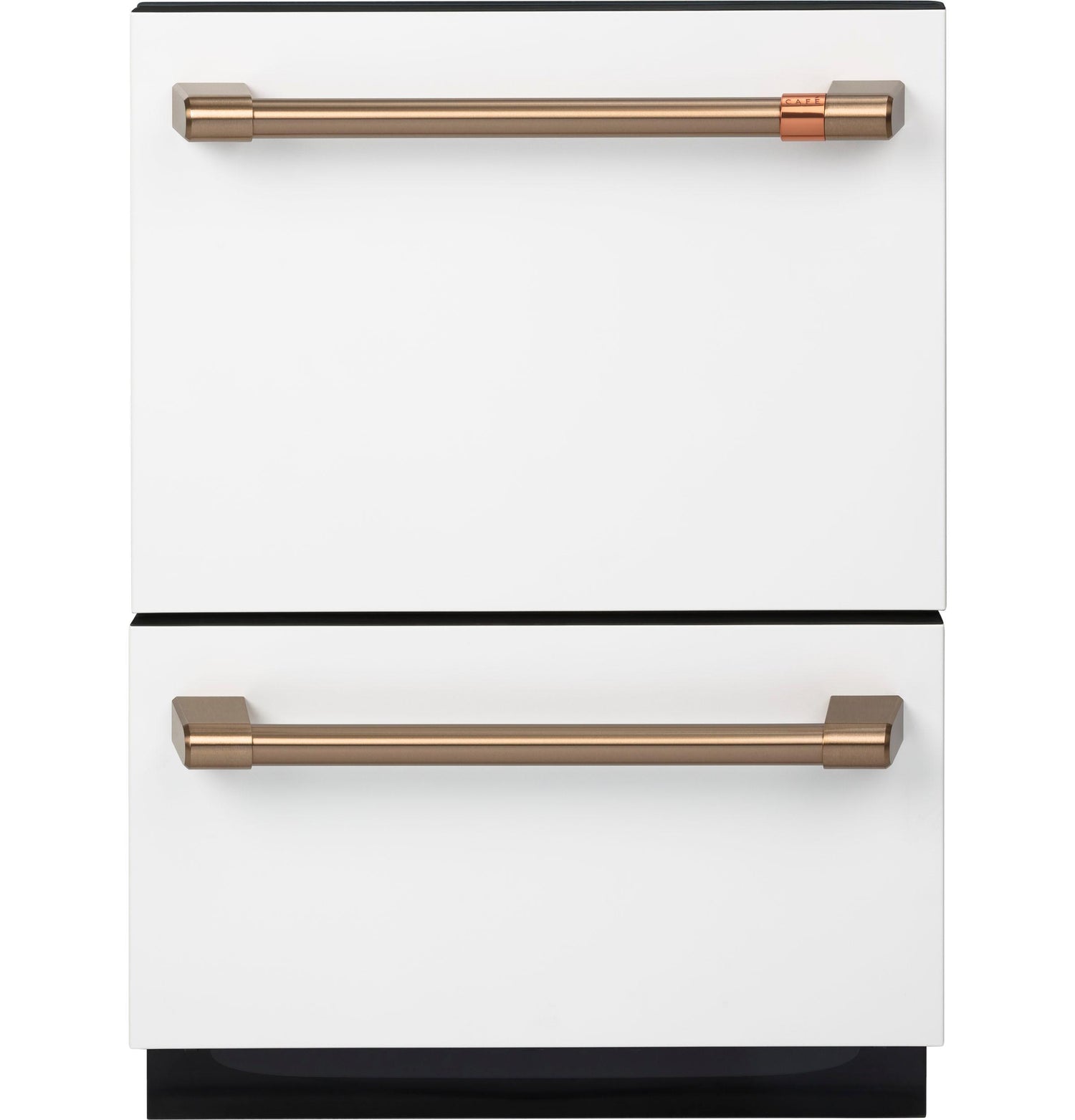

Handle Color | Brushed Bronze |

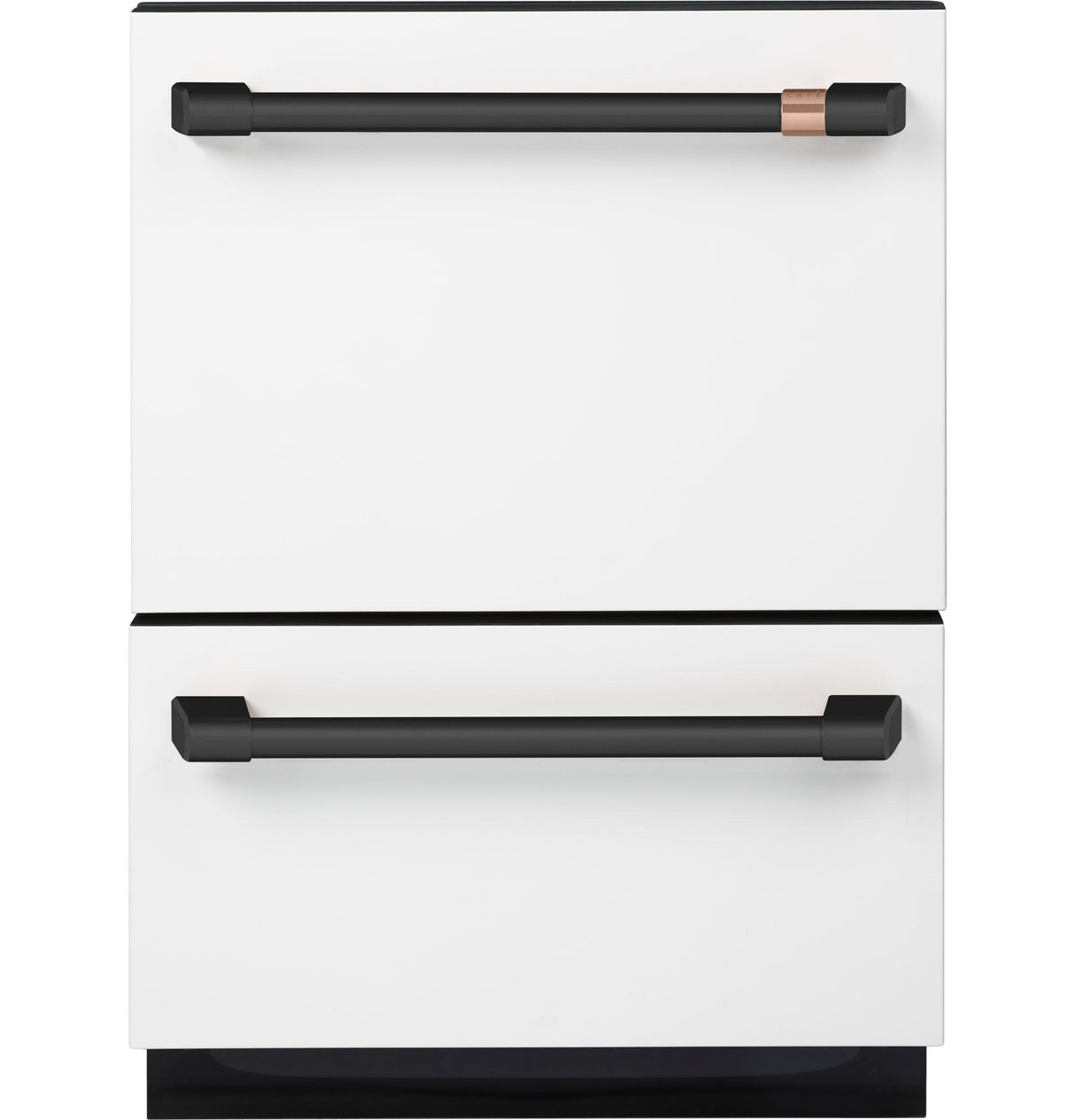

Door Style | 2 Drawer Fronts |
Door Appearance | 2 Drawer Fronts |
Color Appearance | Matte White |
Control Panel Color | Grey |
Handle Design | Customizable |
POWER / RATINGS | |
Power Connection | Power Cord - Included |
Energy Consumption (kWh/year) | 270 |
Electrical Requirements | 120V ; 60Hz ; 9.4A |
Calrod Heater Watts | 503 |
Volts/Hertz/Amps | 120V; 60Hz; 9.4A |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Door Insulation | Yes |
Quiet Package | 46 dBA Single/ 49 dBA Double |
Outer Wrap | Full Steel Inclosure |
Motor Type | Variable Speed, BLDC |
ACCESSORIES | |

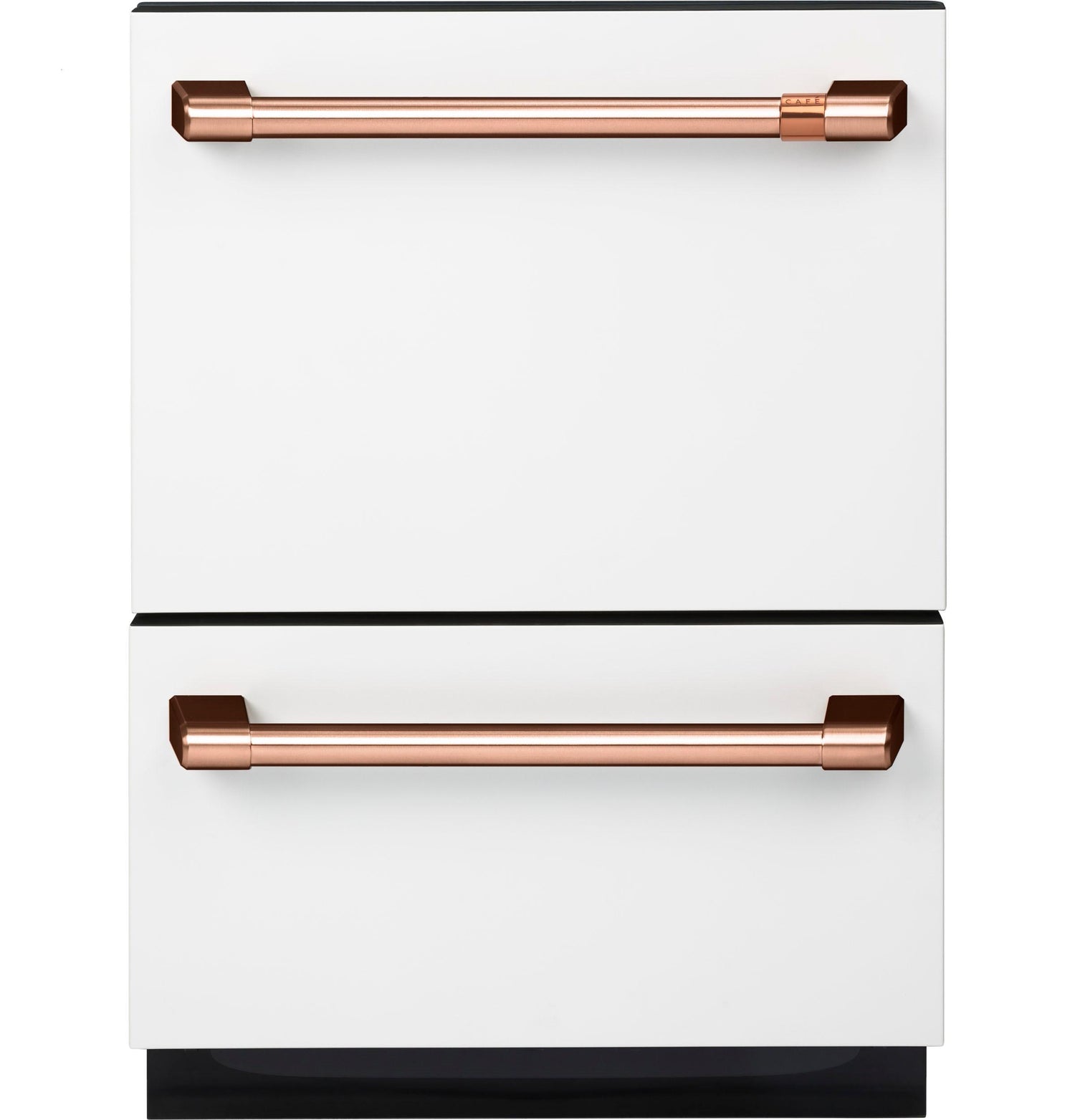

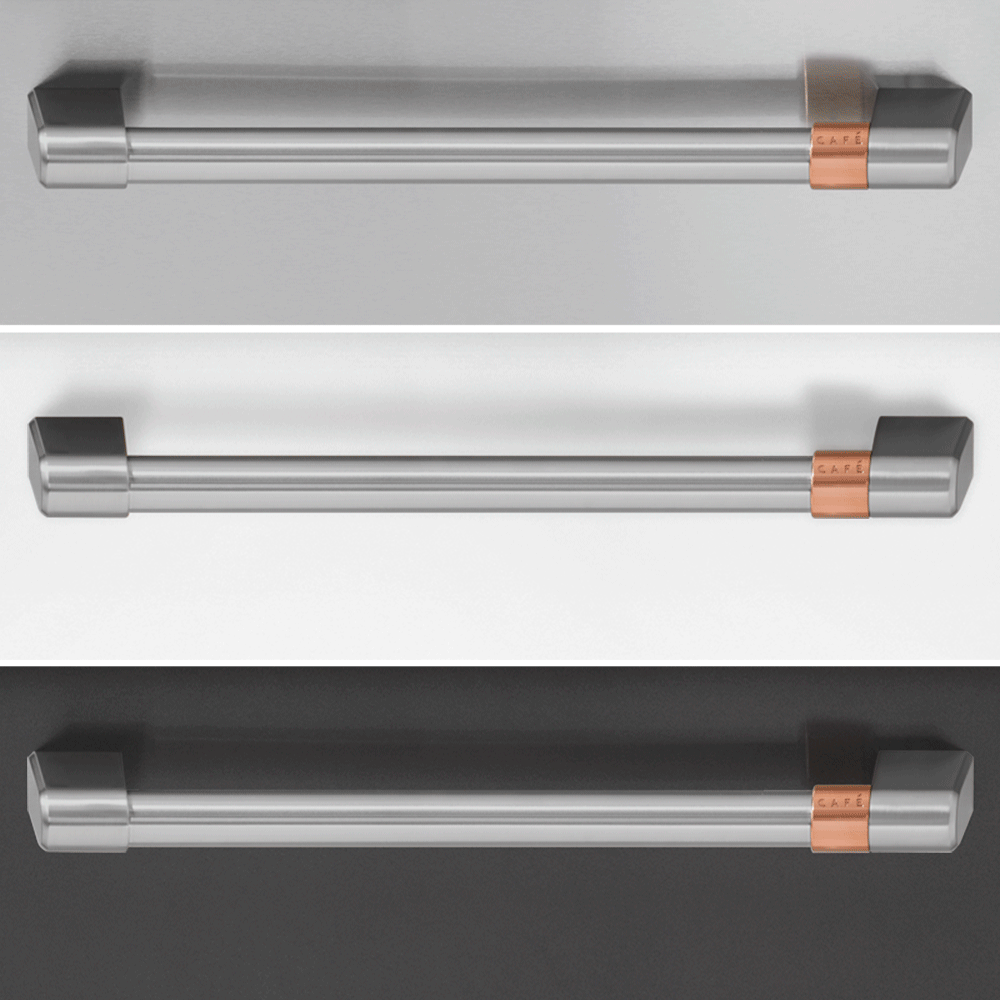

Optional Kits | CXQD2H2PNBT - Brushed Black CXQD2H2PNBZ - Brushed Bronze CXQD2H2PNCG - Brushed Brass CXQD2H2PNCU - Brushed Copper CXQD2H2PNFB - Flat Black CXQD2H2PNSS - Brushed Stainless |

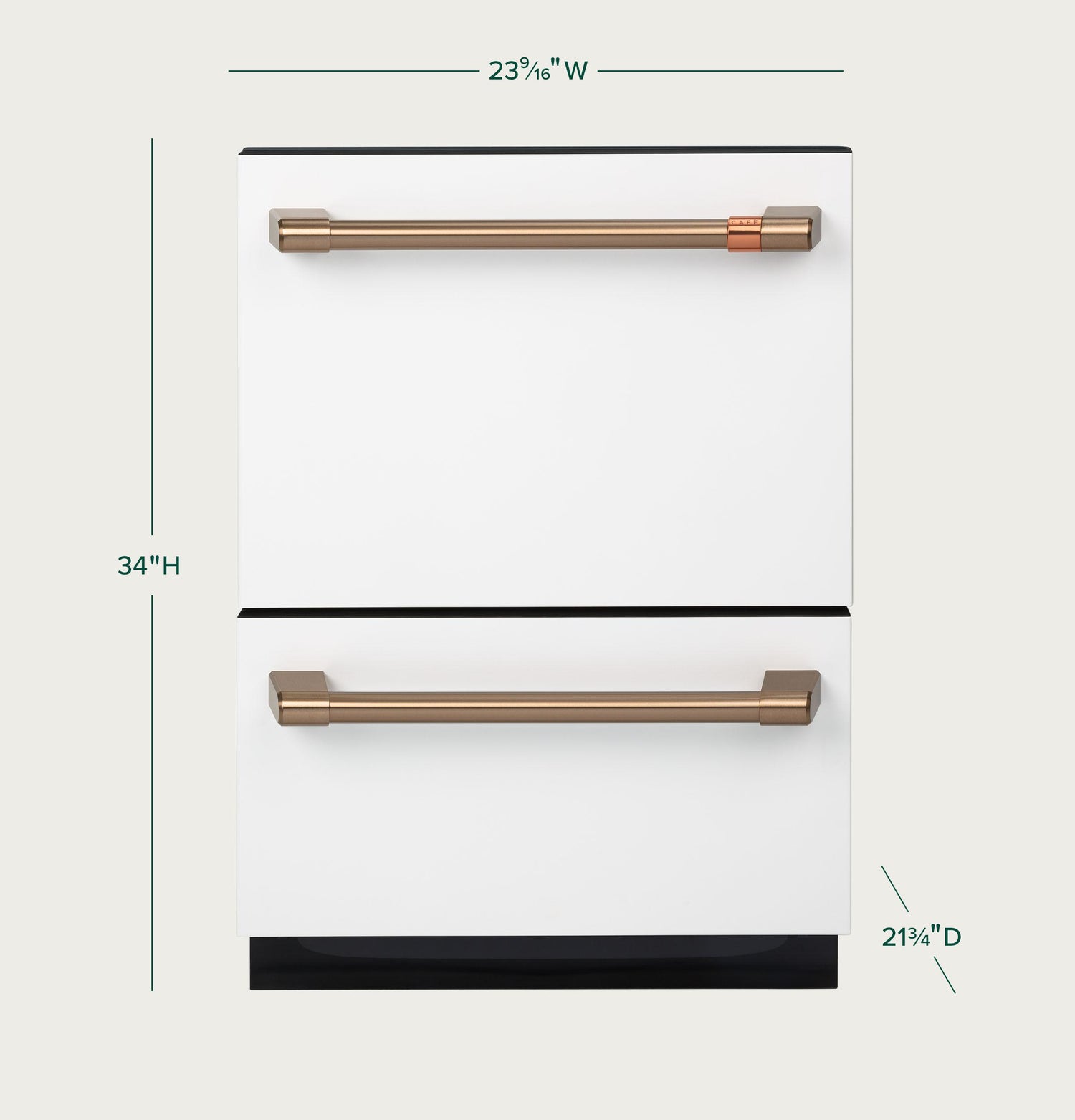

WEIGHTS & DIMENSIONS | |
Height w/ Legs Retracted - Minimum Height | 34 in |
Cutout Height (in) | 34 in |
Overall Depth | 0.1875 in |
Cabinet Width | 24 in |
Net Weight | 120 lb |
Overall Width | 23.5625 in |
Depth Without Handle | 0.5625 in |
Approximate Shipping Weight | 125 lb |
Overall Height | 34 in |
Overall Depth with Handle | 0.1875 in |
Height w/Legs Extended - Maximum Height | 36.375 in |
Depth with Door Open | 21.5625 in |
FEATURES | |
Wash System | 2 completely independent wash systems |
Tub Type | Double Drawer |
Leveling System | 4 Leveling Legs |
Additional Protection | Active Flood Protect |
Number of Place Settings | 14 |
Dishwasher Options | Ultra Dry; Fast; Sanitize; Lock Controls, Delay |
Latch | Pull with Handle; Interior lid closes during cycle |
Number of Options | 3 |
Style | Built-In Top Control |
Water Filtration System | 100% Filtration |
Lower Drawer | 4 Utility Shelves; 2 with StemSafe Fold Down Tines Lower drawer fits 10-1/2 inch plates Silverware Basket with cell covers Standard |
Rack Features | 2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket Ball-Tipped Tines Full Extension Slides |
Racking Material | Nylon |
Dishwasher Cycles | China Express Normal Plus Pots Rinse |
Upper Drawer | 4 Utility Shelves; 2 with StemSafe Fold Down Tines Large Silverware Basket with cell covers Upper drawer fits 13 inch plates |
Rack Color | Grigio |

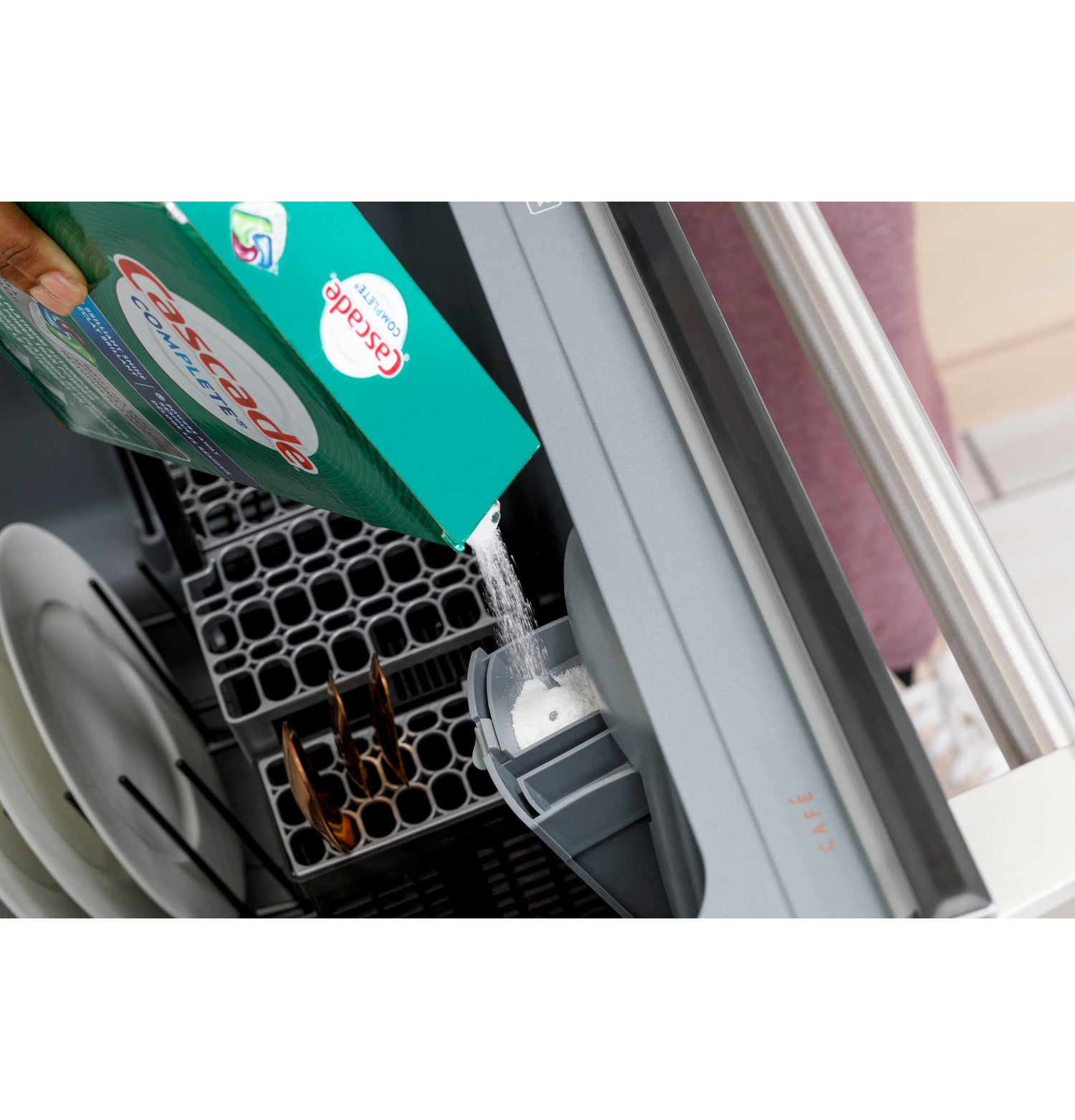

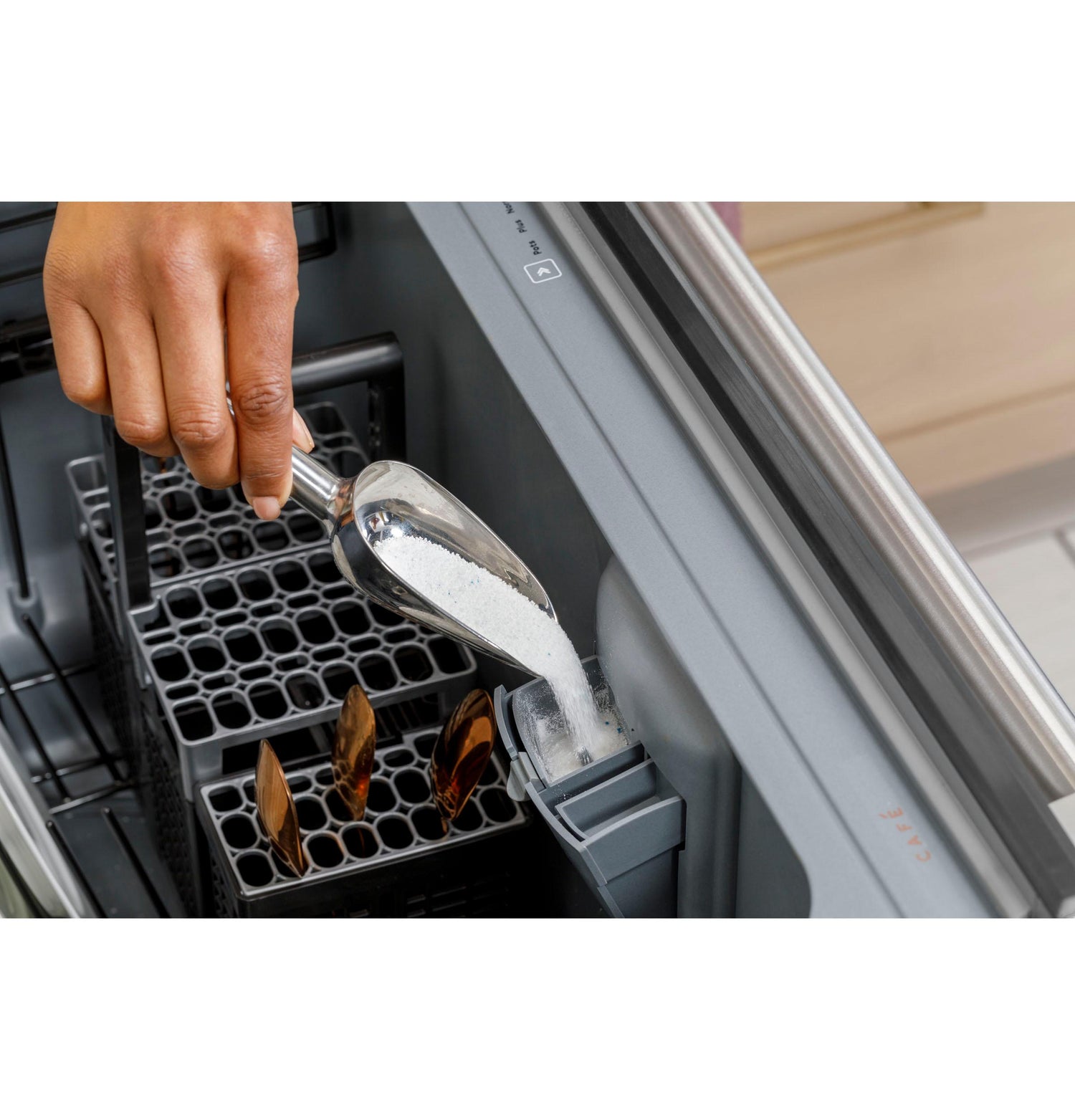

Dispenser | Rinse Aid |

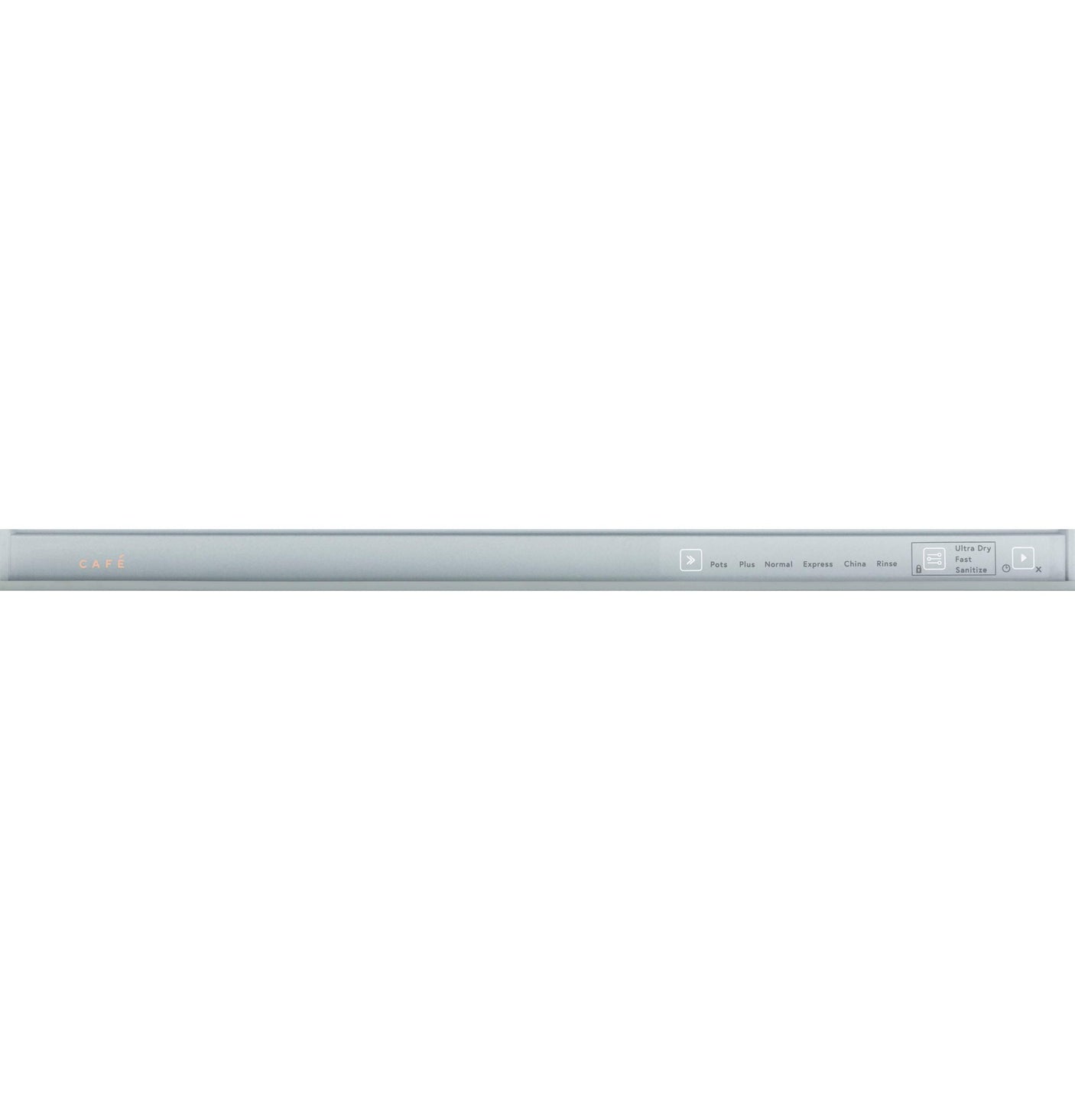

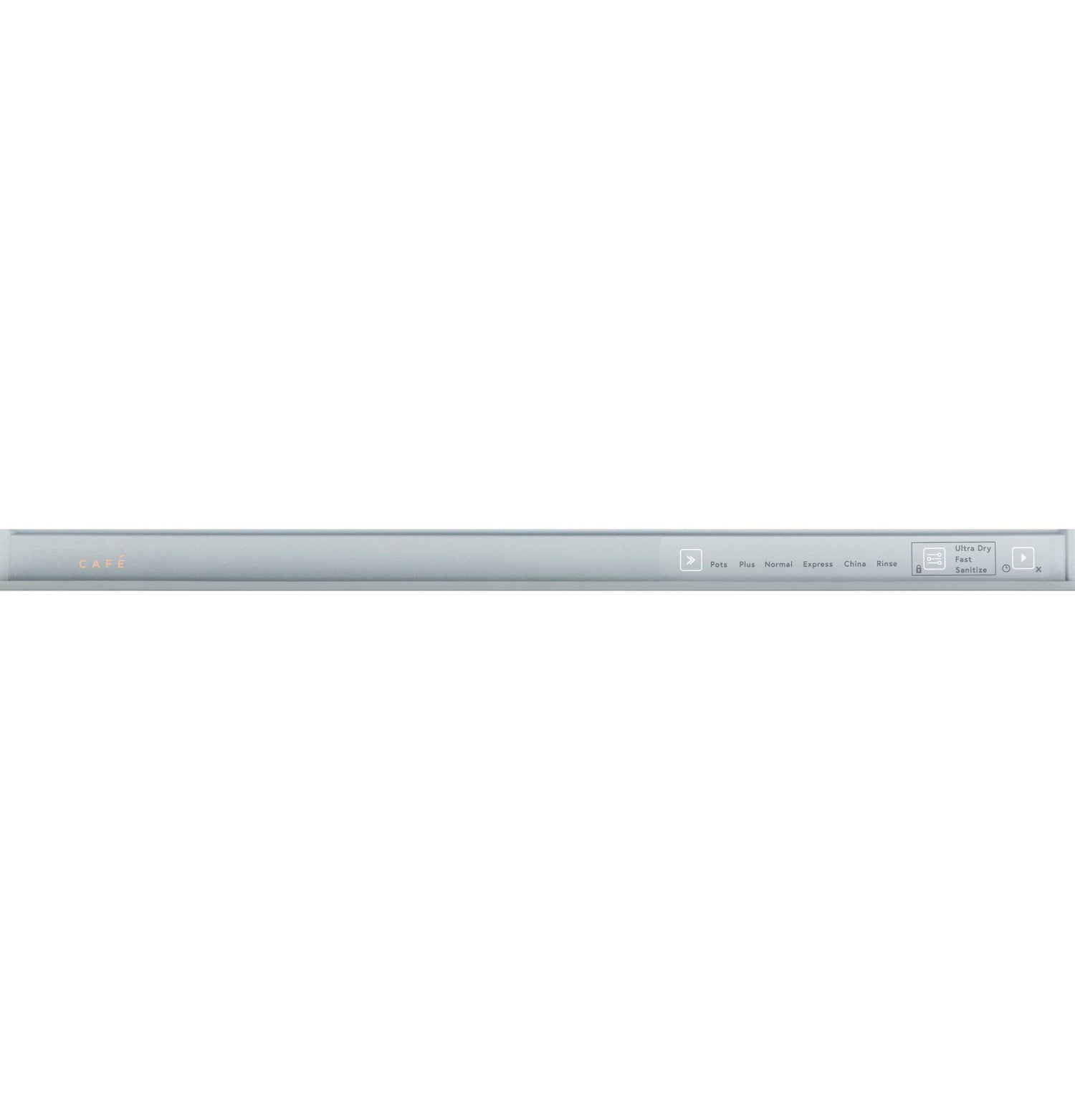

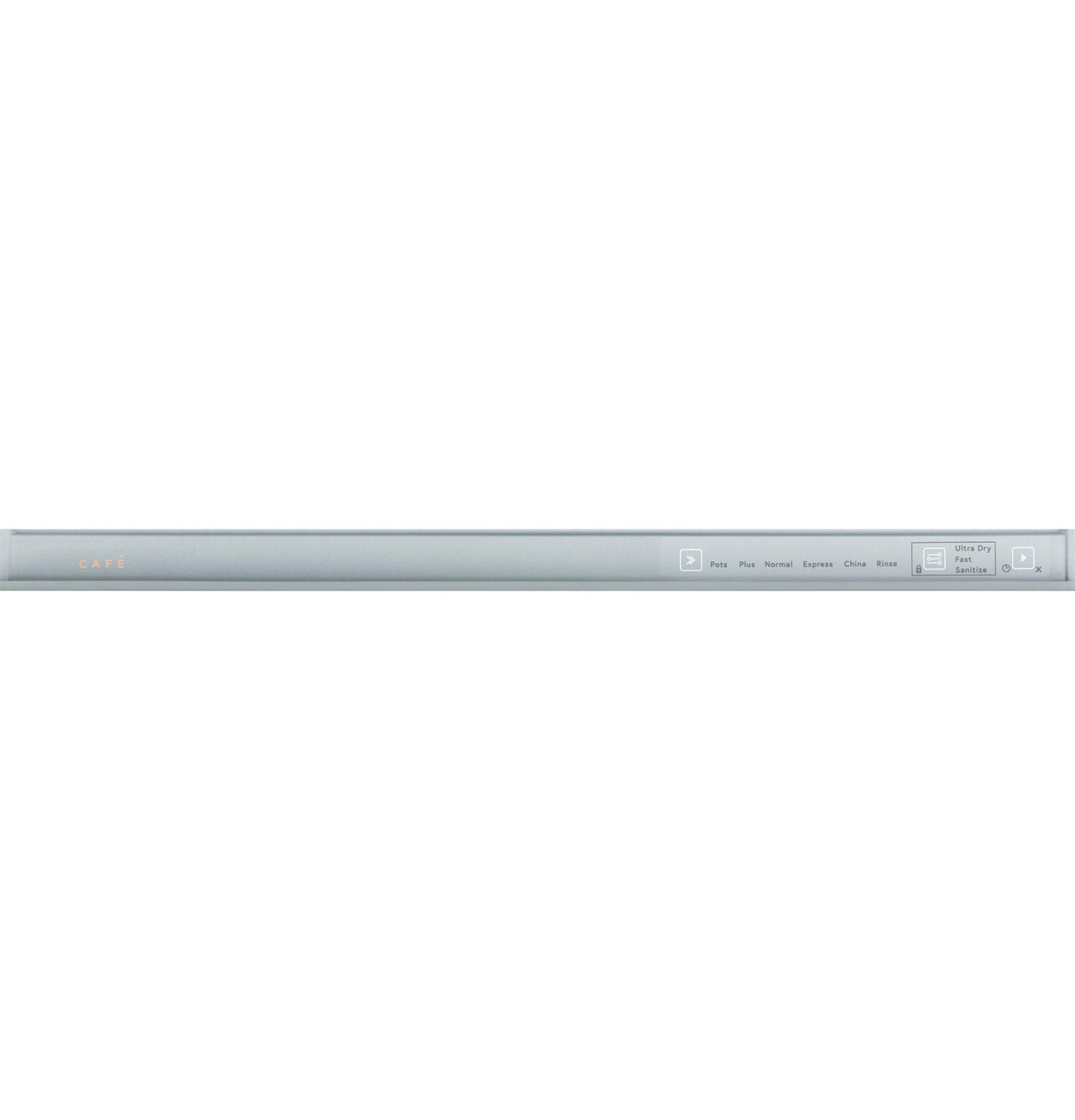

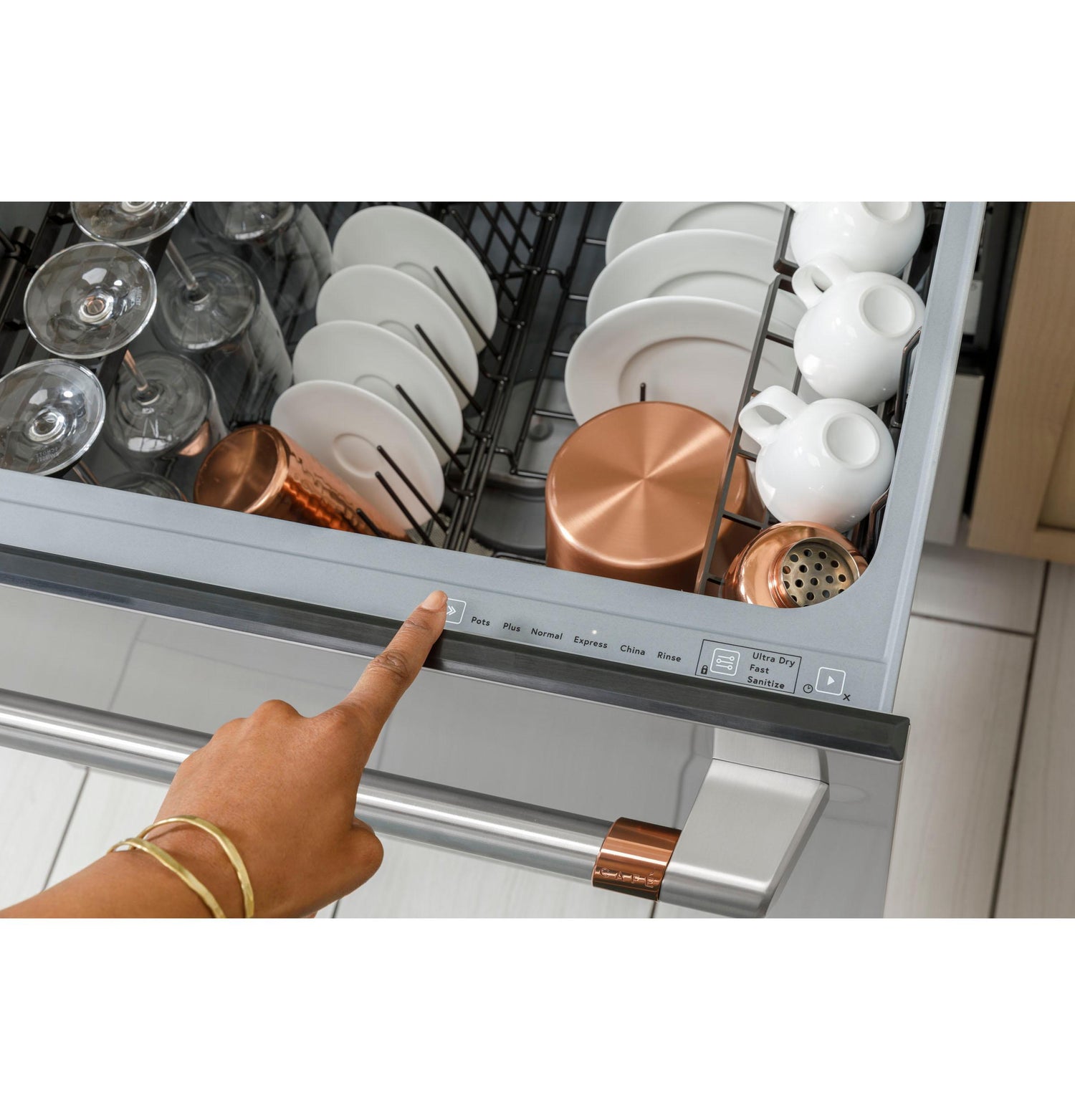

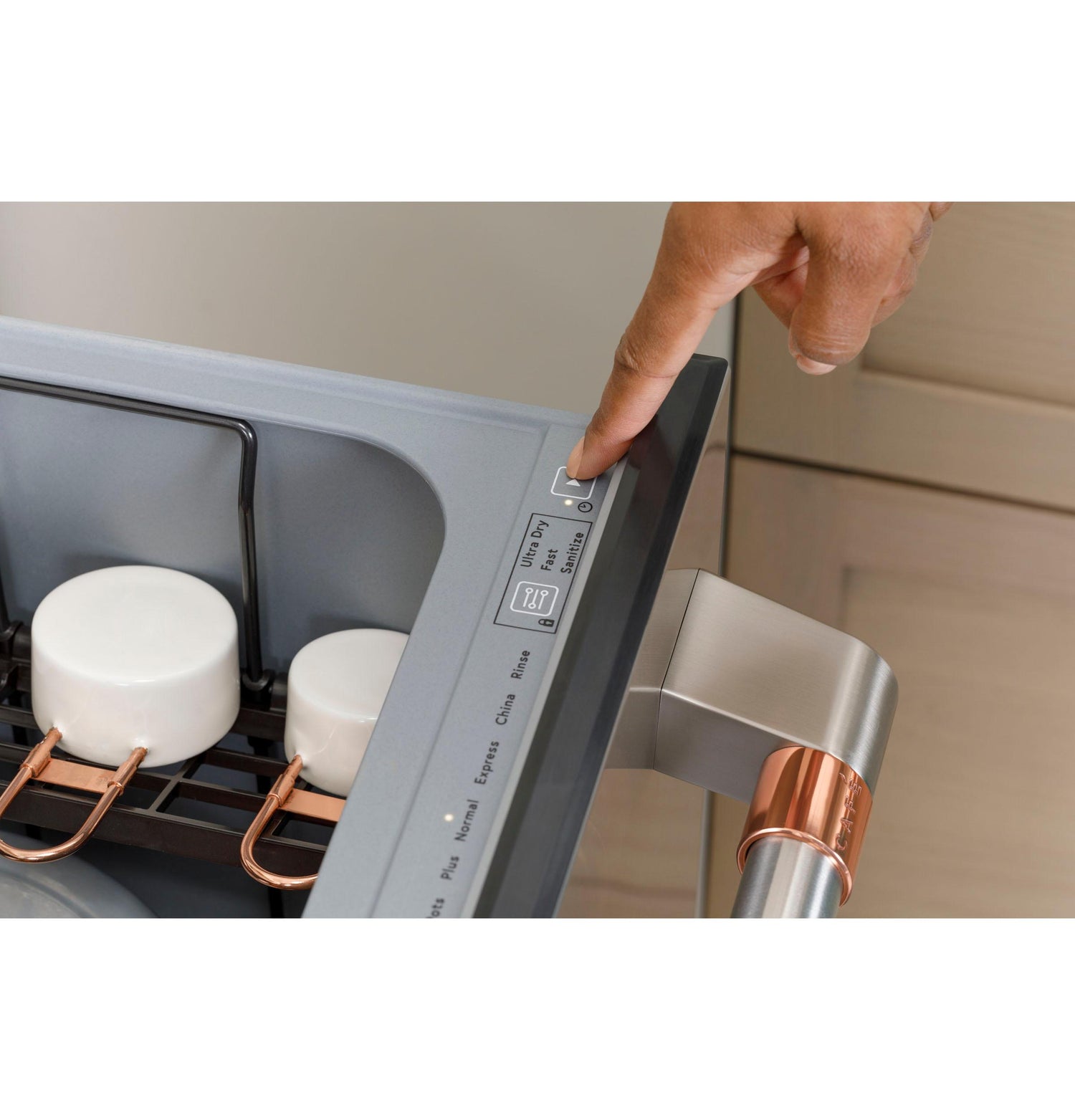

Control Type | 3 Touchpads Cap Touch Controls Top Controls |
Racking System | 2 Racks with 4 Cup Shelves |
Dishwasher Drying Features | Fan Assist Dry |
Wash Arms | 2 Total, 1 per Drawer |
Wash System Features | Automatic Temperature Control Single pump per system (identical per drawer); Water and Prime regulator for efficiency |
Exterior Style | Traditional |
Active Flood Protection | Active Flood Protect |
Product Type | Built-In |
Dishwasher Control Features | Delay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error |
Number of Cycles | 6 |
Tub and Door Liner | Gray Plastic |
Showroom Power Mode | Yes |
