Dishwasher
Quick Specifications
Quick Specifications
- Type : DISHWASHERS
- Style : BUILT IN DISHWASHER
- Height : 32.25"
- Depth : 21.81"
- Energy Star Rated : YES
- Wifi Connected : YES
- Sabbath Mode : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
Light Lock(TM)
Light plastic cans and bowls are easily flipped over and filled with water. The LightLock(TM) smart fixation helps them to retain their position throughout the program.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Vase/bottle holder
Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Connected
The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you re washing and how you prefer to wash it.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift(TM) you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
LED interior light
The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.
Status Light(TM)
ASKO s new generation dishwashers have Status Light(TM) -a small light placed in the bottom right corner to let you know the actual status of the program.
Instant Lift(TM)
Our InstantLift(TM) height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
Super Cleaning System(TM) (SCS(TM))
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One - and we call it the Super Cleaning System - or our best invention.
Flexiracks(TM)
ASKO Flexiracks(TM) from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
3 Level rack
ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
8 Steel(TM)
8 Steel(TM) - more steel less plasticNo other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
XL dishwashers
Our XL dishwashers have a loading height of 21-1/4". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Folding tines
The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.
- Residual heat
- Auto Door Open Drying(TM)
| Noise level (max) | 40 dB(A) |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XL |
| Automatic dosing system | No |

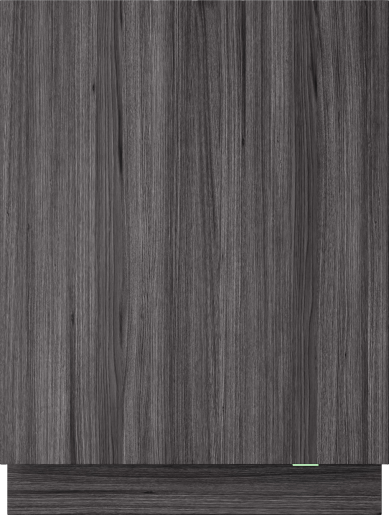

| Installation | Panel ready |
| Series | Logic |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 3 pcs |
| Number of spray zones | 9 |
| Cleaning systems | Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level. |
| Use and flexibility | |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Top tray | Easy height adjustment With telescopic rails Handle Removable Guide rails with ball bearings |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Upper basket system | Easy height adjustable with lever |
| Upper basket | Dividable pin rows Wine glass fixings in TPE Sliding tines for easy adaptation to stone ware etc. Perfect ergonomy with easy sliding telescopic rails Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Two foldable glass supports Divisble/foldable wine shelves to left Foldable wine shelves to right Handle with ASKO logo Small distance between the basket threads - makes loading easy and prevents small items to fall through |
| Middle basket | Without middle basket |
| Lower rack type | Exclusive |
| Lower rack | Sliding tines for easy adaptation to stone ware etc. Cutlery basket Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Foldable/divisible rear pin row Handle with ASKO logo Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Automatic dosing system | No |
| Interior light | Yes, 2 LED lights |
| Interaction and control | |
| Possible to control via Wi-Fi | Yes, integrated |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Chinese simpified Chinese traditional Swedish Slovenian Slovak Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish Czech Ukrainian |
| Functions, programs and modes | |
| Programs | Intensive program Auto wash Standard Time program Rinse and hold programme Quick Pro wash Self cleaning Sanitize |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Heat Boost Mode Night mode - Lower noise level. The program time is extended. Speed mode - The program time is shortened. More energy is used. Green mode - Less energy and water is used. The program time is extended Time set Super Rinse™ - Two extra rinses Enable/disable automatic door opening |
| Design and integration | |
| From the front adjustable door spring | Yes |
| From front adjustable rear foot | Yes |

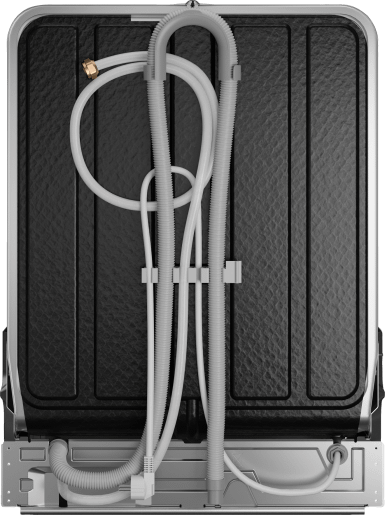

| Installation | Velcro strips for easy mounting and adjustment of the separate custom door Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | Yes |
| Possible to install elevated | Yes |
| Custom door size | Custom door size 720-800 |
| Min. niche width | 24 '' |
| Min. niche height | 32 5/16 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Height setting | 2 1/16 '' |
| Safety and maintenance | |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 40 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 125 min |
| Estimated yearly energy consumption | 220 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 647.5 gal |
| Water consumption | 3 gal |
| Power consumption in standby mode | 0.5 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 90.4 lb |
| ISO 9001 certified manufacturer | Yes |
| Dimensions | |
| Width | 23 15/16 '' |
| Height | 32 1/4 '' |
| Depth | 21 13/16 '' |
| Maximum product height | 34 5/16 '' |
| Length of electrical cord | 71 7/16 '' |
| Depth with door open | 48 15/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 35 1/16 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 97 lb |
| Product code | 740098 |
| EAN code | 3838782650666 |
| Noise level (max) | 40 dB(A) |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XL |
| Automatic dosing system | No |
| Installation | Panel ready |
| Series | Logic |
