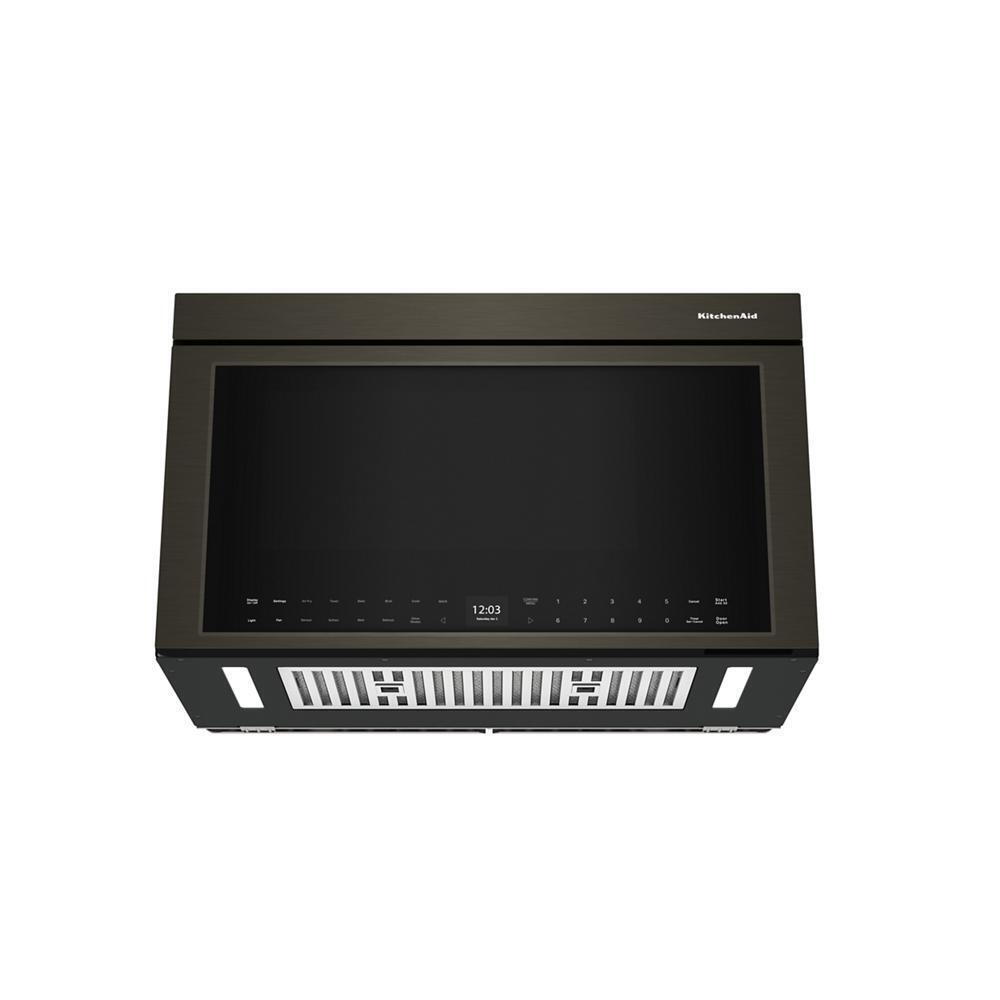

KitchenAid® Multifunction Over-the-Range Oven with Flush Built-In Design
Add to Cart to See Actual Price
KitchenAid® Multifunction Over-the-Range Oven with Flush Built-In Design is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : MICROWAVE
- Style : OVER THE RANGE MICROWAVE
- Height : 17.875
- Depth : 12.75
- Energy Star Rated : NO
- Wifi Connected : YES
- Microwave Capacity : 1.1
- Microwave Wattage : 950.0
- Recessed Turntable : NO
- Convection Microwave : YES
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
Multifunction Oven Modes
Replace a convection or toaster oven, freeing up counter space by elevating your baking, roasting, broiling and toasting. Triple heating elements and a fan direct heat where it's needed to cook at temperatures up to 450(degree)F.
Air Fry Mode
Replaces a countertop air fryer for all of the crisping with none of the clutter. Triple heating elements and a fan circulate hot air around the included air fry basket to crisp and brown food with less oil.*(BR)(BR)*When compared to deep frying.
- 1.1 Cu. Ft. Capacity
- Comfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish or multiple items at the same time.
- 950-Watt Microwave Cooking Power
- Cooks quickly to boil water, defrost ingredients or warm completed dishes to enjoy again.
- Air Bake Mode
- Uses triple heating elements and a fan for convection baking at temperatures up to 450(degree)F, eliminating the need for a countertop convection oven. The included oven rack fits a 9" x 13" pan.
- Air Fry Mode
- Replaces a countertop air fryer for all of the crisping with none of the clutter. Triple heating elements and a fan circulate hot air around the included air fry basket to crisp and brown food with less oil.*
*When compared to deep frying. - Backlit Touch Controls
- Illuminate when in use and fade unobtrusively into the sleek black glass of the oven door when the oven is off. A full-color LCD display makes it easy to see and select cooking modes, temperatures and cook times.
- Bake Mode
- Uses dual heating elements to bake at temperatures up to 450(degree)F, eliminating the need for a countertop convection or toaster oven. The included oven rack fits a 9" x 13" pan.
- Broil Mode
- Uses a grill element in the top of the oven to broil at temperatures up to 400(degree)F, eliminating the need for a countertop toaster oven. The included oven rack fits a 9" x 13" pan.
- Flush Built-In Design
- Provides a seamless built-in look within a standard 12 3/4 deep cutout. When closed, the microwave door fits evenly with surrounding cabinet fronts, so your kitchen stands out, not the appliance.
- Keep Warm Mode
- Maintains low heat for up to 60 minutes to keep cooked foods at serving temperature, allowing you to focus on other steps in your creative process or finish one dish while another rests.
- Microwave Cooking Modes
- Provide convenient presets for popular cooking tasks, including cook, reheat, soften, melt and defrost. The microwave will automatically adjust cook time and power levels for different foods and beverages, taking the guesswork out of choosing settings.
- Multifunction Oven Modes
- Replace a convection or toaster oven, freeing up counter space by elevating your baking, roasting, broiling and toasting. Triple heating elements and a fan direct heat where it's needed to cook at temperatures up to 450(degree)F.
- Roast Mode
- Uses dual heating elements and a fan to roast at temperatures up to 450(degree)F, eliminating the need for a countertop convection oven. The included oven rack fits a 9" x 13" pan.
- Smart Appliance
- Gives you control over every stage of cooking. Remotely preheat, monitor and control the microwave oven with the KitchenAid™ App or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.*
*WiFi & App Required. Features subject to change. Details & privacy info at kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada). Appliance must be set to Remote Enable. Google® is a trademark of Google LLC. Alexa is a trademark of Amazon.com, Inc. or its affiliates. - Stainless Steel Covered Grease Filters
- Conceal aluminum mesh filters behind a sleek stainless steel panel for a fully finished look. Filters use multiple layers of screening to help capture the grease and odors of high-heat cooking and remove for easy cleaning with soap and water.
- Steam Clean Mode
- Uses the power of steam to help loosen cooked-on food without the need for harsh cleaners. After running this cycle, just wipe down the inside of the microwave with a damp cloth.
- Three-Speed 400 CFM Motor Class* Ventilation System *Performance varies based on installation. Resources available at AHAM.org
- Features low, medium and high settings to help clear the air of smoke and steam, keeping up with all kinds of cooking adventures, from gentle simmering to high-heat searing.
- Toast Mode
- With included toasting pan combines direct heat from a toast element on the bottom of the oven and indirect heat from a grill element in the top to achieve your preferred level of browning, eliminating the need for a countertop toaster oven.
- Turntable-Free Design
- Maximizes cooking space for large dishes or multiple items at the same time. A hidden motor circulates microwave heating throughout the entire oven, eliminating the need for a traditional turntable.
- Two LED Lights with Night Light Setting
- Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
- What's in the box
- Model KMMF530P includes a Dishwasher-Safe Air Fry Basket, a Toasting Pan, and an Oven Rack
- 1.1 Cu. Ft. Capacity fits casserole dishes, mixing bowls and more
- 950-Watt Microwave Cooking Power for fast cooking and defrosting
- Multifunction Oven Modes for Bake, Roast, Broil and Toast
- Roast Mode with included oven rack
- Wi-Fi enabled model with smart features and mobile app
- Stainless Steel Covered Grease Filters for a fully finished look
- Steam Clean Mode helps loosen cooked-on food for easy cleaning
- Three-Speed Ventilation System helps clear the air of smoke and steam
- Toast Mode with included toasting pan
- Turntable-Free Design maximizes cooking space to fit large items
- Two LED Lights with Night Light Setting
- Includes air fry basket, toasting pan and oven rack
- Air Bake Mode with included oven rack
- Air Fry Mode replaces a countertop air fryer
- Backlit Touch Controls make it easy to see and select cooking modes
- Bake Mode with included oven rack
- Broil Mode with included oven rack
- Flush built-in design provides a built-in look within standard 12 3/4" cabinet cutouts
- Keep Warm Mode keeps cooked food at serving temperature
- Microwave Cooking Modes for Cook, Reheat, Soften, Melt and Defrost
Certifications | |
Ada Compliant | No |
Cec Listed | Yes |
Cul | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Bottom |
Control Type | Electronic Touch |
Convenience Cooking Controls | Yes |
Display Color | Full Color |
Electronic Display Type | LCD |
Microwave Selections | Add 30 Seconds; Air Fry; Auto Cook; Beverage; Convect; Cook Power; Cook Time; Cook/Start; Crisp; Defrost; Dinner Plate; End of Cycle Signal; Fresh Vegetable; Keep Warm; Languages - English/French; Off/Cancel; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; Steam Clean; Time Cook; Timer |
Number of Keypads | 32 |
Number of Power Levels | 10 |
Number of Sensor Control Keypads | 4 |
One Touch Cooking | Yes |
Scrolling Electronic Display | Yes |
Details | |
Cavity Finish | Stainless |
Clock | Yes |
Door Opening Direction | Left |
Grill | Yes |
Grill Power | 1,700 |
Microwave Type | Over-the-Range |
Number of Vent Speeds | 3 |
Turntable | N/A |
Work Surface Light | LED |
Dimensions | |
Product Height | 17.875 |
Cutout Height Max | 18 |
Carton Height | 21.1 |
Gross Weight | 83 |
Display Screen Diagonal Length | 2.4 |
Carton Width | 32.9 |
Product Depth | 12.75 |
Cutout Depth Max | 13 |
Depth With Door Open 90 Degree | 41.5 |
Interior Depth | 11 |
Depth Excluding Doors | 12.75 |
Depth Closed Excluding Handles | 12.75 |
Depth Closed Including Handles | 12.75 |
Interior Height | 9.125 |
Carton Depth | 16.7 |
Cutout Depth Min | 12.75 |
Cutout Width Max | 30 |
Net Weight | 74.1 |
Product Width | 30.0 |
Interior Width | 18.125 |
Electrical | |
Power Cord Included | Yes |
Exterior Details | |
Cabinet Color | Black |
Handle Color | N/A |
General | |
Microwave Interior Light | LED |
Microwave Details | |
Door Release | Touch to Open |
Number of Microwave Racks | 1 |
Sensor Cooking | Yes |
Turntable Diameter Size | 0 |
Oven Details | |
Convection | Yes |
Convection Power | 1,400 |
Cooking Power | 950 |
Smart Compatibility | |
Connectivity | Amazon Alexa; Google Assistant |
Smart Appliance | Yes |
Works With | App; Remote Access; Voice Controlled; WiFi |
Ventilation Details | |
Blower Type | Centrifugal |
Cfm Motor Class | 400 |
Duct Direction | Vertical or Horizontal |
Duct Outlet Size | 3.25 W x 10 H |
Duct Type | Rectangular |
Fan Speed Indicator | Yes |
Filters | Charcoal Recirculating Filter; Dishwasher Safe Grease Filter |
Night Light | Yes |
Vent Fan Location | Back |
Ventilation Type | Updraft |
Venting | Exterior or Recirculating |
